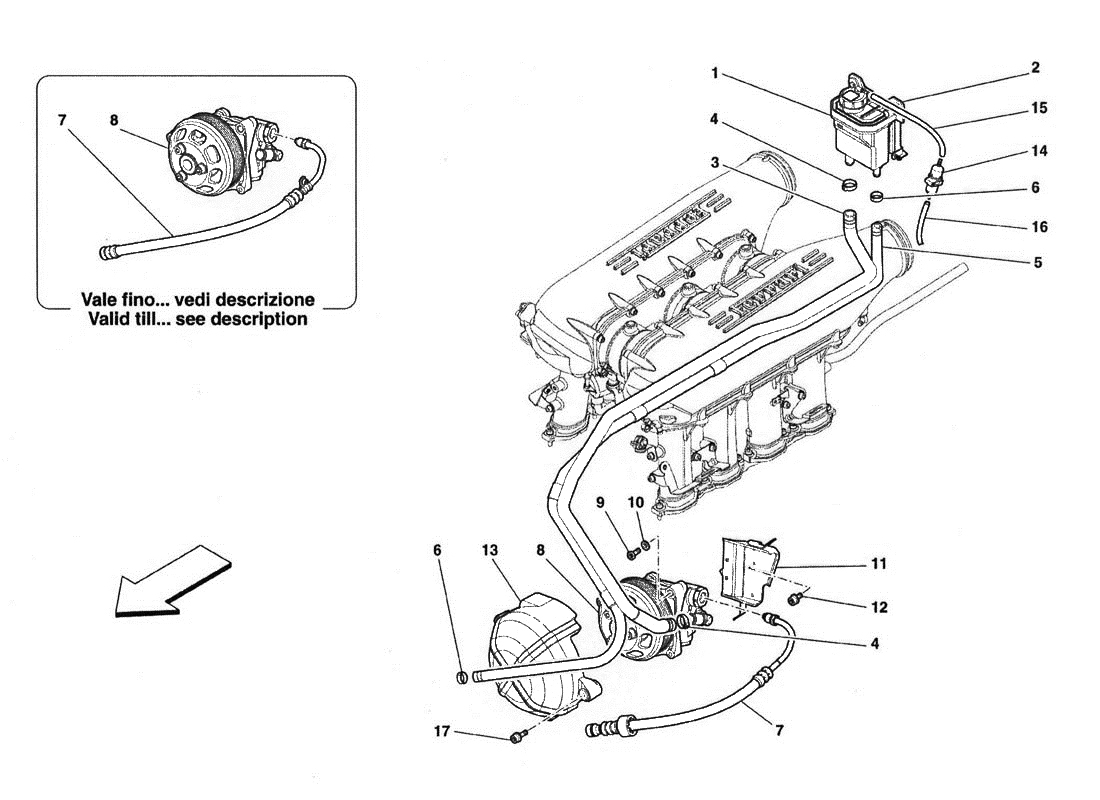

HYDRAULIC STEERING PUMP AND TANK

Go to Split View

HYDRAULIC STEERING PUMP AND TANK

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 233605 *Qty: 1 POWER STEERING FLUID RESERVOIR $84.21
Location: 2 Prev | Next Part: 261447 *Qty: 1 FLUID RESERVOIR BRACKET Call
Location: 3 Prev | Next Part: 253816 *Qty: 1 PIPE FROM RESERVOIR TO POWER STEERING PUMP $65.22
Location: 4 Prev | Next Part: 178053 *Qty: 2 CLAMP -No longer supplied- -Replaced by 183126- $1.78
Location: 4 Prev | Next Part: 183126 *Qty: 2 RING CLAMP $1.51
Location: 5 Prev | Next Part: 259121 *Qty: 1 PIPE FROM UNDERFLOOR TO RESERVOIR -Applicable up to Ass. No. 90801 for EU LHD -Applicable up to Ass. No. 91118 for Gulf- Call
Location: 5 Prev | Next Part: 263541 *Qty: 1 PIPE FROM UNDERFLOOR TO RESERVOIR -Applicable from Ass. No. 90802 for EU LHD Applicable from Ass. No. 91119 for Gulf- Call
Location: 5 Prev | Next Part: 263541 *Qty: 1 PIPE FROM UNDERFLOOR TO RESERVOIR -From start of production- -Applicable for non Gulf and EU LHD markets- Call
Location: 6 Prev | Next Part: 178051 *Qty: 2 CLAMP -No longer supplied- -Replaced by 178052- $1.51
Location: 6 Prev | Next Part: 178052 *Qty: 2 RING CLAMP $1.63
Location: 7 Prev | Next Part: 259122 *Qty: 1 DELIVERY PIPE -Applicable up to Ass. No. 90801 for EU LHD- -Applicable up to Ass. No. 91118 for Gulf- $989.44
Location: 7 Prev | Next Part: 263052 *Qty: 1 DELIVERY PIPE -Applicable from Ass. No. 90802 for EU LHD- -Applicable from Ass. No. 91119 for Gulf- $183.60
Location: 7 Prev | Next Part: 263052 *Qty: 1 DELIVERY PIPE -From start of production- -Applicable for non Gulf and EU LHD markets- $183.60
Location: 8 Prev | Next Part: 275785 *Qty: 1 COMPL. POWER STEERING PUMP Call
Location: 9 Prev | Next Part: 231629 *Qty: 1 SCREW -M8x 30- $0.90
Location: 9 Prev | Next Part: 14306824 *Qty: 2 SCREW -M8x 45- $0.90
Location: 10 Prev | Next Part: 11193874 *Qty: 2 WASHER $0.90
Location: 11 Prev | Next Part: 262828 *Qty: 1 HEAT SHIELD $206.76
Location: 12 Prev | Next Part: 231616 *Qty: 3 SCREW $0.90
Location: 13 Prev | Next Part: 261916 *Qty: 1 SOUNDPROOFING COVER $164.81
Location: 14 Prev | Next Part: 242915 *Qty: 1 PRESSURE REGULATOR CYLINDER $42.42
Location: 15 Prev | Next Part: 261684 *Qty: 1 RUBBER PIPE FROM RESERVOIR TO CYLINDER $3.74
Location: 16 Prev | Next Part: 261685 *Qty: 1 RUBBER PIPE FROM CYLINDER TO BOTTOM $21.78
Location: 17 Prev | Next Part: 231621 *Qty: 3 SCREW $0.90
Location: 18 Prev | Next Part: 259135 *Qty: 1 POWER STEERING PUMP PIPE BRACKET $9.99
Location: 19 Prev | Next Part: 233600 *Qty: 1 SCREW $0.90
Location: 20 Prev | Next Part: 261937 *Qty: 1 POWER STEERING PIPE GUARD Call

* Quantity shown indicates the number of pieces used in the diagram.
