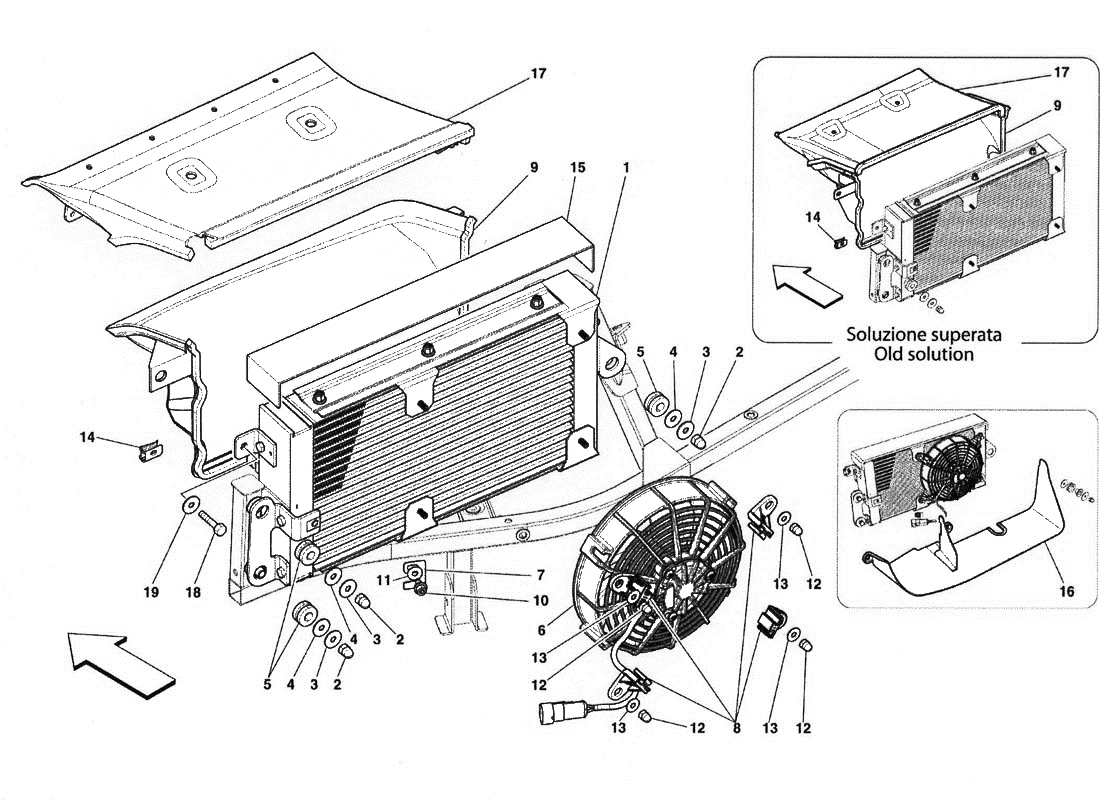

GEARBOX OIL COOLING RADIATORS

Go to Split View

GEARBOX OIL COOLING RADIATORS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 261256 *Qty: 1 RH RADIATOR $1,032.60
Location: 1 Prev | Next Part: 261257 *Qty: 1 LH RADIATOR $1,467.95
Location: 2 Prev | Next Part: 14054577 *Qty: 6 CAP NUT $0.90
Location: 3 Prev | Next Part: 12648901 *Qty: 12 WASHER $0.90
Location: 4 Prev | Next Part: 255048 *Qty: 6 SHIM Call
Location: 5 Prev | Next Part: 255047 *Qty: 6 GROMMET $4.97
Location: 6 Prev | Next Part: 257823 *Qty: 1 COMPL. LH RADIATOR ELECTRIC FAN $340.08
Location: 7 Prev | Next Part: 155751 *Qty: 1 CLIP $5.74
Location: 8 Prev | Next Part: 257824 *Qty: 4 BRACKET $7.34
Location: 9 Prev | Next Part: 263310 *Qty: 1 RH AIR DUCT ON OIL RADIATOR -No longer supplied- -Replaced by 263310- $66.09
Location: 9 Prev | Next Part: 263310 *Qty: 1 RH AIR DUCT ON OIL RADIATOR $66.09
Location: 9 Prev | Next Part: 263312 *Qty: 1 LH AIR DUCT ON OIL RADIATOR -No longer supplied- -Replaced by 263312- $66.09
Location: 9 Prev | Next Part: 263312 *Qty: 1 LH AIR DUCT ON OIL RADIATOR $66.09
Location: 10 Prev | Next Part: 11566224 *Qty: 1 SCREW $0.90
Location: 11 Prev | Next Part: 12638178 *Qty: 1 WASHER $0.90
Location: 12 Prev | Next Part: 168698 *Qty: 4 NUT $2.33
Location: 13 Prev | Next Part: 12638178 *Qty: 4 WASHER $0.90
Location: 14 Prev | Next Part: 66927700 *Qty: 6 BRACKET WITH COLLAR $1.44
Location: 14 Prev | Next Part: 14189071 *Qty: 4 BRACKET FOR SCREWS $0.97
Location: 15 Prev | Next Part: 264386 *Qty: 2 PROTECTIVE FOAM FOR OIL RADIATORS $5.17
Location: 16 Prev | Next Part: 83021900 *Qty: 1 LH AIR DUCT -Applicable until depletion- $298.27
Location: 16 Prev | Next Part: 83021900 *Qty: 1 LH AIR DUCT -Applicable after depletion of 260785- $298.27
Location: 16 Prev | Next Part: 83021800 *Qty: 1 RH AIR DUCT -Applicable until depletion- $298.27
Location: 16 Prev | Next Part: 83021800 *Qty: 1 RH AIR DUCT -Applicable after depletion of 260784- $298.27
Location: 17 Prev | Next Part: 82953900 *Qty: 1 RH AIR DUCT ON BODYSHELL -No longer supplied- $365.48
Location: 17 Prev | Next Part: 82953900 *Qty: 1 RH AIR DUCT ON BODYSHELL $365.48
Location: 17 Prev | Next Part: 82954200 *Qty: 1 LH AIR DUCT ON BODYSHELL -No longer supplied- -Replaced by 82954200- $365.48
Location: 17 Prev | Next Part: 82954200 *Qty: 1 LH AIR DUCT ON BODYSHELL $365.48
Location: 18 Prev | Next Part: 10902024 *Qty: 4 SCREW $0.90
Location: 19 Prev | Next Part: 12643724 *Qty: 4 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
