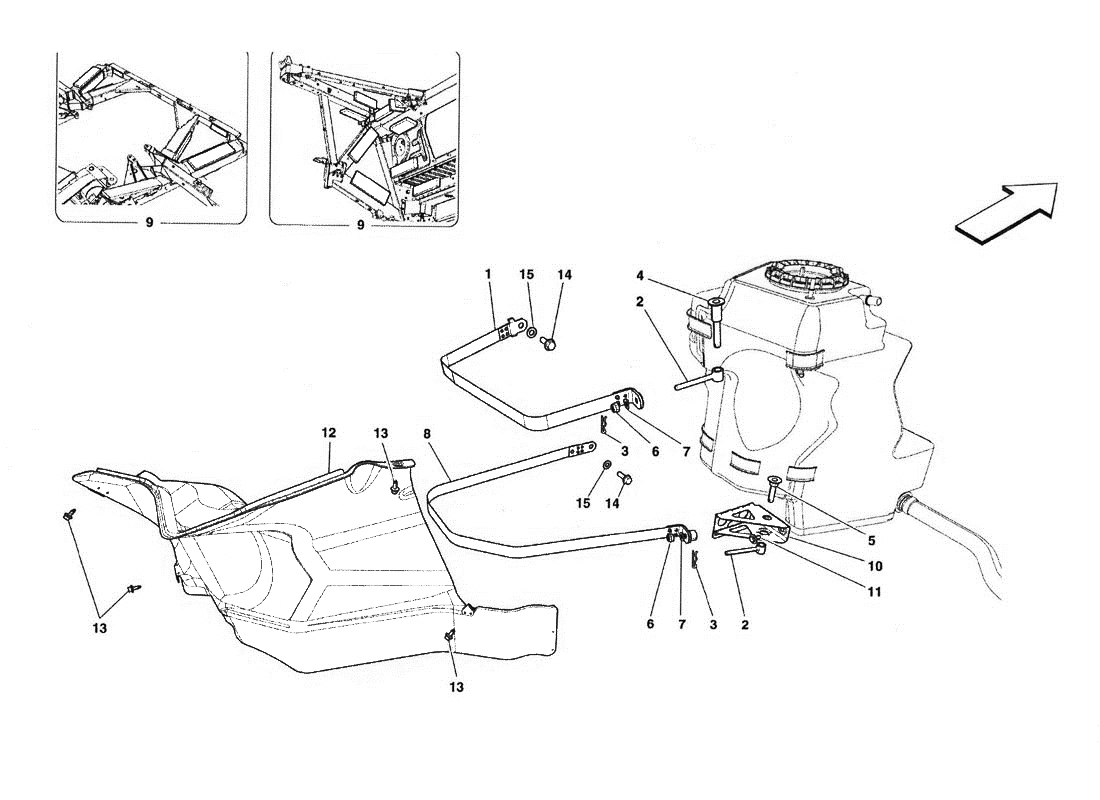

FUEL TANKS - FIXING AND PROTECTION

Go to Split View

FUEL TANKS - FIXING AND PROTECTION

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 256028 *Qty: 2 UPPER TANK RETAINER STRAP -Applicable up to Ass. No. 89228- $104.87
Location: 1 Prev | Next Part: 263506 *Qty: 1 UPPER RH TANK RETAINER STRAP -Applicable from Ass. No. 89229- Call
Location: 1 Prev | Next Part: 263507 *Qty: 1 UPPER LH TANK RETAINER STRAP -Applicable from Ass. No. 89229- Call
Location: 2 Prev | Next Part: 250516 *Qty: 4 TANK STRAP TIE-ROD -Applicable up to Ass. No. 89228- $27.27
Location: 2 Prev | Next Part: 263505 *Qty: 4 TANK STRAP TIE-ROD -Applicable from Ass. No. 89229- Call
Location: 3 Prev | Next Part: 10796440 *Qty: 4 SPLIT PIN -No longer supplied- -Replaced by 264555- $0.90
Location: 3 Prev | Next Part: 264555 *Qty: 4 SPLIT PIN Call
Location: 4 Prev | Next Part: 256037 *Qty: 2 UPPER PIN $14.54
Location: 5 Prev | Next Part: 256055 *Qty: 2 LOWER PIN $12.89
Location: 6 Prev | Next Part: 104030 *Qty: 4 NUT -Applicable up to Ass. No. 89228- $0.90
Location: 6 Prev | Next Part: 14058511 *Qty: 4 NUT -Applicable from Ass. No. 89229- $0.90
Location: 7 Prev | Next Part: 14496524 *Qty: 4 WASHER $0.90
Location: 8 Prev | Next Part: 256038 *Qty: 1 LOWER RH TANK RETAINER STRAP -Applicable up to Ass. No. 89228- $587.33
Location: 8 Prev | Next Part: 263508 *Qty: 1 LOWER RH TANK RETAINER STRAP -Applicable from Ass. No. 89229- Call
Location: 8 Prev | Next Part: 256040 *Qty: 1 LOWER LH TANK RETAINER STRAP -Applicable up to Ass. No. 89228- $234.92
Location: 8 Prev | Next Part: 263509 *Qty: 1 LOWER LH TANK RETAINER STRAP -Applicable from Ass. No. 89229- Call
Location: 9 Prev | Next Part: 262732 *Qty: 1 FUEL TANK ANTI-VIBRATION PAD KIT $257.19
Location: 10 Prev | Next Part: 68984500 *Qty: 4 SCREW $3.82
Location: 11 Prev | Next Part: 11190574 *Qty: 4 WASHER $0.90
Location: 12 Prev | Next Part: 268570 *Qty: 1 RH TANK HEAT INSULATION -Applicable until depletion- $1,869.16
Location: 12 Prev | Next Part: 268570 *Qty: 1 RH TANK HEAT INSULATION -Applicable after depletion of 262785- $1,869.16
Location: 12 Prev | Next Part: 268568 *Qty: 1 LH TANK HEAT INSULATION -Applicable until depletion- Call
Location: 12 Prev | Next Part: 268568 *Qty: 1 LH TANK HEAT INSULATION -Applicable after depletion of 262784- Call
Location: 13 Prev | Next Part: 11585024 *Qty: 17 SCREW -M5x 14- $0.90
Location: 14 Prev | Next Part: 256047 *Qty: 1 RH MOUNTING BRACKET FOR REMOVABLE SUBFRAME -Applicable up to Ass. No. 89228- Call
Location: 14 Prev | Next Part: 263510 *Qty: 1 RH MOUNTING BRACKET FOR REMOVABLE SUBFRAME -Applicable from Ass. No. 89229- Call
Location: 14 Prev | Next Part: 256050 *Qty: 1 LH MOUNTING BRACKET FOR REMOVABLE SUBFRAME -Applicable up to Ass. No. 89228- Call
Location: 14 Prev | Next Part: 263513 *Qty: 1 LH MOUNTING BRACKET FOR REMOVABLE SUBFRAME -Applicable from Ass. No. 89229- Call
Location: 15 Prev | Next Part: 81591700 *Qty: 4 SCREW Call

* Quantity shown indicates the number of pieces used in the diagram.
