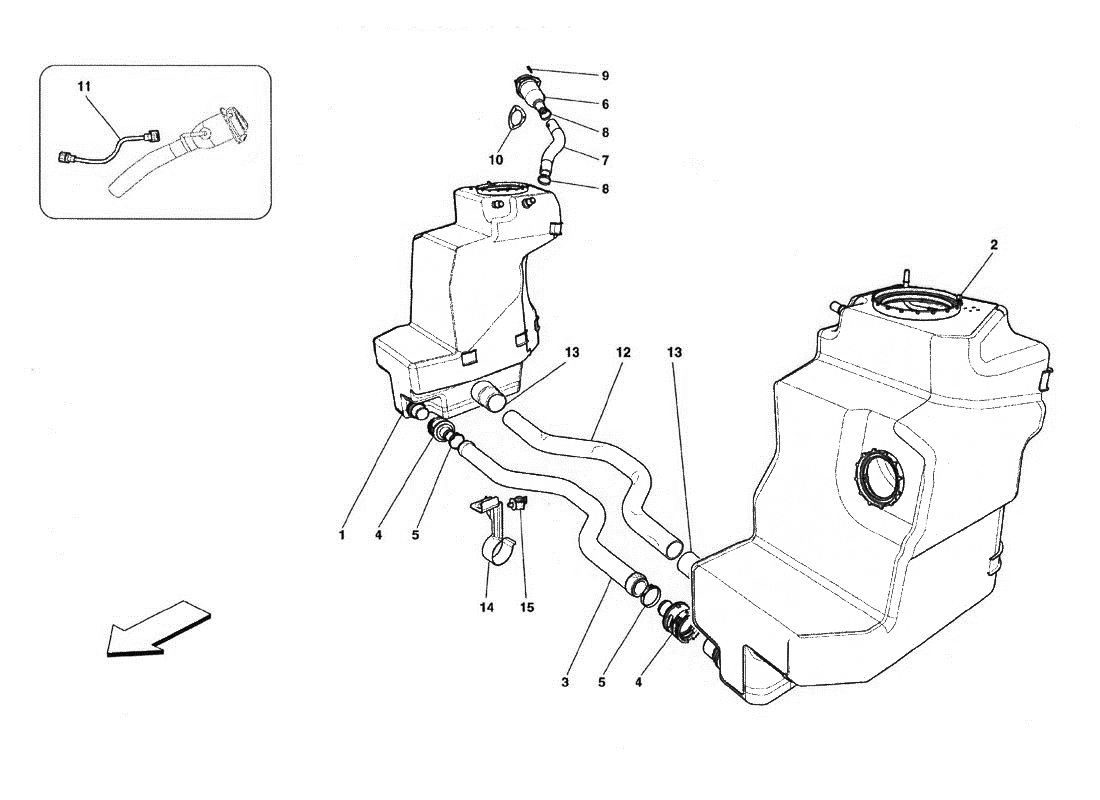

FUEL TANKS AND UNION

Go to Split View

FUEL TANKS AND UNION

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 257456 *Qty: 1 RH FUEL TANK $3,946.70
Location: 2 Prev | Next Part: 257458 *Qty: 1 LH FUEL TANK $3,946.70
Location: 3 Prev | Next Part: 259565 *Qty: 1 TANK CONNECTOR PIPE Call
Location: 4 Prev | Next Part: 238949 *Qty: 2 QUICK CONNECTOR $288.82
Location: 5 Prev | Next Part: 10718770 *Qty: 2 COLLAR -No longer supplied- -Replaced by 10718670- $2.89
Location: 5 Prev | Next Part: 10718670 *Qty: 2 COLLAR $1.64
Location: 6 Prev | Next Part: 254609 *Qty: 1 FUEL FILLER NECK Call
Location: 7 Prev | Next Part: 257359 *Qty: 1 FUEL FILLER PIPE Call
Location: 8 Prev | Next Part: 10718770 *Qty: 2 COLLAR -No longer supplied--Replaced by 10718670- $2.89
Location: 8 Prev | Next Part: 10718670 *Qty: 2 COLLAR $1.64
Location: 9 Prev | Next Part: 256717 *Qty: 3 SCREW $9.37
Location: 10 Prev | Next Part: 260240 *Qty: 1 FILLER NECK FLANGE GASKET $13.86
Location: 11 Prev | Next Part: 262678 *Qty: 1 FUEL VAPOUR RECIRCULATION PIPE -Not for USA and CDN- Call
Location: 11 Prev | Next Part: 265161 *Qty: 1 FUEL VAPOUR RECIRCULATION PIPE -Applicable for USA and CDN- Superseded
Location: 12 Prev | Next Part: 260825 *Qty: 1 PIPE PROTECTOR SHEATH Call
Location: 13 Prev | Next Part: 262588 *Qty: 2 PIPE UNION PROTECTOR SHEATH Call
Location: 14 Prev | Next Part: 259771 *Qty: 1 CONNECTOR PIPE MOUNTING BRACKET -Applicable up to Ass. No. 90801 for EU LHD--Applicable up to Ass. No. 91118 for Gulf- Call
Location: 14 Prev | Next Part: 264936 *Qty: 1 CONNECTOR PIPE MOUNTING BRACKET -Applicable from Ass. No. 90802 for EU LHD--Applicable from Ass. No. 91119 for Gulf- Call
Location: 14 Prev | Next Part: 264936 *Qty: 1 CONNECTOR PIPE MOUNTING BRACKET -From start of production- -Applicable for non Gulf and EU LHD markets- Call
Location: 15 Prev | Next Part: 250318 *Qty: 1 CLIP -Applicable from Ass. No. 90802 for EU LHD- -Applicable from Ass. No. 91119 for Gulf--Applicable for bracket 264936 ref. 14- $0.90
Location: 15 Prev | Next Part: 250318 *Qty: 1 CLIP -From start of production- -Applicable for non Gulf and EU LHD markets- $0.90

* Quantity shown indicates the number of pieces used in the diagram.
