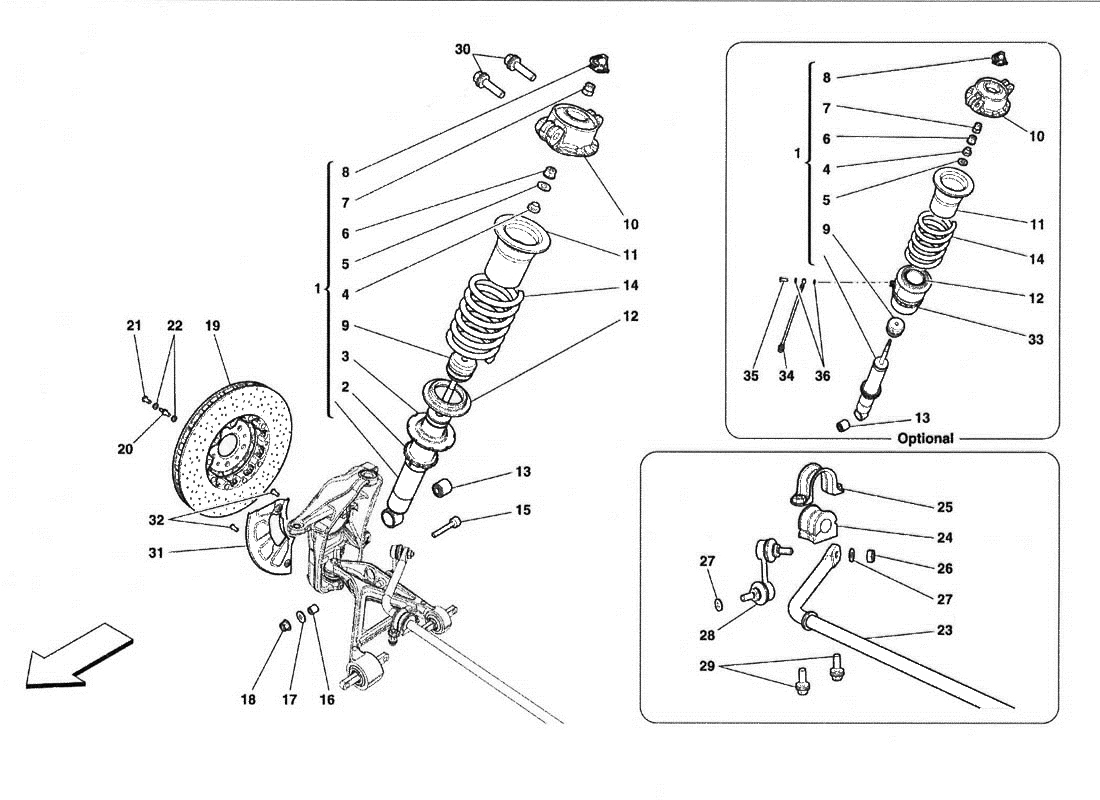

FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

Go to Split View

FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 255863 *Qty: 2 FRONT SHOCK ABSORBER $2,674.24
Location: 1 Prev | Next Part: 260057 *Qty: 2 FRONT SHOCK ABSORBER -Vehicle lift system- $5,155.03
Location: 2 Prev | Next Part: 220351 *Qty: 2 RING NUT $58.69
Location: 2 Prev | Next Part: 263196 *Qty: 2 RING NUT -Vehicle lift system- $192.48
Location: 3 Prev | Next Part: 251483 *Qty: 2 SPRING RETAINER $170.46
Location: 3 Prev | Next Part: 263195 *Qty: 2 SPRING RETAINER -Vehicle lift system- $170.46
Location: 4 Prev | Next Part: 220383 *Qty: 2 BUSHING $21.74
Location: 5 Prev | Next Part: 220377 *Qty: 2 WASHER $9.99
Location: 6 Prev | Next Part: 220378 *Qty: 2 NUT $2.64
Location: 7 Prev | Next Part: 220382 *Qty: 2 NUT $26.23
Location: 8 Prev | Next Part: 234671 *Qty: 2 UPPER CONNECTOR $55.78
Location: 9 Prev | Next Part: 254942 *Qty: 2 ENDSTOP BUSH $73.43
Location: 10 Prev | Next Part: 250394 *Qty: 2 STOP CAP $281.66
Location: 11 Prev | Next Part: 212517 *Qty: 2 UPPER SPACER $12.34
Location: 12 Prev | Next Part: 188996 *Qty: 2 LOWER SPACER $16.00
Location: 12 Prev | Next Part: 188996 *Qty: 2 LOWER SPACER -Vehicle lift system- -No longer supplied- -Replaced by 188996- $16.00
Location: 13 Prev | Next Part: 157630 *Qty: 2 BALL JOINT $72.50
Location: 14 Prev | Next Part: 247985 *Qty: 2 FRONT SUSPENSION SPRING $132.73
Location: 14 Prev | Next Part: 256059 *Qty: 2 FRONT SUSPENSION SPRING -Vehicle lift system- $140.24
Location: 15 Prev | Next Part: 237297 *Qty: 2 SCREW $40.91
Location: 16 Prev | Next Part: 237821 *Qty: 2 BUSHING $6.55
Location: 17 Prev | Next Part: 12646921 *Qty: 2 WASHER $0.90
Location: 18 Prev | Next Part: 255271 *Qty: 2 NUT $1.85
Location: 19 Prev | Next Part: 251858 *Qty: 2 FRONT BRAKE DISC Call
Location: 20 Prev | Next Part: 104370 *Qty: 2 SCREW $0.90
Location: 21 Prev | Next Part: 228131 *Qty: 2 SCREW $1.06
Location: 22 Prev | Next Part: 228132 *Qty: 4 WASHER $0.90
Location: 23 Prev | Next Part: 254092 *Qty: 1 STABILISER BAR $423.67
Location: 24 Prev | Next Part: 236241 *Qty: 2 STABILISER BAR BUSH $30.61
Location: 25 Prev | Next Part: 245822 *Qty: 2 RETAINER BRACKET $25.46
Location: 26 Prev | Next Part: 12164714 *Qty: 2 NUT $0.90
Location: 27 Prev | Next Part: 12601474 *Qty: 4 WASHER $0.90
Location: 28 Prev | Next Part: 246120 *Qty: 1 RH BALL JOINT TIE-ROD $114.74
Location: 28 Prev | Next Part: 246119 *Qty: 1 LH BALL JOINT TIE-ROD $114.74
Location: 29 Prev | Next Part: 245843 *Qty: 4 SCREW $3.10
Location: 30 Prev | Next Part: 248790 *Qty: 4 SCREW $5.37
Location: 31 Prev | Next Part: 260259 *Qty: 1 FRONT RH DISC SHIELD. $43.15
Location: 31 Prev | Next Part: 260258 *Qty: 1 FRONT LH DISC SHIELD $43.15
Location: 32 Prev | Next Part: 190870 *Qty: 4 SCREW $2.89
Location: 33 Prev | Next Part: 262384 *Qty: 2 COMPL. ACTUATOR -Vehicle lift system- $1,891.11
Location: 34 Prev | Next Part: 260409 *Qty: 2 HOSE FOR VEHICLE LIFT -Vehicle lift system- $302.56
Location: 35 Prev | Next Part: 261587 *Qty: 2 PIPE UNION -Vehicle lift system- $33.49
Location: 36 Prev | Next Part: 259638 *Qty: 4 GASKET -Vehicle lift system- $13.06
Location: 37 Prev | Next Part: 268474 *Qty: 2 DUST COVER -Vehicle lift system- $12.49

* Quantity shown indicates the number of pieces used in the diagram.
