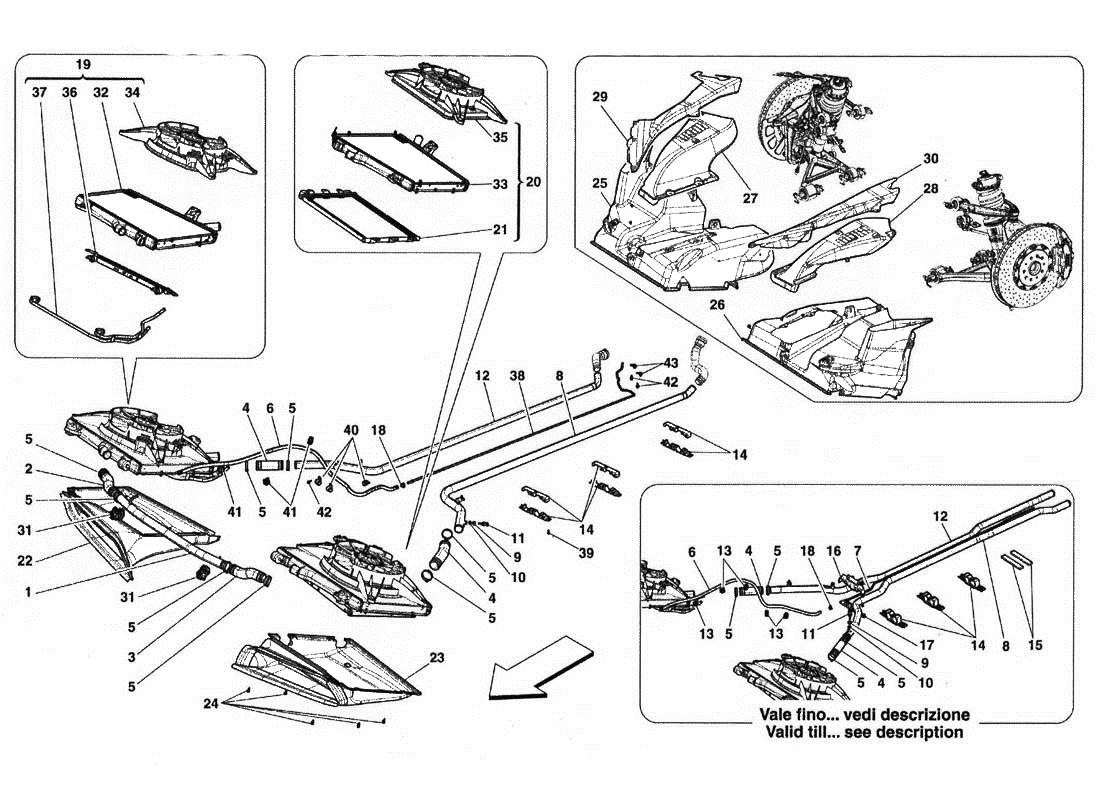

COOLING - RADIATORS AND AIR DUCTS

Go to Split View

COOLING - RADIATORS AND AIR DUCTS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 265669 *Qty: 1 WATER PIPE -No longer supplied- -Replaced by 265669- $201.39
Location: 1 Prev | Next Part: 265669 *Qty: 1 WATER PIPE $201.39
Location: 2 Prev | Next Part: 251271 *Qty: 1 RUBBER CONNECTOR PIPE TO RH SIDE RADIATORS $51.69
Location: 3 Prev | Next Part: 251273 *Qty: 1 RUBBER CONNECTOR PIPE TO LH SIDE RADIATORS $52.45
Location: 4 Prev | Next Part: 237511 *Qty: 2 RUBBER PIPE -Applicable up to Ass. No. 90801 for EU LHD- -Applicable up to Ass. No. 91118 for Gulf- $47.93
Location: 4 Prev | Next Part: 262473 *Qty: 2 RUBBER PIPE -Applicable from Ass. No. 90802 for EU LHD- -Applicable from Ass. No. 91119 for Gulf- $55.80
Location: 4 Prev | Next Part: 262473 *Qty: 2 RUBBER PIPE -From start of production- -Applicable for non Gulf and EU LHD markets- $55.80
Location: 5 Prev | Next Part: 10861170 *Qty: 8 COLLAR $1.60
Location: 6 Prev | Next Part: 259797 *Qty: 1 VENT PIPE -Applicable up to Ass. No. 90801 for EU LHD- -Applicable up to Ass. No. 91118 for Gulf- $73.41
Location: 6 Prev | Next Part: 262477 *Qty: 1 VENT PIPE -Applicable from Ass. No. 90802 for EU Ihd- -Applicable from Ass. No. 91119 for Gulf- Applicable until depletion- Call
Location: 6 Prev | Next Part: 262477 *Qty: 1 VENT PIPE -From start of production- -Applicable for non-Gulf and EU Ihd markets- -Applicable until depletion- Call
Location: 6 Prev | Next Part: 267276 *Qty: 1 VENT PIPE -Applicable from Ass. No. 90802 for EU Ihd- -Applicable from Ass. No. 91119 for Gulf -Applicable after depletion of 262477- $74.61
Location: 6 Prev | Next Part: 267276 *Qty: 1 VENT PIPE -From start of production- -Applicable for non-Gulf and EU Ihd markets- -Applicable after depletion of 262477- $74.61
Location: 7 Prev | Next Part: 249019 *Qty: 1 UNDERFLOOR SELF-BLEEDING PIPE -Applicable up to Ass. No. 90801 for EU LHD- -Applicable up to Ass. No. 91118 for Gulf- $89.30
Location: 8 Prev | Next Part: 262153 *Qty: 1 WATER DELIVERY PIPE -Applicable up to Ass. No. 90801 for EU LHD- -Applicable up to Ass. No. 9118 for Gulf- $425.94
Location: 8 Prev | Next Part: 262496 *Qty: 1 WATER DELIVERY PIPE -From start of production- -Applicable for USA and CDN- $261.36
Location: 8 Prev | Next Part: 265889 *Qty: 1 WATER DELIVERY PIPE -From start of production- -Not for USA and CDN- $212.25
Location: 9 Prev | Next Part: 10300540 *Qty: 1 THREADED PLUG -Applicable for delivery pipe 262496 ref.8- $2.44
Location: 10 Prev | Next Part: 10298460 *Qty: 1 GASKET $0.90
Location: 11 Prev | Next Part: 180137 *Qty: 1 TEMPERATURE SENSOR -Applicable for delivery pipe 262496 ref.8- $31.45
Location: 12 Prev | Next Part: 260044 *Qty: 1 WATER RETURN PIPE -Applicable up to Ass. No. 90801 for EU LHD- -Applicable up to Ass. No. $410.67
Location: 12 Prev | Next Part: 262497 *Qty: 1 WATER RETURN PIPE -Applicable from Ass. No. 90802 for EU LHD- -Applicable from Ass. No. 9119 for Gulf $270.25
Location: 12 Prev | Next Part: 262497 *Qty: 1 WATER RETURN PIPE -From start of production- -Applicable for non Gulf and EU LHD markets- $270.25
Location: 13 Prev | Next Part: 247440 *Qty: 5 CLIP -Applicable up to Ass. No. 90801 for EU LHD- -Applicable up to Ass. No. 91118 for Gulf- $0.90
Location: 14 Prev | Next Part: 81759500 *Qty: 3 BRACKET -Applicable up to Ass. No. 90801 for EU LHD- -Applicable up to Ass. No. 91118 for Gulf- $36.28
Location: 14 Prev | Next Part: 263067 *Qty: 2 COMPL. PILLORY BLOCK -Applicable from Ass. No. 90802 for EU Ihd- -Applicable from Ass. No. 91119 for Gulf - Call
Location: 14 Prev | Next Part: 263067 *Qty: 2 COMPL. PILLORY BLOCK -From start of production- -Applicable for non-Gulf and EU Ihd markets- Call
Location: 14 Prev | Next Part: 264833 *Qty: 1 COMPL. PILLORY BLOCK -Applicable from Ass. No. 90802 for EU Ihd- -Applicable from Ass. No.91119 for Gulf- Call
Location: 14 Prev | Next Part: 264833 *Qty: 1 COMPL. PILLORY BLOCK -From start of production- -Applicable for non-Gulf and EU Ihd markets- Call
Location: 15 Prev | Next Part: 257194 *Qty: 2 PAD -Applicable up to Ass. No. 90801 for EU LHD- -Applicable up to Ass. No. 91118 for Gulf- $2.22
Location: 16 Prev | Next Part: 260833 *Qty: 1 UPPER PILLORY BLOCK -Applicable up to Ass. No. 90801 for EU LHD- -Applicable up to Ass. No. 91118 for Gulf- $234.99
Location: 17 Prev | Next Part: 260834 *Qty: 1 LOWER PILLORY BLOCK -Applicable up to Ass. No. 90801 for EU LHD- -Applicable up to Ass. No. 91118 for Gulf- Call
Location: 18 Prev | Next Part: 13125470 *Qty: 2 COLLAR Call
Location: 19 Prev | Next Part: 262832 *Qty: 1 COMPL. RH WATER RADIATOR Call
Location: 20 Prev | Next Part: 263294 *Qty: 1 COMPL. LH WATER RADIATOR -No longer supplied- -Replaced by 263294- Call
Location: 20 Prev | Next Part: 263294 *Qty: 1 COMPL. LH WATER RADIATOR Call
Location: 21 Prev | Next Part: 262836 *Qty: 1 CONDENSER $1,036.20
Location: 22 Prev | Next Part: 81368900 *Qty: 1 LOWER RH DUCT -Applicable up to Ass. No. 92096- -Applicable until depletion- Call
Location: 22 Prev | Next Part: 82911000 *Qty: 1 LOWER RH DUCT -Applicable from Ass. No. 92097- -Applicable after depletion of 81368900- $339.51
Location: 23 Prev | Next Part: 82910900 *Qty: 1 LOWER LH DUCT -Applicable up to Ass. No. 92096- -Applicable until depletion- $339.51
Location: 23 Prev | Next Part: 82910900 *Qty: 1 LOWER LH DUCT -Applicable from Ass. No. 92097- -Applicable after depletion of 81369000- $339.51
Location: 24 Prev | Next Part: 13290024 *Qty: 8 SCREW $0.90
Location: 24 Prev | Next Part: 80874700 *Qty: 4 SCREW Superseded
Location: 24 Prev | Next Part: 15699804 *Qty: 2 SCREW $0.90
Location: 25 Prev | Next Part: 82910800 *Qty: 1 UPPER RH DUCT. LOWER SECTION -Applicable up to Ass. No. 92096- -Applicable until depletion- $389.22
Location: 25 Prev | Next Part: 82910800 *Qty: 1 UPPER RH DUCT. LOWER SECTION -Applicable from Ass. No. 92097- -Applicable after depletion of 81369100- $389.22
Location: 26 Prev | Next Part: 82910700 *Qty: 1 UPPER LH DUCT. LOWER SECTION -Applicable up to Ass. No. 92096- -Applicable until depletion- $467.55
Location: 26 Prev | Next Part: 82910700 *Qty: 1 UPPER LH DUCT. LOWER SECTION -Applicable from Ass. No. 92097- -Applicable after depletion of 81369200- $467.55
Location: 27 Prev | Next Part: 82745100 *Qty: 1 UPPER RH DUCT. UPPER SECTION $265.16
Location: 28 Prev | Next Part: 82745800 *Qty: 1 UPPER LH DUCT. UPPER SECTION $265.16
Location: 29 Prev | Next Part: 82746300 *Qty: 1 RH BRAKE COOLING DUCT $89.30
Location: 30 Prev | Next Part: 82746400 *Qty: 1 LH BRAKE COOLING DUCT $89.30
Location: 31 Prev | Next Part: 258919 *Qty: 2 CLIP $1.35
Location: 32 Prev | Next Part: 270265 *Qty: 1 RH WATER RADIATOR $1,843.07
Location: 33 Prev | Next Part: 262837 *Qty: 1 LH WATER RADIATOR $1,598.80
Location: 34 Prev | Next Part: 254063 *Qty: 1 RH ELECTRIC FAN $858.23
Location: 35 Prev | Next Part: 263253 *Qty: 1 LH ELECTRIC FAN -No longer supplied- -Replaced by 263253- $1,027.49
Location: 35 Prev | Next Part: 263253 *Qty: 1 LH ELECTRIC FAN $1,027.49
Location: 36 Prev | Next Part: 82243300 *Qty: 1 POWER STEERING FLUID RADIATOR $411.26
Location: 37 Prev | Next Part: 262505 *Qty: 1 POWER STEERING FLUID RADIATOR PIPES $240.50
Location: 38 Prev | Next Part: 262478 *Qty: 1 PIPE -Applicable from Ass. No. 90802 for EU LHD- -Applicable from Ass. No. 91119 for Gulf- $85.19
Location: 38 Prev | Next Part: 262478 *Qty: 1 PIPE -From start of production- -Applicable for non Gulf and EU LHD markets- $85.19
Location: 39 Prev | Next Part: 13833614 *Qty: 6 SCREW -Applicable from Ass. No. 90802 for EU LHD- -Applicable from Ass. No. 91119 for Gulf- $1.58
Location: 39 Prev | Next Part: 13833614 *Qty: 6 SCREW -From start of production- -Applicable for non Gulf and EU LHD markets- $1.58
Location: 40 Prev | Next Part: 10441490 *Qty: 3 BRACKET WITH SHEATH -Applicable from Ass. No. 90802 for EU LHD- -Applicable from Ass. No. 91119 for Gulf- $0.90
Location: 40 Prev | Next Part: 10441490 *Qty: 3 BRACKET WITH SHEATH -From start of production- -Applicable for non Gulf and EU LHD markets- $0.90
Location: 41 Prev | Next Part: 259844 *Qty: 3 CLIP -Applicable from Ass. No. 90802 for EU LHD- -Applicable from Ass. No. 91119 for Gulf- $0.90
Location: 41 Prev | Next Part: 259844 *Qty: 3 CLIP -From start of production- -Applicable for non Gulf and EU LHD markets- $0.90
Location: 42 Prev | Next Part: 231617 *Qty: 5 SCREW -Applicable from Ass. No. 90802 for EU LHD- -Applicable from Ass. No. 91119 for Gulf- $0.90
Location: 42 Prev | Next Part: 231617 *Qty: 5 SCREW -From start of production- -Applicable for non Gulf and EU LHD markets- $0.90
Location: 43 Prev | Next Part: 10441190 *Qty: 2 BRACKET WITH SHEATH -Applicable from Ass. No. 90802 for EU LHD- -Applicable from Ass. No. $0.90
Location: 43 Prev | Next Part: 10441190 *Qty: 2 BRACKET WITH SHEATH -From start of production- -Applicable for non Gulf and EU LHD markets- $0.90
Location: 44 Prev | Next Part: 237478 *Qty: 6 MOUNTING $23.29
Location: 45 Prev | Next Part: 16287734 *Qty: 6 SCREW $1.85
Location: 46 Prev | Next Part: 247751 *Qty: 6 WASHER $8.29

* Quantity shown indicates the number of pieces used in the diagram.
