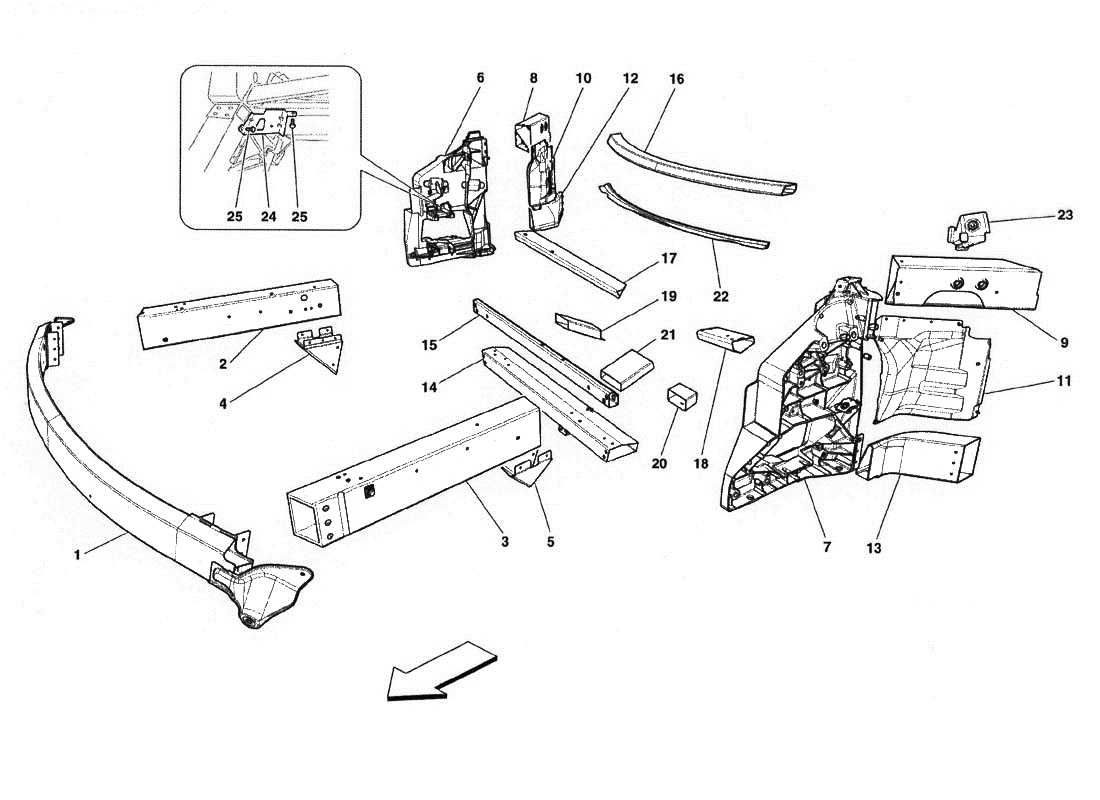

CHASSIS - STRUCTURE, FRONT ELEMENTS AND PANELS

Go to Split View

CHASSIS - STRUCTURE, FRONT ELEMENTS AND PANELS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 256253 *Qty: 1 FRONT CROSS MEMBER -Not for USA. CDN. China and Gulf- -Not available for resale- Call
Location: 1 Prev | Next Part: 264894 *Qty: 1 FRONT CROSS MEMBER -Applicable for USA. CDN. China and Gulf- Call
Location: 2 Prev | Next Part: 249941 *Qty: 1 FRONT RH STRUT -Not for GD- -Applicable up to Ass. No. 93532- -Not available for resale- Call
Location: 2 Prev | Next Part: 266098 *Qty: 1 FRONT RH STRUT -Not for GD- -Applicable from Ass. No. 93533- Call
Location: 2 Prev | Next Part: 263945 *Qty: 1 FRONT RH STRUT -Applicable for GD- -Applicable up to Ass. No. 93532- Call
Location: 2 Prev | Next Part: 266330 *Qty: 1 FRONT RH STRUT -Applicable for GD- -Applicable from Ass. No. 93533- -Not available for resale- Call
Location: 3 Prev | Next Part: 249940 *Qty: 1 FRONT LH STRUT -Not for GD- -Not available for resale- Call
Location: 3 Prev | Next Part: 263944 *Qty: 1 FRONT LH STRUT -Applicable for GD- -Not available for resale- $1,174.89
Location: 4 Prev | Next Part: 244142 *Qty: 1 ANGULAR BRACE FOR RH STRUT Call
Location: 5 Prev | Next Part: 244141 *Qty: 1 ANGULAR BRACE FOR LH STRUT Call
Location: 6 Prev | Next Part: 264306 *Qty: 1 FRONT RH SHOCK TOWER -Not available for resale- Call
Location: 7 Prev | Next Part: 264305 *Qty: 1 FRONT LH SHOCK TOWER -Not available for resale- Call
Location: 8 Prev | Next Part: 253472 *Qty: 1 RH UPPER FRONT DIAGONAL BRACE -Not available for resale- Call
Location: 9 Prev | Next Part: 253471 *Qty: 1 LH UPPER FRONT DIAGONAL BRACE -Not available for resale- Call
Location: 10 Prev | Next Part: 261897 *Qty: 1 RH WHEEL BAY COVER -Not for GD- -Not available for resale- Call
Location: 10 Prev | Next Part: 263493 *Qty: 1 RH WHEEL BAY COVER -Applicable for GD- Call
Location: 11 Prev | Next Part: 261896 *Qty: 1 LH WHEEL BAY COVER -Not for GD- -Not available for resale- Call
Location: 11 Prev | Next Part: 263492 *Qty: 1 LH WHEEL BAY COVER -Applicable for GD- Call
Location: 12 Prev | Next Part: 257921 *Qty: 1 FRONT RH TORQUE BOX -Not available for resale- Call
Location: 13 Prev | Next Part: 257920 *Qty: 1 FRONT LH TORQUE 80X -Not available for resale- Call
Location: 14 Prev | Next Part: 263776 *Qty: 1 LOWER FRONT SUSPENSION CROSS MEMBER -Applicable up to Ass. No. 90801 for EU LHD -Applicable up to Ass. No. 91118 for Gulf- -Not for GD- -Not available for resale- Call
Location: 14 Prev | Next Part: 269297 *Qty: 1 LOWER FRONT SUSPENSION CROSS MEMBER -Applicable from Ass. No. 90802 for EU LHD- - Appficable from Ass. No. 91119 for Gulf- -Not for GD--Ask SAT autborization- Call
Location: 14 Prev | Next Part: 269333 *Qty: 1 LOWER FRONT SUSPENSION CROSS MEMBER -Applicable for GD- -Not available for resale- Call
Location: 15 Prev | Next Part: 242560 *Qty: 1 CASTING LINK CROSS MEMBER -Applicable up to Ass. No. 90801 for EU LHD- -Applicable up to Ass. No. 91118 for Gulf- -Not for GD- -Not available for resale- Call
Location: 15 Prev | Next Part: 265057 *Qty: 1 CASTING LINK CROSS MEMBER -Applicable from Ass. No. 90802 for EU LHD- -Applicable from Ass. No. 91119 for Gulf- -Not for GD- -Not available for resale- Call
Location: 15 Prev | Next Part: 265280 *Qty: 1 CASTING LINK CROSS MEMBER -Applicable for GD- -Not available for resale- Call
Location: 16 Prev | Next Part: 251297 *Qty: 1 WINDSCREEN VALENCE PANEL CROSS MEMBER Call
Location: 17 Prev | Next Part: 248867 *Qty: 1 UPPER RH DIAGONAL BRACE -Not for GD- Call
Location: 17 Prev | Next Part: 265279 *Qty: 1 UPPER RH DIAGONAL BRACE -Applicable for GD- Call
Location: 18 Prev | Next Part: 248866 *Qty: 1 UPPER LH DIAGONAL BRACE -Applicable up to Ass. No. 90801 for EU LHD- -Applicable up to Ass. No. 91118 for Gulf- -Not for GD- Call
Location: 18 Prev | Next Part: 265062 *Qty: 1 UPPER LH DIAGONAL BRACE -Applicable from Ass. No. 90802 for EU LHD- -Applicable from Ass. No. 91119 for Gulf- -Not for GD- Call
Location: 18 Prev | Next Part: 265278 *Qty: 1 UPPER LH DIAGONAL BRACE -Applicable for GD- Call
Location: 19 Prev | Next Part: 248870 *Qty: 1 LOWER RH DIAGONAL BRACE -Applicable up to Ass. No. 90801 for EU LHD- -Applicable up to Ass. No. 91118 for Gulf- Call
Location: 19 Prev | Next Part: 265064 *Qty: 1 LOWER RH DIAGONAL BRACE -Applicable from Ass. No. 90802 for EU LHD- -Applicable from Ass. No. 91119 for Gulf- Call
Location: 20 Prev | Next Part: 248868 *Qty: 1 LOWER LH DIAGONAL BRACE -Applicable up to Ass. No. 90801 for EU LHD- -Applicable up to Ass. No. 91118 for Gulf- Call
Location: 20 Prev | Next Part: 265063 *Qty: 1 LOWER LH DIAGONAL 8RACE -Applicable from Ass. No. 90802 for EU LHD- -Applicable from Ass. No. 91119 for Gulf- Call
Location: 21 Prev | Next Part: 241494 *Qty: 1 LOWER CENTRAL STRUT -Applicable up to Ass. No. 90801 for EU LHD- -Applicable up to Ass. No. 91118 for Gulf--Not for GD- Call
Location: 21 Prev | Next Part: 265056 *Qty: 1 LOWER CENTRAL STRUT -Applicable from Ass. No. 90802 for EU LHD- -Applicable from Ass. No 91119 for Gulf--Not for GD- Call
Location: 21 Prev | Next Part: 265297 *Qty: 1 LOWER CENTRAL STRUT -Applicable for GD- Call
Location: 22 Prev | Next Part: 257119 *Qty: 1 WINDSCREEN REINFORCEMENT MOUNTING LIP Call
Location: 23 Prev | Next Part: 256206 *Qty: 1 LH WINDSCREEN WIPER BRACKET -Not for GD- Call
Location: 23 Prev | Next Part: 263063 *Qty: 1 RH WINDSCREEN WIPER BRACKET -Applicable for GD- $83.91
Location: 24 Prev | Next Part: 81738700 *Qty: 1 RH LUGGAGE COMPARTMENT TUB BRACKET $30.85
Location: 24 Prev | Next Part: 81738900 *Qty: 1 LH LUGGAGE COMPARTMENT TUB BRACKET $30.85
Location: 25 Prev | Next Part: 16287224 *Qty: 4 SCREW Superseded
Location: 26 Prev | Next Part: 82981900 *Qty: 1 RH RADIATOR FASTENER BRACKET $61.68
Location: 27 Prev | Next Part: 82982000 *Qty: 1 LH RADIATOR FASTENER BRACKET $61.68
Location: 28 Prev | Next Part: 257964 *Qty: 1 COMPL. TOW HOOK -Applicable up to Ass. No. 93532- $188.78
Location: 28 Prev | Next Part: 266096 *Qty: 1 COMPL. TOW HOOK -Applicable from Ass. No. 93533- $293.76
Location: 29 Prev | Next Part: 16287234 *Qty: 5 SCREW -Qty 6. up to Ass. No. 93532- $0.90

* Quantity shown indicates the number of pieces used in the diagram.
