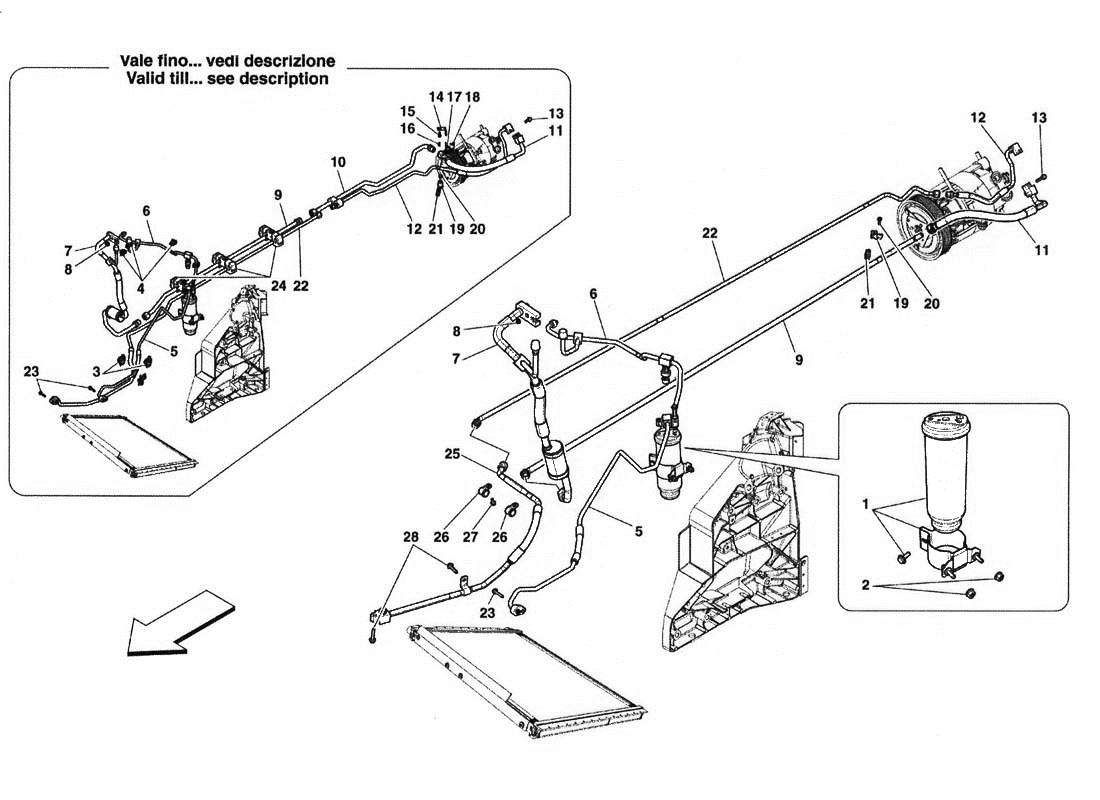

AC SYSTEM - FREON

Go to Split View

AC SYSTEM - FREON

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 67085100 *Qty: 1 DEHYDRATOR FILTER ASSEMBLY -Not for GD- $87.13
Location: 1 Prev | Next Part: 67085100 *Qty: 1 DEHYDRATOR FILTER ASSEMBLY -Applicable for GD- $87.13
Location: 2 Prev | Next Part: 14040611 *Qty: 2 NUT $0.90
Location: 3 Prev | Next Part: 251649 *Qty: 2 CLIP -Applicable up to Ass. No. 90801 for EU LHD- -Applicable up to Ass. No. 91118 for Gulf- $0.90
Location: 4 Prev | Next Part: 250318 *Qty: 3 CLIP $0.90
Location: 5 Prev | Next Part: 82916600 *Qty: 1 PIPE FROM CONDENSER TO DEHYDRATOR FILTER -Applicable up to Ass. No. 90801 for EU LHD- -Applicable up to Ass. No. 91118 for Gulf- -Not for GD- $755.15
Location: 5 Prev | Next Part: 82924000 *Qty: 1 PIPE FROM CONDENSER TO DEHYDRATOR FILTER -Applicable from Ass. No. 90802 for EU LHD- -Applicable from Ass. No. 91119 for Gulf- -Not for GD- $258.05
Location: 5 Prev | Next Part: 82924000 *Qty: 1 PIPE FROM CONDENSER TO DEHYDRATOR FILTER -From start of production- -Applicable for non Gulf and EU LHD markets- -Not for GD- $258.05
Location: 5 Prev | Next Part: 82886700 *Qty: 1 PIPE FROM CONDENSER TO DEHYDRATOR FILTER -Applicable for GD- $279.81
Location: 6 Prev | Next Part: 82890200 *Qty: 1 HVAC FILTER PIPE -Not for GD- $351.76
Location: 6 Prev | Next Part: 82886800 *Qty: 1 HVAC FILTER PIPE -Applicable for GD- Call
Location: 7 Prev | Next Part: 82659500 *Qty: 1 HVAC PIPE-UNDERFLOOR -Applicable up to Ass. No. 90801 for EU LHD- -Applicable up to Ass. No. 91118 for Gulf- -Not for GD- $629.96
Location: 7 Prev | Next Part: 82924100 *Qty: 1 HVAC PIPE-UNDERFLOOR -Applicable from Ass. No. 90802 for EU Ihd- -Applicable from Ass. No. 91119 for Gulf- -Applicable up to Ass. No. 93656- -Not for GD- $597.58
Location: 7 Prev | Next Part: 82924100 *Qty: 1 HVAC PIPE-UNDERFLOOR -From start of production- -Applicable for non-Gulf and EU Ihd markets--Applicable up to Ass. No. 93656- -Not for GD- $597.58
Location: 7 Prev | Next Part: 83193900 *Qty: 1 HVAC PIPE-UNDERFLOOR -Applicable from Ass. No. 93657- -Not for GD- $516.95
Location: 7 Prev | Next Part: 82886900 *Qty: 1 HVAC PIPE-UNDERFLOOR -Applicable for GD- -Applicable up to Ass. No. 93656- Call
Location: 7 Prev | Next Part: 83208200 *Qty: 1 HVAC PIPE-UNDERFLOOR -Applicable for GD- -Applicable from Ass. No. 93657- $678.93
Location: 8 Prev | Next Part: 14040711 *Qty: 1 NUT $0.90
Location: 9 Prev | Next Part: 81647600 *Qty: 1 GAS RETURN PIPE -Applicable up to Ass. No. 90801 for EU LHD- -Applicable up to Ass. No. 91118 for Gulf- $217.58
Location: 9 Prev | Next Part: 82890300 *Qty: 1 GAS RETURN PIPE -Applicable from Ass. No. 90802 for EU Ihd- -Applicable from Ass. No. 91119 for Gulf- -Applicable up to Ass. No. 93656- $464.64
Location: 9 Prev | Next Part: 82890300 *Qty: 1 GAS RETURN PIPE -From start of production- -Applicable for non-Gulf and EU Ihd markets--Applicable up to Ass. No. 93656- $464.64
Location: 9 Prev | Next Part: 83194000 *Qty: 1 GAS RETURN PIPE -Applicable from Ass. No. 93657- $246.29
Location: 10 Prev | Next Part: 81851000 *Qty: 1 PIPE FROM UNDER FLOOR -Applicable up to Ass. No. 90801 for EU LHD- -Applicable up to Ass. No. 91118 for Gulf- $151.16
Location: 11 Prev | Next Part: 81503300 *Qty: 1 PIPE FROM UNDER FLOOR -Applicable up to Ass. No. 90801 for EU LHD- -Applicable up to Ass. No. 91118 for Gulf- $519.96
Location: 11 Prev | Next Part: 82890400 *Qty: 1 PIPE FROM UNDER FLOOR -Applicable from Ass. No. 90802 for EU LHD- -Applicable from Ass. No. 91119 for Gulf- $304.33
Location: 11 Prev | Next Part: 82890400 *Qty: 1 PIPE FROM UNDER FLOOR -From start of production- -Applicable for non Gulf and EU LHD markets- $304.33
Location: 12 Prev | Next Part: 81503200 *Qty: 1 PIPE FROM COMPRESSOR -Applicable up to Ass. No. 90801 for EU LHD- -Applicable up to Ass. No. 91118 for Gulf- $468.32
Location: 12 Prev | Next Part: 83330500 *Qty: 1 PIPE FROM COMPRESSOR -Applicable from Ass. No. 90802 for EU Ihd- -Applicable from Ass. No. 91119 for Gulf- -No longer supplied- -Replaced by 83330500- $246.03
Location: 12 Prev | Next Part: 83330500 *Qty: 1 PIPE FROM COMPRESSOR -From start of production- -Applicable for non-Gulf and EU Ihd markets--No longer supplied- -Replaced by 83330500- $246.03
Location: 12 Prev | Next Part: 83330500 *Qty: 1 PIPE FROM COMPRESSOR -Applicable from Ass. No. 90802 for EU Ihd- -Applicable from Ass. No. 91119 for Gulf- $246.03
Location: 12 Prev | Next Part: 83330500 *Qty: 1 PIPE FROM COMPRESSOR -From start of production- -Applicable for non-Gulf and EU Ihd markets- $246.03
Location: 13 Prev | Next Part: 13839624 *Qty: 1 SCREW $4.92
Location: 14 Prev | Next Part: 81647200 *Qty: 1 BRACKET -Applicable up to Ass. No. 90801 for EU LHD- -Applicable up to Ass. No. 91118 for Gulf- $7.50
Location: 15 Prev | Next Part: 231617 *Qty: 1 SCREW -Applicable up to Ass. No. 90801 for EU LHD- -Applicable up to Ass. No. 91118 for Gulf- $0.90
Location: 16 Prev | Next Part: 14039614 *Qty: 1 NUT -Applicable up to Ass. No. 90801 for EU LHD- -Applicable up to Ass. No. 91118 for Gulf- $0.90
Location: 17 Prev | Next Part: 10450490 *Qty: 1 BRACKET -Applicable up to Ass. No. 90801 for EU LHD- -Applicable up to Ass. No. 91118 for Gulf- $0.90
Location: 18 Prev | Next Part: 11625624 *Qty: 1 SCREW -Applicable up to Ass. No. 90801 for EU LHD- -Applicable up to Ass. No. 91118 for Gulf- $0.97
Location: 19 Prev | Next Part: 81620400 *Qty: 1 BRACKET -Applicable up to Ass. No. 90801 for EU LHD- -Applicable up to Ass. No. 91118 for Gulf- $7.50
Location: 19 Prev | Next Part: 82949000 *Qty: 1 BRACKET -Applicable from Ass. No. 90802 for EU LHD- -Applicable from Ass. No. 91119 for Gulf- $12.63
Location: 19 Prev | Next Part: 82949000 *Qty: 1 BRACKET -From start of production- -Applicable for non Gulf and EU LHD markets- $12.63
Location: 20 Prev | Next Part: 11612726 *Qty: 1 SCREW $0.94
Location: 21 Prev | Next Part: 247440 *Qty: 1 CLIP -Applicable up to Ass. No. 90801 for EU LHD- -Applicable up to Ass. No. 91118 for Gulf- $0.90
Location: 22 Prev | Next Part: 82916700 *Qty: 1 UNDERBODY GAS DELIVERY PIPE TO CONDENSER -Applicable up to Ass. No. 90801 for EU LHD- -Applicable up to Ass. No. 91118 for Gulf- $848.37
Location: 22 Prev | Next Part: 82913700 *Qty: 1 UNDERBODY GAS DELIVERY PIPE TO CONDENSER -Applicable from Ass. No. 90802 for EU LHD- -Applicable from Ass. No. 91119 for Gulf- $190.18
Location: 22 Prev | Next Part: 82913700 *Qty: 1 UNDERBODY GAS DELIVERY PIPE TO CONDENSER -From start of production- -Applicable for non Gulf and EU LHD markets- $190.18
Location: 23 Prev | Next Part: 13837017 *Qty: 2 SCREW $4.99
Location: 24 Prev | Next Part: 81767500 *Qty: 3 PILLORY BLOCK -Applicable up to Ass. No. 90801 for EU LHD- -Applicable up to Ass. No. 91118 for Gulf- Call
Location: 25 Prev | Next Part: 82913600 *Qty: 1 GAS DELIVERY PIPE TO CONDENSER -Applicable from Ass. No. 90802 for EU LHD- -Applicable from Ass. No. 91119 for Gulf- $257.48
Location: 25 Prev | Next Part: 82913600 *Qty: 1 GAS DELIVERY PIPE TO CONDENSER -From start of production- -Applicable for non Gulf and EU LHD markets- $257.48
Location: 26 Prev | Next Part: 10441490 *Qty: 2 BRACKET WITH SHEATH -Applicable from Ass. No. 90802 for EU LHD- -Applicable from Ass. No. 91119 for Gulf- $0.90
Location: 26 Prev | Next Part: 10441490 *Qty: 2 BRACKET WITH SHEATH -From start of production- -Applicable for non Gulf and EU LHD markets- $0.90
Location: 27 Prev | Next Part: 231616 *Qty: 2 SCREW -Applicable from Ass. No. 90802 for EU LHD- -Applicable from Ass. No. 91119 for Gulf- $0.90
Location: 27 Prev | Next Part: 231616 *Qty: 2 SCREW -From start of production- -Applicable for non Gulf and EU LHD markets- $0.90
Location: 28 Prev | Next Part: 13837017 *Qty: 2 SCREW -Applicable from Ass. No. 90802 for EU LHD- -Applicable from Ass. No. 91119 for Gulf- $4.99
Location: 28 Prev | Next Part: 13837017 *Qty: 2 SCREW -From start of production- -Applicable for non Gulf and EU LHD markets- $4.99
Location: 29 Prev | Next Part: 82329900 *Qty: 2 CLIP $1.35
Location: 30 Prev | Next Part: 255515 *Qty: 1 PLUG $2.13

* Quantity shown indicates the number of pieces used in the diagram.
