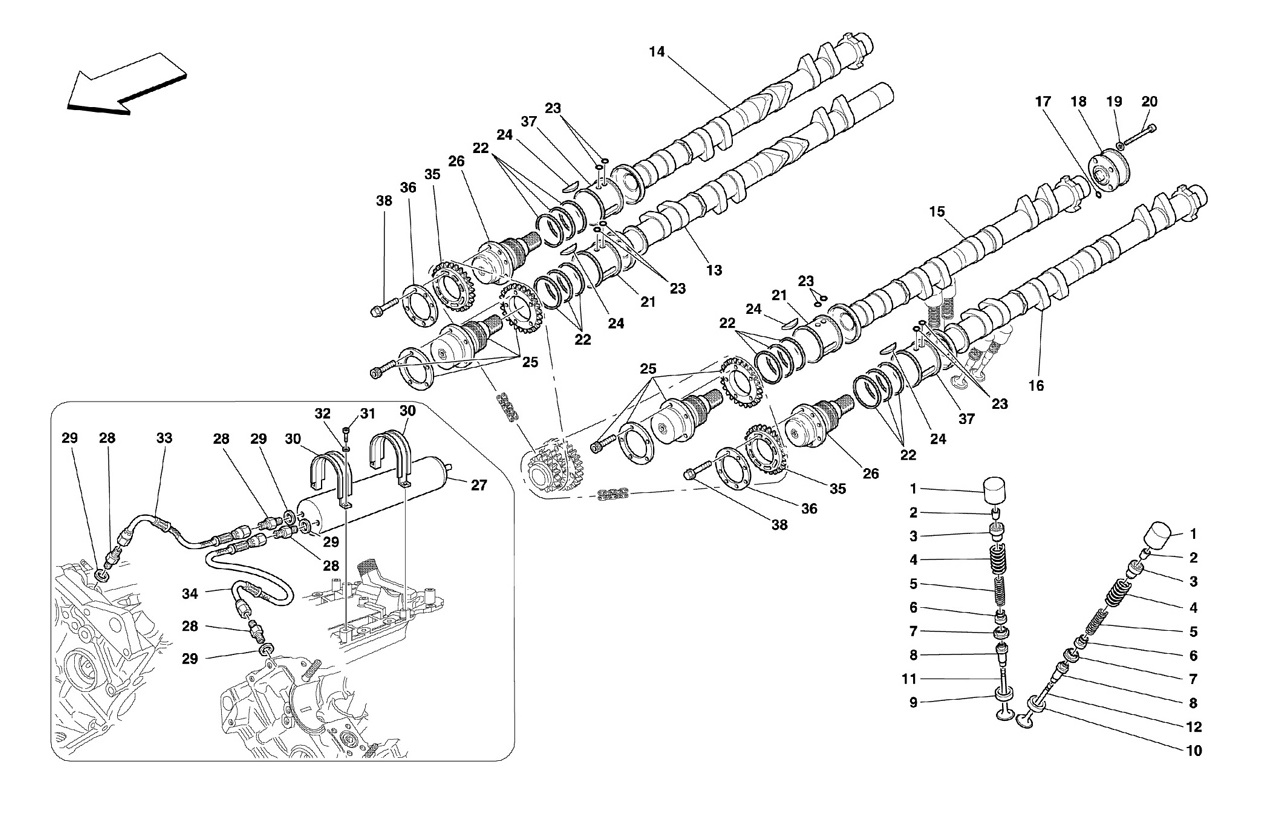

TIMING-TAPPETS

Go to Split View

TIMING-TAPPETS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 194700 *Qty: 32 TAPPET FOR VALVE CONTROL $32.99
Location: 2 Prev | Next Part: 179763 *Qty: 64 COTTER FOR VALVE SPRING $0.96
Location: 3 Prev | Next Part: 194713 *Qty: 32 UPPER CUP $7.06
Location: 4 Prev | Next Part: 197900 *Qty: 32 OUTER SPRING FOR VALVE RETURN $3.88
Location: 5 Prev | Next Part: 197901 *Qty: 32 INNER SPRING FOR VALVE RETURN $3.11
Location: 6 Prev | Next Part: 148153 *Qty: 32 OIL RING -Not as spare part- -Replaced by 221473- $3.68
Location: 6 Prev | Next Part: 221473 *Qty: 32 OILRING $1.55
Location: 7 Prev | Next Part: 194718 *Qty: 32 ER CUP $101.78
Location: 8 Prev | Next Part: 6172328 *Qty: 32 INTAKE VALVE GUIDE -Not as spare part- -Replaced by 6213498- Call
Location: 8 Prev | Next Part: 6213498 *Qty: 32 INTAKE VALVE GUIDE $2.12
Location: 9 Prev | Next Part: 6175381 *Qty: 16 INTAKE VALVE SEAT -Not as spare part- -Replaced by 6213496- $22.37
Location: 9 Prev | Next Part: 6222847 *Qty: 16 INTAKE VALVE SEAT -Valid till Ass. Nr. 71273- -Valid till stock exhaustion- $10.11
Location: 9 Prev | Next Part: 6222847 *Qty: 16 INTAKE VALVE SEAT -Valid from Ass. Nr. 71274- -Valid after stock exhaustion of 6213496- $10.11
Location: 10 Prev | Next Part: 6179959 *Qty: 16 EXHAUST VALVE SEAT -Not as spare part- -Replaced by 6213497- $72.86
Location: 10 Prev | Next Part: 6213497 *Qty: 16 EXHAUST VALVE SEAT -Valid till Ass. Nr. 71273- -Valid till stock exhaustion- $3.46
Location: 10 Prev | Next Part: 6222848 *Qty: 16 EXHAUST VALVE SEAT -Valid from Ass. Nr. 71274- -Valid after stock exhaustion of 6213497- $10.86
Location: 11 Prev | Next Part: 198581 *Qty: 16 INTAKE VALVE -Not as spare part now- -Replaced by 198581- $17.27
Location: 11 Prev | Next Part: 198581 *Qty: 16 INTAKE VALVE $17.27
Location: 12 Prev | Next Part: 189351 *Qty: 16 EXHAUST VALVE -Not as spare part now- -Replaced by 198582- $315.84
Location: 12 Prev | Next Part: 198582 *Qty: 16 EXHAUST VALVE $41.46
Location: 13 Prev | Next Part: 211414 *Qty: 1 R.H. INDUCTION DISTRIBUTION CAM SHAFT -Valid till engine No. 97780- $561.45
Location: 13 Prev | Next Part: 200144 *Qty: 1 R.H. INDUCTION DISTRIBUTION CAM SHAFT -Valid from engine Nr. 97781- $623.77
Location: 14 Prev | Next Part: 211416 *Qty: 1 R.H. EXHAUST CAM SHAFT -Valid till engine No. 97780- $579.74
Location: 14 Prev | Next Part: 200146 *Qty: 1 R.H. EXHAUST CAM SHAFT -Valid from engine Nr. 97781- $623.77
Location: 15 Prev | Next Part: 211415 *Qty: 1 L.H. INDUCTION DISTRIBUTION CAM SHAFT -Valid till engine No. 97780- $561.45
Location: 15 Prev | Next Part: 200145 *Qty: 1 L.H. INDUCTION DISTRIBUTION CAM SHAFT-Valid from engine Nr. 97781- $623.77
Location: 16 Prev | Next Part: 211418 *Qty: 1 L.H. EXHAUST CAM SHAFT -Valid till engine No. 97780- $579.74
Location: 16 Prev | Next Part: 200147 *Qty: 1 L.H. EXHAUST CAM SHAFT -Valid from engine Nr. 97781- $623.77
Location: 17 Prev | Next Part: 134701 *Qty: 2 O.R. GASKET $0.90
Location: 18 Prev | Next Part: 197558 *Qty: 1 OIL PUMP VARIATOR $237.41
Location: 19 Prev | Next Part: 184731 *Qty: 4 WASHER $0.90
Location: 20 Prev | Next Part: 14303623 *Qty: 4 SCREW $0.90
Location: 21 Prev | Next Part: 206804 *Qty: 2 INDUCTION PHASE VARIATOR SUPPORTNG BUSHING $331.64
Location: 22 Prev | Next Part: 179926 *Qty: 12 RING Call
Location: 23 Prev | Next Part: 134701 *Qty: 4 O.R. GASKET $0.90
Location: 24 Prev | Next Part: 10618120 *Qty: 4 KEY $0.90
Location: 25 Prev | Next Part: 193779 *Qty: 2 INDUCTION PHASE VARIATOR $1,149.63
Location: 26 Prev | Next Part: 199438 *Qty: 2 EXHAUST INDUCTION PHASE VARIATOR $853.39
Location: 27 Prev | Next Part: 197062 *Qty: 1 OIL ACCUMULATOR FOR VARIATOR $891.76
Location: 28 Prev | Next Part: 195056 *Qty: 4 THREADED UNION $19.06
Location: 29 Prev | Next Part: 10261060 *Qty: 4 GASKET $0.90
Location: 30 Prev | Next Part: 197151 *Qty: 2 BRACKET $6.34
Location: 31 Prev | Next Part: 14305124 *Qty: 4 SCREW $0.90
Location: 32 Prev | Next Part: 11197774 *Qty: 4 WASHER Superseded
Location: 33 Prev | Next Part: 198463 *Qty: 1 PIPE FROM ACCUMULATOR TO R.H. CYLINDERS HEAD $89.34
Location: 34 Prev | Next Part: 198464 *Qty: 1 PIPE FROM ACCUMULATOR TO L.H. CYLINDERS HEAD $89.34
Location: 35 Prev | Next Part: 194192 *Qty: 2 TOOTHED WHEEL $419.48
Location: 36 Prev | Next Part: 195649 *Qty: 2 WASHER $8.54
Location: 37 Prev | Next Part: 206805 *Qty: 2 EXHAUST PHASE VARIATOR SUPPORTNG BUSHING $238.56
Location: 38 Prev | Next Part: 194977 *Qty: 16 SCREW $14.50

* Quantity shown indicates the number of pieces used in the diagram.
