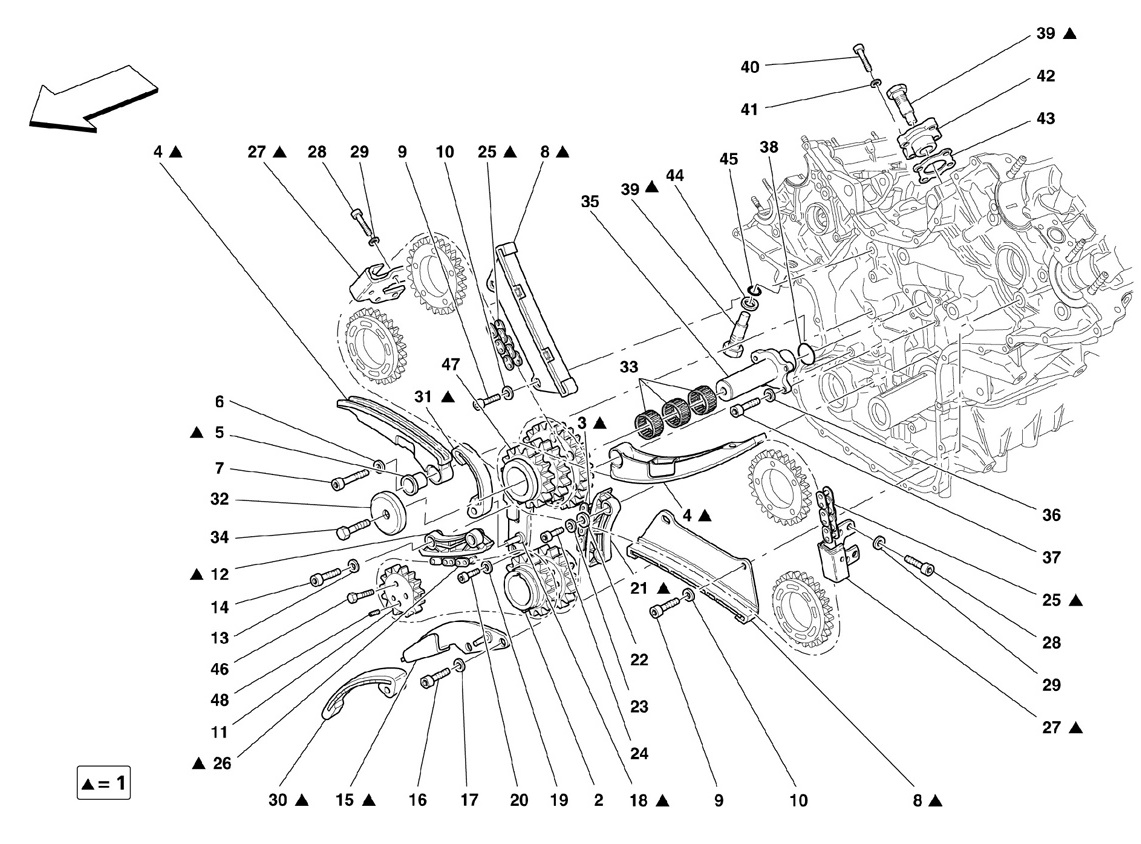

TIMING - CONTROLS

Go to Split View

TIMING - CONTROLS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 197879 *Qty: 1 TIMING CONTROL ASSEMBLY $1,614.45
Location: 2 Prev | Next Part: 186854 *Qty: 1 CRANKSHAFT TOOTHED WHEEL $151.44
Location: 3 Prev | Next Part: 175286 *Qty: 1 TRANSMISSION CHAIN $48.48
Location: 4 Prev | Next Part: 186184 *Qty: 2 MOBILE GUIDE SHOE $98.67
Location: 5 Prev | Next Part: 175303 *Qty: 2 BUSHING $13.85
Location: 6 Prev | Next Part: 10569373 *Qty: 2 WASHER $0.90
Location: 7 Prev | Next Part: 14306424 *Qty: 2 SCREW $0.90
Location: 8 Prev | Next Part: 186185 *Qty: 2 FIXED TENSION $63.47
Location: 9 Prev | Next Part: 14306224 *Qty: 4 SCREW $0.90
Location: 10 Prev | Next Part: 11193874 *Qty: 4 WASHER $0.90
Location: 11 Prev | Next Part: 189564 *Qty: 1 TOOTHED WHEEL CONTROL PUMP $526.30
Location: 12 Prev | Next Part: 186186 *Qty: 1 FIXED TENSION $30.59
Location: 13 Prev | Next Part: 11197774 *Qty: 2 WASHER Superseded
Location: 14 Prev | Next Part: 14305424 *Qty: 2 SCREW Superseded
Location: 15 Prev | Next Part: 185724 *Qty: 1 GUIDE SHOE SUPPORT $11.88
Location: 16 Prev | Next Part: 14305724 *Qty: 2 SCREW $0.90
Location: 17 Prev | Next Part: 11197774 *Qty: 2 WASHER Superseded
Location: 18 Prev | Next Part: 186159 *Qty: 1 GUIDE SHOE SUPPORT $32.44
Location: 19 Prev | Next Part: 11197774 *Qty: 2 WASHER Superseded
Location: 20 Prev | Next Part: 14305724 *Qty: 2 SCREW $0.90
Location: 21 Prev | Next Part: 186181 *Qty: 1 FIXED TENSION $25.93
Location: 22 Prev | Next Part: 12647624 *Qty: 2 WASHER $0.90
Location: 23 Prev | Next Part: 11197774 *Qty: 2 WASHER Superseded
Location: 24 Prev | Next Part: 14432224 *Qty: 2 SCREW Superseded
Location: 25 Prev | Next Part: 193616 *Qty: 2 TIMING CONTROL CHAIN $81.48
Location: 26 Prev | Next Part: 175314 *Qty: 1 CHAIN $50.52
Location: 27 Prev | Next Part: 189569 *Qty: 2 UPPER FIXED TENSION $38.11
Location: 28 Prev | Next Part: 14305934 *Qty: 8 SCREW $0.90
Location: 29 Prev | Next Part: 11197774 *Qty: 8 WASHER Superseded
Location: 30 Prev | Next Part: 185725 *Qty: 1 CHAIN TIGHTENER GUIDE SHOE $57.33
Location: 31 Prev | Next Part: 196683 *Qty: 1 CHAIN TIGHTENER GUIDE SHOE $48.56
Location: 32 Prev | Next Part: 194262 *Qty: 1 SHOULDER $41.12
Location: 33 Prev | Next Part: 175282 *Qty: 3 ROLLER CAGE $11.75
Location: 34 Prev | Next Part: 16043124 *Qty: 1 SCREW $0.90
Location: 35 Prev | Next Part: 194261 *Qty: 1 SUPPORT -Valid till engine Nr. 116245- $208.69
Location: 35 Prev | Next Part: 227197 *Qty: 1 SUPPORT -Valid from engine Nr. 116246- Call
Location: 36 Prev | Next Part: 11181574 *Qty: 4 WASHER $0.90
Location: 37 Prev | Next Part: 14304224 *Qty: 4 SCREW $0.90
Location: 38 Prev | Next Part: 104212 *Qty: 1 O.R. GASKET -Valid till engine Nr. 116245- $1.39
Location: 39 Prev | Next Part: 197880 *Qty: 2 HYDRAULIC TIGHTENER $158.68
Location: 40 Prev | Next Part: 14432224 *Qty: 4 SCREW Superseded
Location: 41 Prev | Next Part: 11197774 *Qty: 4 WASHER Superseded
Location: 42 Prev | Next Part: 190060 *Qty: 1 BUSH FOR TIGHTENER $44.52
Location: 43 Prev | Next Part: 247147 *Qty: 1 GASKET $2.73
Location: 44 Prev | Next Part: 190171 *Qty: 1 SPACER $8.27
Location: 45 Prev | Next Part: 192069 *Qty: 1 O.R. GASKET $0.90
Location: 46 Prev | Next Part: 189563 *Qty: 3 SCREW $33.75
Location: 47 Prev | Next Part: 193565 *Qty: 1 TRANSMISSION TOOTHED WHEEL $134.38
Location: 48 Prev | Next Part: 189779 *Qty: 1 DOWEL $2.50

* Quantity shown indicates the number of pieces used in the diagram.
