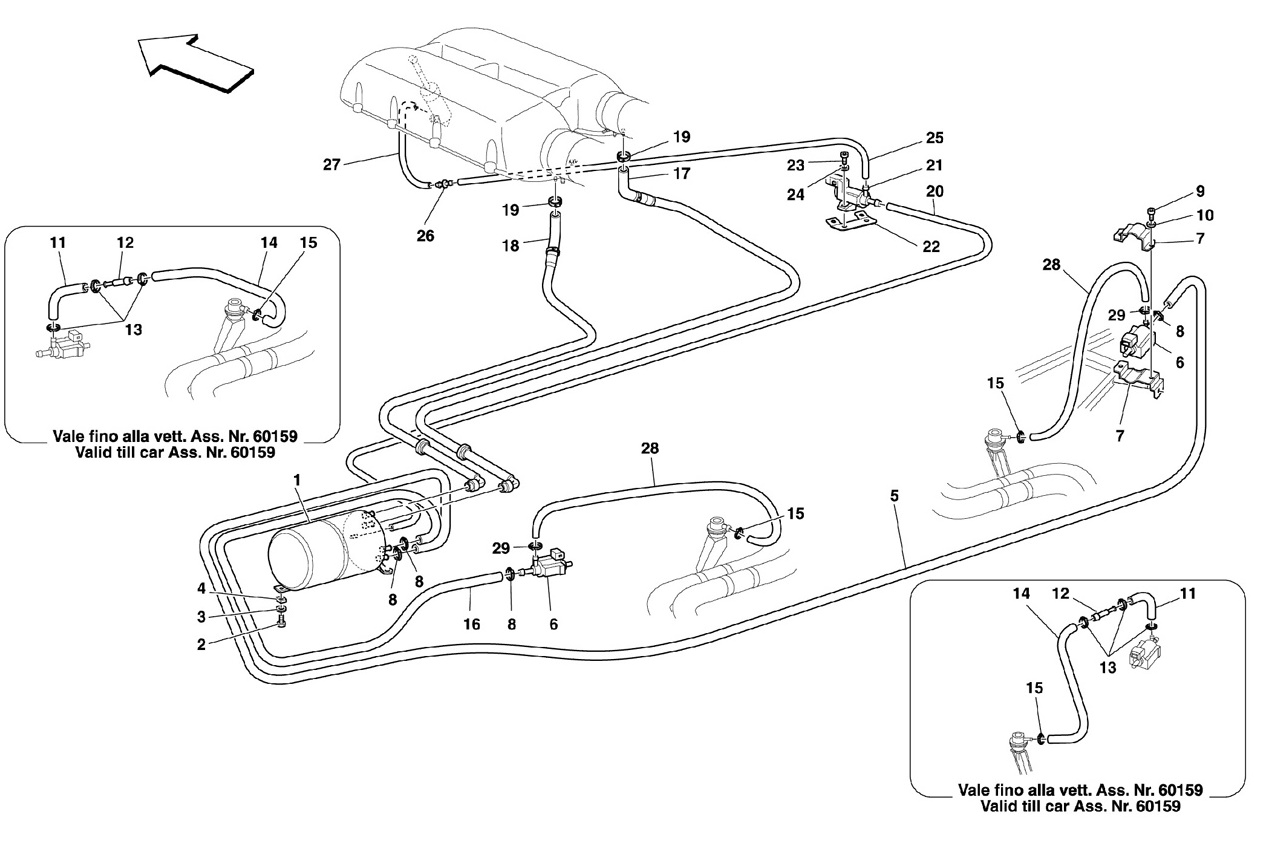

PNEUMATICS ACTUATOR SYSTEM

Go to Split View

PNEUMATICS ACTUATOR SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 207624 *Qty: 1 DEPRESSION ACCUMULATION TANK $81.77
Location: 2 Prev | Next Part: 10902224 *Qty: 3 SCREW -Not as spare part- -Replaced by 10902424- $0.90
Location: 2 Prev | Next Part: 10902424 *Qty: 3 SCREW $0.90
Location: 3 Prev | Next Part: 12601274 *Qty: 3 WASHER $0.90
Location: 4 Prev | Next Part: 12639724 *Qty: 3 SHER -Not as spare part- -Replaced by 12644424- $0.90
Location: 4 Prev | Next Part: 12644424 *Qty: 3 WASHER $0.90
Location: 5 Prev | Next Part: 210352 *Qty: 1 PIPE FROM TANK TO R.H. SOLENOID VALVE $160.45
Location: 6 Prev | Next Part: 178309 *Qty: 2 SOLENOID VALVE $76.47
Location: 7 Prev | Next Part: 178515 *Qty: 2 SOLENOID VALVE SUPPORT $6.17
Location: 8 Prev | Next Part: 13432170 *Qty: 4 COLLAR FOR SLEEVE $0.90
Location: 9 Prev | Next Part: 14302924 *Qty: 4 SCREW $0.90
Location: 10 Prev | Next Part: 127492 *Qty: 4 WASHER $0.90
Location: 11 Prev | Next Part: 178552 *Qty: 2 RUBBER HOSE -Valid till car Ass. Nr. 60159- $15.64
Location: 12 Prev | Next Part: 178369 *Qty: 2 UNION -Valid till car Ass. Nr. 60159- $5.82
Location: 13 Prev | Next Part: 13432270 *Qty: 6 COLLAR FOR SLEEVE -Valid till car Ass. Nr. 60159- $0.90
Location: 14 Prev | Next Part: 147121 *Qty: 2 RUBBER HOSE -Valid till car Ass. Nr. 60159- $7.75
Location: 15 Prev | Next Part: 171406 *Qty: 2 COLLAR FOR SLEEVE -Not as spare part- -Replaced by 241986- $1.07
Location: 15 Prev | Next Part: 241986 *Qty: 2 COLLAR FOR SLEEVE $1.29
Location: 16 Prev | Next Part: 210351 *Qty: 1 PIPE FROM TANK TO L.H. SOLENOID VALVE $98.73
Location: 17 Prev | Next Part: 222112 *Qty: 1 COMPLETE R.H. DEPRESSION PIPE -Not as spare part- -Replaced by 222112- $143.92
Location: 17 Prev | Next Part: 222112 *Qty: 1 COMPLETE R.H. DEPRESSION PIPE $143.92
Location: 18 Prev | Next Part: 222114 *Qty: 1 COMPLETE L.H. DEPRESSION PIPE-Not as spare part--Replaced by 222114- $143.92
Location: 18 Prev | Next Part: 222114 *Qty: 1 COMPLETE L.H. DEPRESSION PIPE $143.92
Location: 19 Prev | Next Part: 13432070 *Qty: 2 COLLAR FOR SLEEVE $0.90
Location: 20 Prev | Next Part: 124406 *Qty: 1 PIPE FROM TANK TO SOLENOID VALVE -Not as spare part- -Replaced by 169692- $13.87
Location: 20 Prev | Next Part: 169692 *Qty: 1 PIPE FROM TANK TO SOLENOID VALVE $15.73
Location: 21 Prev | Next Part: 184363 *Qty: 1 SOLENOID VALVE $79.54
Location: 22 Prev | Next Part: 200111 *Qty: 1 BRACKET $58.06
Location: 23 Prev | Next Part: 14304124 *Qty: 2 SCREW $0.90
Location: 24 Prev | Next Part: 12544179 *Qty: 2 WASHER Superseded
Location: 25 Prev | Next Part: 115148 *Qty: 1 PIPE FROM SOLENOID VALVE TO UNION $5.15
Location: 26 Prev | Next Part: 178491 *Qty: 1 UNION $33.29
Location: 27 Prev | Next Part: 168248 *Qty: 1 PIPE FROM UNION TO ACTUATOR $23.61
Location: 28 Prev | Next Part: 198275 *Qty: 2 RUBBER HOSE -Valid from car Ass. Nr. 60160- $65.14
Location: 29 Prev | Next Part: 13432270 *Qty: 2 COLLAR FOR SLEEVE -Valid from car Ass. Nr. 60160- $0.90

* Quantity shown indicates the number of pieces used in the diagram.
