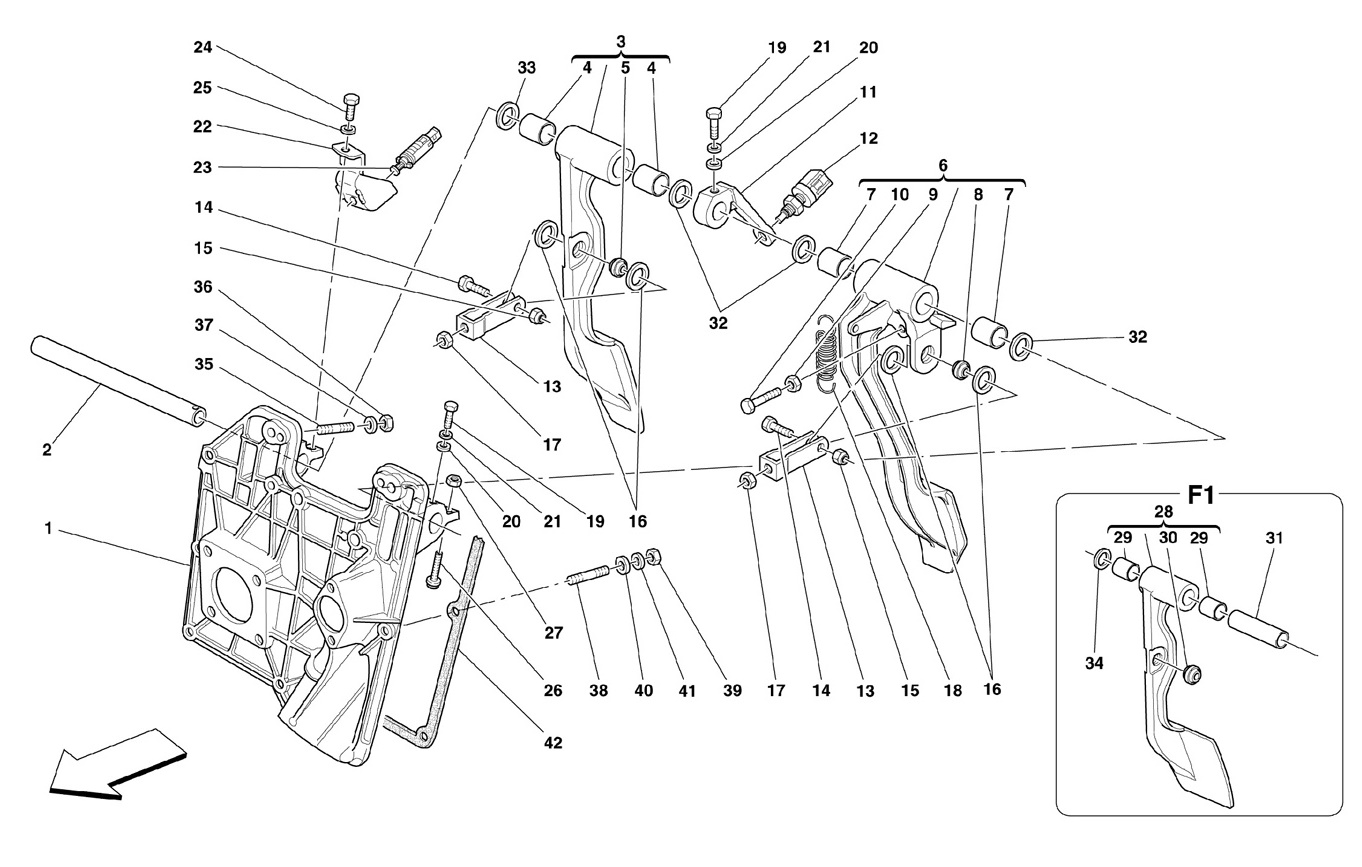

PEDALS

Go to Split View

PEDALS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 176464 *Qty: 1 PEDALS SUPPORT $3,059.67
Location: 2 Prev | Next Part: 176466 *Qty: 1 PEDALS SUPPORT PIN $164.60
Location: 3 Prev | Next Part: 180558 *Qty: 1 COMPLETE BRAKE PEDAL -Not for F1- Call
Location: 4 Prev | Next Part: 103163 *Qty: 2 SELF-LUBRICATING BUSHING -Not for F1- $3.46
Location: 5 Prev | Next Part: 176475 *Qty: 1 BALL JOINT -Not for F1- $191.22
Location: 6 Prev | Next Part: 180559 *Qty: 1 COMPLETE CLUTCH PEDAL -Not for F1 - Call
Location: 7 Prev | Next Part: 103163 *Qty: 2 SELF-LUBRICATING BUSHING -Not for F1- $3.46
Location: 8 Prev | Next Part: 176475 *Qty: 1 BALL JOINT-Not for F1- $191.22
Location: 9 Prev | Next Part: 16102314 *Qty: 1 NUT -Not for F1- $0.90
Location: 10 Prev | Next Part: 187014 *Qty: 1 PEDAL ADJUSTEMENT PIN -Not for F1- $44.05
Location: 11 Prev | Next Part: 180516 *Qty: 1 CENTRAL BRACKET -Not for F1- Call
Location: 12 Prev | Next Part: 133555 *Qty: 1 PUSH-BUTTON SWITCH -Not for F1- $39.81
Location: 13 Prev | Next Part: 176471 *Qty: 2 FORK -Q.ty 1 for F1 - -Standard- $126.33
Location: 13 Prev | Next Part: 199754 *Qty: 2 FORK -Q.ty 1 for F1- -Optional- -CCM version- $89.50
Location: 14 Prev | Next Part: 16043724 *Qty: 2 SCREW-Q.ty1 forF1- $0.90
Location: 15 Prev | Next Part: 147985 *Qty: 2 NUT-Q.ty 1 forF1- $0.90
Location: 16 Prev | Next Part: 176522 *Qty: 4 PLASTIC WASHER -Q.ty 2 for F1 - $22.14
Location: 17 Prev | Next Part: 16102314 *Qty: 2 NUT-Q.ty 1 forF1- $0.90
Location: 18 Prev | Next Part: 101305 *Qty: 1 RETUTN SPRING FOR PEDAL -Not for F1- $6.18
Location: 19 Prev | Next Part: 10902424 *Qty: 1 SCREW $0.90
Location: 20 Prev | Next Part: 10519424 *Qty: 2 WASHER Call
Location: 21 Prev | Next Part: 127494 *Qty: 1 WASHER $0.90
Location: 22 Prev | Next Part: 183818 *Qty: 1 SWITCH SUPPORT -Not as spare part now- -Replaced by 218606- $72.42
Location: 22 Prev | Next Part: 218606 *Qty: 1 SWITCH SUPPORT -Not as spare part- -Replaced by 219558- $128.36
Location: 22 Prev | Next Part: 219558 *Qty: 1 SWITCH SUPPORT $74.04
Location: 23 Prev | Next Part: 183433 *Qty: 1 PUSH-BUTTON SWITCH -Valid for support 218606 Ref. 22- $30.08
Location: 23 Prev | Next Part: 201957 *Qty: 1 PUSH-BUTTON SWITCH -Valid for support 219558 Ref. 22- $44.35
Location: 24 Prev | Next Part: 16043224 *Qty: 1 SCREW $0.90
Location: 25 Prev | Next Part: 106852 *Qty: 1 WASHER Superseded
Location: 26 Prev | Next Part: 187014 *Qty: 1 PEDAL ADJUSTEMENT PIN -Notfor F1- $44.05
Location: 27 Prev | Next Part: 16102314 *Qty: 1 NUT-Not for F1- $0.90
Location: 28 Prev | Next Part: 180560 *Qty: 1 COMPLETE BRAKE PEDAL -Valid for F1 - $724.26
Location: 29 Prev | Next Part: 103163 *Qty: 2 SELF-LUBRICATING BUSHING -Valid for F1- $3.46
Location: 30 Prev | Next Part: 176475 *Qty: 1 BALL JOINT-Valid for F1- $191.22
Location: 31 Prev | Next Part: 176918 *Qty: 1 SPACER-Valid for F1- $128.77
Location: 32 Prev | Next Part: 113836 *Qty: 3 WASHER -Not for F1- $1.04
Location: 33 Prev | Next Part: 106083 *Qty: 1 SPACER WASHER -Th. 1 mm- -Not for F1 - $0.90
Location: 33 Prev | Next Part: 113833 *Qty: 1 SPACER WASHER -Th. 1,1 mm- -Possible fitting- -Not for F1 - $3.32
Location: 33 Prev | Next Part: 113834 *Qty: 1 SPACER WASHER -Th. 1,2mm- -Possible fitting- -Not for F1 - $3.32
Location: 33 Prev | Next Part: 113835 *Qty: 1 SPACER WASHER -Th. 1,3mm- -Possible fitting- -Not for F1 - $0.90
Location: 33 Prev | Next Part: 113836 *Qty: 1 SPACER WASHER -Th. 1,4mm- -Possible fitting- -Not for F1 - $1.04
Location: 34 Prev | Next Part: 178340 *Qty: 1 SPACER WASHER -Valid for F1 - $4.36
Location: 34 Prev | Next Part: 113834 *Qty: 1 SPACER WASHER -Th. 1,2mm- -Possible fitting- -Valid for F1 - $3.32
Location: 34 Prev | Next Part: 113835 *Qty: 1 SPACER WASHER -Th. 1,3mm- -Possible fitting- -Valid for F1 - $0.90
Location: 34 Prev | Next Part: 113836 *Qty: 1 SPACER WASHER -Th. 1,4mm- -Possible fitting- -Valid for F1 - $1.04
Location: 35 Prev | Next Part: 13516924 *Qty: 6 STUD $11.05
Location: 36 Prev | Next Part: 104030 *Qty: 6 NUT $0.90
Location: 37 Prev | Next Part: 12638524 *Qty: 6 WASHER $0.90
Location: 38 Prev | Next Part: 13517024 *Qty: 2 STUD $0.90
Location: 39 Prev | Next Part: 16102377 *Qty: 2 NUT $2.08
Location: 40 Prev | Next Part: 13550321 *Qty: 2 WASHER $0.90
Location: 41 Prev | Next Part: 12601374 *Qty: 2 WASHER $0.90
Location: 42 Prev | Next Part: 176524 *Qty: 1 PEDALS SUPPORT GASKET $20.40

* Quantity shown indicates the number of pieces used in the diagram.
