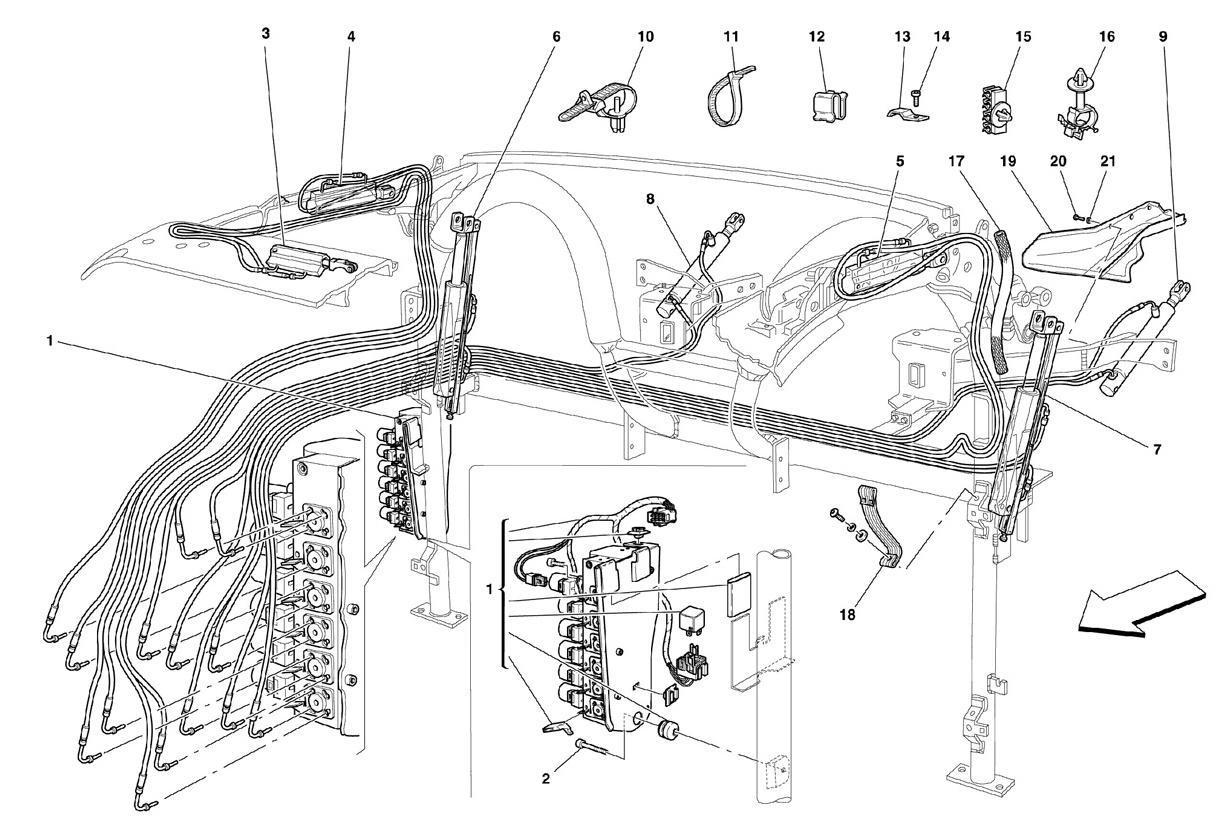

HYDRAULIC PLANT AND ELECTROHYDRAULIC PUMP

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 66954300 *Qty: 1 COMPLETE HYDRAULIC SYSTEM $8,488.68
Location: 1 Prev | Next Part: 66376000 *Qty: 1 ELECTROHYDRAULIC CONTROL UNIT $4,405.14
Location: 2 Prev | Next Part: 66683600 *Qty: 1 SCREW $14.30
Location: 3 Prev | Next Part: 66454700 *Qty: 1 FRAME TOP SEAL MAIN CYLINDER $848.47
Location: 4 Prev | Next Part: 66454100 *Qty: 1 FRAME TOP SEAL R.H. SECONDARY CYLINDER $883.53
Location: 5 Prev | Next Part: 66454000 *Qty: 1 FRAME TOP SEAL L.H. SECONDARY CYLINDER $883.53
Location: 6 Prev | Next Part: 66453900 *Qty: 1 COMPLETE R.H. MAIN CYLINDER $884.40
Location: 7 Prev | Next Part: 66453800 *Qty: 1 COMPLETE L.H. MAIN CYLINDER $945.68
Location: 8 Prev | Next Part: 66454300 *Qty: 1 REAR GUARD R.H. CYLINDER $1,229.93
Location: 9 Prev | Next Part: 66454200 *Qty: 1 REAR GUARD L.H. CYLINDER $960.83
Location: 10 Prev | Next Part: 66686500 *Qty: 0 CLAMP $3.71
Location: 11 Prev | Next Part: 66686600 *Qty: 0 CLAMP $2.69
Location: 12 Prev | Next Part: 66686700 *Qty: 0 CLIP $5.94
Location: 13 Prev | Next Part: 66686800 *Qty: 0 BRACKET $9.46
Location: 14 Prev | Next Part: 66683900 *Qty: 0 SCREW $9.46
Location: 15 Prev | Next Part: 67049000 *Qty: 0 CLIP $5.35
Location: 16 Prev | Next Part: 67049100 *Qty: 0 CLAMP $4.40
Location: 17 Prev | Next Part: 67049200 *Qty: 2 SHEATH $31.58
Location: 18 Prev | Next Part: 67049300 *Qty: 2 FLEXIBLE RETAINING PIPES $10.39
Location: 19 Prev | Next Part: 81060900 *Qty: 1 L.H. SHIELD $123.36
Location: 19 Prev | Next Part: 81060800 *Qty: 1 R.H. SHIELD $123.36
Location: 20 Prev | Next Part: 65377400 *Qty: 4 SCREW Superseded
Location: 21 Prev | Next Part: 11194779 *Qty: 4 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
