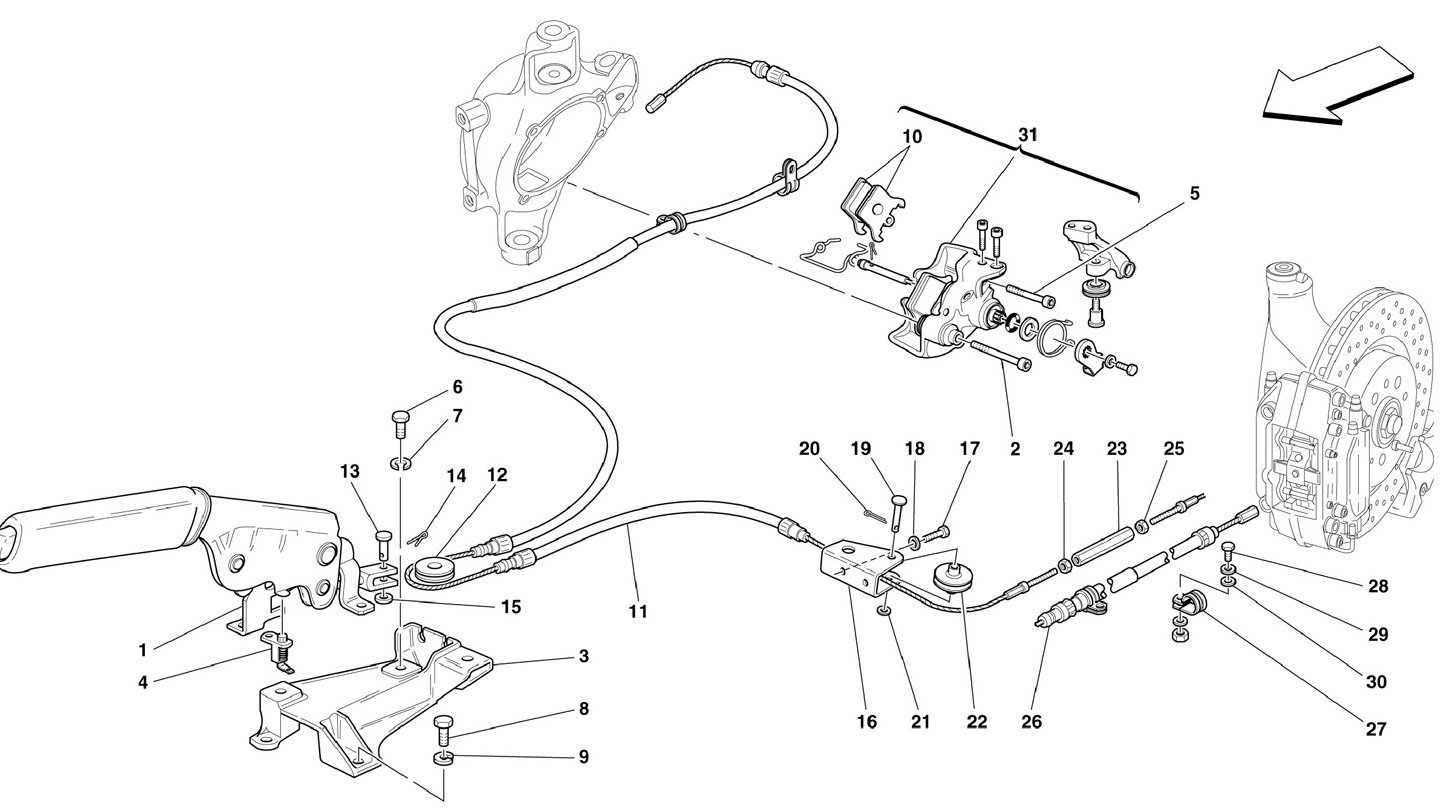

HAND-BRAKE CONTROL

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 807691 *Qty: 1 HAND BRAKE LEVER -Standard- Call
Location: 1 Prev | Next Part: 810581 *Qty: 1 HAND BRAKE LEVER -Reflecting leather- Call
Location: 2 Prev | Next Part: 14308424 *Qty: 1 SCREW $3.90
Location: 3 Prev | Next Part: 207655 *Qty: 1 LEVER FOR SHAFT FIXING $95.23
Location: 4 Prev | Next Part: 176118 *Qty: 1 MICRO-SWITCH $60.82
Location: 5 Prev | Next Part: 14308924 *Qty: 1 SCREW $5.17
Location: 6 Prev | Next Part: 16043224 *Qty: 2 SCREW $0.90
Location: 7 Prev | Next Part: 127496 *Qty: 2 WASHER $0.90
Location: 8 Prev | Next Part: 16043434 *Qty: 2 SCREW $0.90
Location: 9 Prev | Next Part: 127496 *Qty: 2 WASHER $0.90
Location: 10 Prev | Next Part: 70000937 *Qty: 1 KIT OF HAND BRAKES PADS WITH SPRING -Standard- -Cast iron version- $356.81
Location: 10 Prev | Next Part: 70000969 *Qty: 1 KIT OF HAND BRAKES PADS WITH SPRING -Optional- -CCM version- Call
Location: 11 Prev | Next Part: 256606 *Qty: 1 R.H. REAR CABLE $223.25
Location: 12 Prev | Next Part: 122091 *Qty: 1 PULLEY FOR CABLE $9.47
Location: 13 Prev | Next Part: 10050814 *Qty: 1 PIVOT $3.29
Location: 14 Prev | Next Part: 10734208 *Qty: 1 SPLIT PIN $0.90
Location: 15 Prev | Next Part: 14496524 *Qty: 1 WASHER $0.90
Location: 16 Prev | Next Part: 176245 *Qty: 1 BRACKET FOR CABLE FIXING $85.60
Location: 17 Prev | Next Part: 10902024 *Qty: 2 SCREW $0.90
Location: 18 Prev | Next Part: 12605374 *Qty: 2 WASHER -Valid till stock exhaustion- Superseded
Location: 18 Prev | Next Part: 12601274 *Qty: 2 WASHER -Valid after stock exhaustion of 12605374- $0.90
Location: 19 Prev | Next Part: 10041214 *Qty: 1 PIVOT $3.69
Location: 20 Prev | Next Part: 10734208 *Qty: 1 SPLIT PIN $0.90
Location: 21 Prev | Next Part: 14496524 *Qty: 1 WASHER $0.90
Location: 22 Prev | Next Part: 176261 *Qty: 1 PULLEY FOR CABLE $93.04
Location: 23 Prev | Next Part: 10091014 *Qty: 1 ADJUSTMENT SLEEVE $112.58
Location: 24 Prev | Next Part: 10725914 *Qty: 1 NUT $0.90
Location: 25 Prev | Next Part: 10727314 *Qty: 1 NUT $0.90
Location: 26 Prev | Next Part: 256605 *Qty: 1 L.H. REAR CABLE $165.90
Location: 27 Prev | Next Part: 10441390 *Qty: 5 BRACKET WITH SHEATH $0.90
Location: 28 Prev | Next Part: 10902224 *Qty: 3 SCREW $0.90
Location: 29 Prev | Next Part: 12605374 *Qty: 3 WASHER -Valid till stock exhaustion- Superseded
Location: 29 Prev | Next Part: 12601274 *Qty: 3 WASHER -Valid after stock exhaustion of 12605374- $0.90
Location: 30 Prev | Next Part: 12644424 *Qty: 3 WASHER $0.90
Location: 31 Prev | Next Part: 228022 *Qty: 1 R.H. CALIPER FOR HAND BRAKE -Standard- -Cast iron version- -Valid till Ass. Nr. 68250- -Not asspare part- -Replaced by 228022- $947.34

* Quantity shown indicates the number of pieces used in the diagram.
