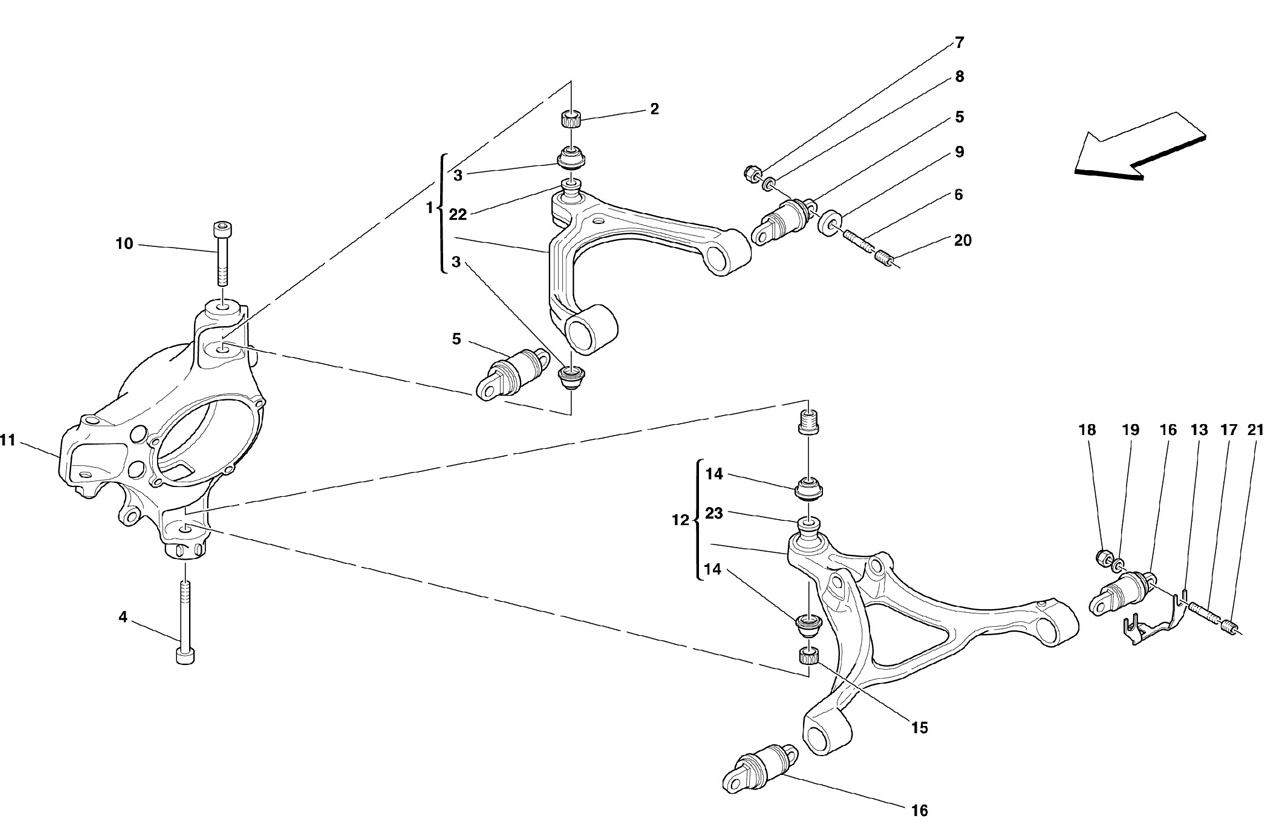

FRONT SUSPENSION - WISHBONES

Go to Split View

FRONT SUSPENSION - WISHBONES

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 200945 *Qty: 2 UPPER LEVER $771.05
Location: 2 Prev | Next Part: 179555 *Qty: 2 UPPER LEVER COMPENSATOR RING $5.99
Location: 3 Prev | Next Part: 171848 *Qty: 4 BOOT $42.00
Location: 4 Prev | Next Part: 181598 *Qty: 2 SCREW $70.72
Location: 5 Prev | Next Part: 184610 *Qty: 4 FLAMBLOC $278.94
Location: 6 Prev | Next Part: 170155 *Qty: 8 THREADED BAR $2.91
Location: 7 Prev | Next Part: 104030 *Qty: 8 NUT $0.90
Location: 8 Prev | Next Part: 14496524 *Qty: 8 WASHER $0.90
Location: 9 Prev | Next Part: 12628904 *Qty: 8 WASHER $0.90
Location: 10 Prev | Next Part: 179556 *Qty: 2 SCREW $33.86
Location: 11 Prev | Next Part: 179328 *Qty: 1 R.H. FRONT STEERING KNUCKLE $1,136.48
Location: 11 Prev | Next Part: 179330 *Qty: 1 L.H. FRONT STEERING KNUCKLE $1,136.48
Location: 12 Prev | Next Part: 200940 *Qty: 2 LOWER LEVER $704.00
Location: 13 Prev | Next Part: 178851 *Qty: 4 ADJUSTING PLATE -Th. mm. 1- -Possible fitting- $17.77
Location: 13 Prev | Next Part: 186943 *Qty: 4 ADJUSTING PLATE -Th. mm. 1,5- -Possible fitting- $11.01
Location: 13 Prev | Next Part: 178852 *Qty: 4 ADJUSTING PLATE -Th. mm. 2- -Possible fitting- $20.60
Location: 13 Prev | Next Part: 186944 *Qty: 4 ADJUSTING PLATE -Th. mm. 2,5- -Possible fitting- $5.31
Location: 13 Prev | Next Part: 178853 *Qty: 4 ADJUSTING PLATE -Th. mm. 3- -Possible fitting- $21.59
Location: 13 Prev | Next Part: 178940 *Qty: 4 ADJUSTING PLATE -Th. mm. 4- -Possible fitting- $7.78
Location: 14 Prev | Next Part: 171847 *Qty: 4 BOOT $42.00
Location: 15 Prev | Next Part: 179554 *Qty: 2 LOWER LEVER COMPENSATOR RING $6.21
Location: 16 Prev | Next Part: 184609 *Qty: 4 FLAMBLOC $290.00
Location: 17 Prev | Next Part: 170154 *Qty: 8 THREADED BAR $3.64
Location: 18 Prev | Next Part: 104114 *Qty: 8 NUT Superseded
Location: 19 Prev | Next Part: 14496624 *Qty: 8 WASHER $0.90
Location: 20 Prev | Next Part: 13582271 *Qty: 8 THREADED INSERT $10.25
Location: 21 Prev | Next Part: 13582310 *Qty: 8 THREADED INSERT $16.22
Location: 22 Prev | Next Part: 203633 *Qty: 2 BALL JOINT Call
Location: 23 Prev | Next Part: 203632 *Qty: 2 BALL JOINT Call

* Quantity shown indicates the number of pieces used in the diagram.
