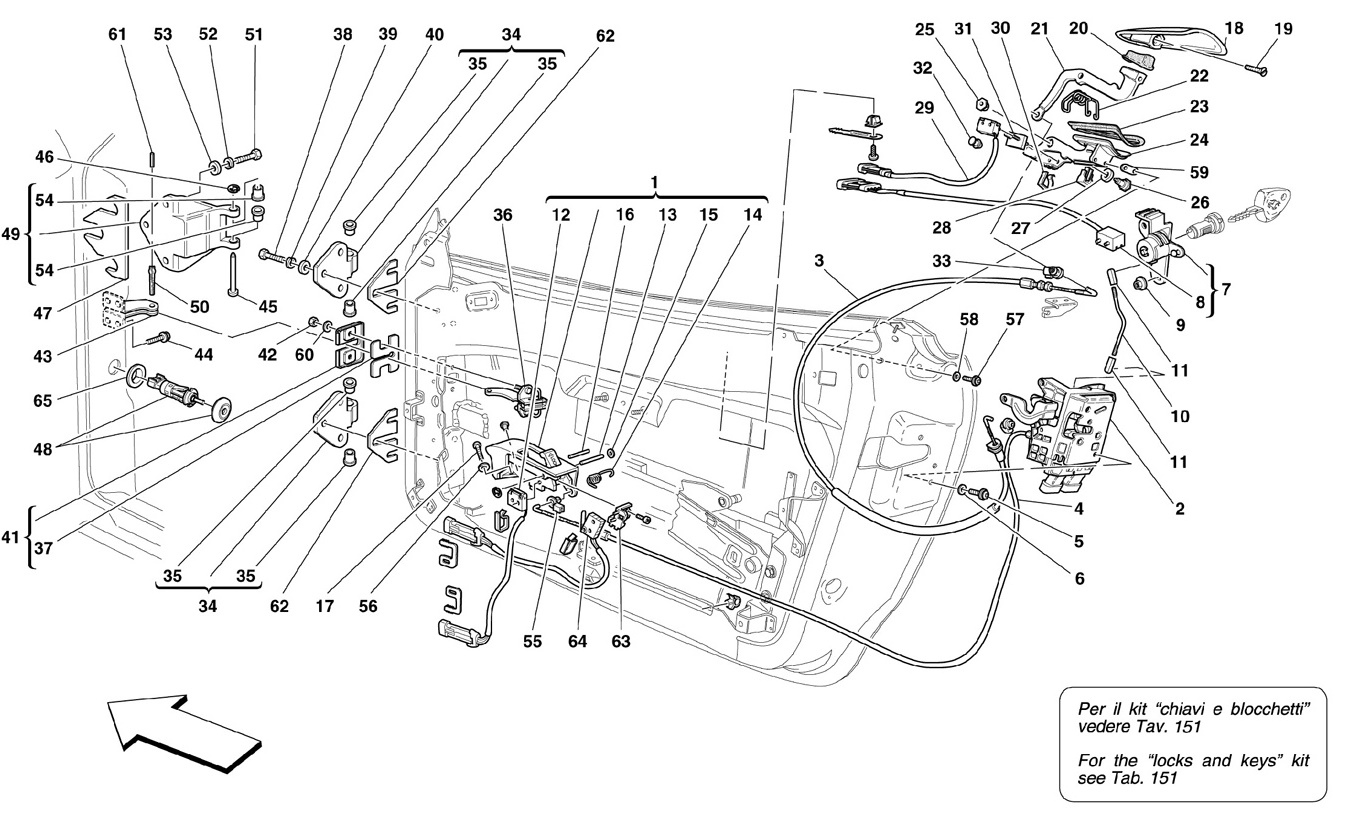

DOORS - OPENING CONTROL AND HINGES

Go to Split View

DOORS - OPENING CONTROL AND HINGES

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 68884500 *Qty: 1 R.H. INNER HANDLE FOR DOOR OPENING -Not as spare part now- -Replaced by 68884500- $904.84
Location: 1 Prev | Next Part: 68884500 *Qty: 1 R.H. INNER HANDLE FOR DOOR OPENING $904.84
Location: 1 Prev | Next Part: 68884600 *Qty: 1 L.H. INNER HANDLE FOR DOOR OPENING -Not as spare part now- -Replaced by 68884600- $904.84
Location: 1 Prev | Next Part: 68884600 *Qty: 1 L.H. INNER HANDLE FOR DOOR OPENING $904.84
Location: 2 Prev | Next Part: 68993100 *Qty: 1 RIGHT-HAND DOOR LOCK WITH EXTERNAL LOCKING, FOR LHD VEHICLES ONLY. $352.61
Location: 2 Prev | Next Part: 80355200 *Qty: 1 R.H. DOOR LOCK -Without pawl- -Valid from Ass. Nr. 74919 for not GD- Call
Location: 2 Prev | Next Part: 68993200 *Qty: 1 LEFT-HAND DOOR LOCK WITH EXTERNAL LOCKING, FOR LHD VEHICLES ONLY. $341.92
Location: 2 Prev | Next Part: 80355300 *Qty: 1 L.H. DOOR LOCK -Without pawl- -Valid from Ass. Nr. 74919 for GD- Call
Location: 3 Prev | Next Part: 68602600 *Qty: 1 DOOR OPENING OUTER CABLE Call
Location: 4 Prev | Next Part: 65069300 *Qty: 2 DOOR OPENING INNER CABLE -Not as spare part now- -Replaced by 68883400- Call
Location: 4 Prev | Next Part: 68883400 *Qty: 2 DOOR OPENING INNER CABLE $155.25
Location: 5 Prev | Next Part: 62940900 *Qty: 6 SCREW $1.85
Location: 6 Prev | Next Part: 13550277 *Qty: 6 WASHER $0.90
Location: 7 Prev | Next Part: 65839400 *Qty: 1 R.H. DOOR LOCK BLOCK -Valid till Ass. Nr. 74896 for not GD- $333.35
Location: 7 Prev | Next Part: 65839500 *Qty: 1 L.H. DOOR LOCK BLOCK -Valid till Ass. Nr. 74896 for GD- $333.35
Location: 8 Prev | Next Part: 63859200 *Qty: 1 R.H. MICRO-SWITCH -Valid till Ass. Nr. 74896 for not GD- $300.83
Location: 8 Prev | Next Part: 63859200 *Qty: 1 L.H. MICRO-SWITCH -Valid till Ass. Nr. 74896 for GD- $300.83
Location: 9 Prev | Next Part: 13046011 *Qty: 4 NUT -Q.ty 2 from Ass. Nr. 74897- $0.90
Location: 10 Prev | Next Part: 65836500 *Qty: 2 SAFETYTIE ROD -Q.ty 1 from Ass. Nr. 74897- $111.61
Location: 11 Prev | Next Part: 62794000 *Qty: 4 FLEXIBLE JOINT -Q.ty 2 from Ass. Nr. 74897- $1.46
Location: 12 Prev | Next Part: 171120 *Qty: 2 MICRO-SWITCH $162.71
Location: 13 Prev | Next Part: 63723400 *Qty: 2 PIN $4.96
Location: 14 Prev | Next Part: 63724600 *Qty: 1 R.H. SPRING $5.59
Location: 14 Prev | Next Part: 63724700 *Qty: 1 L.H. SPRING $5.59
Location: 15 Prev | Next Part: 11087476 *Qty: 2 FLEXIBLE RING $7.31
Location: 16 Prev | Next Part: 65582700 *Qty: 2 FLEXIBLE PIN $0.90
Location: 17 Prev | Next Part: 13274177 *Qty: 2 SCREW $0.90
Location: 18 Prev | Next Part: 63576010 *Qty: 1 R.H. OUTER DOOR HANDLE $220.38
Location: 18 Prev | Next Part: 63576110 *Qty: 1 L.H. OUTER DOOR HANDLE $220.38
Location: 19 Prev | Next Part: 13309277 *Qty: 2 SCREW $0.90
Location: 20 Prev | Next Part: 64861100 *Qty: 1 R.H. INNER GASKET $18.91
Location: 20 Prev | Next Part: 64861200 *Qty: 1 L.H. INNER GASKET $18.91
Location: 21 Prev | Next Part: 64860600 *Qty: 2 LEVER $120.72
Location: 22 Prev | Next Part: 64860700 *Qty: 2 SPRING FOR HANDLE $27.80
Location: 23 Prev | Next Part: 64860900 *Qty: 1 R.H. HANDLE GASKET Call
Location: 23 Prev | Next Part: 64861000 *Qty: 1 L.H. HANDLE GASKET Call
Location: 24 Prev | Next Part: 64860410 *Qty: 1 R.H. HANDLE SEAT $102.05
Location: 24 Prev | Next Part: 64860510 *Qty: 1 L.H. HANDLE SEAT $102.05
Location: 25 Prev | Next Part: 65398700 *Qty: 2 BUSHING $55.31
Location: 26 Prev | Next Part: 64860800 *Qty: 2 PIN $105.26
Location: 27 Prev | Next Part: 65520700 *Qty: 4 WASHER Call
Location: 28 Prev | Next Part: 65398600 *Qty: 2 GUIDE $22.31
Location: 29 Prev | Next Part: 178187 *Qty: 2 MICRO-SWITCH $80.60
Location: 30 Prev | Next Part: 63179900 *Qty: 2 FIXING CLIP $3.28
Location: 31 Prev | Next Part: 65806300 *Qty: 2 PLATE $74.31
Location: 32 Prev | Next Part: 63853400 *Qty: 2 RUBBER PAD $4.82
Location: 33 Prev | Next Part: 14578180 *Qty: 2 CLIP Superseded
Location: 34 Prev | Next Part: 64803300 *Qty: 4 MOBILE HINGE $265.69
Location: 35 Prev | Next Part: 62825300 *Qty: 8 BUSHING $35.18
Location: 36 Prev | Next Part: 65195200 *Qty: 2 TIE ROD $56.94
Location: 37 Prev | Next Part: 63892300 *Qty: 2 GASKET $4.94
Location: 38 Prev | Next Part: 16043934 *Qty: 12 SCREW $0.90
Location: 39 Prev | Next Part: 10571779 *Qty: 12 WASHER -Not as spare part- -Replaced by 11194074- $0.90
Location: 39 Prev | Next Part: 11194074 *Qty: 12 WASHER $0.90
Location: 40 Prev | Next Part: 14496578 *Qty: 12 WASHER Superseded
Location: 41 Prev | Next Part: 63895200 *Qty: 1 R.H. PLATE $31.62
Location: 41 Prev | Next Part: 63895300 *Qty: 1 L.H. PLATE $31.62
Location: 42 Prev | Next Part: 102741 *Qty: 4 NUT $0.90
Location: 43 Prev | Next Part: 67111800 *Qty: 2 BRACKET $10.47
Location: 44 Prev | Next Part: 13836971 *Qty: 8 SCREW -Not as spare part- -Replaced by 230083- $0.90
Location: 44 Prev | Next Part: 230083 *Qty: 8 SCREW $1.57
Location: 45 Prev | Next Part: 64803400 *Qty: 4 PIN $51.43
Location: 46 Prev | Next Part: 11087974 *Qty: 4 FLEXIBLE RING $0.90
Location: 47 Prev | Next Part: 65713400 *Qty: 4 THICKNESS $1.51
Location: 48 Prev | Next Part: 179697 *Qty: 2 PILLAR SWITCH Call
Location: 49 Prev | Next Part: 64803200 *Qty: 4 FIXED HINGE $160.88
Location: 50 Prev | Next Part: 66842800 *Qty: 2 PIN $4.03
Location: 51 Prev | Next Part: 16043534 *Qty: 12 SCREW $0.90
Location: 52 Prev | Next Part: 10571779 *Qty: 12 WASHER -Not as spare part- -Replaced by 11194074- $0.90
Location: 52 Prev | Next Part: 11194074 *Qty: 12 WASHER $0.90
Location: 53 Prev | Next Part: 13550405 *Qty: 12 WASHER $0.90
Location: 54 Prev | Next Part: 62825300 *Qty: 8 BUSHING $35.18
Location: 55 Prev | Next Part: 65700900 *Qty: 2 FIXING CLIP $1.02
Location: 56 Prev | Next Part: 12637878 *Qty: 2 WASHER $0.90
Location: 57 Prev | Next Part: 169814 *Qty: 2 SCREW $1.76
Location: 58 Prev | Next Part: 166467 *Qty: 2 WASHER $1.18
Location: 59 Prev | Next Part: 65547500 *Qty: 6 SPACER -Valid till stock exhaustion- $1.90
Location: 59 Prev | Next Part: 69919600 *Qty: 2 SPACER -Valid after stock exhaustion of 65547500- Call
Location: 60 Prev | Next Part: 12644424 *Qty: 4 WASHER $0.90
Location: 61 Prev | Next Part: 14163874 *Qty: 2 FLEXIBLE PIN $1.13
Location: 62 Prev | Next Part: 65998600 *Qty: 4 THICKNESS $6.98
Location: 63 Prev | Next Part: 67904000 *Qty: 1 R.H. MICRO SUPPORT BRACKET $13.32
Location: 63 Prev | Next Part: 67903900 *Qty: 1 L.H. MICRO SUPPORT BRACKET $13.32
Location: 64 Prev | Next Part: 212584 *Qty: 2 MICRO-SWITCH FOR LOCKING DOORS $119.66
Location: 65 Prev | Next Part: 68917600 *Qty: 2 SWITCH PLATE $16.27

* Quantity shown indicates the number of pieces used in the diagram.
