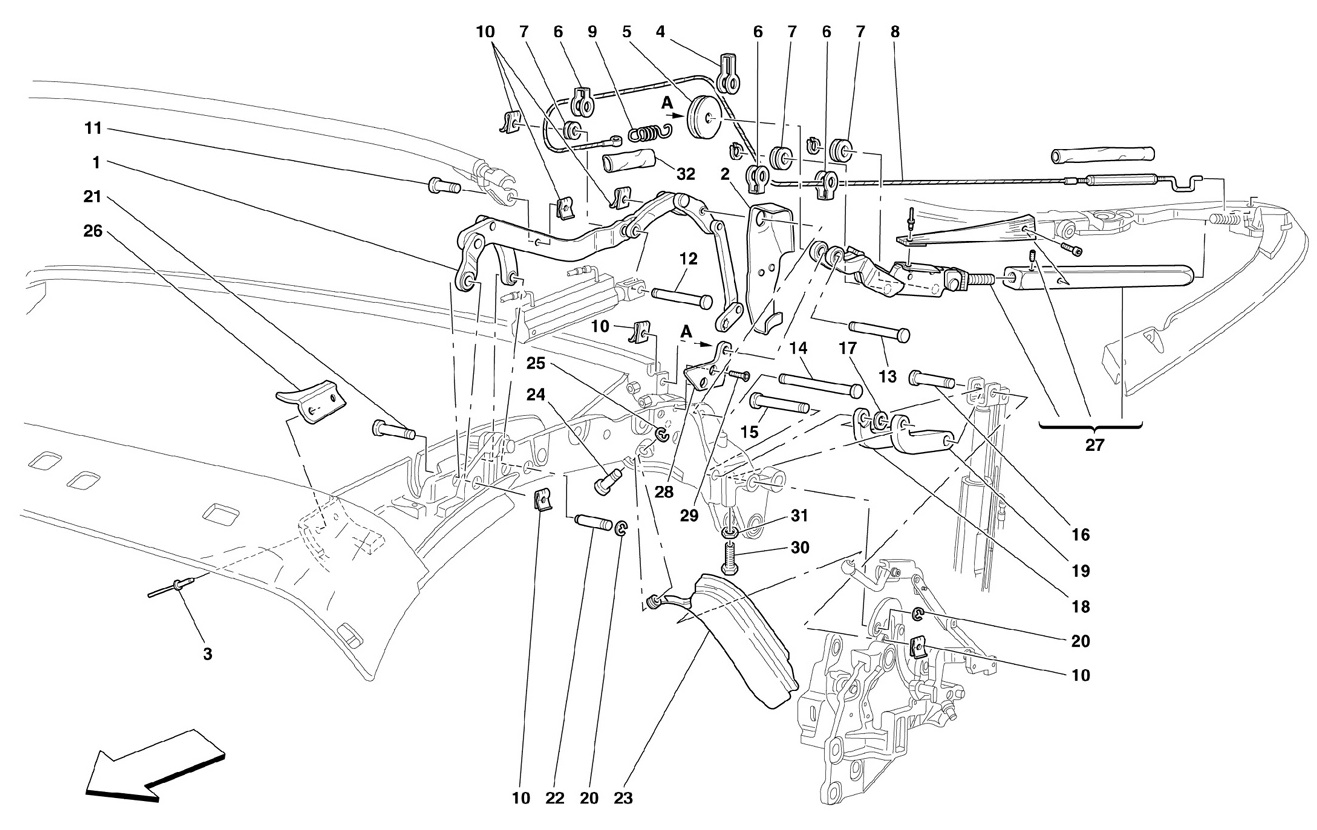

CAPOTE MOVEMENT - UPPER PART

Go to Split View

CAPOTE MOVEMENT - UPPER PART

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 66458300 *Qty: 1 R.H. FLOATING ARM $741.44
Location: 1 Prev | Next Part: 66458200 *Qty: 1 L.H. FLOATING ARM $741.44
Location: 2 Prev | Next Part: 66693900 *Qty: 1 R.H. PANEL $93.95
Location: 2 Prev | Next Part: 66694000 *Qty: 1 L.H. PANEL $93.95
Location: 3 Prev | Next Part: 66693000 *Qty: 4 RIVET $3.16
Location: 4 Prev | Next Part: 66688100 *Qty: 2 BRACKET FOR PULLEY -37 mm- $14.95
Location: 5 Prev | Next Part: 66688000 *Qty: 2 PULLEY -37 mm- Call
Location: 6 Prev | Next Part: 66687900 *Qty: 6 BRACKET FOR PULLEY -20 mm- $13.85
Location: 7 Prev | Next Part: 66687800 *Qty: 6 PULLEY -20 mm- $12.76
Location: 8 Prev | Next Part: 67047300 *Qty: 2 STRETCH CABLE $218.23
Location: 9 Prev | Next Part: 66688200 *Qty: 2 SPRING $10.07
Location: 10 Prev | Next Part: 66682200 *Qty: 12 CLIP $6.28
Location: 11 Prev | Next Part: 66682100 *Qty: 2 PIN $10.89
Location: 12 Prev | Next Part: 66682800 *Qty: 2 PIN $11.23
Location: 13 Prev | Next Part: 66682700 *Qty: 2 PIN $11.43
Location: 14 Prev | Next Part: 66683200 *Qty: 2 PIN $14.05
Location: 15 Prev | Next Part: 66683300 *Qty: 2 PIN $12.35
Location: 16 Prev | Next Part: 66682900 *Qty: 2 PIN $11.23
Location: 17 Prev | Next Part: 66694100 *Qty: 2 WASHER $3.86
Location: 18 Prev | Next Part: 66683100 *Qty: 2 R.H. BRACKET $199.78
Location: 19 Prev | Next Part: 66683000 *Qty: 2 L.H. BRACKET $199.78
Location: 20 Prev | Next Part: 66682400 *Qty: 4 SEEGER $5.15
Location: 21 Prev | Next Part: 66682000 *Qty: 2 PIN $10.46
Location: 22 Prev | Next Part: 66682300 *Qty: 2 PIN $20.87
Location: 23 Prev | Next Part: 66460300 *Qty: 1 R.H. PILLAR $629.28
Location: 23 Prev | Next Part: 66460200 *Qty: 1 L.H. PILLAR $629.28
Location: 24 Prev | Next Part: 66682500 *Qty: 2 PIN $12.15
Location: 25 Prev | Next Part: 66682600 *Qty: 2 SEEGER $5.60
Location: 26 Prev | Next Part: 66681800 *Qty: 1 R.H. BRACKET $48.56
Location: 26 Prev | Next Part: 66681900 *Qty: 1 L.H. BRACKET $48.56
Location: 27 Prev | Next Part: 67047200 *Qty: 1 COMPLETE R.H. TRIPLE JOINT WITH CABLE Ref. 8 $1,383.74
Location: 27 Prev | Next Part: 67047100 *Qty: 1 COMPLETE L.H. TRIPLE JOINT WITH CABLE Ref. 8 $1,383.74
Location: 28 Prev | Next Part: 67048800 *Qty: 2 PLATE FOR TRIPLE JOINT $95.09
Location: 29 Prev | Next Part: 67048900 *Qty: 4 SCREW $8.56
Location: 30 Prev | Next Part: 67048500 *Qty: 2 SCREW $11.61
Location: 31 Prev | Next Part: 67048600 *Qty: 2 NUT $12.24
Location: 32 Prev | Next Part: 67048700 *Qty: 2 SHEATH $94.10

* Quantity shown indicates the number of pieces used in the diagram.
