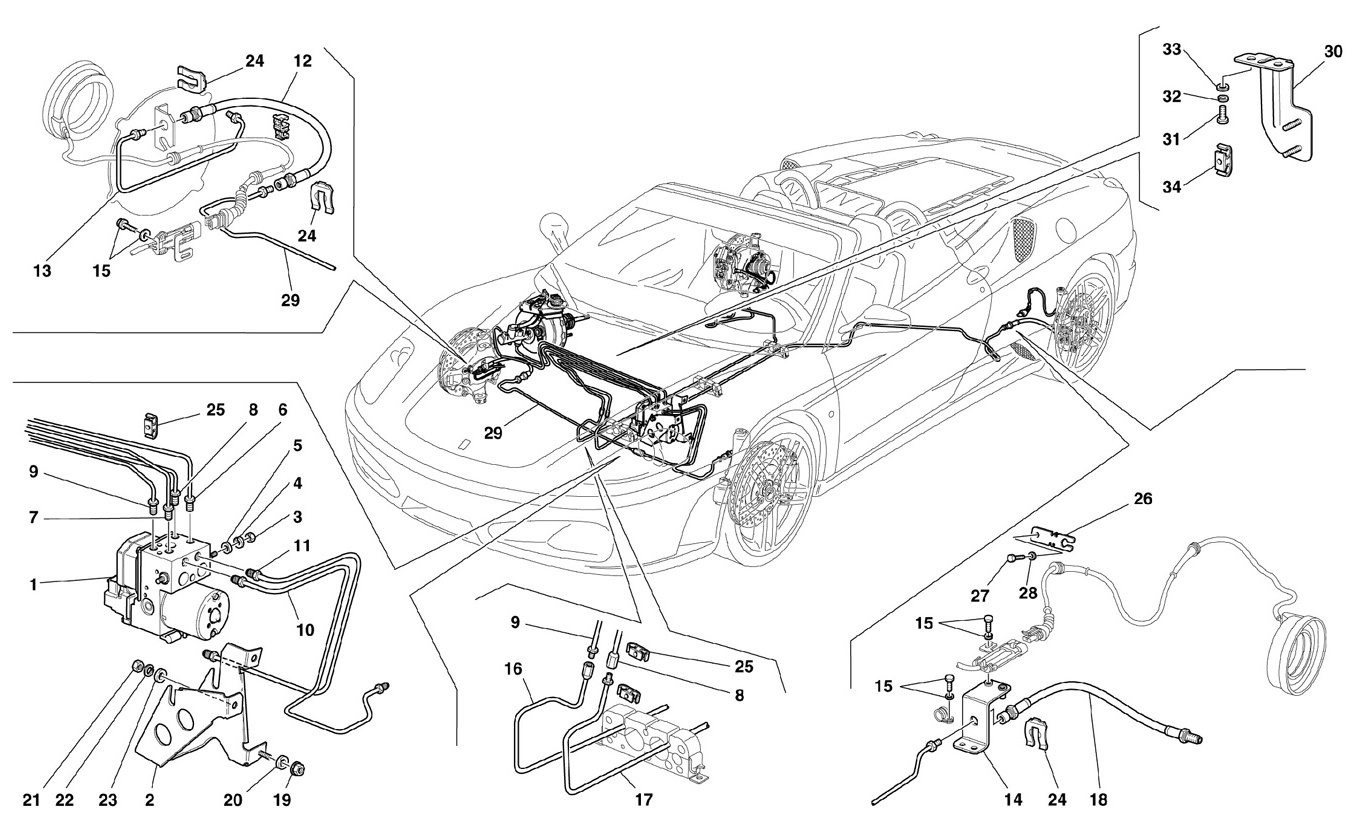

BRAKE SYSTEM -Valid for GD-

Go to Split View

BRAKE SYSTEM -Valid for GD-

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 194608 *Qty: 1 ABS/ASR HYDRAULIC/ELECTRONIC CONTROL STATION -Valid till Ass. Nr. 61536- $3,725.78
Location: 1 Prev | Next Part: 221252 *Qty: 1 ABS/ASR HYDRAULIC/ELECTRONIC CONTROL STATION -Valid from Ass. Nr. 61537- $3,725.01
Location: 2 Prev | Next Part: 210930 *Qty: 1 CONTROL STATION SUPPORTING BRACKET $82.45
Location: 3 Prev | Next Part: 16100814 *Qty: 2 NUT $0.90
Location: 4 Prev | Next Part: 127496 *Qty: 2 WASHER $0.90
Location: 5 Prev | Next Part: 12638524 *Qty: 2 WASHER $0.90
Location: 6 Prev | Next Part: 209844 *Qty: 1 BRAKE PIPE FROM FRONT PUMP TO CONTROL STATION -Not as spare part now- -Replaced by 219886- Call
Location: 6 Prev | Next Part: 219886 *Qty: 1 BRAKE PIPE FROM FRONT PUMP TO CONTROL STATION Call
Location: 7 Prev | Next Part: 209843 *Qty: 1 BRAKE PIPE FROM REAR PUMP TO CONTROL STATION -Not as spare part now- -Replaced by 219885- Call
Location: 7 Prev | Next Part: 219885 *Qty: 1 BRAKE PIPE FROM REAR PUMP TO CONTROL STATION Call
Location: 8 Prev | Next Part: 209845 *Qty: 1 PIPE FROM CONTROL STATION TO L.H. INTERMEDIATE PIPE $50.88
Location: 9 Prev | Next Part: 209846 *Qty: 1 PIPE FROM CONTROL STATION TO R.H. INTERMEDIATE PIPE $49.46
Location: 10 Prev | Next Part: 209848 *Qty: 1 PIPE FROM CONTROL STATION TO L.H. FRONT BRAKE PIPE $69.12
Location: 11 Prev | Next Part: 209847 *Qty: 1 PIPE FROM CONTROL STATION TO UNION PIPE $53.88
Location: 12 Prev | Next Part: 116373 *Qty: 2 FRONT HOSE Superseded
Location: 13 Prev | Next Part: 173806 *Qty: 1 PIPE TO R.H. FRONT BRAKE $56.62
Location: 13 Prev | Next Part: 173805 *Qty: 1 PIPE TO L.H. FRONT BRAKE $56.62
Location: 14 Prev | Next Part: 185283 *Qty: 2 REAR SUPPORT $135.59
Location: 15 Prev | Next Part: 11625724 *Qty: 8 SCREW WITH WASHER $1.15
Location: 16 Prev | Next Part: 205093 *Qty: 1 PIPE TO R.H. REAR HOSE $155.49
Location: 17 Prev | Next Part: 205094 *Qty: 1 PIPE TO L.H. REAR HOSE $155.59
Location: 18 Prev | Next Part: 118100 *Qty: 2 REAR HOSE Superseded
Location: 19 Prev | Next Part: 101139 *Qty: 1 NUT $0.90
Location: 20 Prev | Next Part: 12638524 *Qty: 1 WASHER $0.90
Location: 21 Prev | Next Part: 16100814 *Qty: 2 NUT $0.90
Location: 22 Prev | Next Part: 127496 *Qty: 2 WASHER $0.90
Location: 23 Prev | Next Part: 12638524 *Qty: 2 WASHER $0.90
Location: 24 Prev | Next Part: 116374 *Qty: 8 CLIP $2.96
Location: 25 Prev | Next Part: 169476 *Qty: 4 CLIP $3.69
Location: 26 Prev | Next Part: 178938 *Qty: 2 SUPPORT FOR CABLE $36.56
Location: 27 Prev | Next Part: 10902024 *Qty: 2 SCREW $0.90
Location: 28 Prev | Next Part: 12605374 *Qty: 2 WASHER -Valid till stock exhaustion- Superseded
Location: 28 Prev | Next Part: 12601274 *Qty: 2 SHER -Valid after stock exhaustion of 12605374- $0.90
Location: 29 Prev | Next Part: 209851 *Qty: 1 UNION PIPE TO R.H. FRONT BRAKE PIPE $63.52
Location: 30 Prev | Next Part: 210896 *Qty: 1 BRAKES PIPES FIXING BRACKET $17.41
Location: 31 Prev | Next Part: 10902424 *Qty: 2 SCREW $0.90
Location: 32 Prev | Next Part: 127494 *Qty: 2 WASHER $0.90
Location: 33 Prev | Next Part: 12644424 *Qty: 2 WASHER $0.90
Location: 34 Prev | Next Part: 169476 *Qty: 2 CLIP $3.69

* Quantity shown indicates the number of pieces used in the diagram.
