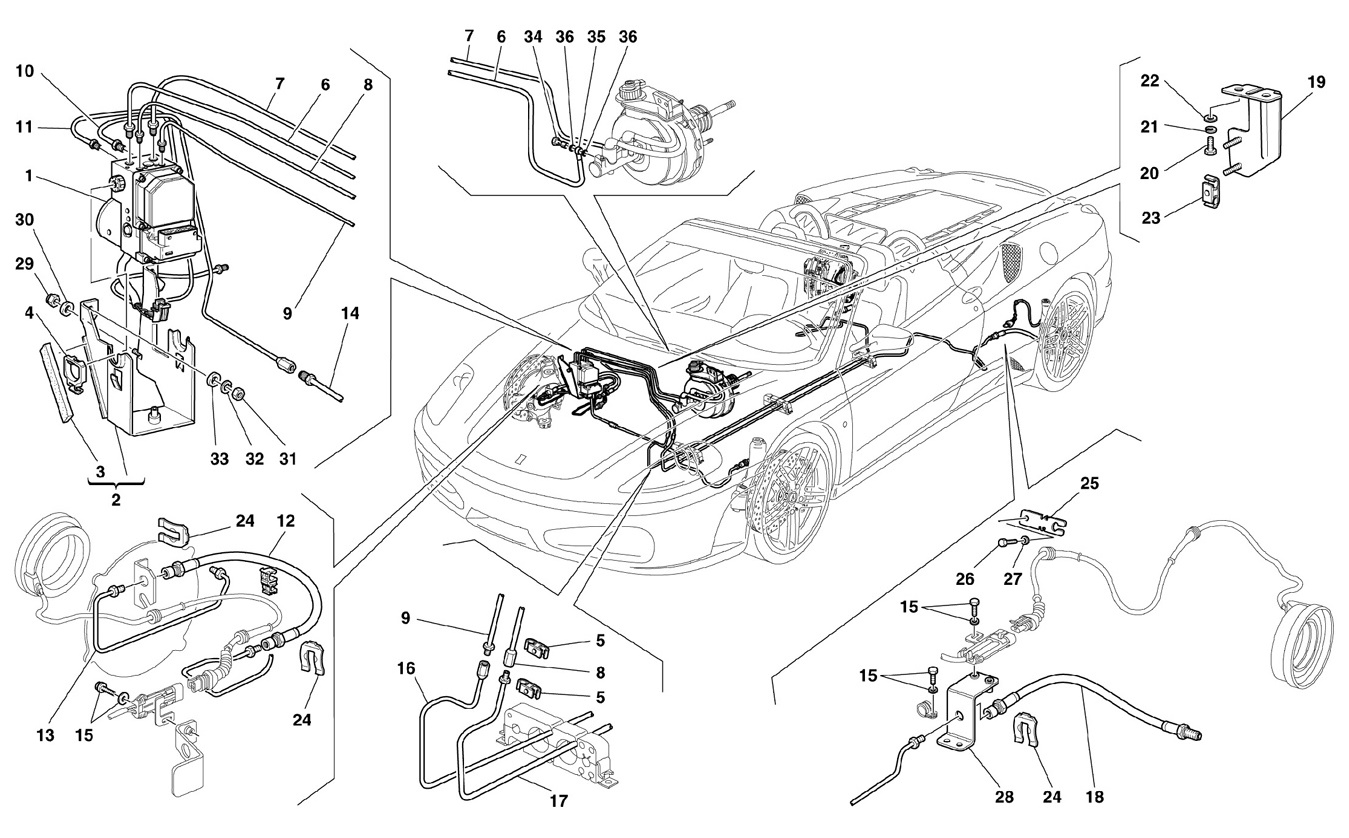

BRAKE SYSTEM -Not for GD-

Go to Split View

BRAKE SYSTEM -Not for GD-

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 194608 *Qty: 1 ABS/ASR HYDRAULIC/ELECTRONIC CONTROL STATION -Valid till Ass. Nr. 61536- $3,842.21
Location: 1 Prev | Next Part: 221252 *Qty: 1 ABS/ASR HYDRAULIC/ELECTRONIC CONTROL STATION -Valid from Ass. Nr. 61537- $3,841.42
Location: 2 Prev | Next Part: 203603 *Qty: 1 CONTROL STATION SUPPORTING BRACKET $57.90
Location: 3 Prev | Next Part: 197149 *Qty: 1 ANTI-VIBRATIONS $0.90
Location: 4 Prev | Next Part: 193877 *Qty: 2 FIXING CLIP $0.90
Location: 5 Prev | Next Part: 169476 *Qty: 4 CLIP $4.55
Location: 6 Prev | Next Part: 194602 *Qty: 1 BRAKE PIPE FROM FRONT PUMP TO CONTROL STATION -Standard- -Cast iron version- $32.05
Location: 6 Prev | Next Part: 209904 *Qty: 1 BRAKE PIPE FROM FRONT PUMP TO CONTROL STATION -Optional- -CCM version- $46.90
Location: 7 Prev | Next Part: 194601 *Qty: 1 BRAKE PIPE FROM REAR PUMP TO CONTROL STATION -Standard- -Cast iron version- $33.21
Location: 7 Prev | Next Part: 209906 *Qty: 1 BRAKE PIPE FROM REAR PUMP TO CONTROL STATION -Optional- -CCM version- $53.67
Location: 8 Prev | Next Part: 194603 *Qty: 1 PIPE FROM CONTROL STATION TO L.H. INTERMEDIATE PIPE $45.43
Location: 9 Prev | Next Part: 194604 *Qty: 1 PIPE FROM CONTROL STATION TO R.H. INTERMEDIATE PIPE $43.32
Location: 10 Prev | Next Part: 194605 *Qty: 1 PIPE FROM CONTROL STATION TO INTERMEDIATE PIPE $47.12
Location: 11 Prev | Next Part: 194606 *Qty: 1 PIPE FROM CONTROL STATION TO R.H. FRONT BRAKE PIPE $58.85
Location: 12 Prev | Next Part: 116373 *Qty: 2 FRONT HOSE Superseded
Location: 13 Prev | Next Part: 173806 *Qty: 1 PIPE TO R.H. FRONT BRAKE -Not as spare part now- -Replaced by 173806- $58.39
Location: 13 Prev | Next Part: 173806 *Qty: 1 PIPE TO R.H. FRONT BRAKE $58.39
Location: 13 Prev | Next Part: 173805 *Qty: 1 PIPE TO L.H. FRONT BRAKE -Not as spare part now- -Replaced by 173805- $58.39
Location: 13 Prev | Next Part: 173805 *Qty: 1 PIPE TO L.H. FRONT BRAKE $58.39
Location: 14 Prev | Next Part: 205295 *Qty: 1 INTERMEDIATE PIPE $55.68
Location: 15 Prev | Next Part: 11625724 *Qty: 6 SCREW WITH WASHER $1.18
Location: 16 Prev | Next Part: 205093 *Qty: 1 PIPE TO R.H. REAR HOSE $160.35
Location: 17 Prev | Next Part: 205094 *Qty: 1 PIPE TO L.H. REAR HOSE $160.45
Location: 18 Prev | Next Part: 118100 *Qty: 2 HOSE Superseded
Location: 19 Prev | Next Part: 207278 *Qty: 1 BRAKES PIPES FIXING BRACKET $19.73
Location: 20 Prev | Next Part: 10902424 *Qty: 2 SCREW $0.90
Location: 21 Prev | Next Part: 127494 *Qty: 2 WASHER $0.90
Location: 22 Prev | Next Part: 12644424 *Qty: 2 WASHER $0.90
Location: 23 Prev | Next Part: 169476 *Qty: 2 CLIP $4.55
Location: 24 Prev | Next Part: 116374 *Qty: 8 CLIP $0.90
Location: 25 Prev | Next Part: 178938 *Qty: 2 SUPPORT FOR CABLE -Standard- -Cast iron version- $37.70
Location: 25 Prev | Next Part: 216382 *Qty: 1 L.H. SUPPORT FOR CABLE -Optional- -CCM version- $74.04
Location: 25 Prev | Next Part: 216383 *Qty: 1 R.H. SUPPORT FOR CABLE -Optional- -CCM version- $74.04
Location: 26 Prev | Next Part: 10902024 *Qty: 2 SCREW $0.90
Location: 27 Prev | Next Part: 12605374 *Qty: 2 WASHER -Valid till stock exhaustion- Superseded
Location: 27 Prev | Next Part: 12601274 *Qty: 2 WASHER -Valid after stock exhaustion of 12605374- $0.90
Location: 28 Prev | Next Part: 185283 *Qty: 2 REAR SUPPORT $139.83
Location: 29 Prev | Next Part: 101139 *Qty: 1 NUT $0.90
Location: 30 Prev | Next Part: 12638524 *Qty: 1 WASHER $0.90
Location: 31 Prev | Next Part: 177778 *Qty: 1 NUT -Not as spare part- -Replaced by 16100814- $2.13
Location: 31 Prev | Next Part: 16100814 *Qty: 1 NUT $0.90
Location: 32 Prev | Next Part: 127496 *Qty: 1 WASHER $0.90
Location: 33 Prev | Next Part: 12638524 *Qty: 1 WASHER -Not as spare part- -Replaced by 12646724- $0.90
Location: 33 Prev | Next Part: 12646724 *Qty: 1 WASHER $0.90
Location: 34 Prev | Next Part: 10107225 *Qty: 1 UNION $12.52
Location: 35 Prev | Next Part: 249656 *Qty: 1 UNION $18.42
Location: 36 Prev | Next Part: 10261060 *Qty: 2 GASKET $0.90

* Quantity shown indicates the number of pieces used in the diagram.
