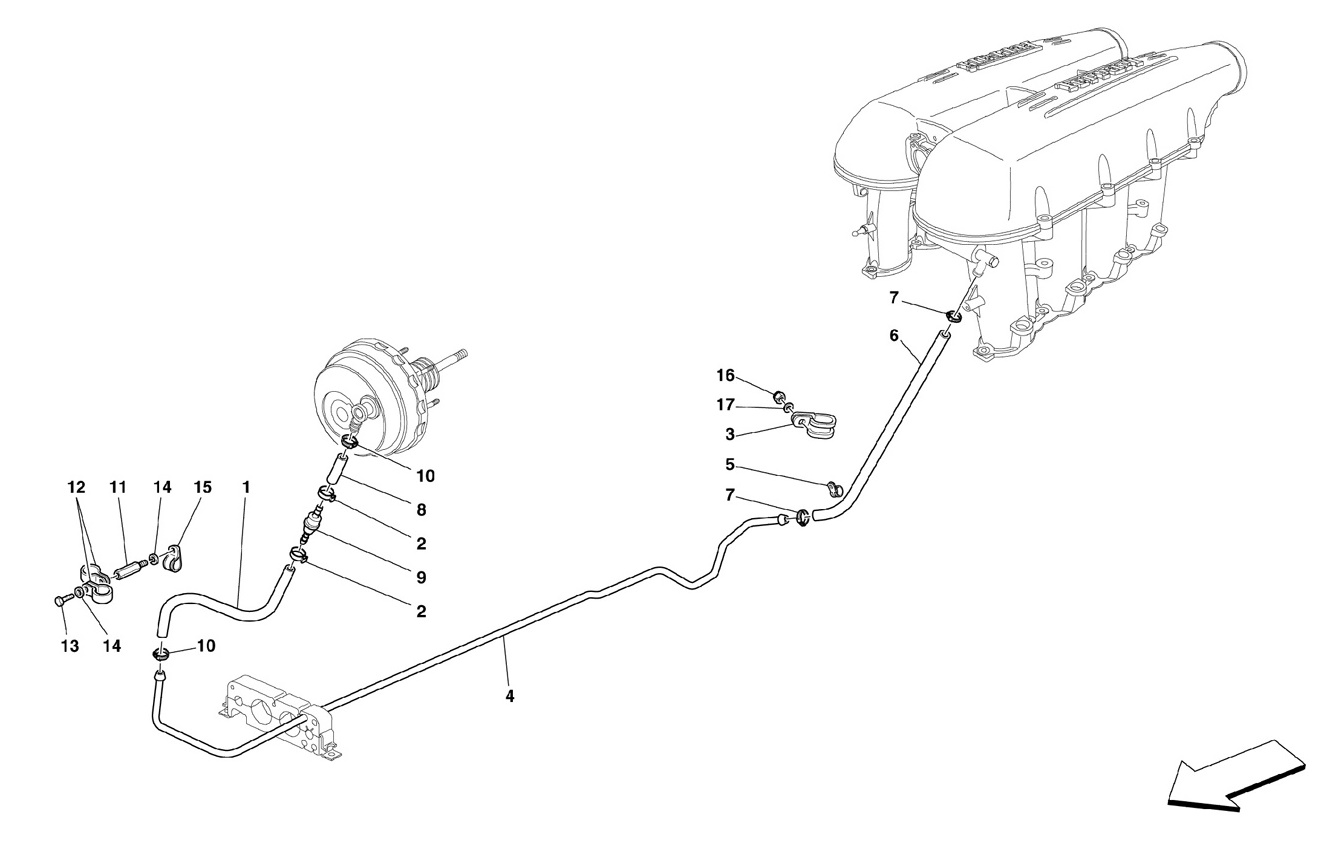

BRAKE BOOSTER SYSTEM

Go to Split View

BRAKE BOOSTER SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 217383 *Qty: 1 RUBBER HOSE FROM VALVE TO UNDERFLOOR TUBE -Standard- Cast iron version- -Not for GD- Call
Location: 1 Prev | Next Part: 173842 *Qty: 1 RUBBER HOSE FROM VALVE TO UNDERFLOOR TUBE -Standard- Cast iron version- -Valid for GD- Call
Location: 1 Prev | Next Part: 217381 *Qty: 1 RUBBER HOSE FROM VALVE TO UNDERFLOOR TUBE -Optional- -CCM version- -Not for GD- $23.21
Location: 1 Prev | Next Part: 219334 *Qty: 1 RUBBER HOSE FROM VALVE TO UNDERFLOOR TUBE -Optional- -CCM version- -Valid for GD- $56.60
Location: 2 Prev | Next Part: 164015 *Qty: 2 COLLAR FOR SLEEVE $0.90
Location: 3 Prev | Next Part: 61712500 *Qty: 2 BRACKET $2.16
Location: 4 Prev | Next Part: 202553 *Qty: 1 BRAKE BOOSTER UNDERFLOOR TUBE $275.13
Location: 5 Prev | Next Part: 10450190 *Qty: 1 BRACKET WITH SHEATH $0.90
Location: 6 Prev | Next Part: 168386 *Qty: 1 RUBBER HOSE -Not as spare part- -Replaced by 211984- $29.72
Location: 6 Prev | Next Part: 211984 *Qty: 1 RUBBER HOSE Call
Location: 7 Prev | Next Part: 161490 *Qty: 2 SCREW COLLAR $2.47
Location: 8 Prev | Next Part: 217382 *Qty: 1 RUBBER HOSE -Standard- -Cast iron version- -Not for GD- Call
Location: 8 Prev | Next Part: 110750 *Qty: 1 RUBBER HOSE -Standard- -Cast iron version- -Valid for GD- Call
Location: 8 Prev | Next Part: 217380 *Qty: 1 RUBBER HOSE -Optional- -CCM version- -Not for GD- $18.44
Location: 8 Prev | Next Part: 127213 *Qty: 1 RUBBER HOSE -Optional- -CCM version- -Valid for GD- $18.93
Location: 9 Prev | Next Part: 193186 *Qty: 1 NONRETURN VALVE $7.91
Location: 10 Prev | Next Part: 161490 *Qty: 2 SCREW COLLAR $2.47
Location: 11 Prev | Next Part: 178772 *Qty: 1 STUD $10.67
Location: 12 Prev | Next Part: 10441390 *Qty: 2 BRACKET WITH SHEATH $0.90
Location: 13 Prev | Next Part: 10902224 *Qty: 1 SCREW $0.90
Location: 14 Prev | Next Part: 127494 *Qty: 2 WASHER $0.90
Location: 15 Prev | Next Part: 10441690 *Qty: 1 BRACKET $0.90
Location: 16 Prev | Next Part: 102948 *Qty: 2 NUT $0.90
Location: 17 Prev | Next Part: 12639724 *Qty: 2 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
