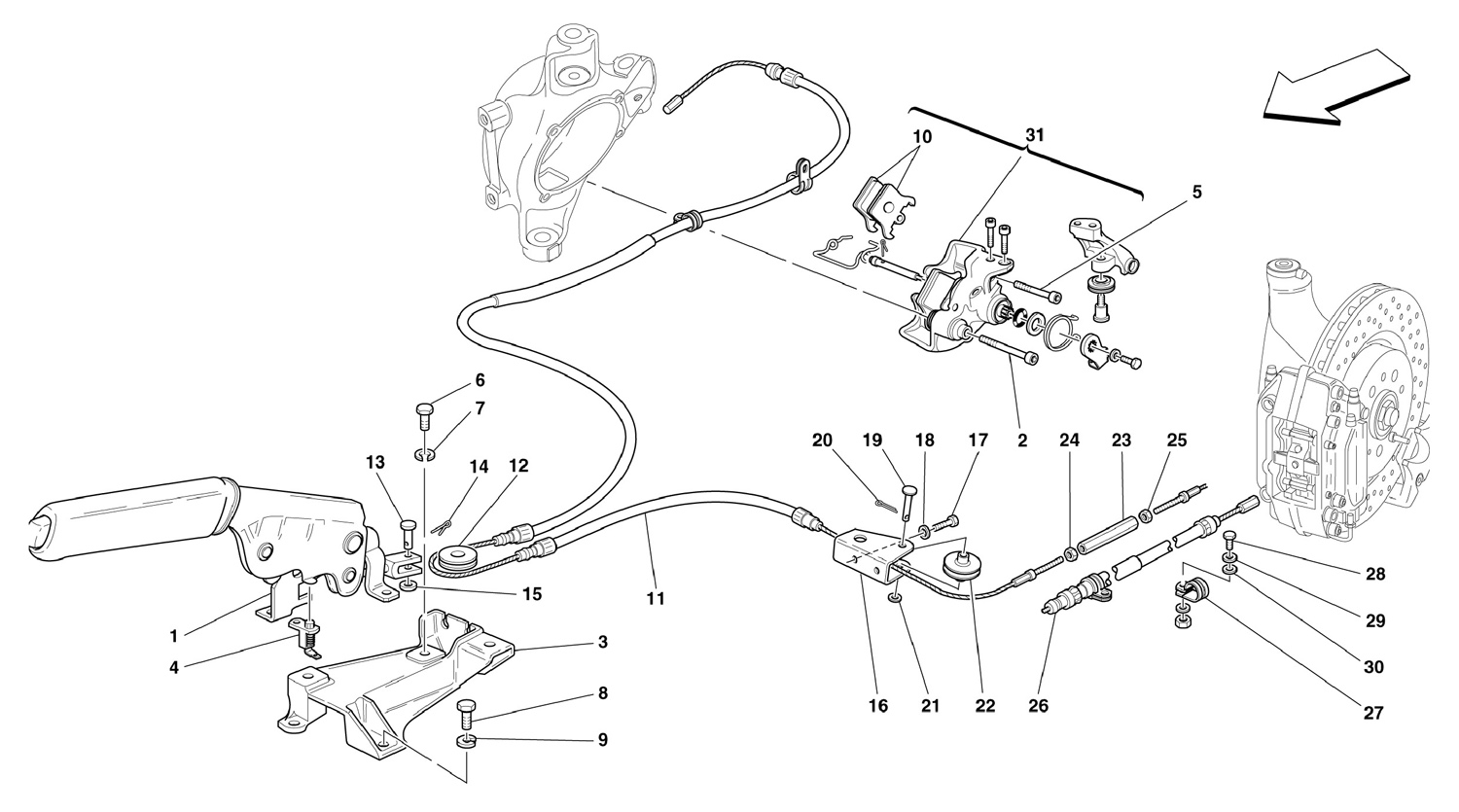

 HAND-BRAKE CONTROL

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 807691 *Qty: 1 HAND BRAKE LEVER -Standard- Call
Location: 1 Prev | Next Part: 810581 *Qty: 1 HAND BRAKE LEVER -Reflecting leather- Call
Location: 2 Prev | Next Part: 14308424 *Qty: 1 SCREW $4.02
Location: 3 Prev | Next Part: 207655 *Qty: 1 LEVER FOR SHAFT FIXING $98.20
Location: 4 Prev | Next Part: 176118 *Qty: 1 MICRO-SWITCH $62.72
Location: 5 Prev | Next Part: 14308924 *Qty: 1 SCREW $5.33
Location: 6 Prev | Next Part: 16043224 *Qty: 2 SCREW $0.90
Location: 7 Prev | Next Part: 127496 *Qty: 2 SHER $0.90
Location: 8 Prev | Next Part: 16043434 *Qty: 2 SCREW $0.90
Location: 9 Prev | Next Part: 127496 *Qty: 2 SHER $0.90
Location: 10 Prev | Next Part: 70000937 *Qty: 1 KIT OF HAND BRAKES PADS WITH SPRING -Standard- -Cast iron version- $356.81
Location: 10 Prev | Next Part: 70000969 *Qty: 1 KIT OF HAND BRAKES PADS WITH SPRING -Optional- -CCM version- Call
Location: 11 Prev | Next Part: 200637 *Qty: 1 R.H. REAR CABLE Call
Location: 12 Prev | Next Part: 122091 *Qty: 1 PULLEY FOR CABLE $5.61
Location: 13 Prev | Next Part: 10050814 *Qty: 1 PIVOT $3.39
Location: 14 Prev | Next Part: 10734208 *Qty: 1 SPLIT PIN $0.90
Location: 15 Prev | Next Part: 14496524 *Qty: 1 SHER $0.90
Location: 16 Prev | Next Part: 176245 *Qty: 1 BRACKET FOR CABLE FIXING $88.28
Location: 17 Prev | Next Part: 10902024 *Qty: 2 SCREW $0.90
Location: 18 Prev | Next Part: 12605374 *Qty: 2 SHER -Valid till stock exhaustion- Superseded
Location: 18 Prev | Next Part: 12601274 *Qty: 2 SHER -Valid after stock exhaustion of 12605374- $0.90
Location: 19 Prev | Next Part: 10041214 *Qty: 1 PIVOT $3.80
Location: 20 Prev | Next Part: 10734208 *Qty: 1 SPLIT PIN $0.90
Location: 21 Prev | Next Part: 14496524 *Qty: 1 SHER $0.90
Location: 22 Prev | Next Part: 176261 *Qty: 1 PULLEY FOR CABLE $95.95
Location: 23 Prev | Next Part: 10091014 *Qty: 1 ADJUSTMENT SLEEVE $116.10
Location: 24 Prev | Next Part: 10725914 *Qty: 1 NUT $0.90
Location: 25 Prev | Next Part: 10727314 *Qty: 1 NUT $0.90
Location: 26 Prev | Next Part: 210027 *Qty: 1 L.H. REAR CABLE Call
Location: 27 Prev | Next Part: 10441390 *Qty: 5 BRACKET WITH SHEATH $0.90
Location: 28 Prev | Next Part: 10902224 *Qty: 3 SCREW $0.90
Location: 29 Prev | Next Part: 12605374 *Qty: 3 SHER -Valid till stock exhaustion- Superseded
Location: 29 Prev | Next Part: 12601274 *Qty: 3 SHER -Valid after stock exhaustion of 12605374- $0.90
Location: 30 Prev | Next Part: 12644424 *Qty: 3 SHER $0.90
Location: 31 Prev | Next Part: 228022 *Qty: 1 R.H. CALIPER FOR HAND BRAKE -Standard- -Cast iron version- -Valid till Ass. Nr. 68250- -Not as spare part- -Replaced by 228022- $976.94
Location: 31 Prev | Next Part: 228022 *Qty: 1 R.H. CALIPER FOR HAND BRAKE -Standard- -Cast iron version- -Valid from Ass. Nr. 68251- $976.94
Location: 31 Prev | Next Part: 196400 *Qty: 1 R.H. CALIPER FOR HAND BRAKE -Optional- -CCM version- -Valid till Ass. Nr. 68250- -Not as spare part- -Replaced by 228046- $1,371.22
Location: 31 Prev | Next Part: 228046 *Qty: 1 R.H. CALIPER FOR HAND BRAKE -Optional- -CCM version- -Valid from Ass. Nr. 68251- $976.94
Location: 31 Prev | Next Part: 175922 *Qty: 1 L.H. CALIPER FOR HAND BRAKE -Standard- -Cast iron version- -Valid till Ass. Nr. 68250- -Not as spare part- -Replaced by 228021- Call
Location: 31 Prev | Next Part: 228021 *Qty: 1 L.H. CALIPER FOR HAND BRAKE -Standard- -Cast iron version- -Valid from Ass. Nr. 68251- $976.94
Location: 31 Prev | Next Part: 196401 *Qty: 1 L.H. CALIPER FOR HAND BRAKE -CCM version- -Valid till Ass. Nr. 68250- -Not as spare part- -Replaced by 228045- Call
Location: 31 Prev | Next Part: 228045 *Qty: 1 L.H. CALIPER FOR HAND BRAKE -CCM version- -Valid from Ass. Nr. 68251- $976.94

* Quantity shown indicates the number of pieces used in the diagram.
