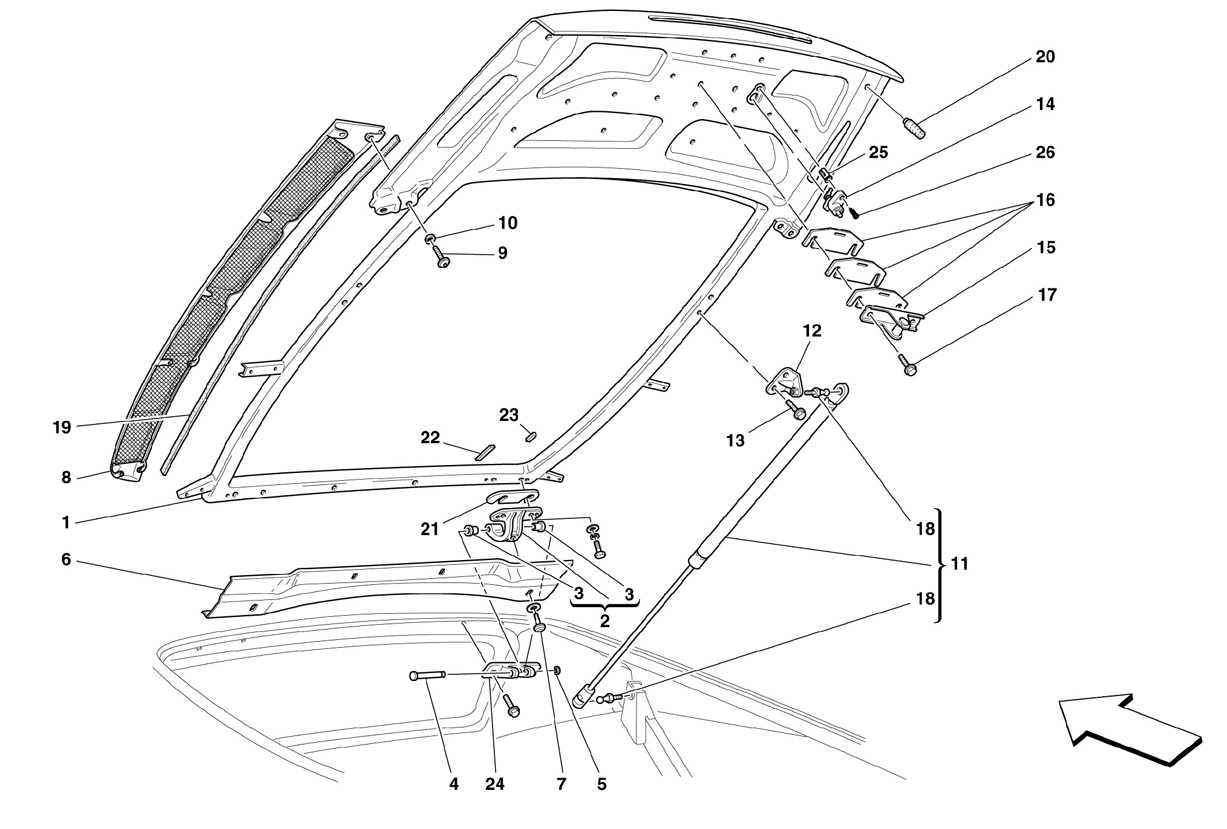

ENGINE BONNET

Go to Split View

 ENGINE BONNET

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 67767511 *Qty: 1 SHEETED REAR HOOD BONNET $3,609.59
Location: 2 Prev | Next Part: 64877500 *Qty: 1 R.H. MOBILE HINGE $197.49
Location: 2 Prev | Next Part: 64877600 *Qty: 1 L.H. MOBILE HINGE $197.49
Location: 3 Prev | Next Part: 62825300 *Qty: 4 HINGE BUSHING $35.18
Location: 4 Prev | Next Part: 64807100 *Qty: 2 PIN $10.84
Location: 5 Prev | Next Part: 11087974 *Qty: 2 FLEXIBLE RING $0.90
Location: 6 Prev | Next Part: 65398800 *Qty: 1 FRONT HOOD CONTOUR $367.15
Location: 7 Prev | Next Part: 65864100 *Qty: 4 SCREW $1.90
Location: 8 Prev | Next Part: 68075100 *Qty: 1 L.H. GRILL -Grey- $378.40
Location: 8 Prev | Next Part: 68997900 *Qty: 1 L.H. GRILL-Black- $378.40
Location: 8 Prev | Next Part: 68501000 *Qty: 1 L.H. GRILL -Carbon Version- $3,087.00
Location: 8 Prev | Next Part: 68075000 *Qty: 1 R.H. GRILL -Grey- $359.34
Location: 8 Prev | Next Part: 68997800 *Qty: 1 R.H. GRILL-Black- $374.78
Location: 8 Prev | Next Part: 68500900 *Qty: 1 R.H. GRILL -Carbon Version- $3,087.00
Location: 9 Prev | Next Part: 168133 *Qty: 16 SCREW -For Carbon version grill- Superseded
Location: 9 Prev | Next Part: 65864100 *Qty: 16 SCREW -Standard- $1.90
Location: 10 Prev | Next Part: 12644478 *Qty: 16 SHER $0.90
Location: 11 Prev | Next Part: 65855000 *Qty: 2 GAS SPRING $37.36
Location: 12 Prev | Next Part: 65526300 *Qty: 2 BRACKET $44.74
Location: 13 Prev | Next Part: 16286024 *Qty: 4 SCREW $0.90
Location: 14 Prev | Next Part: 143331 *Qty: 1 ADDITIONAL STOP LIGHT MOBILE CONTACT $8.03
Location: 15 Prev | Next Part: 64867900 *Qty: 1 HOOD CLOSING STRIKER $139.83
Location: 16 Prev | Next Part: 65524800 *Qty: 4 ADJUSTING PLATE -Possible fitting- $4.96
Location: 17 Prev | Next Part: 16286027 *Qty: 2 SCREW $0.90
Location: 18 Prev | Next Part: 65939900 *Qty: 2 PIN $4.11
Location: 19 Prev | Next Part: 65979200 *Qty: 2 GASKET $25.51
Location: 20 Prev | Next Part: 62167600 *Qty: 2 SMALL BLOCK $5.53
Location: 21 Prev | Next Part: 66073100 *Qty: 2 THICKNESS $3.32
Location: 22 Prev | Next Part: 65714600 *Qty: 4 SPACER $2.24
Location: 23 Prev | Next Part: 63023300 *Qty: 2 SPACER $1.02
Location: 24 Prev | Next Part: 64806800 *Qty: 1 L.H. FIXED HINGE Call
Location: 24 Prev | Next Part: 64806700 *Qty: 1 R.H. FIXED HINGE Call
Location: 25 Prev | Next Part: 14115380 *Qty: 1 BLOCK $1.11
Location: 26 Prev | Next Part: 16082401 *Qty: 1 SCREW $0.90

* Quantity shown indicates the number of pieces used in the diagram.
