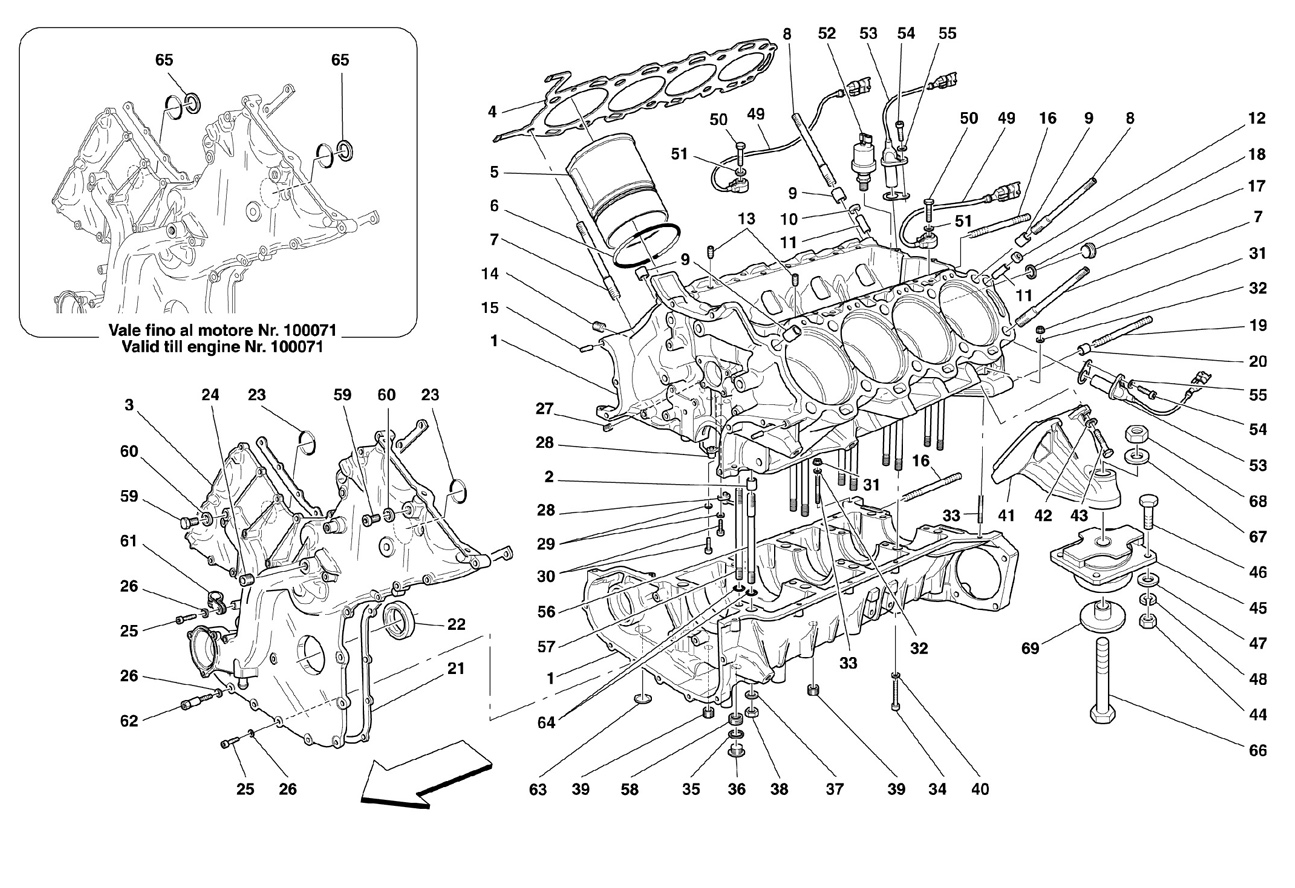

CRANKCASE

Go to Split View

 CRANKCASE

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 236095 *Qty: 1 COMPLETE CRANKCASE -Valid from Ass. Nr. 72742- $4,027.94
Location: 1 Prev | Next Part: 233052 *Qty: 1 COMPLETE CRANKCASE -Valid from engine Nr. 116246- -Valid till Ass. Nr. 72741 - Call
Location: 1 Prev | Next Part: 215926 *Qty: 1 COMPLETE CRANKCASE -Valid from engine Nr. 89099- -Valid till engine Nr. 116245- $6,993.68
Location: 1 Prev | Next Part: 202077 *Qty: 1 COMPLETE CRANKCASE -Valid till engine Nr. 89098- Call
Location: 2 Prev | Next Part: 176421 *Qty: 10 CENTERING DOWEL $5.22
Location: 3 Prev | Next Part: 229253 *Qty: 1 FRONT COVER -Valid from engine No. 100072 to engine No. 117478- $976.36
Location: 3 Prev | Next Part: 229253 *Qty: 1 FRONT COVER -Valid till engine No. 100071- -Not as spare part- -Replaced by 221367- $976.36
Location: 3 Prev | Next Part: 229253 *Qty: 1 FRONT COVER -Valid from engine No. 117479- $976.36
Location: 4 Prev | Next Part: 184967 *Qty: 1 L.H. HEAD GASKET $77.42
Location: 4 Prev | Next Part: 184966 *Qty: 1 R.H. HEAD GASKET $77.42
Location: 5 Prev | Next Part: 190770 *Qty: 8 CYLINDER LINER $340.41
Location: 6 Prev | Next Part: 186251 *Qty: 24 GASKET $3.21
Location: 7 Prev | Next Part: 217967 *Qty: 10 STUD $8.36
Location: 7 Prev | Next Part: 217967 *Qty: 10 STUD -Not as spare part- -Replaced by 217967- $8.36
Location: 8 Prev | Next Part: 217968 *Qty: 10 STUD $8.27
Location: 8 Prev | Next Part: 217968 *Qty: 10 STUD -Not as spare part- -Replaced by 217968- $8.27
Location: 9 Prev | Next Part: 185360 *Qty: 4 CENTERING DOWEL $3.61
Location: 10 Prev | Next Part: 201850 *Qty: 1 DOWEL $5.31
Location: 11 Prev | Next Part: 200458 *Qty: 2 NONRETURN VALVE $10.25
Location: 12 Prev | Next Part: 201849 *Qty: 1 DOWEL $8.77
Location: 13 Prev | Next Part: 177727 *Qty: 2 CENTERING DOWEL $3.14
Location: 14 Prev | Next Part: 164400 *Qty: 1 THREADED PLUG $4.68
Location: 15 Prev | Next Part: 175611 *Qty: 2 CENTERING DOWEL $2.14
Location: 16 Prev | Next Part: 13546734 *Qty: 4 STUD $3.32
Location: 17 Prev | Next Part: 10304511 *Qty: 1 THREADED PLUG $2.87
Location: 17 Prev | Next Part: 10275011 *Qty: 1 THREADED PLUG -Valid after stock exhaustion of 193885- -Not as spare part- -Replaced by 10304511- $2.37
Location: 17 Prev | Next Part: 193885 *Qty: 1 THREADED PLUG -Valid till stock exhaustion- $4.59
Location: 18 Prev | Next Part: 10263460 *Qty: 1 GASKET Superseded
Location: 19 Prev | Next Part: 13546934 *Qty: 3 STUD $1.94
Location: 20 Prev | Next Part: 100052 *Qty: 2 CENTERING DOWEL $4.55
Location: 21 Prev | Next Part: 193656 *Qty: 1 FRONT COVER GASKET Superseded
Location: 22 Prev | Next Part: 188717 *Qty: 1 COVER GASKET $16.45
Location: 23 Prev | Next Part: 183010 *Qty: 2 O.R. GASKET $1.90
Location: 24 Prev | Next Part: 14324940 *Qty: 1 THREADED PLUG $2.19
Location: 25 Prev | Next Part: 14305924 *Qty: 2 SCREW -M 6X45- Superseded
Location: 25 Prev | Next Part: 14305524 *Qty: 3 SCREW -M 6X30- $0.90
Location: 25 Prev | Next Part: 231619 *Qty: 1 SCREW -M 6X22- $0.90
Location: 25 Prev | Next Part: 14433124 *Qty: 15 SCREW-M 6X18- $0.90
Location: 25 Prev | Next Part: 156828 *Qty: 3 SCREW -M 6X50- $1.29
Location: 25 Prev | Next Part: 14303924 *Qty: 3 SCREW -M 6X70- $0.90
Location: 25 Prev | Next Part: 14305624 *Qty: 1 SCREW -M 6X35- $0.90
Location: 25 Prev | Next Part: 14432224 *Qty: 1 SCREW -M 6X22- -Not as spare part- -Replaced by 231619- Superseded
Location: 26 Prev | Next Part: 11197774 *Qty: 28 SHER Superseded
Location: 27 Prev | Next Part: 13525770 *Qty: 5 THREADED INSERT $1.11
Location: 28 Prev | Next Part: 175657 *Qty: 8 PISTONS COOLING NOZZLE $9.82
Location: 29 Prev | Next Part: 11181474 *Qty: 8 SHER $0.90
Location: 30 Prev | Next Part: 14302921 *Qty: 8 SCREW $0.90
Location: 31 Prev | Next Part: 132877 *Qty: 2 NUT $2.78
Location: 32 Prev | Next Part: 12604274 *Qty: 2 SHER $0.90
Location: 33 Prev | Next Part: 13541624 *Qty: 2 STUD $11.05
Location: 34 Prev | Next Part: 14305324 *Qty: 1 SCREW $0.90
Location: 34 Prev | Next Part: 231620 *Qty: 10 SCREW $0.90
Location: 34 Prev | Next Part: 14305424 *Qty: 10 SCREW -Not as spare part- -Replaced by 231620- Superseded
Location: 35 Prev | Next Part: 10261860 *Qty: 1 GASKET $0.90
Location: 36 Prev | Next Part: 104280 *Qty: 1 THREADED PLUG $10.09
Location: 37 Prev | Next Part: 178348 *Qty: 20 SHER $0.95
Location: 38 Prev | Next Part: 133988 *Qty: 20 NUT $0.90
Location: 39 Prev | Next Part: 14325140 *Qty: 4 THREADED PLUG $1.90
Location: 40 Prev | Next Part: 11197774 *Qty: 11 SHER -Not as spare part- Superseded
Location: 41 Prev | Next Part: 207220 *Qty: 1 RH ENGINE FIXING SUPPORT $356.35
Location: 41 Prev | Next Part: 207221 *Qty: 1 LH ENGINE FIXING SUPPORT $356.35
Location: 42 Prev | Next Part: 11190574 *Qty: 8 SHER $0.90
Location: 43 Prev | Next Part: 11306934 *Qty: 8 SCREW -Valid from car Ass. Nr. 60389- $0.90
Location: 43 Prev | Next Part: 15970734 *Qty: 8 SCREW -Valid till car Ass. Nr. 60388- Call
Location: 44 Prev | Next Part: 133988 *Qty: 8 NUT $0.90
Location: 45 Prev | Next Part: 216357 *Qty: 2 ENGINE PAD -Valid after stock exhaustion of 209069- $290.40
Location: 45 Prev | Next Part: 216357 *Qty: 2 ENGINE PAD -Valid till stock exhaustion- $290.40
Location: 46 Prev | Next Part: 15970634 *Qty: 8 SCREW $0.90
Location: 47 Prev | Next Part: 12646824 *Qty: 8 SHER $0.90
Location: 48 Prev | Next Part: 127497 *Qty: 8 SHER $0.90
Location: 49 Prev | Next Part: 219868 *Qty: 1 R.H. SENSOR FOR FIRING -Flywheel side- $69.77
Location: 49 Prev | Next Part: 187739 *Qty: 2 SENSOR FOR FIRING -Flywheel side- -Not as spare part now- -Replaced by 219872 and 219873- $68.98
Location: 49 Prev | Next Part: 219870 *Qty: 1 L.H. SENSOR FOR FIRING -Timing side- $72.44
Location: 49 Prev | Next Part: 219869 *Qty: 1 R.H. SENSOR FOR FIRING -Timing side- $72.44
Location: 49 Prev | Next Part: 187740 *Qty: 2 SENSOR FOR FIRING -Timing side- -Not as spare part now- -Replaced by 219872 and 219873- $68.96
Location: 49 Prev | Next Part: 219871 *Qty: 1 L.H. SENSOR FOR FIRING -Flywheel side- $72.44
Location: 50 Prev | Next Part: 16043834 *Qty: 4 SCREW $0.90
Location: 51 Prev | Next Part: 11198074 *Qty: 4 SHER $0.90
Location: 52 Prev | Next Part: 201207 *Qty: 1 OIL PRESSURE TRANSMITTER $248.28
Location: 53 Prev | Next Part: 219873 *Qty: 1 L.H. SIDE ANGOLAR SPEED SENSOR $83.24
Location: 53 Prev | Next Part: 219872 *Qty: 1 R.H. SIDE ANGOLAR SPEED SENSOR $116.37
Location: 53 Prev | Next Part: 182194 *Qty: 2 ANGOLAR SPEED SENSOR -Not as spare part now- -Replaced by 219872 and 219873- $84.87
Location: 54 Prev | Next Part: 14305724 *Qty: 2 SCREW $0.90
Location: 55 Prev | Next Part: 11197774 *Qty: 2 SHER Superseded
Location: 56 Prev | Next Part: 217794 *Qty: 10 STUD $6.53
Location: 56 Prev | Next Part: 217794 *Qty: 10 STUD -Not as spare part- -Replaced by 217794- $6.53
Location: 57 Prev | Next Part: 217796 *Qty: 10 STUD -Not as spare part- -Replaced by 217796- $6.08
Location: 57 Prev | Next Part: 194757 *Qty: 10 STUD -Not as spare part now- -Replaced by 215652- $10.35
Location: 57 Prev | Next Part: 217796 *Qty: 10 STUD $6.08
Location: 58 Prev | Next Part: 223577 *Qty: 1 THREADED INSERT $3.00
Location: 58 Prev | Next Part: 112254 *Qty: 1 THREADED INSERT -Not as spare part- -Replaced by 223577- $5.94
Location: 59 Prev | Next Part: 187718 *Qty: 2 BLEEDER PLUG $6.79
Location: 60 Prev | Next Part: 10284460 *Qty: 2 GASKET $0.90
Location: 61 Prev | Next Part: 10441590 *Qty: 1 BRACKET WITH SHEATH $0.90
Location: 62 Prev | Next Part: 206672 *Qty: 2 STUD $8.70
Location: 63 Prev | Next Part: 10158801 *Qty: 1 PLUG $1.85
Location: 64 Prev | Next Part: 134704 *Qty: 20 O.R. GASKET $0.90
Location: 65 Prev | Next Part: 191620 *Qty: 2 REDUCTION -Valid till engine No. 100071- $20.42
Location: 66 Prev | Next Part: 11369634 *Qty: 2 SCREW $8.00
Location: 67 Prev | Next Part: 12601774 *Qty: 2 SHER $0.90
Location: 68 Prev | Next Part: 176573 *Qty: 2 NUT $1.36
Location: 69 Prev | Next Part: 182141 *Qty: 2 RETAINING WASHER $47.57

* Quantity shown indicates the number of pieces used in the diagram.
