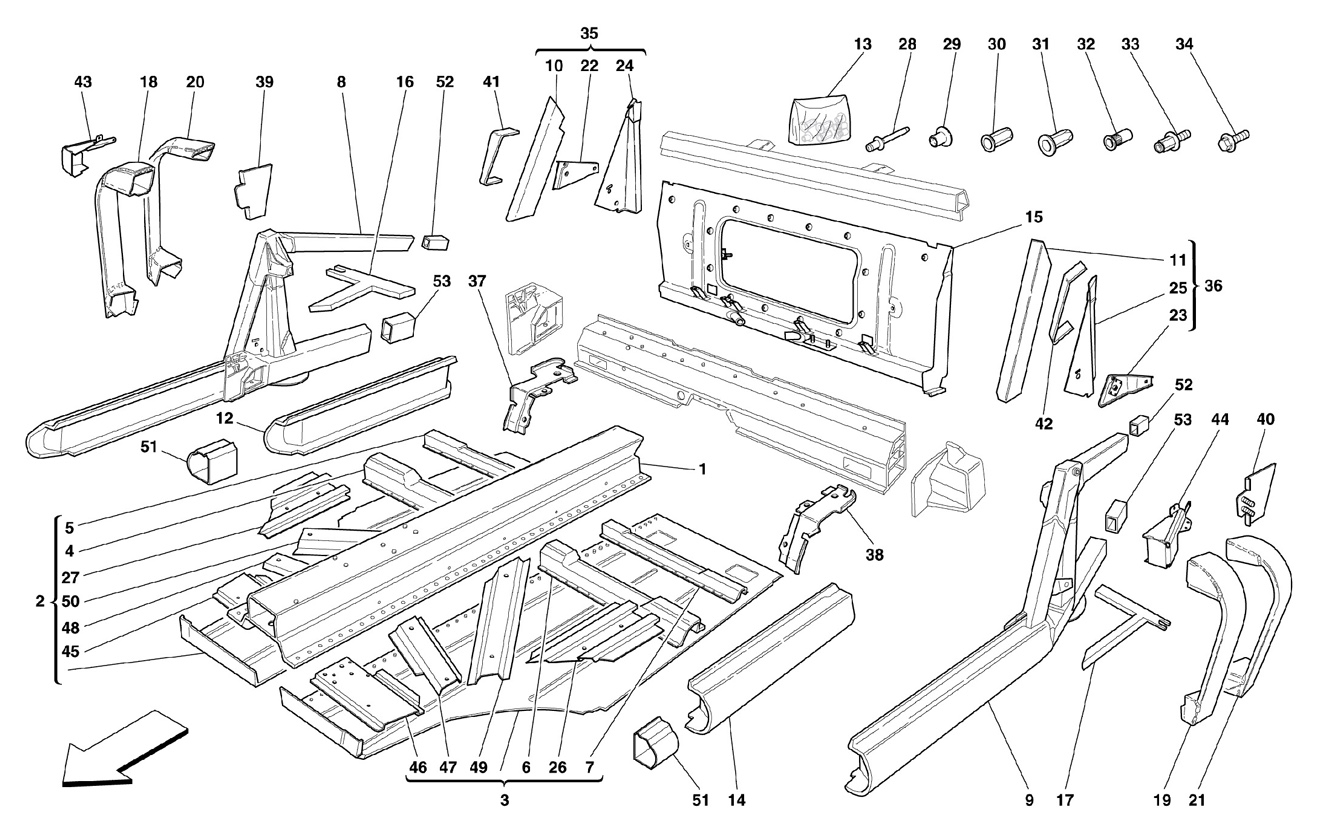

CENTRAL SIDE ELEMENTS AND PLATES

Go to Split View

 CENTRAL SIDE ELEMENTS AND PLATES

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 194938 *Qty: 1 COMPLETE TUNNEL Call
Location: 2 Prev | Next Part: 68886300 *Qty: 1 COMPLETE R.H. LATERAL HALF FLOOR -Not for GD- Call
Location: 2 Prev | Next Part: 69413211 *Qty: 1 COMPLETE R.H. LATERAL HALF FLOOR -Valid for GD- Call
Location: 3 Prev | Next Part: 68886400 *Qty: 1 COMPLETE L.H. LATERAL HALF FLOOR -Not for GD- Call
Location: 3 Prev | Next Part: 69413311 *Qty: 1 COMPLETE L.H. LATERAL HALF FLOOR -Valid for GD- Call
Location: 4 Prev | Next Part: 207193 *Qty: 1 R.H. FRONT CROSS MEMBER Call
Location: 5 Prev | Next Part: 205203 *Qty: 1 R.H. REAR CROSS MEMBER Call
Location: 6 Prev | Next Part: 207192 *Qty: 1 L.H. FRONT CROSS MEMBER Call
Location: 7 Prev | Next Part: 205202 *Qty: 1 L.H. REAR CROSS MEMBER Call
Location: 8 Prev | Next Part: 68886500 *Qty: 1 R.H. LATERAL REAR CROSSMEMBAR $4,943.98
Location: 9 Prev | Next Part: 68886600 *Qty: 1 L.H. LATERAL REAR CROSSMEMBAR Call
Location: 10 Prev | Next Part: 166232 *Qty: 1 R.H. REINFORCEMENT FRAME Call
Location: 11 Prev | Next Part: 166132 *Qty: 1 L.H. REINFORCEMENT FRAME Call
Location: 12 Prev | Next Part: 201435 *Qty: 1 R.H. CROSSMEMBER $1,235.98
Location: 13 Prev | Next Part: 70000950 *Qty: 1 INSERTS KIT FOR REPAIR $1,842.16
Location: 14 Prev | Next Part: 201434 *Qty: 1 L.H. CROSSMEMBER Call
Location: 15 Prev | Next Part: 202560 *Qty: 1 REAR SHIELD Call
Location: 16 Prev | Next Part: 64811011 *Qty: 1 R.H. REAR FIXING FRAME Call
Location: 17 Prev | Next Part: 64811111 *Qty: 1 L.H. REAR FIXING FRAME Call
Location: 18 Prev | Next Part: 65153400 *Qty: 1 R.H. FRONT SIDE MOLDING $189.99
Location: 19 Prev | Next Part: 65153511 *Qty: 1 L.H. FRONT SIDE MOLDING Call
Location: 20 Prev | Next Part: 65998100 *Qty: 1 R.H. REAR SIDE MOLDING $272.62
Location: 21 Prev | Next Part: 65998200 *Qty: 1 L.H. REAR SIDE MOLDING $286.42
Location: 22 Prev | Next Part: 64804300 *Qty: 1 R.H. REWINDER FIXING REINFORCEMENT Call
Location: 23 Prev | Next Part: 64804400 *Qty: 1 L.H. REWINDER FIXING REINFORCEMENT Call
Location: 24 Prev | Next Part: 64803500 *Qty: 1 R.H. LATERAL SEAL Call
Location: 25 Prev | Next Part: 64803600 *Qty: 1 L.H. LATERAL SEAL Call
Location: 26 Prev | Next Part: 196081 *Qty: 1 L.H. REINFORCEMENT $42.00
Location: 27 Prev | Next Part: 196082 *Qty: 1 R.H. REINFORCEMENT $42.00
Location: 28 Prev | Next Part: 14642891 *Qty: 0 POP RIVET L. 14 mm $0.90
Location: 29 Prev | Next Part: 65133800 *Qty: 0 RIVET L. 6,4 mm $0.90
Location: 30 Prev | Next Part: 15624211 *Qty: 0 ESAGONAL RIVET M4 $1.22
Location: 30 Prev | Next Part: 15180411 *Qty: 0 BLIND ESAGONAL RIVET $1.01
Location: 30 Prev | Next Part: 15624511 *Qty: 0 ESAGONAL RIVET M8 $0.90
Location: 30 Prev | Next Part: 15624411 *Qty: 0 ESAGONAL RIVET M6 $0.90
Location: 30 Prev | Next Part: 15624311 *Qty: 0 ESAGONAL RIVET M5 $5.60
Location: 31 Prev | Next Part: 65151200 *Qty: 0 RIVET M6 $1.04
Location: 32 Prev | Next Part: 60853400 *Qty: 0 RIVET M10 BLIND $0.90
Location: 32 Prev | Next Part: 166101 *Qty: 0 RIVET M4 $1.79
Location: 32 Prev | Next Part: 65135000 *Qty: 0 RIVET M8 $1.54
Location: 32 Prev | Next Part: 65930400 *Qty: 0 RIVET M6 $1.26
Location: 32 Prev | Next Part: 65319800 *Qty: 0 RIVET M8 BLIND $1.06
Location: 33 Prev | Next Part: 65065400 *Qty: 0 STUD ESAGONAL HEAD M6 $4.16
Location: 34 Prev | Next Part: 13836771 *Qty: 0 SCREW $2.61
Location: 35 Prev | Next Part: 66464800 *Qty: 1 R.H. PANEL UPPER FRAME Call
Location: 36 Prev | Next Part: 66464900 *Qty: 1 L.H. PANEL UPPER FRAME Call
Location: 37 Prev | Next Part: 65386100 *Qty: 1 R.H. SUPPORT CENTRAL OVERLAP Call
Location: 38 Prev | Next Part: 65386200 *Qty: 1 L.H. SUPPORT CENTRAL OVERLAP Call
Location: 39 Prev | Next Part: 182624 *Qty: 1 R.H. FUEL TANK PROTECTION PLATE -Not as spare part now- -Replaced by 219918- Call
Location: 39 Prev | Next Part: 219918 *Qty: 1 R.H. FUEL TANK PROTECTION PLATE Call
Location: 40 Prev | Next Part: 182623 *Qty: 1 L.H. FUEL TANK PROTECTION PLATE -Not as spare part now- -Replaced by 219843- Call
Location: 40 Prev | Next Part: 219843 *Qty: 1 L.H. FUEL TANK PROTECTION PLATE Call
Location: 41 Prev | Next Part: 65903600 *Qty: 1 R.H. STRIKER REINFORCEMENT $24.70
Location: 42 Prev | Next Part: 65903700 *Qty: 1 L.H. STRIKER REINFORCEMENT Call
Location: 43 Prev | Next Part: 202682 *Qty: 1 R.H. REAR REINFORCEMENT $74.99
Location: 44 Prev | Next Part: 202681 *Qty: 1 L.H. REAR REINFORCEMENT Call
Location: 45 Prev | Next Part: 208941 *Qty: 1 FRONT CROSS MEMBER FOR BATTERY BIN -Valid for GD- $141.29
Location: 45 Prev | Next Part: 207194 *Qty: 1 FRONT CROSS MEMBER FOR BATTERY BIN -Not for GD- Call
Location: 46 Prev | Next Part: 207195 *Qty: 1 FRONT CROSS MEMBER FOR ACCELERATOR PEDAL CASTING FIXING -Not for GD- Call
Location: 46 Prev | Next Part: 208940 *Qty: 1 FRONT CROSS MEMBER FOR ACCELERATOR PEDAL CASTING FIXING -Valid for GD- Call
Location: 47 Prev | Next Part: 207196 *Qty: 1 L.H. FRONT REINFORCEMENT Call
Location: 48 Prev | Next Part: 207197 *Qty: 1 R.H. FRONT REINFORCEMENT -Not for GD- Call
Location: 48 Prev | Next Part: 208939 *Qty: 1 R.H. FRONT REINFORCEMENT -Valid for GD- Call
Location: 49 Prev | Next Part: 207198 *Qty: 1 L.H. REAR REINFORCEMENT -Not as spare part now- -Replaced by 207198- $118.83
Location: 49 Prev | Next Part: 207198 *Qty: 1 L.H. REAR REINFORCEMENT $118.83
Location: 50 Prev | Next Part: 207199 *Qty: 1 R.H. REAR REINFORCEMENT -Not as spare part now- -Replaced by 207199- $115.93
Location: 50 Prev | Next Part: 207199 *Qty: 1 R.H. REAR REINFORCEMENT $115.93
Location: 51 Prev | Next Part: 181981 *Qty: 0 CORE FOR REPAIR Call
Location: 52 Prev | Next Part: 181980 *Qty: 0 UPPER INNER CORE $41.83
Location: 53 Prev | Next Part: 181979 *Qty: 0 LOWER INNER CORE $41.83

* Quantity shown indicates the number of pieces used in the diagram.
