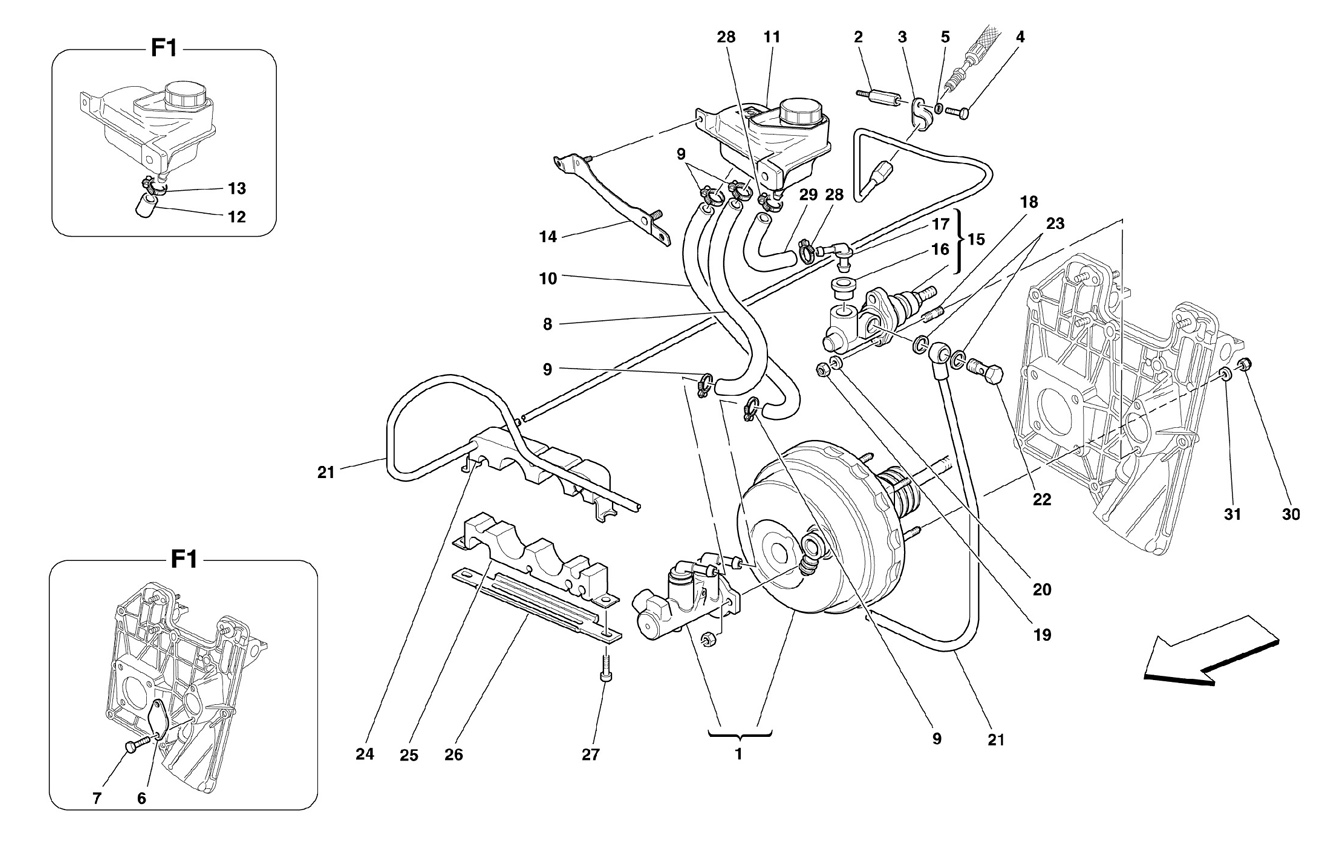

BRAKES AND CLUTCH HYDRAULIC CONTROLS

Go to Split View

 BRAKES AND CLUTCH HYDRAULIC CONTROLS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 191087 *Qty: 1 COMPLETE BRAKE BOOSTER $682.59
Location: 1 Prev | Next Part: 198634 *Qty: 1 COMPLETE BRAKE BOOSTER -CCM version - -Optional- $1,088.64
Location: 2 Prev | Next Part: 178772 *Qty: 1 STUD-NotforF1- $10.67
Location: 3 Prev | Next Part: 10441390 *Qty: 2 BRACKET WITH SHEATH -Not for F1 - $0.90
Location: 4 Prev | Next Part: 10902224 *Qty: 1 SCREW-Not for F1- $0.90
Location: 5 Prev | Next Part: 127494 *Qty: 1 WASHER-Not for F1- $0.90
Location: 6 Prev | Next Part: 174177 *Qty: 1 FLANGE-Valid for F1- $82.99
Location: 7 Prev | Next Part: 16043021 *Qty: 2 SCREW -Valid for F1- $0.90
Location: 8 Prev | Next Part: 219140 *Qty: 1 PIPE FROM FRONT UNION TO TANK -Standard version- -Valid for GD- Call
Location: 8 Prev | Next Part: 219142 *Qty: 1 PIPE FROM FRONT UNION TO TANK -CCM version- -Optional- -Valid for GD- $22.74
Location: 8 Prev | Next Part: 154011 *Qty: 1 PIPE FROM FRONT UNION TO TANK -Not for GD- $9.11
Location: 8 Prev | Next Part: 182244 *Qty: 1 PIPE FROM FRONT UNION TO TANK -Standard version- -Valid for GD- -Not as spare part now- -Replaced by 219140- $5.15
Location: 9 Prev | Next Part: 13000190 *Qty: 4 SCREW COLLAR $0.90
Location: 10 Prev | Next Part: 194598 *Qty: 1 PIPE FROM REAR UNION TO TANK -Not for GD- $7.17
Location: 10 Prev | Next Part: 105857 *Qty: 1 PIPE FROM REAR UNION TO TANK -Standard version- -Valid for GD- $6.36
Location: 10 Prev | Next Part: 219139 *Qty: 1 PIPE FROM REAR UNION TO TANK -Standard version- -Valid for GD- Call
Location: 10 Prev | Next Part: 219141 *Qty: 1 PIPE FROM REAR UNION TO TANK -CCM version- -Optional- -Valid for GD- $25.13
Location: 11 Prev | Next Part: 203903 *Qty: 1 COMPLETE BRAKE OIL TANK $48.30
Location: 12 Prev | Next Part: 136379 *Qty: 1 PLUG-Valid for F1- $5.03
Location: 13 Prev | Next Part: 13000190 *Qty: 1 SCREW COLLAR -Valid for F1- $0.90
Location: 14 Prev | Next Part: 195352 *Qty: 1 BRACKET-NotforGD- $17.90
Location: 14 Prev | Next Part: 210758 *Qty: 1 BRACKET -Valid for GD- $28.74
Location: 15 Prev | Next Part: 180841 *Qty: 1 CLUTCH PUMP-Not for F1- $404.00
Location: 16 Prev | Next Part: 175189 *Qty: 1 SEAL RING-Not for F1- $24.73
Location: 17 Prev | Next Part: 184497 *Qty: 1 UNION-Not for F1- $43.24
Location: 18 Prev | Next Part: 13517024 *Qty: 2 STUD-NotforF1- $0.90
Location: 19 Prev | Next Part: 104030 *Qty: 2 NUT-NotforF1- $0.90
Location: 20 Prev | Next Part: 12601374 *Qty: 2 SHER-NotforF1- $0.90
Location: 21 Prev | Next Part: 202550 *Qty: 1 PIPE FROM PUMP TO REAR UNION -Not for F1--Not for GD- $345.55
Location: 21 Prev | Next Part: 219887 *Qty: 1 PIPE FROM PUMP TO REAR UNION -Not for F1--Valid for GD- Call
Location: 22 Prev | Next Part: 180042 *Qty: 1 UNION-NotforF1- $49.21
Location: 23 Prev | Next Part: 10298460 *Qty: 2 GASKET-NotforF1- $0.90
Location: 24 Prev | Next Part: 201028 *Qty: 3 UPPERSUPPORT $33.05
Location: 25 Prev | Next Part: 201029 *Qty: 3 ER SUPPORT $28.65
Location: 26 Prev | Next Part: 211683 *Qty: 3 SMALL PLATE Call
Location: 27 Prev | Next Part: 64830600 *Qty: 6 SCREW $2.23
Location: 28 Prev | Next Part: 13000190 *Qty: 2 SCREW COLLAR -Not for F1 - $0.90
Location: 29 Prev | Next Part: 134903 *Qty: 1 RUBBER HOSE -Not for F1 - -Not for GD- $4.38
Location: 29 Prev | Next Part: 212291 *Qty: 1 RUBBER HOSE -Not for F1 - -Valid for GD- $13.56
Location: 30 Prev | Next Part: 104030 *Qty: 4 NUT $0.90
Location: 31 Prev | Next Part: 12601374 *Qty: 4 SHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
