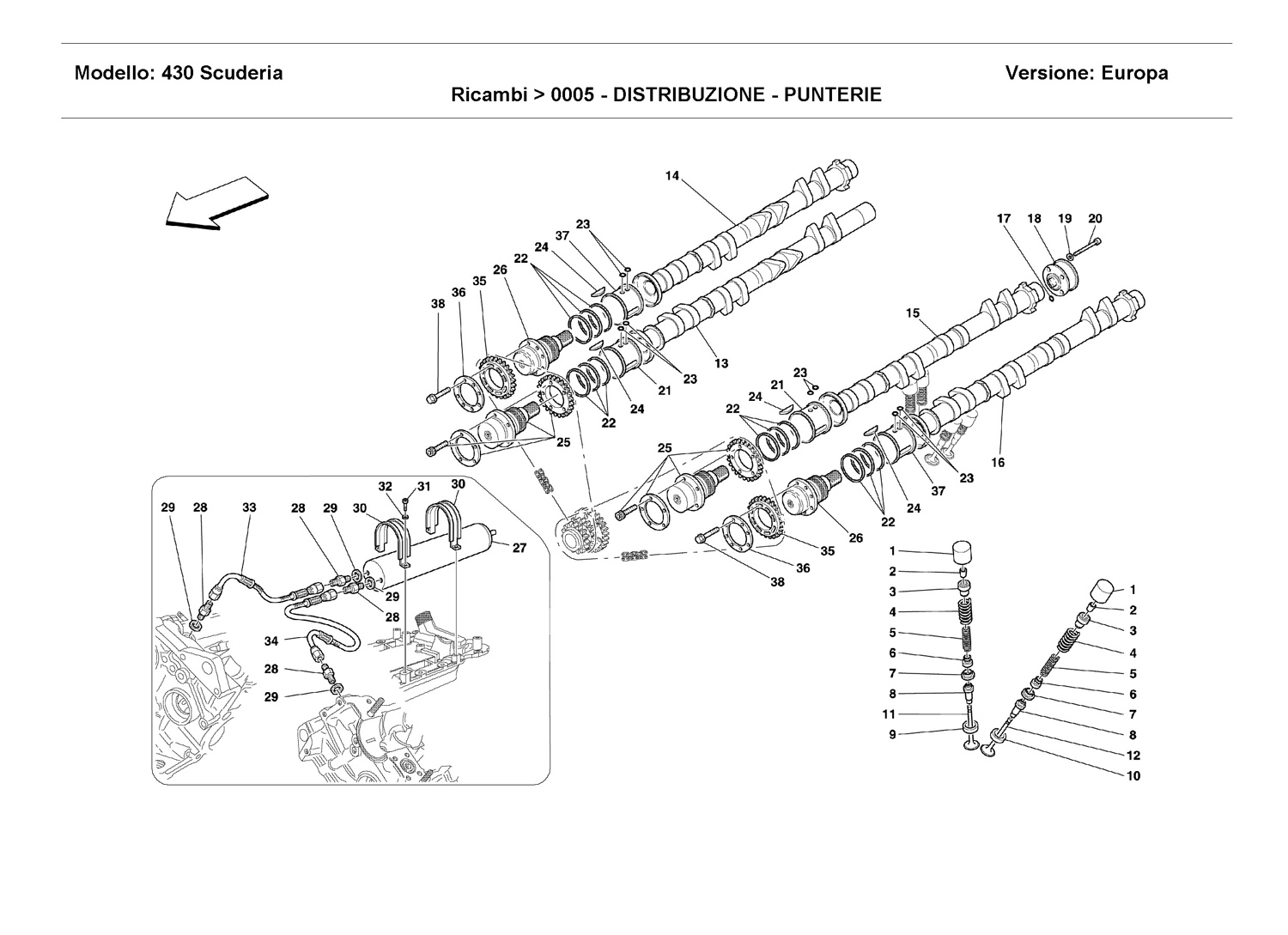

TIMING-TAPPETS

Go to Split View

TIMING-TAPPETS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 194700 *Qty: 32 TAPPET FOR VALVE CONTROL $31.99
Location: 2 Prev | Next Part: 179763 *Qty: 64 COTTER FOR VALVE SPRING $0.93
Location: 3 Prev | Next Part: 194713 *Qty: 32 UPPER CUP $6.84
Location: 4 Prev | Next Part: 197900 *Qty: 32 OUTER SPRING FOR VALVE RETURN $3.77
Location: 5 Prev | Next Part: 197901 *Qty: 32 INNER SPRING FOR VALVE RETURN $3.02
Location: 6 Prev | Next Part: 221473 *Qty: 32 OIL RING $1.50
Location: 7 Prev | Next Part: 194718 *Qty: 32 LOWER CUP $98.70
Location: 8 Prev | Next Part: 6213498 *Qty: 32 INTAKE VALVE GUIDE $2.05
Location: 9 Prev | Next Part: 6213496 *Qty: 16 INTAKE VALVE SEAT $3.65
Location: 10 Prev | Next Part: 6213497 *Qty: 16 EXHAUST VALVE SEAT $3.35
Location: 11 Prev | Next Part: 198581 *Qty: 16 INTAKE VALVE $16.75
Location: 12 Prev | Next Part: 198582 *Qty: 16 EXHAUST VALVE $40.20
Location: 13 Prev | Next Part: 200144 *Qty: 1 R.H. INDUCTION DISTRIBUTION CAM SHAFT $604.87
Location: 14 Prev | Next Part: 200146 *Qty: 1 R.H. EXHAUST CAM SHAFT $604.87
Location: 15 Prev | Next Part: 200145 *Qty: 1 L.H. INDUCTION DISTRIBUTION CAM SHAFT $604.87
Location: 16 Prev | Next Part: 200147 *Qty: 1 L.H. EXHAUST CAM SHAFT $604.87
Location: 17 Prev | Next Part: 134701 *Qty: 2 O.R. GASKET $0.90
Location: 18 Prev | Next Part: 197558 *Qty: 1 OIL PUMP VARIATOR $230.21
Location: 19 Prev | Next Part: 184731 *Qty: 4 WASHER $0.90
Location: 20 Prev | Next Part: 14303623 *Qty: 4 SCREW $0.90
Location: 21 Prev | Next Part: 206804 *Qty: 2 INDUCTION PHASE VARIATOR SUPPORTNG BUSHING $321.59
Location: 22 Prev | Next Part: 179926 *Qty: 12 RING Call
Location: 23 Prev | Next Part: 134701 *Qty: 4 O.R. GASKET $0.90
Location: 24 Prev | Next Part: 10618120 *Qty: 4 KEY $0.90
Location: 25 Prev | Next Part: 193779 *Qty: 2 INDUCTION PHASE VARIATOR $1,114.79
Location: 26 Prev | Next Part: 199438 *Qty: 2 EXHAUST INDUCTION PHASE VARIATOR $827.53
Location: 27 Prev | Next Part: 197062 *Qty: 1 OIL ACCUMULATOR FOR VARIATOR $864.74
Location: 28 Prev | Next Part: 195056 *Qty: 4 THREADED UNION $18.48
Location: 29 Prev | Next Part: 10261060 *Qty: 4 GASKET $0.90
Location: 30 Prev | Next Part: 197151 *Qty: 2 BRACKET $6.15
Location: 31 Prev | Next Part: 14305124 *Qty: 4 SCREW $0.90
Location: 32 Prev | Next Part: 11197774 *Qty: 4 WASHER Superseded
Location: 33 Prev | Next Part: 198463 *Qty: 1 PIPE FROM ACCUMULATOR TO R.H. CYLINDERS HEAD $86.63
Location: 34 Prev | Next Part: 198464 *Qty: 1 PIPE FROM ACCUMULATOR TO L.H. CYLINDERS HEAD $86.63
Location: 35 Prev | Next Part: 194192 *Qty: 2 TOOTHED WHEEL $406.76
Location: 36 Prev | Next Part: 195649 *Qty: 2 WASHER $8.28
Location: 37 Prev | Next Part: 206805 *Qty: 2 EXHAUST PHASE VARIATOR SUPPORTNG BUSHING $231.34
Location: 38 Prev | Next Part: 194977 *Qty: 16 SCREW $14.06

* Quantity shown indicates the number of pieces used in the diagram.
