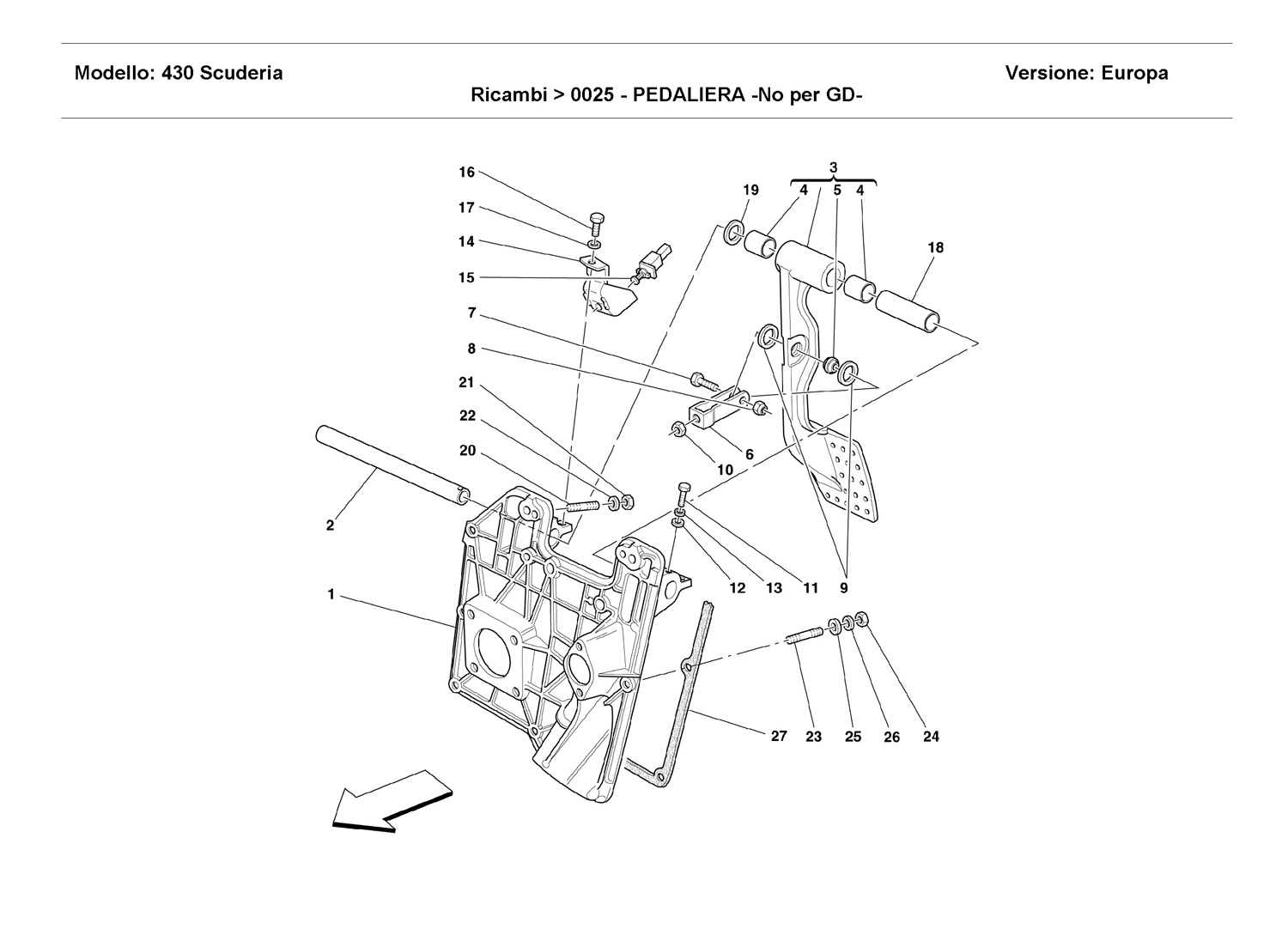

PEDALS-Not for GD-

Go to Split View

PEDALS-Not for GD-

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 176464 *Qty: 1 PEDALS SUPPORT $3,059.67
Location: 2 Prev | Next Part: 176466 *Qty: 1 PEDALS SUPPORT PIN $164.60
Location: 3 Prev | Next Part: 196272 *Qty: 1 BRAKE PEDAL Call
Location: 3 Prev | Next Part: 196791 *Qty: 1 BRAKE PEDAL $1,055.51
Location: 4 Prev | Next Part: 103163 *Qty: 2 SELF-LUBRICATING BUSHING $3.80
Location: 5 Prev | Next Part: 176475 *Qty: 1 BALL JOINT $191.22
Location: 6 Prev | Next Part: 199754 *Qty: 1 FORK $89.50
Location: 7 Prev | Next Part: 16043724 *Qty: 1 SCREW $0.90
Location: 8 Prev | Next Part: 147985 *Qty: 1 NUT $0.90
Location: 9 Prev | Next Part: 176522 *Qty: 2 PLASTIC WASHER $22.14
Location: 10 Prev | Next Part: 16102314 *Qty: 1 NUT $0.90
Location: 11 Prev | Next Part: 10902424 *Qty: 1 SCREW $0.90
Location: 12 Prev | Next Part: 10519424 *Qty: 1 WASHER Call
Location: 13 Prev | Next Part: 127494 *Qty: 1 WASHER $0.90
Location: 14 Prev | Next Part: 219558 *Qty: 1 SWITCH SUPPORT $74.04
Location: 15 Prev | Next Part: 201957 *Qty: 1 PUSH-BUTTON SWITCH $44.35
Location: 16 Prev | Next Part: 16043224 *Qty: 1 SCREW $0.90
Location: 17 Prev | Next Part: 106852 *Qty: 1 WASHER Superseded
Location: 18 Prev | Next Part: 176918 *Qty: 1 SPACER $128.77
Location: 19 Prev | Next Part: 178340 *Qty: 1 SPACER WASHER $4.36
Location: 19 Prev | Next Part: 113834 *Qty: 1 SPACER WASHER
-Th. 1,2mm-
-Possible fitting-
$5.48
Location: 19 Prev | Next Part: 113835 *Qty: 1 SPACER WASHER
-Th. 1,3mm-
-Possible fitting-
$1.14
Location: 19 Prev | Next Part: 113836 *Qty: 1 SPACER WASHER
-Th. 1,4mm-
-Possible fitting-
$1.14
Location: 20 Prev | Next Part: 13516924 *Qty: 6 STUD $11.05
Location: 21 Prev | Next Part: 104030 *Qty: 6 NUT $0.90
Location: 22 Prev | Next Part: 12646724 *Qty: 6 WASHER $0.90
Location: 23 Prev | Next Part: 13517024 *Qty: 2 STUD $0.90
Location: 24 Prev | Next Part: 16102377 *Qty: 2 NUT $2.08
Location: 25 Prev | Next Part: 13550321 *Qty: 2 WASHER $0.90
Location: 26 Prev | Next Part: 12601374 *Qty: 2 WASHER $0.90
Location: 27 Prev | Next Part: 176524 *Qty: 1 PEDALS SUPPORT GASKET $20.40

* Quantity shown indicates the number of pieces used in the diagram.
