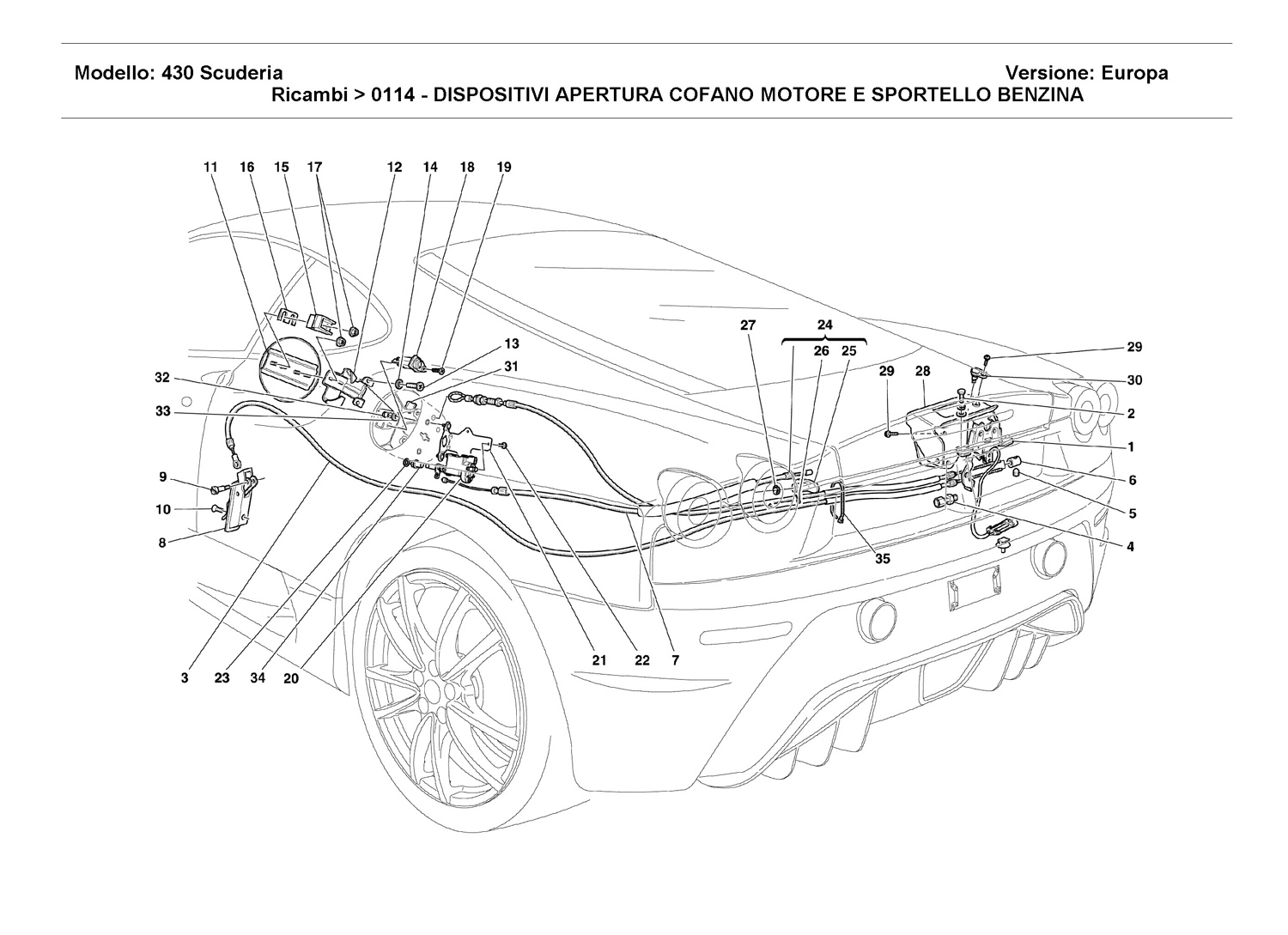

OPENING DEVICES FOR ENGINE BONNET AND GAS DOOR

Go to Split View

OPENING DEVICES FOR ENGINE BONNET AND GAS DOOR

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 65732400 *Qty: 1 COMPLETE ENGINE BONNET LOCK $194.35
Location: 2 Prev | Next Part: 16286127 *Qty: 2 SCREW $0.90
Location: 3 Prev | Next Part: 68746100 *Qty: 1 CABLE FOR MOTOR BONNET OPENING $103.49
Location: 4 Prev | Next Part: 62828900 *Qty: 1 REGISTER FOR CABLES $4.81
Location: 5 Prev | Next Part: 60276805 *Qty: 1 DOWEL $1.81
Location: 6 Prev | Next Part: 60276607 *Qty: 1 CONNECTION $41.57
Location: 7 Prev | Next Part: 80412000 *Qty: 1 COMPLETE SAFETY LOCK CABLE FOR ENGINE HOOD $162.14
Location: 8 Prev | Next Part: 80176200 *Qty: 1 HANDLE FOR REAR HOOD OPENING $109.78
Location: 9 Prev | Next Part: 80617400 *Qty: 1 PIN $42.73
Location: 10 Prev | Next Part: 13299477 *Qty: 1 SCREW $0.90
Location: 11 Prev | Next Part: 68034110 *Qty: 1 FUEL INLET LID Call
Location: 12 Prev | Next Part: 67934900 *Qty: 1 HINGE FOR GAS UNION DOOOR $72.62
Location: 13 Prev | Next Part: 13274014 *Qty: 2 SCREW $0.90
Location: 14 Prev | Next Part: 12605274 *Qty: 2 WASHER $0.90
Location: 15 Prev | Next Part: 65396000 *Qty: 1 STRIKER $5.59
Location: 16 Prev | Next Part: 65396100 *Qty: 2 SPACER $3.71
Location: 17 Prev | Next Part: 14084111 *Qty: 2 NUT $0.90
Location: 18 Prev | Next Part: 153069 *Qty: 1 OPEN DOOR SWITCH $7.16
Location: 19 Prev | Next Part: 15688875 *Qty: 1 SCREW $0.90
Location: 20 Prev | Next Part: 69918500 *Qty: 1 ACTUATOR $54.84
Location: 21 Prev | Next Part: 69729700 *Qty: 1 ACTUATOR SUPPORTING BRACKET $15.07
Location: 22 Prev | Next Part: 15689601 *Qty: 2 SCREW $0.90
Location: 23 Prev | Next Part: 67067600 *Qty: 1 GASKET $3.69
Location: 24 Prev | Next Part: 69775300 *Qty: 1 COMPLETE SAFETY CABLE FOR GAS UNION DOOR $49.34
Location: 25 Prev | Next Part: 60710900 *Qty: 1 EMERGENCY HANDLE Call
Location: 26 Prev | Next Part: 60711000 *Qty: 1 CLIP $0.90
Location: 27 Prev | Next Part: 11087676 *Qty: 2 FLEXIBLE RING $0.90
Location: 28 Prev | Next Part: 68854900 *Qty: 1 ENGINE BONNET LOCK SHIELD $314.64
Location: 29 Prev | Next Part: 13297477 *Qty: 1 SCREW $0.90
Location: 30 Prev | Next Part: 62535900 *Qty: 1 ADDITIONAL STOP LIGHT FIXED CONTACT $3.41
Location: 31 Prev | Next Part: 63879900 *Qty: 2 RUBBER PAD $12.00
Location: 32 Prev | Next Part: 168698 *Qty: 2 NUT $2.26
Location: 33 Prev | Next Part: 12637878 *Qty: 2 WASHER $0.90
Location: 34 Prev | Next Part: 67485800 *Qty: 1 BUSHING $10.35
Location: 35 Prev | Next Part: 145854 *Qty: 1 CLAMP $0.90

* Quantity shown indicates the number of pieces used in the diagram.
