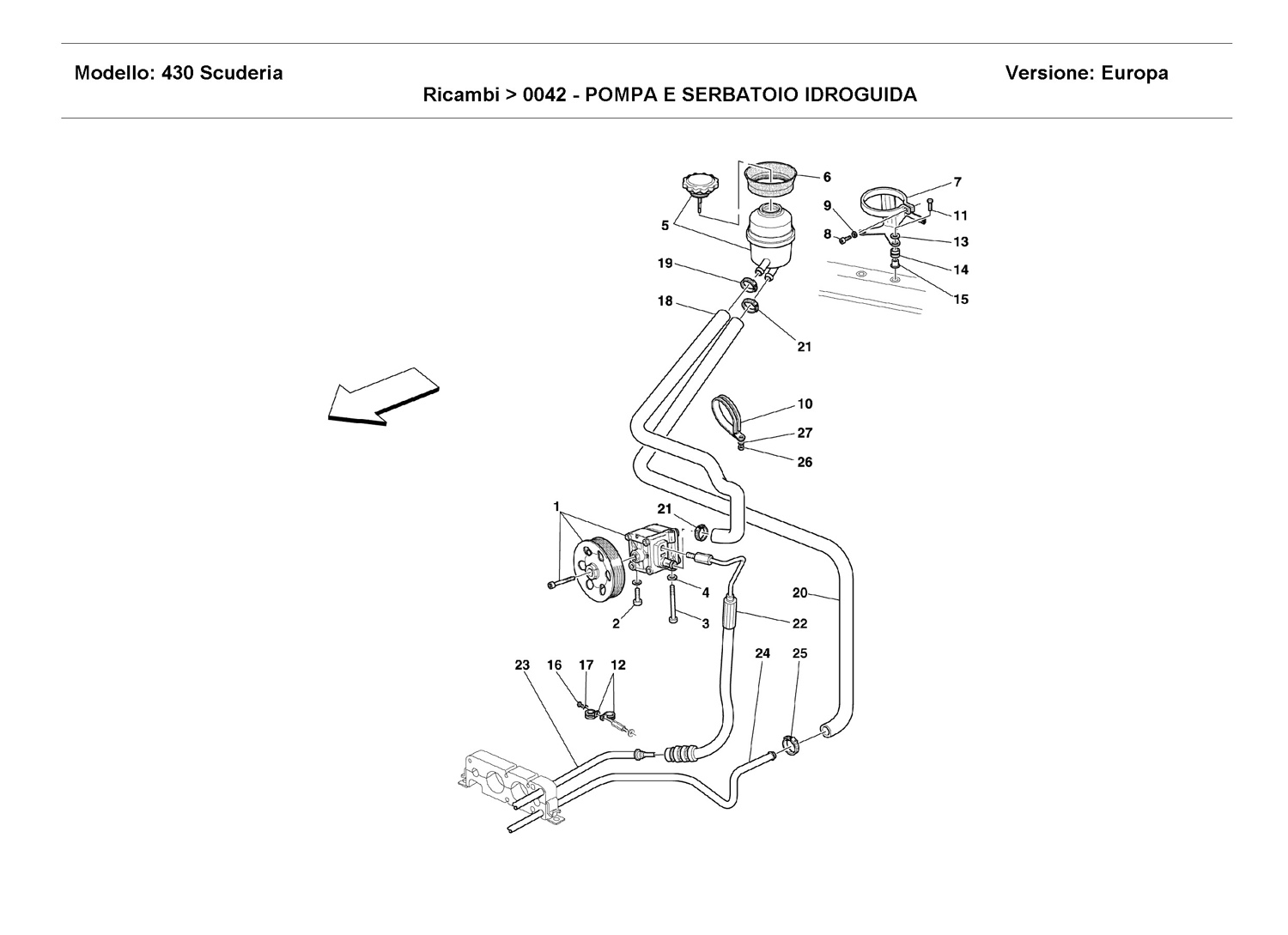

HYDRAULIC STEERING PUMP AND TANK

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 235957 *Qty: 1 COMPLETE HYDRAULIC PUMP Call
Location: 2 Prev | Next Part: 198519 *Qty: 1 SCREW $7.24
Location: 3 Prev | Next Part: 180604 *Qty: 1 SCREW $3.74
Location: 4 Prev | Next Part: 11193874 *Qty: 2 WASHER $0.90
Location: 5 Prev | Next Part: 170877 *Qty: 1 OIL TANK FOR SERVOSTEERING $76.32
Location: 6 Prev | Next Part: 179301 *Qty: 1 RUBBER RING $14.49
Location: 7 Prev | Next Part: 236802 *Qty: 1 UPPER BRACKET $59.20
Location: 8 Prev | Next Part: 10902124 *Qty: 1 SCREW $0.90
Location: 9 Prev | Next Part: 12601274 *Qty: 1 WASHER $0.90
Location: 10 Prev | Next Part: 124034 *Qty: 1 BRACKET WITH SHEATH $3.15
Location: 11 Prev | Next Part: 10902524 *Qty: 2 SCREW $0.90
Location: 12 Prev | Next Part: 10441390 *Qty: 2 BRACKET WITH SHEATH $0.90
Location: 13 Prev | Next Part: 12643724 *Qty: 2 WASHER $0.90
Location: 14 Prev | Next Part: 103549 *Qty: 2 CABLE GROMMET $1.57
Location: 15 Prev | Next Part: 149707 *Qty: 2 SPACER $1.41
Location: 16 Prev | Next Part: 10902124 *Qty: 1 SCREW $0.90
Location: 17 Prev | Next Part: 14488624 *Qty: 1 WASHER $0.90
Location: 18 Prev | Next Part: 196892 *Qty: 1 PIPE FROM TANK TO PUMP $44.27
Location: 19 Prev | Next Part: 178052 *Qty: 1 CLAMP $1.58
Location: 20 Prev | Next Part: 211916 *Qty: 1 DELIVERY PIPE FROM PUMP TO UNION $28.71
Location: 21 Prev | Next Part: 161490 *Qty: 2 CLAMP $2.47
Location: 22 Prev | Next Part: 211642 *Qty: 1 DELIVERY PIPE FROM PUMP TO UNDER FLOOR PIPE $382.80
Location: 23 Prev | Next Part: 211536 *Qty: 1 L.H. DELIVERY PIPE FROM UNION TO STEERING BOX $406.53
Location: 24 Prev | Next Part: 202552 *Qty: 1 RETURN PIPE UNDER THE FLOOR $322.66
Location: 25 Prev | Next Part: 178051 *Qty: 1 CLAMP $1.46
Location: 26 Prev | Next Part: 102741 *Qty: 1 NUT $0.90
Location: 27 Prev | Next Part: 14499324 *Qty: 1 WASHER Superseded

* Quantity shown indicates the number of pieces used in the diagram.
