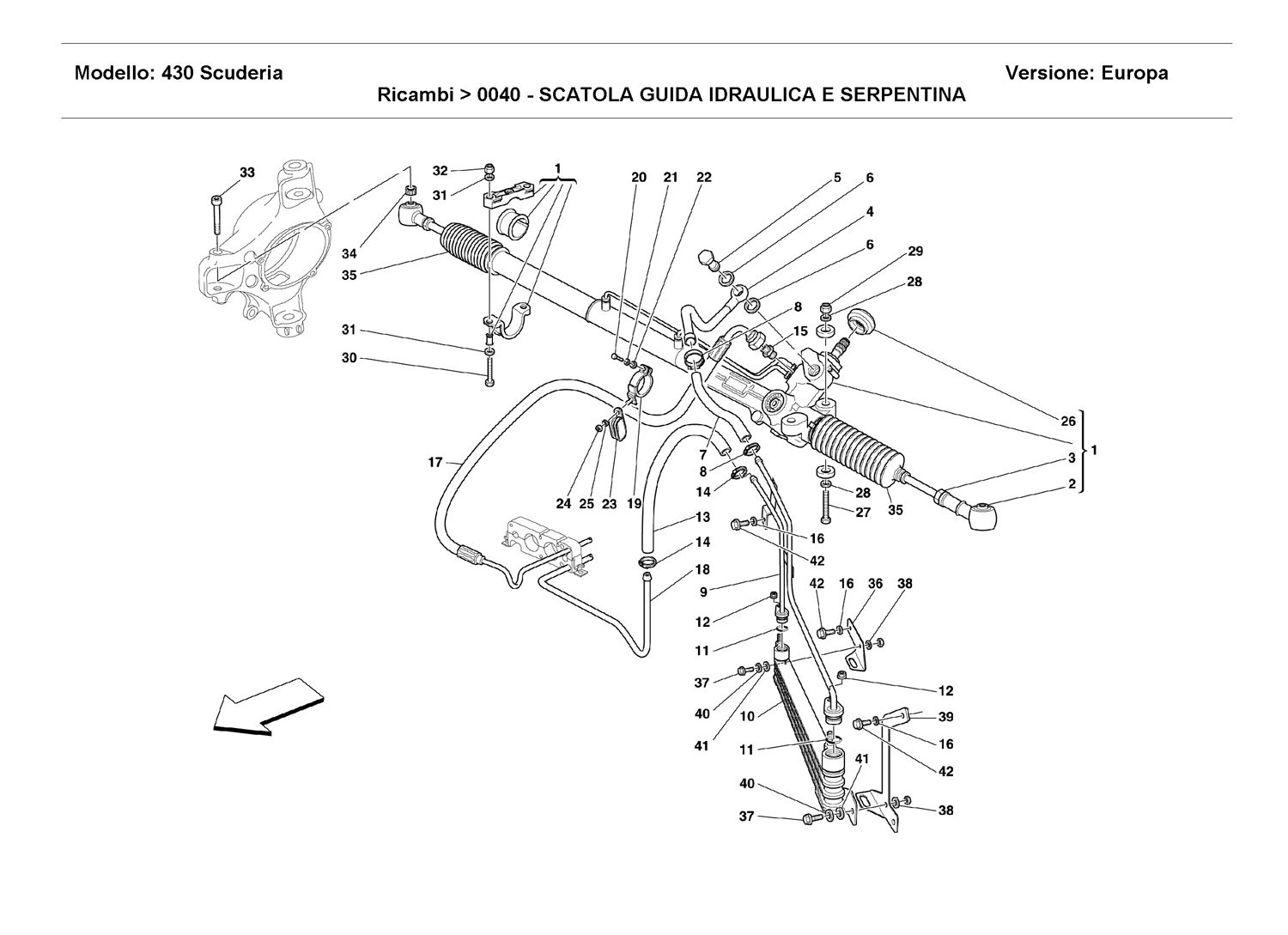

HYDRAULIC STEERING BOX AND SERPENTINE

Go to Split View

HYDRAULIC STEERING BOX AND SERPENTINE

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 226819 *Qty: 1 RACK STEERING BOX WITH POWER STEERING $4,926.70
Location: 2 Prev | Next Part: 181882 *Qty: 2 BALL TIE ROD $260.00
Location: 3 Prev | Next Part: 10791324 *Qty: 2 NUT $11.88
Location: 4 Prev | Next Part: 211764 *Qty: 1 SWINGING UNION $40.69
Location: 5 Prev | Next Part: 10185111 *Qty: 1 UNION $5.69
Location: 6 Prev | Next Part: 10280060 *Qty: 2 GASKET $0.90
Location: 7 Prev | Next Part: 212706 *Qty: 1 RUBBER HOSE $26.66
Location: 8 Prev | Next Part: 161490 *Qty: 2 SCREW COLLAR $2.55
Location: 9 Prev | Next Part: 238563 *Qty: 1 TUBETORIADIATOR $276.17
Location: 10 Prev | Next Part: 239202 *Qty: 1 OIL RADIATOR $328.98
Location: 11 Prev | Next Part: 14457381 *Qty: 2 GASKET $0.93
Location: 12 Prev | Next Part: 14058411 *Qty: 2 NUT Superseded
Location: 13 Prev | Next Part: 212707 *Qty: 1 RUBBER HOSE Call
Location: 14 Prev | Next Part: 161490 *Qty: 2 SCREW COLLAR $2.55
Location: 15 Prev | Next Part: 201706 *Qty: 1 THREADED UNION $8.07
Location: 16 Prev | Next Part: 12646724 *Qty: 4 WASHER $0.90
Location: 17 Prev | Next Part: 211536 *Qty: 1 L.H. DELIVERY PIPE FROM UNION TO STEERING BOX $419.23
Location: 18 Prev | Next Part: 202552 *Qty: 1 RETURN PIPE UNDER THE FLOOR $332.74
Location: 19 Prev | Next Part: 177631 *Qty: 2 PIPES FIXING BRACKET $11.07
Location: 20 Prev | Next Part: 10902424 *Qty: 2 SCREW $0.90
Location: 21 Prev | Next Part: 127494 *Qty: 2 WASHER $0.90
Location: 22 Prev | Next Part: 12639724 *Qty: 2 WASHER $0.90
Location: 23 Prev | Next Part: 10441690 *Qty: 2 BRACKET WITH SHEATH $0.90
Location: 24 Prev | Next Part: 102948 *Qty: 2 NUT $0.90
Location: 25 Prev | Next Part: 12639724 *Qty: 2 WASHER $0.90
Location: 26 Prev | Next Part: 171519 *Qty: 1 COMPLETE RING $21.29
Location: 27 Prev | Next Part: 16237174 *Qty: 2 SCREW $2.64
Location: 28 Prev | Next Part: 14496624 *Qty: 4 WASHER $0.90
Location: 29 Prev | Next Part: 102742 *Qty: 2 NUT $0.90
Location: 30 Prev | Next Part: 16237074 *Qty: 2 SCREW $4.47
Location: 31 Prev | Next Part: 14496624 *Qty: 4 WASHER $0.90
Location: 32 Prev | Next Part: 102742 *Qty: 2 NUT $0.90
Location: 33 Prev | Next Part: 179556 *Qty: 2 SCREW $34.92
Location: 34 Prev | Next Part: 179555 *Qty: 2 COMPENSATOR RING $6.18
Location: 35 Prev | Next Part: 70000948 *Qty: 1 BELLOWS REPLACEMENT KIT $78.21
Location: 36 Prev | Next Part: 239488 *Qty: 1 R.H. BRACKET $16.88
Location: 37 Prev | Next Part: 16286027 *Qty: 4 SCREW $0.90
Location: 38 Prev | Next Part: 12637824 *Qty: 4 WASHER $0.90
Location: 39 Prev | Next Part: 239489 *Qty: 1 L.H. BRACKET $24.42
Location: 40 Prev | Next Part: 12601277 *Qty: 4 WASHER $0.90
Location: 41 Prev | Next Part: 12644478 *Qty: 4 WASHER $0.90
Location: 42 Prev | Next Part: 16044324 *Qty: 4 SCREW $0.90

* Quantity shown indicates the number of pieces used in the diagram.
