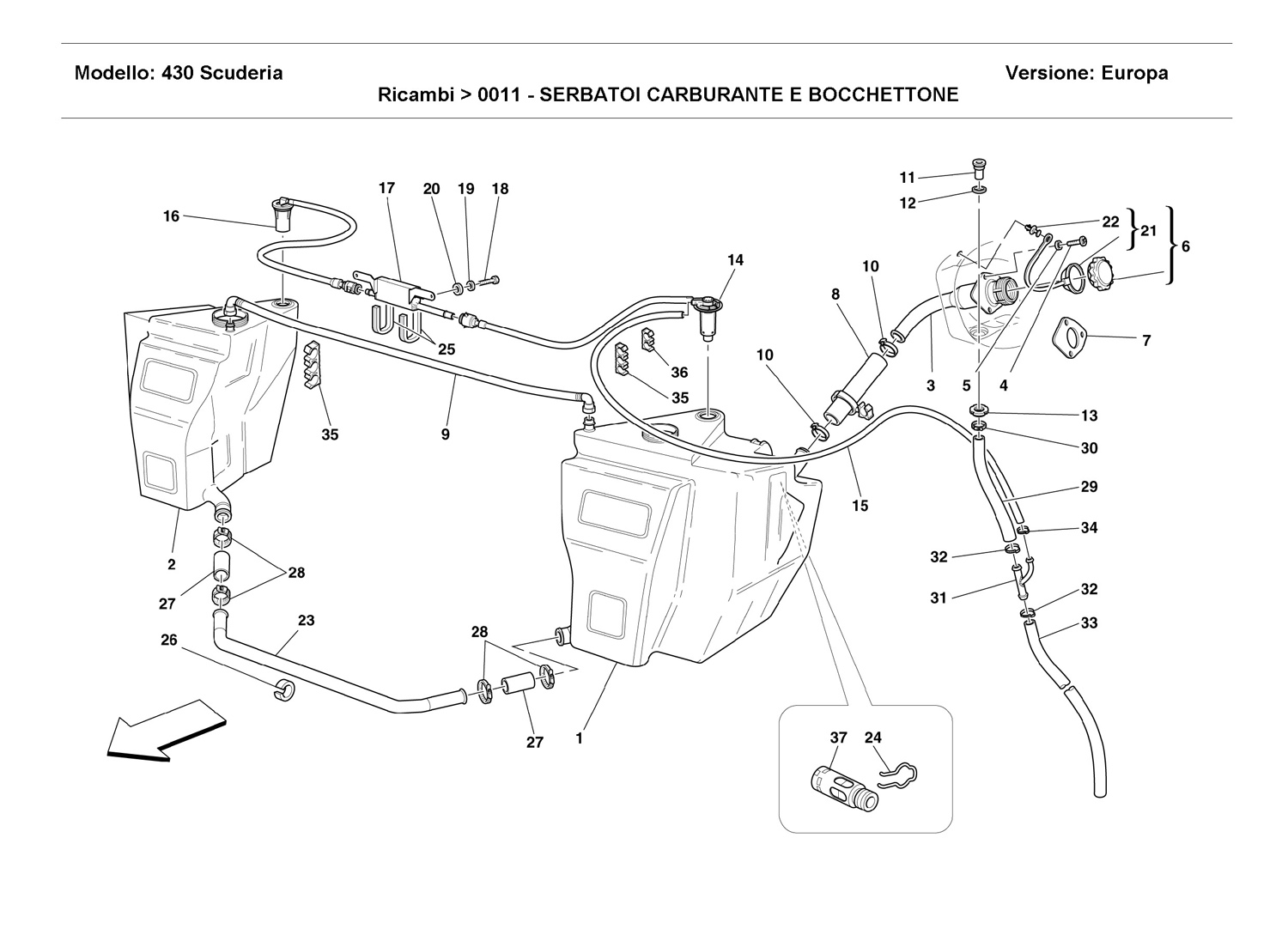

FUEL TANKS AND UNION

Go to Split View

FUEL TANKS AND UNION

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 231403 *Qty: 1 L.H. FUEL TANK $4,518.13
Location: 2 Prev | Next Part: 231404 *Qty: 1 R.H. FUEL TANK $2,540.89
Location: 3 Prev | Next Part: 231930 *Qty: 1 UNION $1,964.85
Location: 4 Prev | Next Part: 64686900 *Qty: 3 SCREW $0.90
Location: 5 Prev | Next Part: 12601274 *Qty: 3 WASHER $0.90
Location: 6 Prev | Next Part: 190469 *Qty: 1 COMPLETE PLUG $387.34
Location: 7 Prev | Next Part: 235256 *Qty: 1 GASKET $61.68
Location: 8 Prev | Next Part: 232567 *Qty: 1 UNION-TANK CONNECTING PIPE $70.32
Location: 9 Prev | Next Part: 207054 *Qty: 1 TANKS AIR BELL CONNECTION PIPE $83.32
Location: 10 Prev | Next Part: 170127 *Qty: 2 ELASTIC COLLAR $1.18
Location: 11 Prev | Next Part: 64872000 *Qty: 1 SLEEVE $5.88
Location: 12 Prev | Next Part: 65064500 *Qty: 1 GASKET $1.89
Location: 13 Prev | Next Part: 104919 *Qty: 1 RING NUT $7.00
Location: 14 Prev | Next Part: 208895 *Qty: 1 L.H. VALVE WITH PIPE $757.87
Location: 15 Prev | Next Part: 211283 *Qty: 1 RUBBER HOSE $23.33
Location: 16 Prev | Next Part: 208894 *Qty: 1 R.H. VALVE WITH PIPE $141.93
Location: 17 Prev | Next Part: 245863 *Qty: 1 DISAREATOR Call
Location: 18 Prev | Next Part: 62940900 *Qty: 2 SCREW $1.85
Location: 19 Prev | Next Part: 127494 *Qty: 2 WASHER $0.90
Location: 20 Prev | Next Part: 10523424 *Qty: 2 WASHER $0.90
Location: 21 Prev | Next Part: 196949 *Qty: 1 COMPLETE RING $29.98
Location: 22 Prev | Next Part: 186172 *Qty: 1 RETAINER $0.90
Location: 23 Prev | Next Part: 224755 *Qty: 1 TANKS CONNECTION PIPE $801.80
Location: 24 Prev | Next Part: 181930 *Qty: 1 CLIP $90.13
Location: 25 Prev | Next Part: 69101300 *Qty: 2 ANTI-VIBRATIONS $0.90
Location: 26 Prev | Next Part: 177437 *Qty: 6 RUBBER THICKNESS $24.67
Location: 27 Prev | Next Part: 241179 *Qty: 2 RUBBER HOSE $64.14
Location: 28 Prev | Next Part: 180957 *Qty: 4 SCREW COLLAR Call
Location: 29 Prev | Next Part: 213294 *Qty: 1 PIPE FROM PAN TO 3-WAY $21.29
Location: 30 Prev | Next Part: 177553 *Qty: 1 CLAMP $0.90
Location: 31 Prev | Next Part: 195439 *Qty: 1 3-WAY UNION $183.03
Location: 32 Prev | Next Part: 13433570 *Qty: 2 CLAMP $0.90
Location: 33 Prev | Next Part: 213295 *Qty: 1 PIPE FROM 3-WAY TO BOTTOM $14.42
Location: 34 Prev | Next Part: 13432270 *Qty: 1 ELASTIC COLLAR $0.90
Location: 35 Prev | Next Part: 183098 *Qty: 1 FLEXIBLE CLIP $0.90
Location: 36 Prev | Next Part: 140727 *Qty: 2 FLEXIBLE CLIP $0.90
Location: 37 Prev | Next Part: 181929 *Qty: 1 ON-OFF VALVE Call

* Quantity shown indicates the number of pieces used in the diagram.
