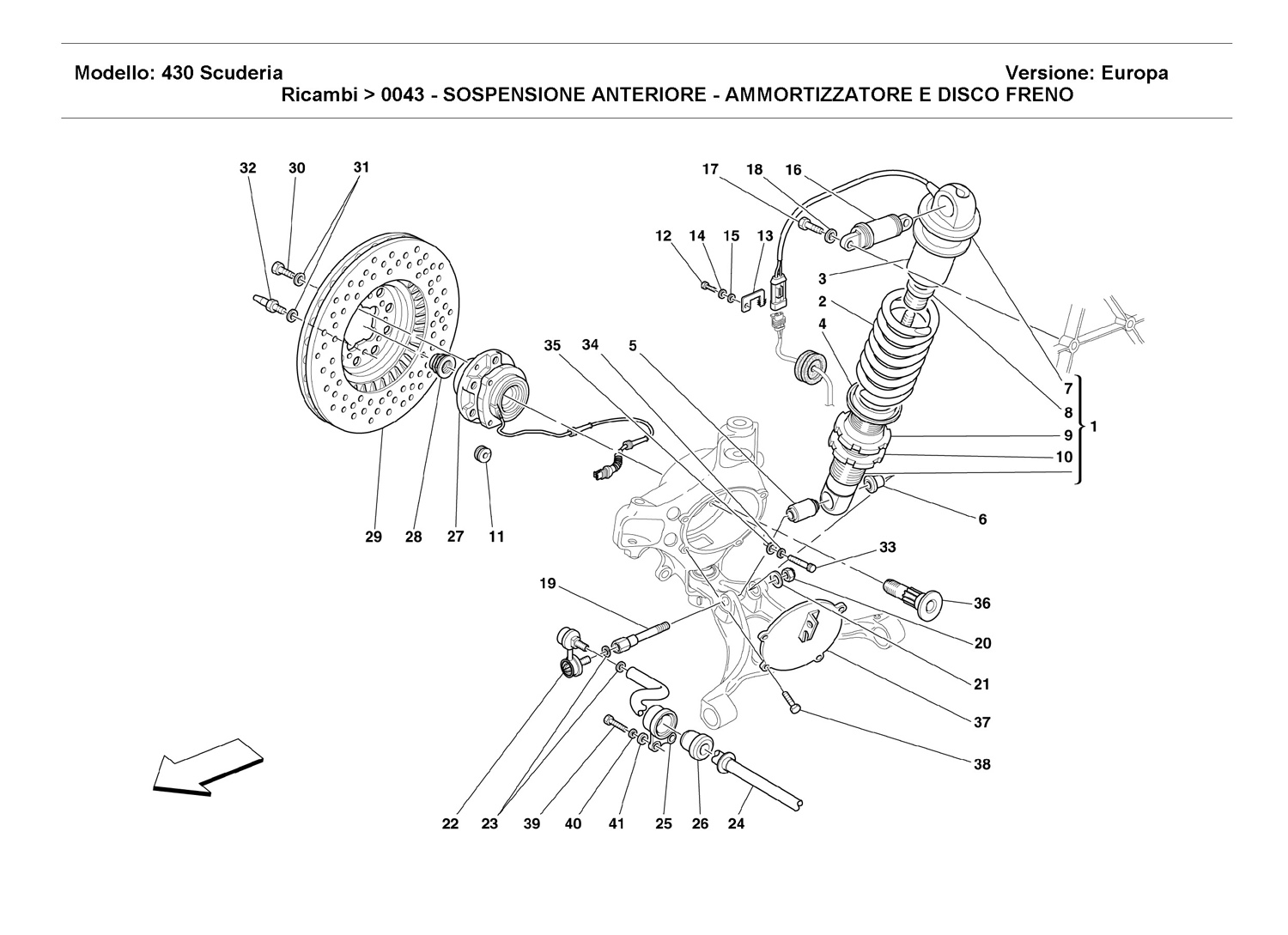

FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

Go to Split View

FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 235232 *Qty: 2 FRONT SHOCK ABSORBER $2,124.61
Location: 2 Prev | Next Part: 229640 *Qty: 2 SPRING $1,992.80
Location: 3 Prev | Next Part: 177688 *Qty: 2 UPPER SPACER $8.64
Location: 4 Prev | Next Part: 169684 *Qty: 2 LOWER SPACER $13.26
Location: 5 Prev | Next Part: 157630 *Qty: 2 BALL JOINT $72.50
Location: 6 Prev | Next Part: 193492 *Qty: 2 SPACER $38.06
Location: 7 Prev | Next Part: 174727 *Qty: 2 SPRING RETAINING UPPER SPACER $298.36
Location: 8 Prev | Next Part: 174728 *Qty: 2 SHOCK ABSORBER PAD $129.07
Location: 9 Prev | Next Part: 174725 *Qty: 2 SPACER $127.10
Location: 10 Prev | Next Part: 174726 *Qty: 2 RING NUT $94.85
Location: 11 Prev | Next Part: 10460287 *Qty: 2 RUBBER RING $1.76
Location: 12 Prev | Next Part: 10902024 *Qty: 2 SCREW $0.90
Location: 13 Prev | Next Part: 162606 *Qty: 2 CLIP $1.06
Location: 14 Prev | Next Part: 127494 *Qty: 2 WASHER $0.90
Location: 15 Prev | Next Part: 12643724 *Qty: 2 WASHER $0.90
Location: 16 Prev | Next Part: 212948 *Qty: 2 SILENTBLOCK $170.89
Location: 17 Prev | Next Part: 11306934 *Qty: 4 SCREW $0.90
Location: 18 Prev | Next Part: 160092 *Qty: 4 WASHER $0.90
Location: 19 Prev | Next Part: 204977 *Qty: 2 SCREW $80.94
Location: 20 Prev | Next Part: 14058721 *Qty: 2 NUT $0.90
Location: 21 Prev | Next Part: 155002 *Qty: 2 WASHER $3.97
Location: 22 Prev | Next Part: 162620 *Qty: 1 R.H. BALL TIE ROD $120.84
Location: 22 Prev | Next Part: 162619 *Qty: 1 L.H. BALL TIE ROD $190.55
Location: 23 Prev | Next Part: 160092 *Qty: 4 WASHER $0.90
Location: 24 Prev | Next Part: 229632 *Qty: 1 FRONT ANTI-ROLL BAR $3,062.10
Location: 25 Prev | Next Part: 203607 *Qty: 2 ANTI-ROLL BAR SUPPORT $227.86
Location: 26 Prev | Next Part: 231882 *Qty: 2 BAR BUFFER $31.34
Location: 27 Prev | Next Part: 194134 *Qty: 2 HUB COMPLETE BEARING $674.04
Location: 28 Prev | Next Part: 209184 *Qty: 2 NUT $33.27
Location: 29 Prev | Next Part: 240546 *Qty: 2 FRONT BRAKE DISC
-Replace together-
Call
Location: 30 Prev | Next Part: 16043424 *Qty: 2 SCREW $0.90
Location: 31 Prev | Next Part: 127496 *Qty: 4 WASHER $0.90
Location: 32 Prev | Next Part: 104370 *Qty: 2 BRAKE DISC FIXING SCREW $0.90
Location: 33 Prev | Next Part: 180591 *Qty: 8 SCREW $3.48
Location: 34 Prev | Next Part: 160092 *Qty: 8 WASHER $0.90
Location: 35 Prev | Next Part: 10732414 *Qty: 8 WASHER $9.83
Location: 36 Prev | Next Part: 180542 *Qty: 2 BEARING FIXING PIN $586.26
Location: 37 Prev | Next Part: 196939 *Qty: 1 R.H. STEERING KNUCKLE COVER $493.00
Location: 37 Prev | Next Part: 196940 *Qty: 1 L.H. STEERING KNUCKLE COVER $493.00
Location: 38 Prev | Next Part: 11625724 *Qty: 8 SCREW $1.15
Location: 39 Prev | Next Part: 16043424 *Qty: 4 SCREW $0.90
Location: 40 Prev | Next Part: 178341 *Qty: 4 WASHER $0.90
Location: 41 Prev | Next Part: 12638524 *Qty: 4 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
