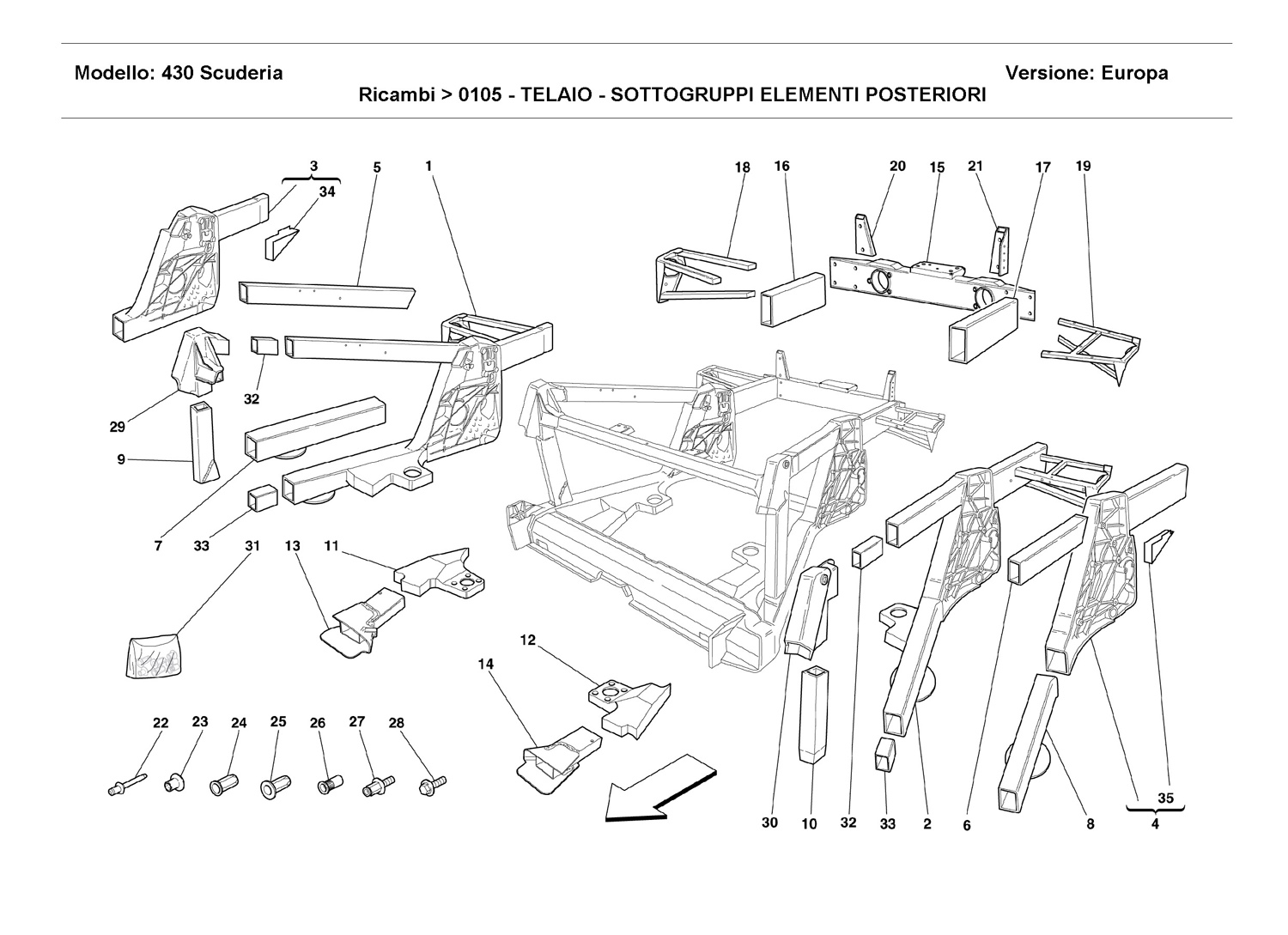

FRAME - REAR ELEMENTS SUB-GROUPS

Go to Split View

FRAME - REAR ELEMENTS SUB-GROUPS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 68887300 *Qty: 1 COMPLETE R.H. SIDE FRAME Call
Location: 2 Prev | Next Part: 68887400 *Qty: 1 COMPLETE L.H. SIDE FRAME Call
Location: 3 Prev | Next Part: 68887500 *Qty: 1 R.H. REAR LATERAL CASTING Call
Location: 4 Prev | Next Part: 68887600 *Qty: 1 L.H. REAR LATERAL CASTING Call
Location: 5 Prev | Next Part: 202584 *Qty: 1 R.H. UPPER FRAME Call
Location: 6 Prev | Next Part: 202583 *Qty: 1 L.H. UPPER FRAME Call
Location: 7 Prev | Next Part: 212303 *Qty: 1 R.H. LOWER FRAME Call
Location: 8 Prev | Next Part: 212302 *Qty: 1 L.H. LOWER FRAME Call
Location: 9 Prev | Next Part: 66051200 *Qty: 1 COMPLETE R.H. REAR PANEL $238.20
Location: 10 Prev | Next Part: 66051100 *Qty: 1 COMPLETE L.H. REAR PANEL Call
Location: 11 Prev | Next Part: 6234102 *Qty: 1 R.H. BRACKET ENGINE SUPPORT Call
Location: 12 Prev | Next Part: 6234101 *Qty: 1 L.H. BRACKET ENGINE SUPPORT Call
Location: 13 Prev | Next Part: 65942200 *Qty: 1 R.H. SUPPORT FOR BRACKET $681.39
Location: 14 Prev | Next Part: 65942300 *Qty: 1 L.H. SUPPORT FOR BRACKET Call
Location: 15 Prev | Next Part: 242545 *Qty: 1 REAR BUMPER CROSS MEMBER Call
Location: 16 Prev | Next Part: 207272 *Qty: 1 R.H. REAR FRAME Call
Location: 17 Prev | Next Part: 207271 *Qty: 1 L.H. REAR FRAME $459.00
Location: 18 Prev | Next Part: 80084211 *Qty: 1 R.H. REAR FENDER FRAME Call
Location: 19 Prev | Next Part: 67780211 *Qty: 1 L.H. REAR FENDER FRAME Call
Location: 20 Prev | Next Part: 68027000 *Qty: 1 R.H. SIDE BRACKET $55.99
Location: 21 Prev | Next Part: 68027100 *Qty: 1 L.H. SIDE BRACKET Call
Location: 22 Prev | Next Part: 14642891 *Qty: 0 POP RIVET L. 14 mm $0.90
Location: 23 Prev | Next Part: 65133800 *Qty: 0 RIVET L. 6,4 mm $0.90
Location: 24 Prev | Next Part: 15624211 *Qty: 0 RIVET M4 $1.23
Location: 24 Prev | Next Part: 15180411 *Qty: 0 BLIND RIVET $1.02
Location: 24 Prev | Next Part: 15624511 *Qty: 0 RIVET M8 $0.90
Location: 24 Prev | Next Part: 15624411 *Qty: 0 RIVET M6 $0.90
Location: 24 Prev | Next Part: 15624311 *Qty: 0 RIVET M5 $5.61
Location: 25 Prev | Next Part: 65151200 *Qty: 0 RIVET M6 $1.04
Location: 26 Prev | Next Part: 166101 *Qty: 0 RIVET M4 $1.79
Location: 26 Prev | Next Part: 65135000 *Qty: 0 RIVET M8 $1.54
Location: 26 Prev | Next Part: 65930400 *Qty: 0 RIVET M6 $1.26
Location: 26 Prev | Next Part: 65319800 *Qty: 0 RIVET M8 BLIND $1.06
Location: 26 Prev | Next Part: 60853400 *Qty: 0 RIVET M10 BLIND $0.90
Location: 27 Prev | Next Part: 65065400 *Qty: 0 STUD HEAD M6 $4.16
Location: 28 Prev | Next Part: 13836771 *Qty: 0 SCREW $2.62
Location: 29 Prev | Next Part: 6166261 *Qty: 1 R.H. UPPER FUSION REAR PILLAR $467.67
Location: 30 Prev | Next Part: 6166161 *Qty: 1 L.H. UPPER FUSION REAR PILLAR $467.67
Location: 31 Prev | Next Part: 70000950 *Qty: 1 INSERTS KIT FOR REPAIR $1,842.16
Location: 32 Prev | Next Part: 181980 *Qty: 0 UPPER INNER CORE $41.83
Location: 33 Prev | Next Part: 181979 *Qty: 0 ER INNER CORE $41.83
Location: 34 Prev | Next Part: 196575 *Qty: 1 R.H. REINFORCEMENT $10.94
Location: 35 Prev | Next Part: 196574 *Qty: 1 L.H. REINFORCEMENT $19.83

* Quantity shown indicates the number of pieces used in the diagram.
