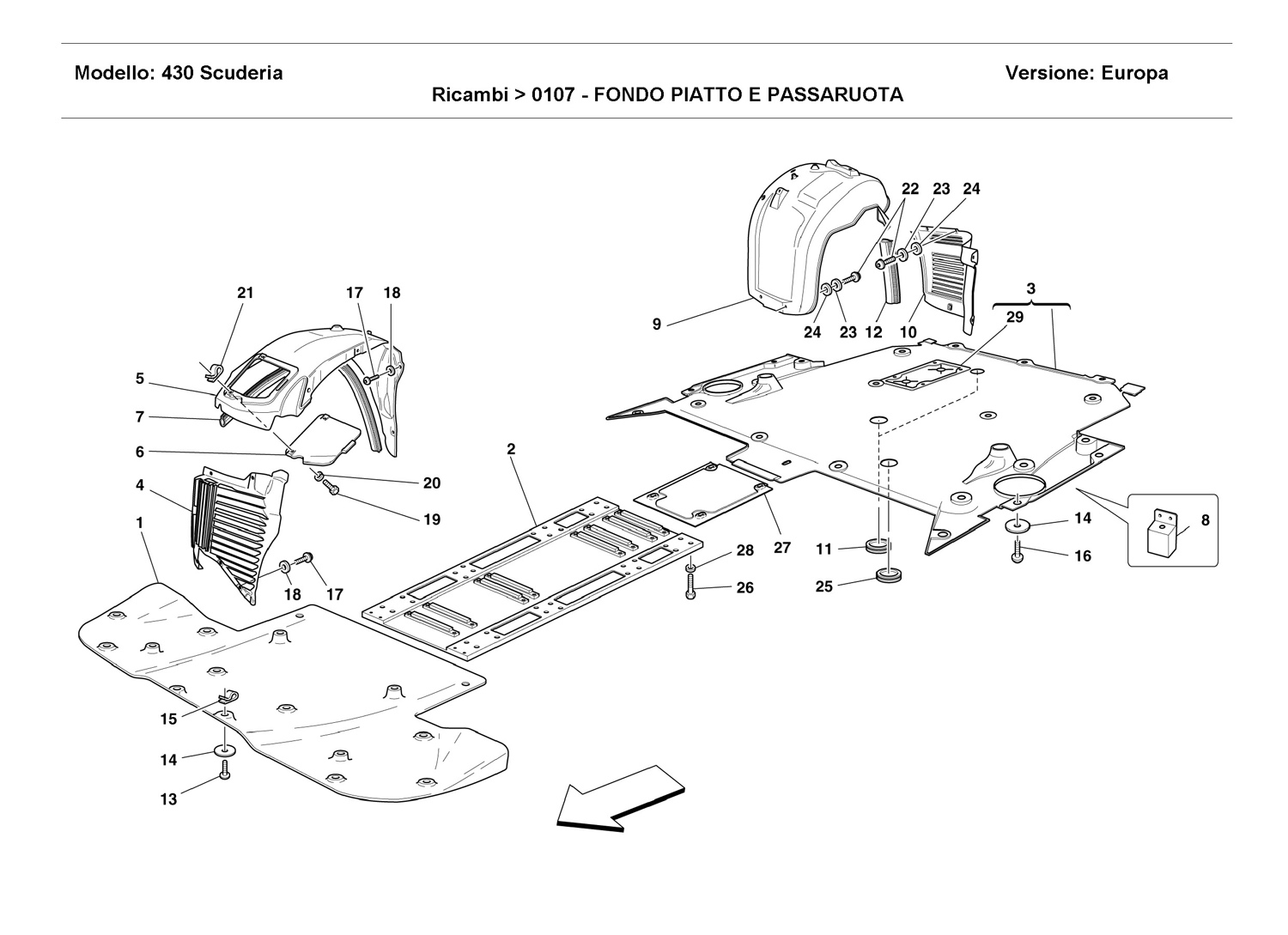

FLAT FLOOR PAN AND WHEELHOUSE

Go to Split View

FLAT FLOOR PAN AND WHEELHOUSE

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 80499500 *Qty: 1 FRONT UNDER THE BODY SHELL SHIELD $1,452.96
Location: 2 Prev | Next Part: 198642 *Qty: 1 TUNNEL REINFORCEMENT $1,356.42
Location: 3 Prev | Next Part: 80896900 *Qty: 1 REAR UNDER THE BODY SHELL SHIELD Call
Location: 4 Prev | Next Part: 80255800 *Qty: 1 FRONT GRAVEL GUARD FOR R.H. FRONT WHEEL $104.12
Location: 4 Prev | Next Part: 80255900 *Qty: 1 FRONT GRAVEL GUARD FOR L.H. FRONT WHEEL $104.12
Location: 5 Prev | Next Part: 67957400 *Qty: 1 R.H. FRONT WHEELHOUSE OUTER CARPET SHIELD $503.44
Location: 5 Prev | Next Part: 67964900 *Qty: 1 L.H. FRONT WHEELHOUSE OUTER CARPET SHIELD $493.89
Location: 6 Prev | Next Part: 65522300 *Qty: 1 R.H. WHEELHOUSE DOOR $94.84
Location: 6 Prev | Next Part: 65522400 *Qty: 1 L.H. WHEELHOUSE DOOR $94.84
Location: 7 Prev | Next Part: 68036400 *Qty: 2 GASKET $13.24
Location: 8 Prev | Next Part: 68502300 *Qty: 1 BRACKET $59.93
Location: 9 Prev | Next Part: 67957300 *Qty: 1 R.H. REAR WHEELHOUSE
-Front side-
$538.37
Location: 9 Prev | Next Part: 67957200 *Qty: 1 L.H. REAR WHEELHOUSE
-Front side-
$735.11
Location: 10 Prev | Next Part: 80256000 *Qty: 1 R.H. GRAVEL GUARD FOR REAR WHEEL $104.12
Location: 10 Prev | Next Part: 80256100 *Qty: 1 L.H. GRAVEL GUARD FOR REAR WHEEL $104.12
Location: 11 Prev | Next Part: 63965800 *Qty: 2 PLUG $7.46
Location: 12 Prev | Next Part: 68034900 *Qty: 2 GASKET $5.19
Location: 13 Prev | Next Part: 10902424 *Qty: 16 SCREW $0.90
Location: 14 Prev | Next Part: 66121400 *Qty: 34 WASHER $0.90
Location: 15 Prev | Next Part: 14189071 *Qty: 6 BRACKET $0.94
Location: 16 Prev | Next Part: 10902424 *Qty: 23 SCREW $0.90
Location: 17 Prev | Next Part: 13276477 *Qty: 10 SCREW $0.90
Location: 18 Prev | Next Part: 11197777 *Qty: 10 WASHER Superseded
Location: 19 Prev | Next Part: 10977887 *Qty: 4 SCREW $0.97
Location: 20 Prev | Next Part: 12638178 *Qty: 4 WASHER $0.90
Location: 21 Prev | Next Part: 66927700 *Qty: 4 BRACKET $1.44
Location: 22 Prev | Next Part: 13276477 *Qty: 18 SCREW $0.90
Location: 23 Prev | Next Part: 11197777 *Qty: 18 WASHER Superseded
Location: 24 Prev | Next Part: 12643778 *Qty: 18 WASHER $0.90
Location: 25 Prev | Next Part: 13141587 *Qty: 1 PROTECTION PLUG $5.74
Location: 26 Prev | Next Part: 210246 *Qty: 32 SCREW
-M 8 x 25-
$1.67
Location: 26 Prev | Next Part: 205370 *Qty: 16 SCREW
-M 6 x 25-
$0.90
Location: 27 Prev | Next Part: 68023300 *Qty: 1 CENTRAL UNDER THE BODY SHELL SHIELD $114.41
Location: 28 Prev | Next Part: 12646727 *Qty: 32 WASHER
-8,45 x 20 x 2-
$0.90
Location: 28 Prev | Next Part: 12639727 *Qty: 16 WASHER
-6,45x11 x 1-
$0.90
Location: 29 Prev | Next Part: 68372600 *Qty: 1 OIL FILTER ISPECTION DOOR Call

* Quantity shown indicates the number of pieces used in the diagram.
