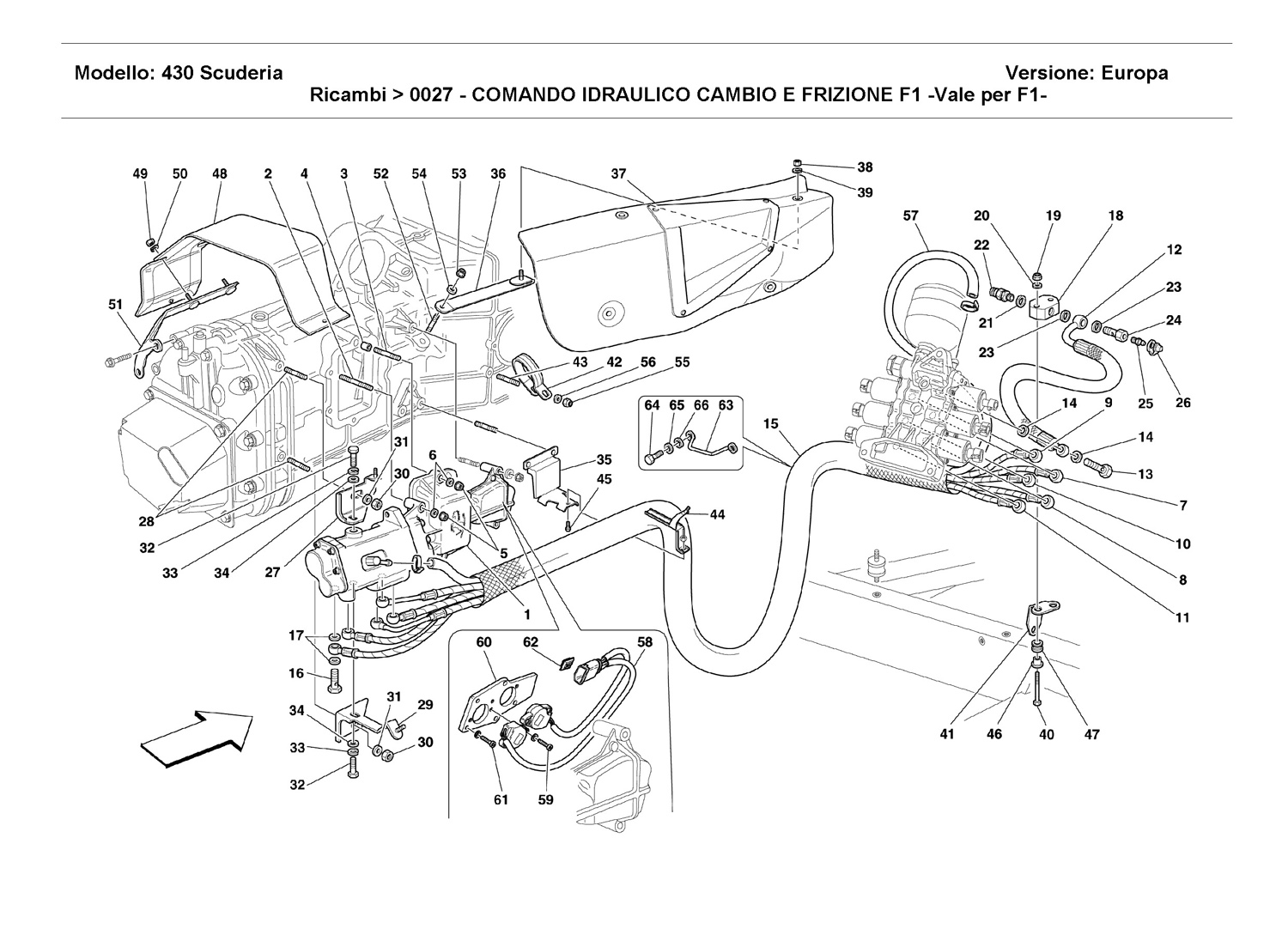

F1 CLUTCH AND GEARBOX HYDRAULIC CONTROL -Valid for

Go to Split View

F1 CLUTCH AND GEARBOX HYDRAULIC CONTROL -Valid for

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 234259 *Qty: 1 F1 GEARBOX SYSTEM COMPONENTS KIT Call
Location: 1 Prev | Next Part: - *Qty: 1 COMPLETE HYDRAULIC ACTUATOR Call
Location: 2 Prev | Next Part: 11501024 *Qty: 4 STUD $1.15
Location: 3 Prev | Next Part: 11500724 *Qty: 2 STUD $1.78
Location: 4 Prev | Next Part: 103038 *Qty: 2 CENTERING DOWEL $1.83
Location: 5 Prev | Next Part: 16100814 *Qty: 2 NUT $0.90
Location: 6 Prev | Next Part: 127496 *Qty: 2 WASHER $0.90
Location: 7 Prev | Next Part: - *Qty: 1 PIPE(EV1) Call
Location: 8 Prev | Next Part: - *Qty: 1 PIPE(EV2) Call
Location: 9 Prev | Next Part: - *Qty: 1 PIPE(EV3) Call
Location: 10 Prev | Next Part: - *Qty: 1 PIPE(EV4) Call
Location: 11 Prev | Next Part: - *Qty: 1 PIPE(EV5) Call
Location: 12 Prev | Next Part: - *Qty: 1 PIPE FROM PUMP TO BLOCK Call
Location: 13 Prev | Next Part: - *Qty: 3 UNION
-EV1, EV2, clutch-
Call
Location: 13 Prev | Next Part: - *Qty: 3 UNION
-EV3, EV4, EV5-
Call
Location: 14 Prev | Next Part: - *Qty: 12 GASKET Call
Location: 15 Prev | Next Part: - *Qty: 1 PROTECTION SHEATH Call
Location: 16 Prev | Next Part: - *Qty: 2 UNION
-EV1,EV2-
Call
Location: 16 Prev | Next Part: - *Qty: 3 UNION
-EV3, EV4, EV5-
Call
Location: 17 Prev | Next Part: - *Qty: 10 GASKET Call
Location: 18 Prev | Next Part: - *Qty: 1 BLOCK Call
Location: 19 Prev | Next Part: - *Qty: 2 NUT Call
Location: 20 Prev | Next Part: - *Qty: 2 WASHER Call
Location: 21 Prev | Next Part: - *Qty: 1 WASHER Call
Location: 22 Prev | Next Part: - *Qty: 1 QUICK MALE COUPLING Call
Location: 23 Prev | Next Part: - *Qty: 2 GASKET Call
Location: 24 Prev | Next Part: - *Qty: 1 UNION Call
Location: 25 Prev | Next Part: - *Qty: 1 BLEEDER SCREW Call
Location: 26 Prev | Next Part: - *Qty: 1 PROTECTION BOOT Call
Location: 27 Prev | Next Part: 174257 *Qty: 1 UPPER ACTUATOR SUPPORT BRACKET
-Valid till stock exhaustion-
$12.51
Location: 27 Prev | Next Part: 242682 *Qty: 1 UPPER ACTUATOR SUPPORT BRACKET
-Valid after stock exhaustion of 174257-
Call
Location: 28 Prev | Next Part: 13516424 *Qty: 2 STUD $1.13
Location: 29 Prev | Next Part: - *Qty: 1 LOWER ACTUATOR SUPPORT BRACKET Call
Location: 30 Prev | Next Part: 16100814 *Qty: 2 NUT $0.90
Location: 31 Prev | Next Part: 127496 *Qty: 2 WASHER $0.90
Location: 32 Prev | Next Part: 16043124 *Qty: 2 SCREW $0.90
Location: 33 Prev | Next Part: 127496 *Qty: 2 WASHER $0.90
Location: 34 Prev | Next Part: 10519624 *Qty: 2 WASHER $0.90
Location: 35 Prev | Next Part: 208101 *Qty: 1 PIPES SUPPORTING BRACKET $35.41
Location: 36 Prev | Next Part: 242669 *Qty: 1 SHIELD SUPPORTING BRACKET
-Valid till stock exhaustion-
Call
Location: 36 Prev | Next Part: 242669 *Qty: 1 SHIELD SUPPORTING BRACKET
-Valid after stock exhaustion of 208242-
Call
Location: 37 Prev | Next Part: 220681 *Qty: 1 SHIELD FOR ACTUATOR PROTECTION
-Valid till stock exhaustion-
Superseded
Location: 37 Prev | Next Part: 241707 *Qty: 1 SHIELD FOR ACTUATOR PROTECTION $419.17
Location: 38 Prev | Next Part: 160472 *Qty: 4 NUT $3.09
Location: 39 Prev | Next Part: 12637824 *Qty: 4 WASHER $0.90
Location: 40 Prev | Next Part: 10903224 *Qty: 2 SCREW Superseded
Location: 41 Prev | Next Part: - *Qty: 1 BLOCK SUPPORT BRACKET Call
Location: 42 Prev | Next Part: 124034 *Qty: 1 BRACKET WITH SHEATH $3.25
Location: 43 Prev | Next Part: 13540724 *Qty: 1 STUD $0.90
Location: 44 Prev | Next Part: 208103 *Qty: 1 BRACKET $29.24
Location: 45 Prev | Next Part: 16043124 *Qty: 1 SCREW $0.90
Location: 46 Prev | Next Part: 149707 *Qty: 2 SPACER $1.45
Location: 47 Prev | Next Part: 177576 *Qty: 2 CABLE GROMMET $2.80
Location: 48 Prev | Next Part: 208622 *Qty: 1 SENSOR PROTECTION SHIELD $222.13
Location: 49 Prev | Next Part: 160472 *Qty: 2 NUT $3.09
Location: 50 Prev | Next Part: 12637824 *Qty: 2 WASHER $0.90
Location: 51 Prev | Next Part: 180745 *Qty: 1 SHIELD SUPPORTING BRACKET $59.91
Location: 52 Prev | Next Part: 13516424 *Qty: 1 STUD $1.13
Location: 53 Prev | Next Part: 177778 *Qty: 1 NUT $1.88
Location: 54 Prev | Next Part: 12638524 *Qty: 2 WASHER $0.90
Location: 55 Prev | Next Part: 102741 *Qty: 1 NUT $0.90
Location: 56 Prev | Next Part: 12643724 *Qty: 1 WASHER $0.90
Location: 57 Prev | Next Part: - *Qty: 1 OIL RECYCLE PIPE Call
Location: 58 Prev | Next Part: - *Qty: 1 POTENTIOMETERS KIT Call
Location: 59 Prev | Next Part: - *Qty: 4 SCREW Call
Location: 60 Prev | Next Part: - *Qty: 1 POTENTIOMETERS FLANGE Call
Location: 61 Prev | Next Part: - *Qty: 4 SCREW Call
Location: 62 Prev | Next Part: - *Qty: 1 CLIP Call
Location: 63 Prev | Next Part: 208842 *Qty: 1 BRACKET $8.62
Location: 64 Prev | Next Part: 10902424 *Qty: 2 SCREW $0.90
Location: 65 Prev | Next Part: 127494 *Qty: 2 WASHER $0.90
Location: 66 Prev | Next Part: 12643724 *Qty: 2 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
