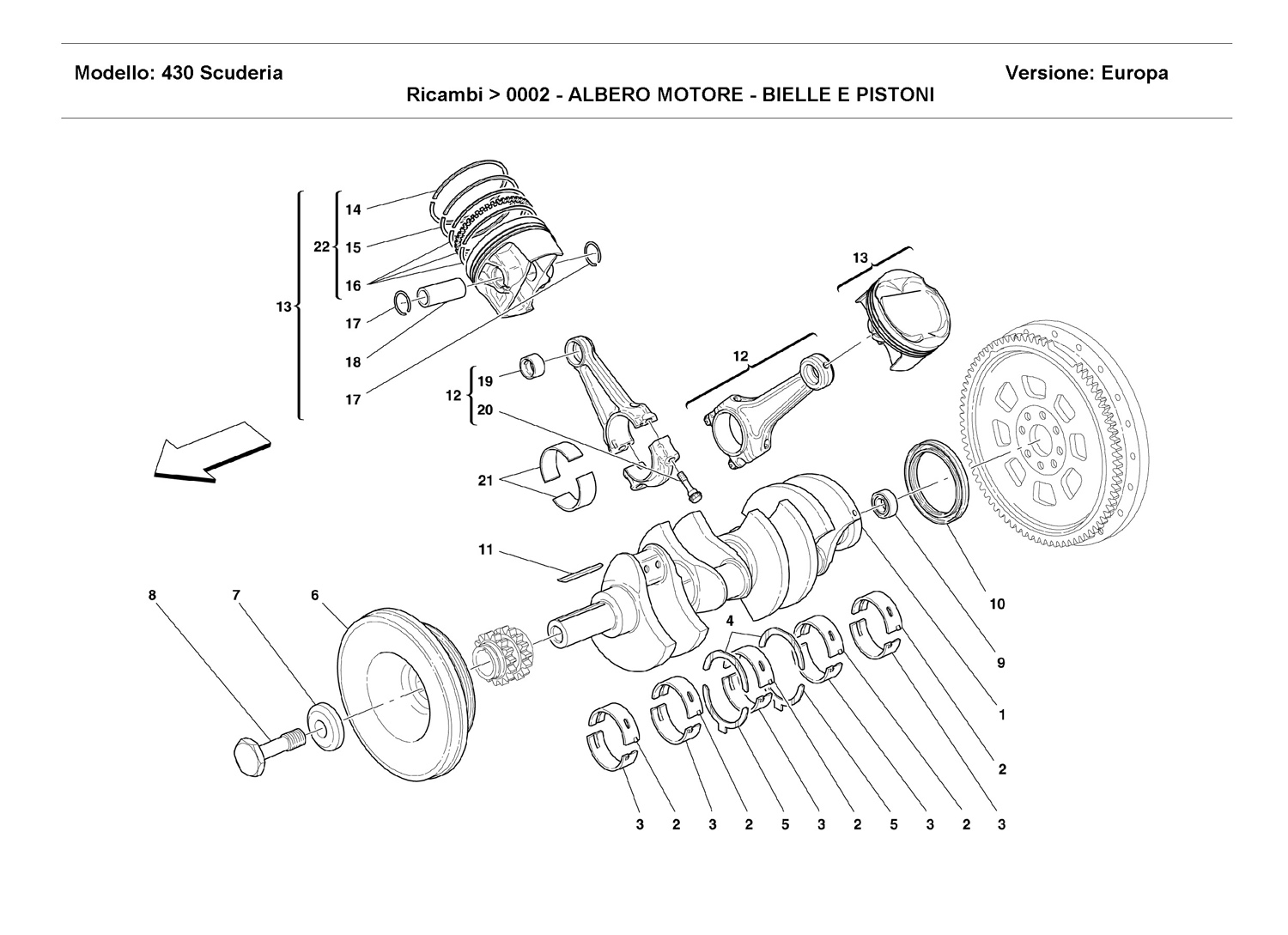

DRIVING SHAFT - CONNECTING RODS AND PISTONS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 196460 *Qty: 1 CRANKSHAFT $10,466.02
Location: 2 Prev | Next Part: 195307 *Qty: 5 UPPER HALF BEARING
-Blue-
-Standard-
Superseded
Location: 2 Prev | Next Part: 198910 *Qty: 5 UPPER HALF BEARING
-Green-
$31.60
Location: 2 Prev | Next Part: 195308 *Qty: 5 UPPER HALF BEARING
-Yellow-
$24.26
Location: 3 Prev | Next Part: 200194 *Qty: 5 LOWER HALF BEARING
-Blue-
-Standard-
Superseded
Location: 3 Prev | Next Part: 200196 *Qty: 5 LOWER HALF BEARING
-Green-
$32.11
Location: 3 Prev | Next Part: 200195 *Qty: 5 LOWER HALF BEARING
-Yellow-
$20.38
Location: 4 Prev | Next Part: 196648 *Qty: 2 UPPERSHIM $93.57
Location: 5 Prev | Next Part: 196649 *Qty: 2 LOWER SHIM $93.57
Location: 6 Prev | Next Part: 212322 *Qty: 1 TORSION DAMPER $806.76
Location: 7 Prev | Next Part: 192106 *Qty: 1 WASHER $7.57
Location: 8 Prev | Next Part: 196216 *Qty: 1 SCREW FOR DAMPER FIXING $43.53
Location: 9 Prev | Next Part: 103877 *Qty: 1 BEARING $35.31
Location: 10 Prev | Next Part: 240214 *Qty: 1 SEAL RING $65.38
Location: 11 Prev | Next Part: 186201 *Qty: 1 KEY $1.26
Location: 12 Prev | Next Part: 215529 *Qty: 8 COMPLETE CONNECTING ROD Call
Location: 13 Prev | Next Part: 237780 *Qty: 4 RH PISTON WITH RINGS $538.54
Location: 13 Prev | Next Part: 237781 *Qty: 4 LH PISTON WITH RINGS $538.54
Location: 14 Prev | Next Part: 236497 *Qty: 8 SEAL RING
-1st groove-
Call
Location: 15 Prev | Next Part: 226260 *Qty: 8 SEAL RING
-2nd groove-
$54.81
Location: 16 Prev | Next Part: 175614 *Qty: 8 OIL SCRAPING RING
-3nd groove-
$74.39
Location: 17 Prev | Next Part: 178890 *Qty: 16 STOP RING $3.50
Location: 18 Prev | Next Part: 175367 *Qty: 8 PIN $77.87
Location: 19 Prev | Next Part: 208094 *Qty: 8 BUSHING $25.16
Location: 20 Prev | Next Part: 215530 *Qty: 16 CONNECTING ROD TIGHTENING SCREW $55.18
Location: 21 Prev | Next Part: 204290 *Qty: 16 CONNECTING ROD HALF BEARING
-Red-
-Standard
$9.70
Location: 21 Prev | Next Part: 204291 *Qty: 16 CONNECTING ROD HALF BEARING
-Blue-
$9.70
Location: 21 Prev | Next Part: 204292 *Qty: 16 CONNECTING ROD HALF BEARING
-Black-
$9.70
Location: 22 Prev | Next Part: 240375 *Qty: 12 PISTONS RINGS SET $221.52

* Quantity shown indicates the number of pieces used in the diagram.
