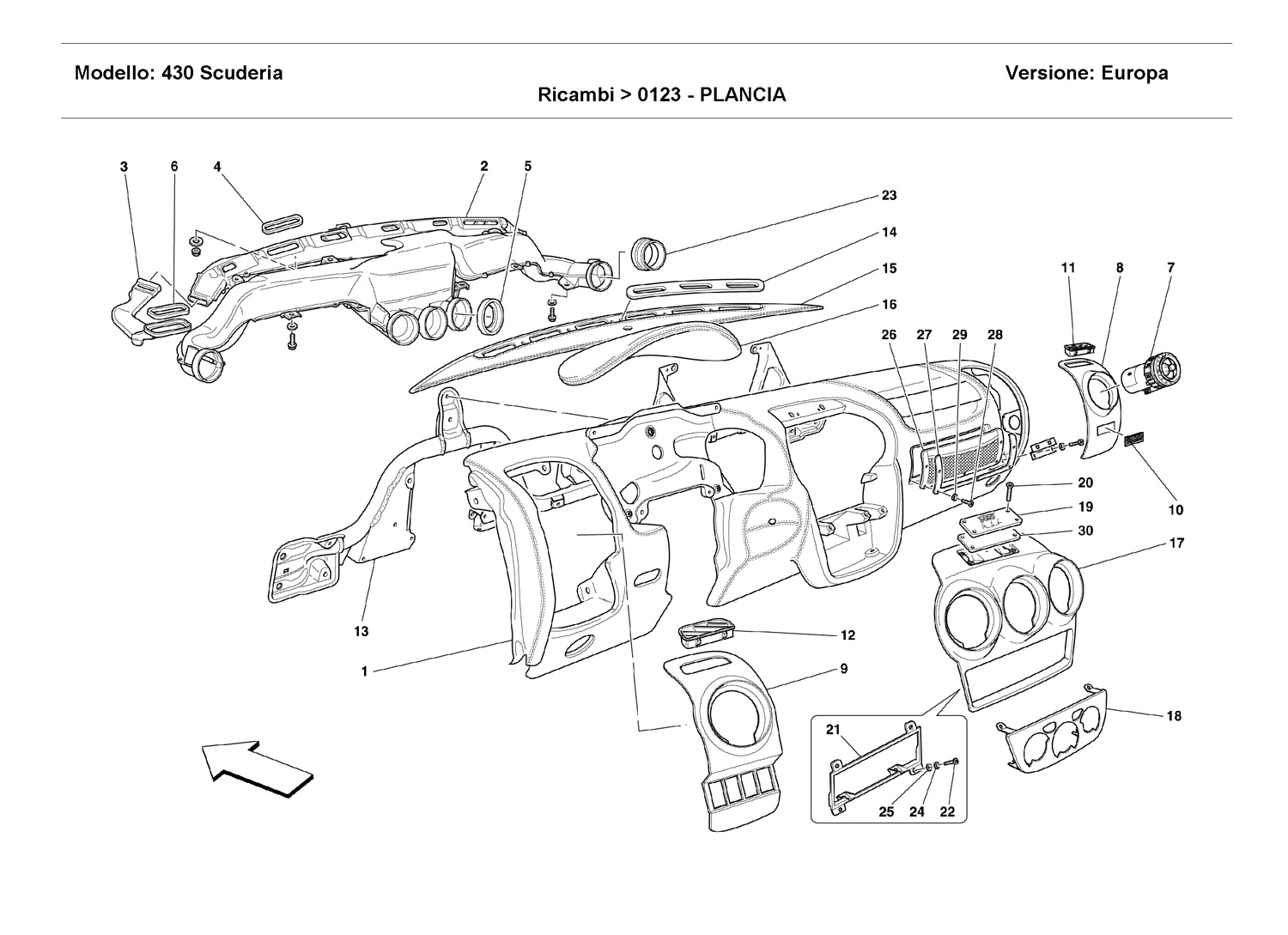

DASHBOARD

Go to Split View

DASHBOARD

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 69832300 *Qty: 1 DASHBOARD WITH INSTRUMENTS
-Standard-
Call
Location: 1 Prev | Next Part: 80762500 *Qty: 1 DASHBOARD WITH INSTRUMENTS
-Leather-
Call
Location: 2 Prev | Next Part: 63352900 *Qty: 1 AIR DUCTING $317.69
Location: 3 Prev | Next Part: 65132400 *Qty: 1 L.H. SIDE DUCTING $14.28
Location: 3 Prev | Next Part: 65132300 *Qty: 1 R.H. SIDE DUCTING $14.28
Location: 4 Prev | Next Part: 66050600 *Qty: 6 GASKET $4.36
Location: 5 Prev | Next Part: 63353300 *Qty: 3 CENTRAL AIR OPENING GASKET $2.30
Location: 6 Prev | Next Part: 65132500 *Qty: 2 GASKET $0.90
Location: 7 Prev | Next Part: 67382400 *Qty: 5 AIR DIFFUSOR OPENING $302.05
Location: 8 Prev | Next Part: 68648100 *Qty: 1 R.H. AIR OUTLET PLATE Call
Location: 9 Prev | Next Part: 68648200 *Qty: 1 L.H. AIR OUTLET PLATE Call
Location: 10 Prev | Next Part: 80462510 *Qty: 1 "60 ANNI" MARK $232.85
Location: 11 Prev | Next Part: 67919000 *Qty: 1 R.H. PLATE $29.87
Location: 12 Prev | Next Part: 67919100 *Qty: 1 L.H. PLATE $29.87
Location: 13 Prev | Next Part: 80361200 *Qty: 1 DASHBOARD FRAME ASSEMBLY Call
Location: 14 Prev | Next Part: 65018300 *Qty: 1 L.H. AIR OUTLET PLATE $135.50
Location: 14 Prev | Next Part: 65018200 *Qty: 1 R.H. AIR OUTLET PLATE $135.50
Location: 15 Prev | Next Part: 81024500 *Qty: 1 MOULDING FOR WINDSCREEN AIR PLATE
-Standard-
$1,208.22
Location: 15 Prev | Next Part: 81024300 *Qty: 1 MOULDING FOR WINDSCREEN AIR PLATE
-Leather-
$990.70
Location: 15 Prev | Next Part: 81024400 *Qty: 1 MOULDING FOR WINDSCREEN AIR PLATE
-Alcantara-
$694.02
Location: 16 Prev | Next Part: 69943200 *Qty: 1 DASH BOARD
-Standard-
Call
Location: 16 Prev | Next Part: 80760000 *Qty: 1 DASH BOARD
-Leather-
Call
Location: 16 Prev | Next Part: 80760500 *Qty: 1 DASH BOARD
-Alcantara-
$1,216.77
Location: 17 Prev | Next Part: 69943700 *Qty: 1 UPPER CENTRALPLATE Call
Location: 18 Prev | Next Part: 68648400 *Qty: 1 LOWER CENTRALPLATE Call
Location: 18 Prev | Next Part: 80776100 *Qty: 1 LOWER CENTRALPLATE Call
Location: 19 Prev | Next Part: 80674800 *Qty: 1 "430 SCUDERIA" PLATE $314.56
Location: 19 Prev | Next Part: 80728900 *Qty: 1 CUSTOMER PLATE
-Not as spare part-
-Replaced by 81012200-
$479.53
Location: 19 Prev | Next Part: 81012200 *Qty: 1 CUSTOMER PLATE Call
Location: 20 Prev | Next Part: 68927600 *Qty: 4 SCREW
-Black-
$0.90
Location: 20 Prev | Next Part: 64214100 *Qty: 4 SCREW
-Selfblocking-
$0.90
Location: 21 Prev | Next Part: 68662200 *Qty: 1 CAR RADIO FRAME $24.57
Location: 22 Prev | Next Part: 14304021 *Qty: 4 SCREW $0.90
Location: 23 Prev | Next Part: 68134900 *Qty: 1 R.H. SIDE AIR OPENING GASKET $16.80
Location: 23 Prev | Next Part: 68135000 *Qty: 1 L.H. SIDE AIR OPENING GASKET $16.80
Location: 24 Prev | Next Part: 12637824 *Qty: 4 WASHER $0.90
Location: 25 Prev | Next Part: 12620374 *Qty: 4 WASHER $0.90
Location: 26 Prev | Next Part: 80337600 *Qty: 1 COVER
-Standard-
Call
Location: 26 Prev | Next Part: 80759100 *Qty: 1 COVER
-Leather-
Call
Location: 27 Prev | Next Part: 80338300 *Qty: 1 FRAME
-Standard-
$359.57
Location: 27 Prev | Next Part: 80759300 *Qty: 1 FRAME
-Leather-
Call
Location: 28 Prev | Next Part: 80818300 *Qty: 5 SCREW $0.90
Location: 29 Prev | Next Part: 13337347 *Qty: 5 WASHER $3.51
Location: 30 Prev | Next Part: 69140100 *Qty: 1 CUSTOMER PLATE SUPPORT $61.68

* Quantity shown indicates the number of pieces used in the diagram.
