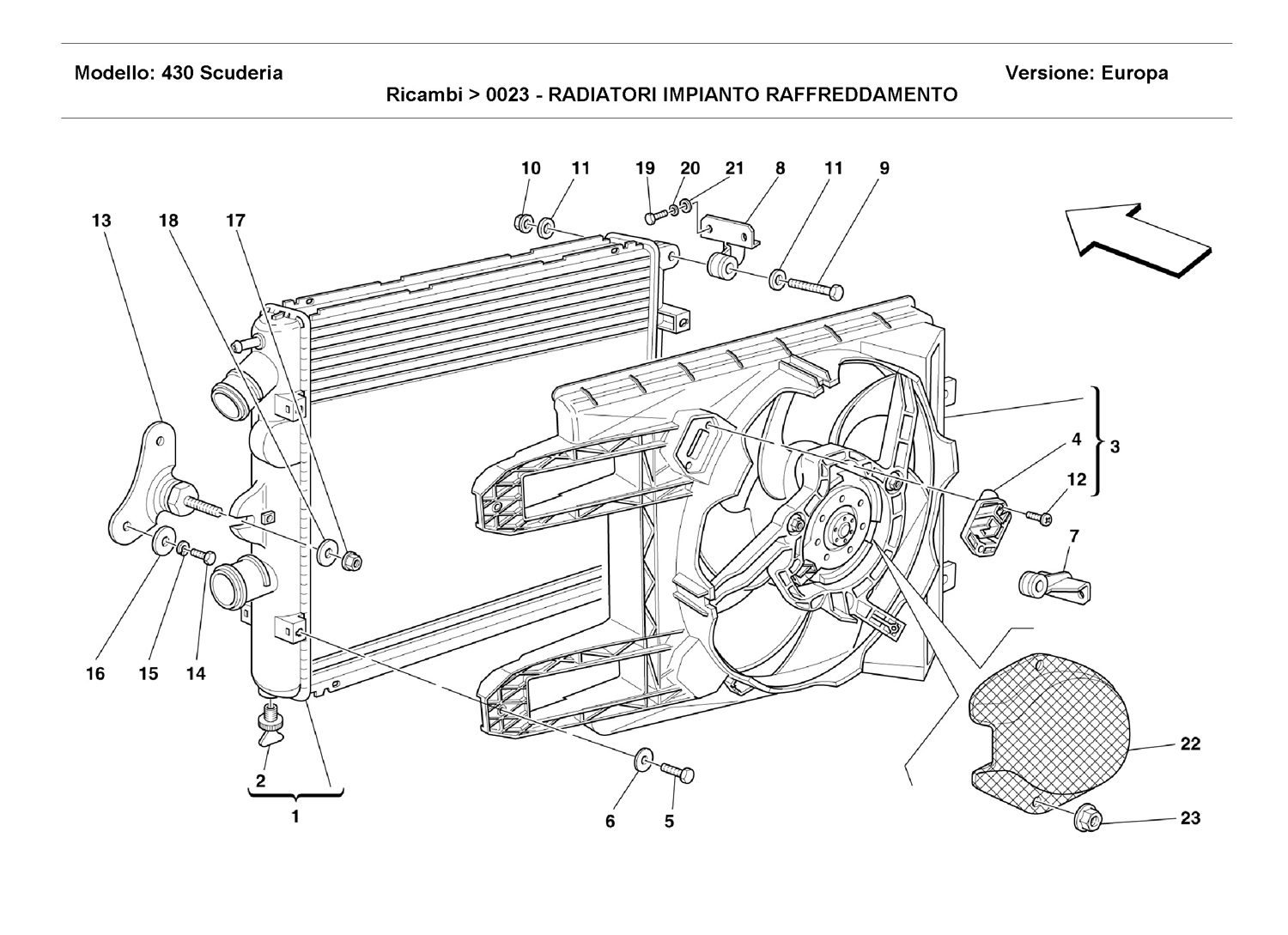

COOLING SYSTEM RADIATORS

Go to Split View

COOLING SYSTEM RADIATORS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 194078 *Qty: 2 WATER RADIATOR $1,350.96
Location: 2 Prev | Next Part: 198965 *Qty: 2 WATER OUTLET PLUG $11.12
Location: 3 Prev | Next Part: 194085 *Qty: 1 COMPLETE R.H. ELECTROFAN
-Not as spare part-
-Replaced by 241069-
$1,190.81
Location: 3 Prev | Next Part: 241069 *Qty: 1 COMPLETE R.H. ELECTROFAN $949.22
Location: 3 Prev | Next Part: 194086 *Qty: 1 COMPLETE L.H. ELECTROFAN
-Not as spare part-
-Replaced by 241068-
$1,190.81
Location: 3 Prev | Next Part: 241068 *Qty: 1 COMPLETE L.H. ELECTROFAN $878.92
Location: 4 Prev | Next Part: 185543 *Qty: 1 RESISTOR $34.86
Location: 5 Prev | Next Part: 16286024 *Qty: 3 SCREW $0.90
Location: 6 Prev | Next Part: 12647624 *Qty: 3 WASHER $0.90
Location: 7 Prev | Next Part: 233906 *Qty: 2 RADIATOR SUPPORT $101.42
Location: 8 Prev | Next Part: 242995 *Qty: 2 UPPER RADIATOR SUPPORT $112.05
Location: 9 Prev | Next Part: 16044324 *Qty: 2 SCREW $0.90
Location: 10 Prev | Next Part: 14058511 *Qty: 2 NUT $0.90
Location: 11 Prev | Next Part: 12646724 *Qty: 4 WASHER $0.90
Location: 12 Prev | Next Part: 15958801 *Qty: 2 SCREW $0.90
Location: 13 Prev | Next Part: 205354 *Qty: 1 R.H. RADIATOR CENTRAL BRACKET $46.91
Location: 13 Prev | Next Part: 205658 *Qty: 1 L.H. RADIATOR CENTRAL BRACKET $100.12
Location: 14 Prev | Next Part: 10902424 *Qty: 4 SCREW $0.90
Location: 15 Prev | Next Part: 106850 *Qty: 4 WASHER Superseded
Location: 16 Prev | Next Part: 12640624 *Qty: 4 WASHER $0.90
Location: 17 Prev | Next Part: 14058511 *Qty: 2 NUT $0.90
Location: 18 Prev | Next Part: 124338 *Qty: 2 WASHER $3.69
Location: 19 Prev | Next Part: 14305324 *Qty: 8 SCREW $0.90
Location: 20 Prev | Next Part: 106850 *Qty: 8 WASHER Superseded
Location: 21 Prev | Next Part: 12644424 *Qty: 8 WASHER $0.90
Location: 22 Prev | Next Part: 220970 *Qty: 2 SHIELD $10.18
Location: 23 Prev | Next Part: 14058411 *Qty: 6 NUT Superseded

* Quantity shown indicates the number of pieces used in the diagram.
