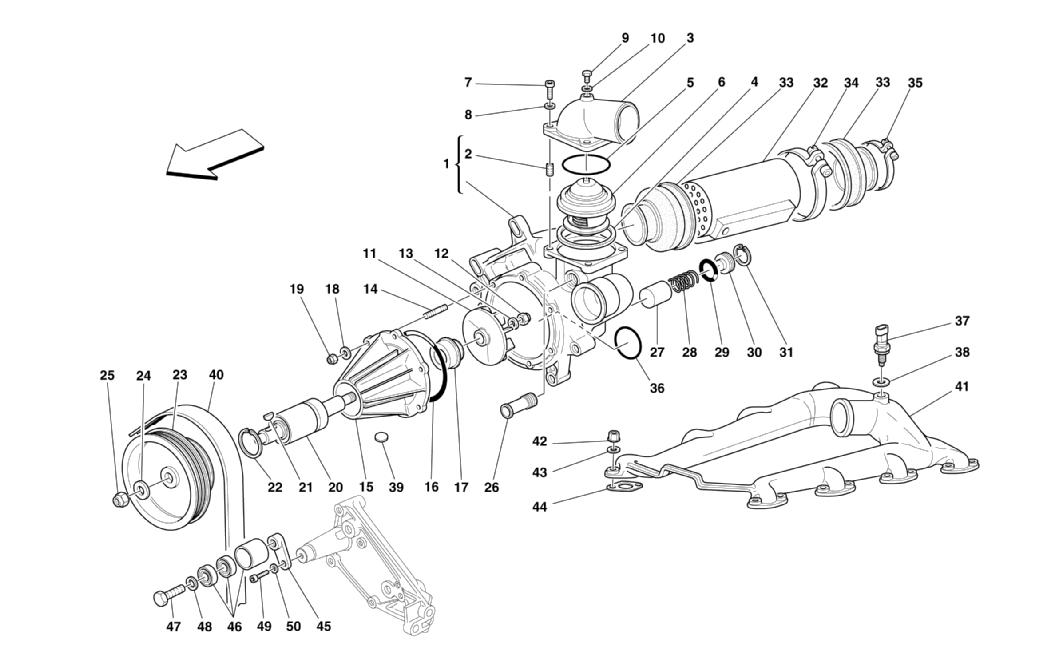

WATER PUMP AND OIL/WATER HEAT EXCHANGER

Go to Split View

WATER PUMP AND OIL/WATER HEAT EXCHANGER

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 176044 *Qty: 1 WATER PUMP BODY Call
Location: 2 Prev | Next Part: 13525470 *Qty: 4 THREADED INSERT $0.90
Location: 3 Prev | Next Part: 171926 *Qty: 1 THERMOSTATIC VALVE COVER $56.47
Location: 4 Prev | Next Part: 137873 *Qty: 1 GASKET $5.49
Location: 5 Prev | Next Part: 149279 *Qty: 1 O.R. GASKET $5.65
Location: 6 Prev | Next Part: 183758 *Qty: 1 THERMOSTAT $144.08
Location: 7 Prev | Next Part: 14433124 *Qty: 4 SCREW $0.90
Location: 8 Prev | Next Part: 12601274 *Qty: 4 WASHER $0.90
Location: 9 Prev | Next Part: 132349 *Qty: 1 UNION Call
Location: 10 Prev | Next Part: 10297760 *Qty: 1 GASKET $0.90
Location: 11 Prev | Next Part: 176045 *Qty: 1 WATER PUMP IMPELLER $156.32
Location: 12 Prev | Next Part: 100436 *Qty: 1 CAP NUT $13.30
Location: 13 Prev | Next Part: 11194074 *Qty: 1 WASHER $0.90
Location: 14 Prev | Next Part: 13540924 *Qty: 6 STUD Call
Location: 15 Prev | Next Part: 176173C *Qty: 1 WATER PUMP( NO PULLEY) $700.00
Location: 16 Prev | Next Part: 137868 *Qty: 1 O.R. GASKET $18.20
Location: 17 Prev | Next Part: 183759 *Qty: 1 FRONT SEAL RING $39.84
Location: 18 Prev | Next Part: 12601274 *Qty: 6 WASHER $0.90
Location: 19 Prev | Next Part: 102741 *Qty: 6 NUT $0.90
Location: 20 Prev | Next Part: 143742 *Qty: 1 BEARING WITH SHAFT $275.50
Location: 21 Prev | Next Part: 10202320 *Qty: 1 DISC KEY $1.44
Location: 22 Prev | Next Part: 11059976 *Qty: 1 SEEGER RING $1.38
Location: 23 Prev | Next Part: 177207 *Qty: 1 WATER PUMP CONTROL PULLEY $240.46
Location: 24 Prev | Next Part: 12646821 *Qty: 1 WASHER $0.90
Location: 25 Prev | Next Part: 102742 *Qty: 1 NUT $0.90
Location: 26 Prev | Next Part: 106227 *Qty: 1 UNION $8.38
Location: 27 Prev | Next Part: 176046 *Qty: 1 BUSHING $31.97
Location: 28 Prev | Next Part: 176047 *Qty: 1 SPRING $15.21
Location: 29 Prev | Next Part: 147278 *Qty: 1 O.R. GASKET $0.90
Location: 30 Prev | Next Part: 176048 *Qty: 1 SPRING PLUG $16.35
Location: 31 Prev | Next Part: 11058376 *Qty: 1 SEEGER RING $0.90
Location: 32 Prev | Next Part: 180846 *Qty: 1 HEAT EXCHANGER $847.51
Location: 33 Prev | Next Part: 187173 *Qty: 2 SLEEVE $346.06
Location: 34 Prev | Next Part: 153430 *Qty: 2 CLAMP Superseded
Location: 35 Prev | Next Part: 134109 *Qty: 2 SCREW COLLAR Superseded
Location: 36 Prev | Next Part: 101044 *Qty: 1 GASKET $5.00
Location: 37 Prev | Next Part: 180137 *Qty: 1 WATER TEMPERATURE SENSOR $31.45
Location: 38 Prev | Next Part: 10298460 *Qty: 1 GASKET $0.90
Location: 39 Prev | Next Part: 10158801 *Qty: 1 PLUG $1.85
Location: 40 Prev | Next Part: 201446 *Qty: 1 WATER PUMP AND GENERATOR CONTROL BELT $29.71
Location: 41 Prev | Next Part: 179748 *Qty: 1 COMPLETE WATER OUTLET MANIFOLD Call
Location: 42 Prev | Next Part: 194031 *Qty: 16 NUT $0.90
Location: 43 Prev | Next Part: 12604274 *Qty: 16 WASHER $0.90
Location: 44 Prev | Next Part: 141332 *Qty: 8 GASKET $1.53
Location: 45 Prev | Next Part: 180296 *Qty: 1 SMALL PLATE Call
Location: 46 Prev | Next Part: 179698 *Qty: 1 BELT TIGHTENING BEARING $156.69
Location: 47 Prev | Next Part: 15970921 *Qty: 1 SCREW $0.90
Location: 48 Prev | Next Part: 11190574 *Qty: 1 WASHER $0.90
Location: 49 Prev | Next Part: 14302824 *Qty: 1 SCREW $0.90
Location: 50 Prev | Next Part: 11198074 *Qty: 1 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
