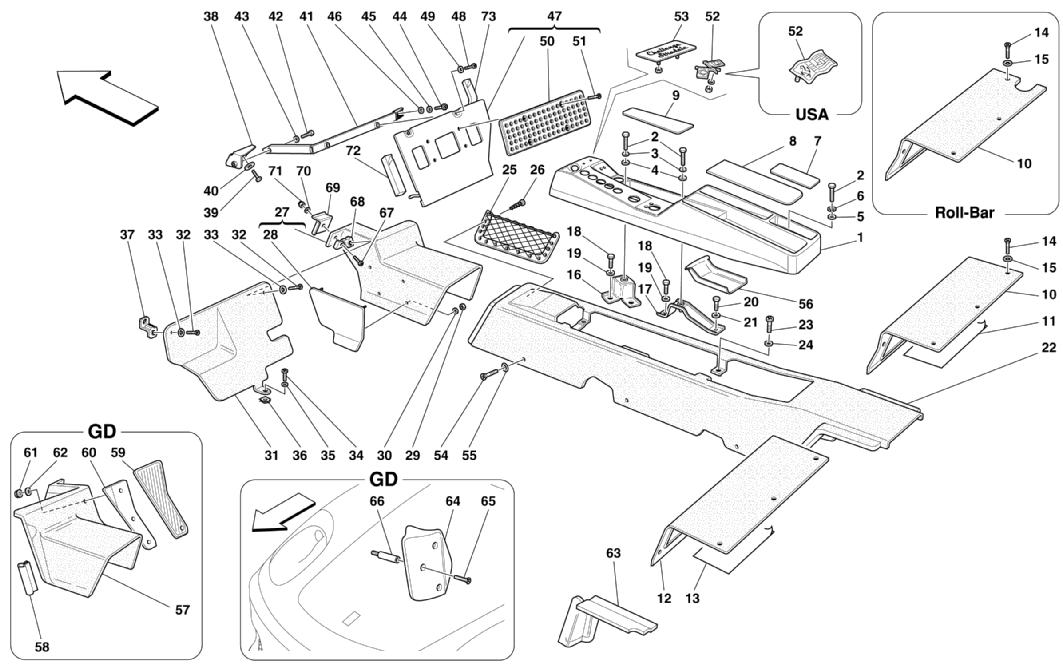

TUNNEL - FRAMEWORK AND ACCESSORIES

Go to Split View

TUNNEL - FRAMEWORK AND ACCESSORIES

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 67804900 *Qty: 1 CENTRAL UPPER TUNNEL COVER -Valid for descending glass -Valid for GD Call
Location: 1 Prev | Next Part: 67836600 *Qty: 1 CENTRAL UPPER TUNNEL COVER -Valid for fixing glass -Valid for GD Call
Location: 1 Prev | Next Part: 67757000 *Qty: 1 CENTRAL UPPER TUNNEL COVER -Valid for fixing glass -Not for GD Call
Location: 1 Prev | Next Part: 67493100 *Qty: 1 CENTRAL UPPER TUNNEL COVER -Valid for descending glass -Not for GD $2,228.91
Location: 2 Prev | Next Part: 16043424 *Qty: 3 SCREW $0.90
Location: 3 Prev | Next Part: 12604474 *Qty: 2 WASHER $0.90
Location: 4 Prev | Next Part: 14496524 *Qty: 2 WASHER $0.90
Location: 5 Prev | Next Part: 13550301 *Qty: 1 WASHER $19.34
Location: 6 Prev | Next Part: 127496 *Qty: 1 WASHER $0.90
Location: 7 Prev | Next Part: 67917531 *Qty: 0 R.H. REAR DRAWER CARPET SHIELD (Color Code 31) Call
Location: 7 Prev | Next Part: 67917519 *Qty: 0 R.H. REAR DRAWER CARPET SHIELD (Color Code 19) Call
Location: 7 Prev | Next Part: 67917529 *Qty: 0 R.H. REAR DRAWER CARPET SHIELD (Color Code 29) Call
Location: 7 Prev | Next Part: 67917504 *Qty: 0 R.H. REAR DRAWER CARPET SHIELD (Color Code 04) Call
Location: 7 Prev | Next Part: 67917525 *Qty: 0 R.H. REAR DRAWER CARPET SHIELD (Color Code 25) Call
Location: 7 Prev | Next Part: 67917530 *Qty: 0 R.H. REAR DRAWER CARPET SHIELD (Color Code 30) Call
Location: 7 Prev | Next Part: 67917500 *Qty: 0 R.H. REAR DRAWER CARPET SHIELD (Color Code 00) Call
Location: 7 Prev | Next Part: 67917517 *Qty: 0 R.H. REAR DRAWER CARPET SHIELD (Color Code 17) Call
Location: 7 Prev | Next Part: 67917528 *Qty: 0 R.H. REAR DRAWER CARPET SHIELD (Color Code 28) Call
Location: 7 Prev | Next Part: 67917505 *Qty: 0 R.H. REAR DRAWER CARPET SHIELD (Color Code 05) Call
Location: 7 Prev | Next Part: 67917527 *Qty: 0 R.H. REAR DRAWER CARPET SHIELD (Color Code 27) Call
Location: 7 Prev | Next Part: 67917502 *Qty: 0 R.H. REAR DRAWER CARPET SHIELD (Color Code 02) Call
Location: 8 Prev | Next Part: 67686104 *Qty: 0 REAR DRAWER CARPET SHIELD (Color Code 04) Call
Location: 8 Prev | Next Part: 67686102 *Qty: 0 REAR DRAWER CARPET SHIELD (Color Code 02) Call
Location: 8 Prev | Next Part: 67686119 *Qty: 0 REAR DRAWER CARPET SHIELD (Color Code 19) Call
Location: 8 Prev | Next Part: 67686125 *Qty: 0 REAR DRAWER CARPET SHIELD (Color Code 25) Call
Location: 8 Prev | Next Part: 67686129 *Qty: 0 REAR DRAWER CARPET SHIELD (Color Code 29) Call
Location: 8 Prev | Next Part: 67686105 *Qty: 0 REAR DRAWER CARPET SHIELD (Color Code 05) Call
Location: 8 Prev | Next Part: 67686130 *Qty: 0 REAR DRAWER CARPET SHIELD (Color Code 30) Call
Location: 8 Prev | Next Part: 67686127 *Qty: 0 REAR DRAWER CARPET SHIELD (Color Code 27) Call
Location: 8 Prev | Next Part: 67686131 *Qty: 0 REAR DRAWER CARPET SHIELD (Color Code 31) Call
Location: 8 Prev | Next Part: 67686100 *Qty: 0 REAR DRAWER CARPET SHIELD (Color Code 00) Call
Location: 8 Prev | Next Part: 67686117 *Qty: 0 REAR DRAWER CARPET SHIELD (Color Code 17) Call
Location: 8 Prev | Next Part: 67686128 *Qty: 0 REAR DRAWER CARPET SHIELD (Color Code 28) Call
Location: 9 Prev | Next Part: 67836400 *Qty: 0 FRONT DRAWER CARPET SHIELD -Valid for GD (Color Code 00) Call
Location: 9 Prev | Next Part: 67686004 *Qty: 0 FRONT DRAWER CARPET SHIELD -Not for GD (Color Code 04) Call
Location: 9 Prev | Next Part: 67686002 *Qty: 0 FRONT DRAWER CARPET SHIELD -Not for GD (Color Code 02) Call
Location: 9 Prev | Next Part: 67836417 *Qty: 0 FRONT DRAWER CARPET SHIELD -Valid for GD (Color Code 17) Call
Location: 9 Prev | Next Part: 67686025 *Qty: 0 FRONT DRAWER CARPET SHIELD -Not for GD (Color Code 25) Call
Location: 9 Prev | Next Part: 67686019 *Qty: 0 FRONT DRAWER CARPET SHIELD -Not for GD (Color Code 19) Call
Location: 9 Prev | Next Part: 67836428 *Qty: 0 FRONT DRAWER CARPET SHIELD -Valid for GD (Color Code 28) Call
Location: 9 Prev | Next Part: 67686030 *Qty: 0 FRONT DRAWER CARPET SHIELD -Not for GD (Color Code 30) Call
Location: 9 Prev | Next Part: 67686029 *Qty: 0 FRONT DRAWER CARPET SHIELD -Not for GD (Color Code 29) Call
Location: 9 Prev | Next Part: 67686005 *Qty: 0 FRONT DRAWER CARPET SHIELD -Not for GD (Color Code 05) Call
Location: 9 Prev | Next Part: 67686027 *Qty: 0 FRONT DRAWER CARPET SHIELD -Not for GD (Color Code 27) Call
Location: 9 Prev | Next Part: 67686031 *Qty: 0 FRONT DRAWER CARPET SHIELD -Not for GD (Color Code 31) Call
Location: 9 Prev | Next Part: 67686000 *Qty: 0 FRONT DRAWER CARPET SHIELD -Not for GD (Color Code 00) Call
Location: 9 Prev | Next Part: 67836404 *Qty: 0 FRONT DRAWER CARPET SHIELD -Valid for GD (Color Code 04) Call
Location: 9 Prev | Next Part: 67686017 *Qty: 0 FRONT DRAWER CARPET SHIELD -Not for GD (Color Code 17) Call
Location: 9 Prev | Next Part: 67836425 *Qty: 0 FRONT DRAWER CARPET SHIELD -Valid for GD (Color Code 25) Call
Location: 9 Prev | Next Part: 67686028 *Qty: 0 FRONT DRAWER CARPET SHIELD -Not for GD (Color Code 28) Call
Location: 9 Prev | Next Part: 67836430 *Qty: 0 FRONT DRAWER CARPET SHIELD -Valid for GD (Color Code 30) Call
Location: 9 Prev | Next Part: 67836402 *Qty: 0 FRONT DRAWER CARPET SHIELD -Valid for GD (Color Code 02) Call
Location: 9 Prev | Next Part: 67836419 *Qty: 0 FRONT DRAWER CARPET SHIELD -Valid for GD (Color Code 19) Call
Location: 9 Prev | Next Part: 67836405 *Qty: 0 FRONT DRAWER CARPET SHIELD -Valid for GD (Color Code 05) Call
Location: 9 Prev | Next Part: 67836429 *Qty: 0 FRONT DRAWER CARPET SHIELD -Valid for GD (Color Code 29) Call
Location: 9 Prev | Next Part: 67836427 *Qty: 0 FRONT DRAWER CARPET SHIELD -Valid for GD (Color Code 27) Call
Location: 9 Prev | Next Part: 67836431 *Qty: 0 FRONT DRAWER CARPET SHIELD -Valid for GD (Color Code 31) Call
Location: 10 Prev | Next Part: 67492632 *Qty: 0 R.H. COVER FOR CONTROL UNIT -Valid for Roll-Bar cars -Not for USA, CDN and AUS (Color Code 32) Call
Location: 10 Prev | Next Part: 67739532 *Qty: 0 R.H. COVER FOR CONTROL UNIT -Not for Roll-Bar cars (Color Code 32) Call
Location: 11 Prev | Next Part: 168850 *Qty: 1 R.H. RELAYS AND FUSES NAMEPLATE -Not for USA and CDN Call
Location: 11 Prev | Next Part: 182708 *Qty: 1 R.H. RELAYS AND FUSES NAMEPLATE -Valid for USA and CDN $7.73
Location: 12 Prev | Next Part: 67492732 *Qty: 0 L.H. COVER FOR CONTROL UNIT -Valid for Roll-Bar cars -Not for USA, CDN and AUS (Color Code 32) Call
Location: 12 Prev | Next Part: 67739632 *Qty: 0 L.H. COVER FOR CONTROL UNIT -Not for Roll-Bar cars -Not for USA and CDN (Color Code 32) Call
Location: 12 Prev | Next Part: 67778332 *Qty: 0 L.H. COVER FOR CONTROL UNIT -Not for Roll-Bar cars -Valid for USA and CDN (Color Code 32) Call
Location: 13 Prev | Next Part: 186646 *Qty: 1 L.H. RELAYS AND FUSES NAMEPLATE $3.23
Location: 14 Prev | Next Part: 13313477 *Qty: 10 SCREW -For dark carpets $0.90
Location: 14 Prev | Next Part: 13301770 *Qty: 10 SCREW -For clear carpets $0.90
Location: 15 Prev | Next Part: 12611442 *Qty: 10 WASHER -For clear carpets $0.90
Location: 15 Prev | Next Part: 12611407 *Qty: 10 WASHER -For dark carpets $0.90
Location: 16 Prev | Next Part: 67638200 *Qty: 1 FRONT BRACKET Call
Location: 17 Prev | Next Part: 67638400 *Qty: 1 REAR BRACKET Call
Location: 18 Prev | Next Part: 16043424 *Qty: 3 SCREW $0.90
Location: 19 Prev | Next Part: 14496524 *Qty: 3 WASHER $0.90
Location: 20 Prev | Next Part: 10902324 *Qty: 1 SCREW Superseded
Location: 21 Prev | Next Part: 12644424 *Qty: 1 WASHER $0.90
Location: 22 Prev | Next Part: 67833732 *Qty: 0 REAR SIDE TUNNEL COVER -Valid for GD (Color Code 32) Call
Location: 22 Prev | Next Part: 67462732 *Qty: 0 REAR SIDE TUNNEL COVER -Not for GD (Color Code 32) Call
Location: 23 Prev | Next Part: 13276470 *Qty: 4 SCREW $0.90
Location: 24 Prev | Next Part: 12644424 *Qty: 4 WASHER $0.90
Location: 25 Prev | Next Part: 67967500 *Qty: 1 NET POCKET -Valid for GD Call
Location: 25 Prev | Next Part: 67774200 *Qty: 1 NET POCKET -Not for GD Call
Location: 26 Prev | Next Part: 168133 *Qty: 2 SCREW Superseded
Location: 27 Prev | Next Part: 67462632 *Qty: 0 FRONT SIDE TUNNEL COVER -Not for GD (Color Code 32) Call
Location: 28 Prev | Next Part: 65305300 *Qty: 1 ACCELERATOR PEDAL PROTECTION -Not for GD $23.08
Location: 29 Prev | Next Part: 10794014 *Qty: 4 NUT -Not for GD $0.90
Location: 30 Prev | Next Part: 12642801 *Qty: 4 WASHER -Not for GD $0.90
Location: 31 Prev | Next Part: 67494500 *Qty: 1 UNDER PEDAL COVER -Not for GD $839.05
Location: 31 Prev | Next Part: 65712600 *Qty: 1 UNDER PEDAL COVER -Valid for GD Call
Location: 32 Prev | Next Part: 13311077 *Qty: 2 SCREW $0.90
Location: 33 Prev | Next Part: 12611107 *Qty: 2 WASHER $0.90
Location: 34 Prev | Next Part: 13311077 *Qty: 1 SCREW $0.90
Location: 35 Prev | Next Part: 12611107 *Qty: 1 WASHER $0.90
Location: 36 Prev | Next Part: 14370971 *Qty: 1 BRACKET $0.90
Location: 37 Prev | Next Part: 65709300 *Qty: 1 L.H. UPPER BRACKET $7.12
Location: 38 Prev | Next Part: 65538800 *Qty: 1 BRACKET -Valid for GD $39.51
Location: 38 Prev | Next Part: 65523500 *Qty: 1 BRACKET -Not for GD $47.55
Location: 39 Prev | Next Part: 10902424 *Qty: 1 SCREW $0.90
Location: 40 Prev | Next Part: 12640624 *Qty: 1 WASHER $0.90
Location: 41 Prev | Next Part: 65538700 *Qty: 1 SUPPORT PIPE -Valid for GD Call
Location: 41 Prev | Next Part: 65522900 *Qty: 1 SUPPORT PIPE -Not for GD $139.83
Location: 42 Prev | Next Part: 10902424 *Qty: 1 SCREW $0.90
Location: 43 Prev | Next Part: 12640624 *Qty: 1 WASHER $0.90
Location: 44 Prev | Next Part: 10902424 *Qty: 1 SCREW $0.90
Location: 45 Prev | Next Part: 12601274 *Qty: 1 WASHER $0.90
Location: 46 Prev | Next Part: 12644424 *Qty: 1 WASHER $0.90
Location: 47 Prev | Next Part: 67494400 *Qty: 1 COMPLETE FOOT-REST FOR PASSENGER -Not for GD Call
Location: 47 Prev | Next Part: 67832100 *Qty: 1 COMPLETE FOOT-REST FOR PASSENGER -Valid for GD Call
Location: 48 Prev | Next Part: 13276211 *Qty: 2 SCREW $0.90
Location: 49 Prev | Next Part: 12601274 *Qty: 2 WASHER $0.90
Location: 50 Prev | Next Part: 66122200 *Qty: 1 COVER $113.58
Location: 51 Prev | Next Part: 65847800 *Qty: 4 SCREW $7.55
Location: 52 Prev | Next Part: 64460400 *Qty: 1 FERRARI-PININFARINA MARK $108.68
Location: 52 Prev | Next Part: 68401600 *Qty: 1 "50 YEARS USA" MARK -Valid for USA MY 2004 Call
Location: 53 Prev | Next Part: 67753700 *Qty: 1 "CHALLENGE STRADALE" PLATE $69.10
Location: 54 Prev | Next Part: 13299877 *Qty: 6 SCREW $0.90
Location: 55 Prev | Next Part: 12611107 *Qty: 6 WASHER $0.90
Location: 56 Prev | Next Part: 67917600 *Qty: 1 SHIELD Call
Location: 57 Prev | Next Part: 67834732 *Qty: 0 FRONT SIDE TUNNEL COVER -Valid for GD (Color Code 32) Call
Location: 58 Prev | Next Part: 67681200 *Qty: 1 GASKET -L.=140mm- -Valid for GD $4.15
Location: 59 Prev | Next Part: 65918000 *Qty: 1 SLAB FOR DRIVER SIDE FOOT REST PLATE -Valid for GD Call
Location: 60 Prev | Next Part: 65917200 *Qty: 1 FOOT-REST FOR DRIVER -Valid for GD Call
Location: 61 Prev | Next Part: 14059111 *Qty: 3 NUT -Valid for GD $0.90
Location: 62 Prev | Next Part: 14447001 *Qty: 3 WASHER -Valid for GD $0.90
Location: 63 Prev | Next Part: 67950332 *Qty: 0 R.H. SIDE SHIELD (Color Code 32) Call
Location: 63 Prev | Next Part: 67950432 *Qty: 0 L.H. SIDE SHIELD (Color Code 32) Call
Location: 64 Prev | Next Part: 67963200 *Qty: 1 ACCELERATOR PEDAL PROTECTION -Valid for GD Call
Location: 65 Prev | Next Part: 13301470 *Qty: 3 SCREW -Valid for GD $0.90
Location: 66 Prev | Next Part: 182363 *Qty: 1 STUD -Valid for GD $26.23
Location: 66 Prev | Next Part: 68025100 *Qty: 1 PIN -Valid for GD -Not as spare part -Replaced by 182363 Call
Location: 67 Prev | Next Part: 13274177 *Qty: 1 SCREW $0.90
Location: 68 Prev | Next Part: 65709200 *Qty: 1 BRACKET Call
Location: 69 Prev | Next Part: 68078700 *Qty: 1 SPACER -Not for GD Call
Location: 70 Prev | Next Part: 12637878 *Qty: 1 WASHER $0.90
Location: 71 Prev | Next Part: 113647 *Qty: 1 NUT $0.90
Location: 72 Prev | Next Part: 68161200 *Qty: 1 ANTI-VIBRATIONS Call
Location: 73 Prev | Next Part: 68161300 *Qty: 1 ANTI-VIBRATIONS $0.90

* Quantity shown indicates the number of pieces used in the diagram.
