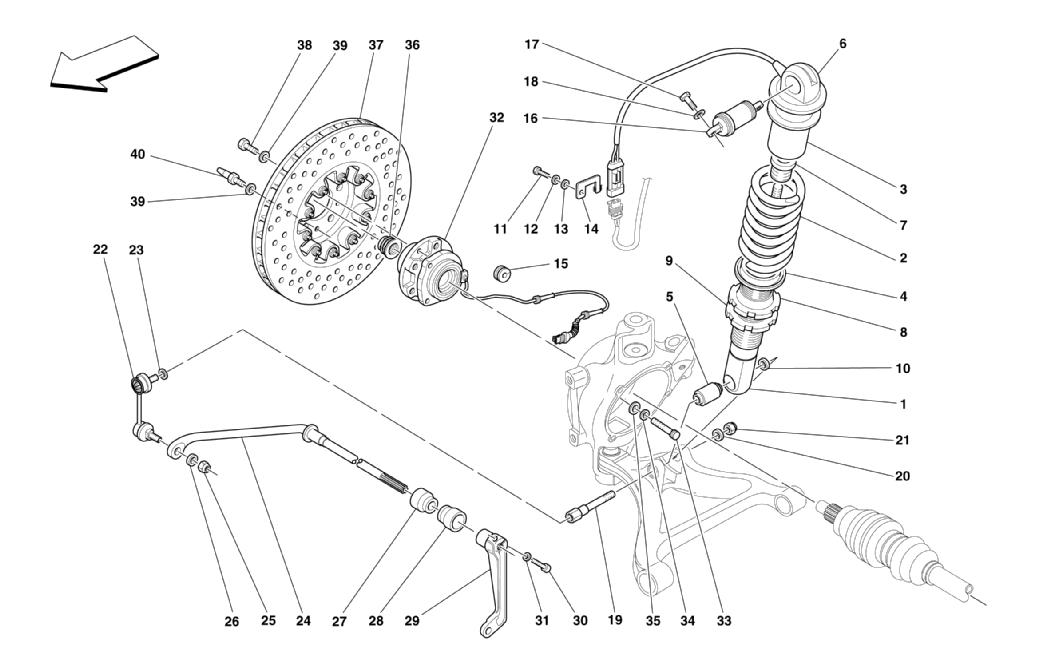

REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 197020 *Qty: 2 REAR SHOCK ABSORBER $1,844.86
Location: 2 Prev | Next Part: 195444 *Qty: 2 SPRING $2,211.12
Location: 3 Prev | Next Part: 177688 *Qty: 2 UPPER SPACER $8.64
Location: 4 Prev | Next Part: 169684 *Qty: 2 LOWER SPACER $13.67
Location: 5 Prev | Next Part: 157630 *Qty: 2 BALL JOINT $72.50
Location: 6 Prev | Next Part: 174727 *Qty: 2 SPRING RETAINING UPPER SPACER $307.69
Location: 7 Prev | Next Part: 197019 *Qty: 2 SHOCK ABSORBER PAD Call
Location: 8 Prev | Next Part: 174725 *Qty: 2 SPACER $131.07
Location: 9 Prev | Next Part: 174726 *Qty: 2 RING NUT $114.98
Location: 10 Prev | Next Part: 129225 *Qty: 2 WASHER $2.12
Location: 11 Prev | Next Part: 10902024 *Qty: 2 SCREW $0.90
Location: 12 Prev | Next Part: 127494 *Qty: 2 WASHER $0.90
Location: 13 Prev | Next Part: 12643724 *Qty: 2 WASHER $0.90
Location: 14 Prev | Next Part: 162606 *Qty: 2 CLIP $1.09
Location: 15 Prev | Next Part: 10460287 *Qty: 2 RING $1.81
Location: 16 Prev | Next Part: 212948 *Qty: 2 SILENTBLOCK -Valid from Ass. Nr. 56992 and after stock exhaustion use 181804 -Replace together $176.23
Location: 17 Prev | Next Part: 11306934 *Qty: 4 SCREW $0.90
Location: 18 Prev | Next Part: 160092 *Qty: 4 WASHER $0.90
Location: 19 Prev | Next Part: 204974 *Qty: 2 SCREW $48.93
Location: 19 Prev | Next Part: 177664 *Qty: 2 SCREW -Valid till stock exhaustion Call
Location: 20 Prev | Next Part: 129225 *Qty: 2 WASHER $2.12
Location: 21 Prev | Next Part: 148020 *Qty: 2 NUT $2.42
Location: 22 Prev | Next Part: 161109 *Qty: 1 R.H. BALL TIE ROD $126.35
Location: 22 Prev | Next Part: 161110 *Qty: 1 L.H. BALL TIE ROD $128.91
Location: 23 Prev | Next Part: 160092 *Qty: 2 WASHER $0.90
Location: 24 Prev | Next Part: 198416 *Qty: 1 REAR ANTI-ROLL BAR Call
Location: 25 Prev | Next Part: 12164714 *Qty: 2 NUT $0.90
Location: 26 Prev | Next Part: 12601474 *Qty: 2 WASHER $0.90
Location: 27 Prev | Next Part: 170716 *Qty: 1 BAR BUFFER $26.95
Location: 28 Prev | Next Part: 170717 *Qty: 1 BAR BUFFER $26.95
Location: 29 Prev | Next Part: 175861 *Qty: 1 L.H. ARM $283.77
Location: 30 Prev | Next Part: 170950 *Qty: 1 SCREW $4.02
Location: 31 Prev | Next Part: 12601474 *Qty: 1 WASHER $0.90
Location: 32 Prev | Next Part: 179070 *Qty: 2 HUB COMPLETE BEARING $630.17
Location: 33 Prev | Next Part: 180591 *Qty: 8 SCREW $3.48
Location: 34 Prev | Next Part: 160092 *Qty: 8 WASHER $0.90
Location: 35 Prev | Next Part: 10732414 *Qty: 8 WASHER $10.14
Location: 36 Prev | Next Part: 209184 *Qty: 2 NUT $33.27
Location: 36 Prev | Next Part: 167259 *Qty: 2 NUT -Not as spare part -Replaced by 209184 Superseded
Location: 37 Prev | Next Part: 202180 *Qty: 2 REAR BRAKE DISC Call
Location: 38 Prev | Next Part: 16043424 *Qty: 2 SCREW $0.90
Location: 39 Prev | Next Part: 127496 *Qty: 4 WASHER $0.90
Location: 40 Prev | Next Part: 104370 *Qty: 2 BRAKE DISC FIXING SCREW $0.90

* Quantity shown indicates the number of pieces used in the diagram.
