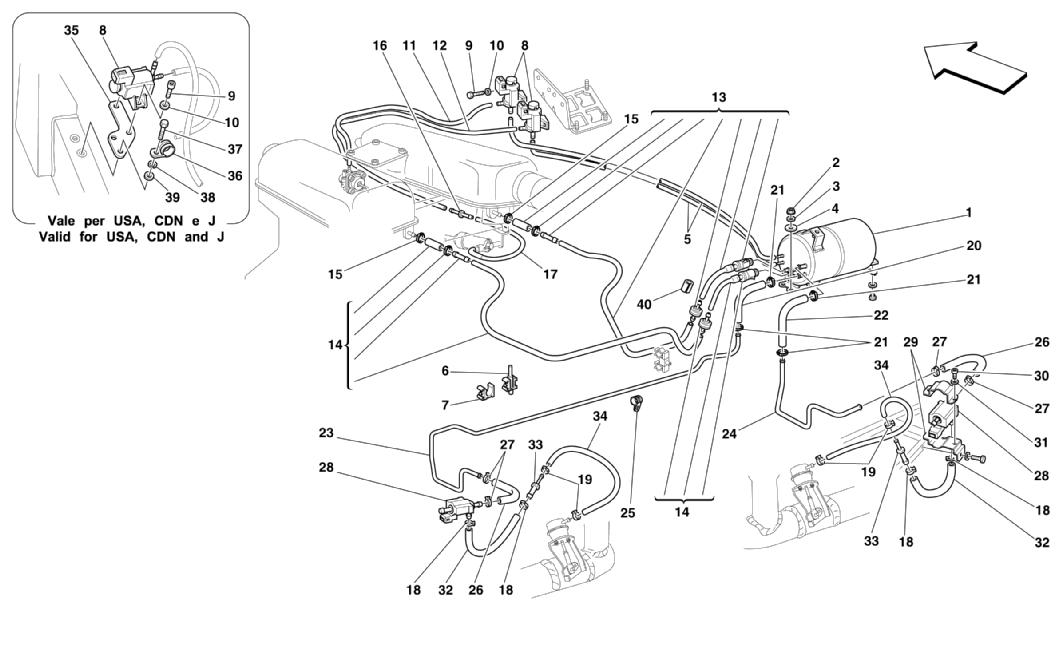

PNEUMATICS ACTUATOR SYSTEM

Go to Split View

PNEUMATICS ACTUATOR SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 195645 *Qty: 1 DEPRESSION ACCUMULATION TANK $78.62
Location: 2 Prev | Next Part: 14059211 *Qty: 2 NUT $0.90
Location: 3 Prev | Next Part: 12601274 *Qty: 2 WASHER $0.90
Location: 4 Prev | Next Part: 12639724 *Qty: 2 WASHER $0.90
Location: 5 Prev | Next Part: 122760 *Qty: 2 PIPE FROM TANK TO SOLENOID VALVE $9.24
Location: 6 Prev | Next Part: 140162 *Qty: 1 ANCHORAGE FOR CLIP $0.90
Location: 7 Prev | Next Part: 140130 *Qty: 1 FLEXIBLE CLIP $0.90
Location: 8 Prev | Next Part: 184363 *Qty: 2 SOLENOID VALVE -Q.ty 3 for USA, CDN and J $60.41
Location: 9 Prev | Next Part: 14304124 *Qty: 4 SCREW -Q.ty 6 for USA, CDN and J $0.90
Location: 10 Prev | Next Part: 12601174 *Qty: 4 WASHER -Q.ty 6 for USA, CDN and J $0.90
Location: 11 Prev | Next Part: 169692 *Qty: 1 PIPE FROM SOLENOID VALVE TO PNEUMATIC CAPSULE $12.68
Location: 12 Prev | Next Part: 127893 *Qty: 1 PIPE FROM SOLENOID VALVE TO UNION $12.47
Location: 13 Prev | Next Part: 178420 *Qty: 1 COMPLETE R.H. DEPRESSION PIPE $144.03
Location: 14 Prev | Next Part: 178421 *Qty: 1 COMPLETE L.H. DEPRESSION PIPE $151.04
Location: 15 Prev | Next Part: 13434670 *Qty: 2 SCREW COLLAR Call
Location: 16 Prev | Next Part: 178491 *Qty: 1 UNION $32.28
Location: 17 Prev | Next Part: 168248 *Qty: 1 RUBBER HOSE $22.89
Location: 18 Prev | Next Part: 13432270 *Qty: 4 ELASTIC COLLAR $0.90
Location: 19 Prev | Next Part: 171406 *Qty: 4 ELASTIC COLLAR $0.99
Location: 20 Prev | Next Part: 178554 *Qty: 1 RUBBER HOSE $19.52
Location: 21 Prev | Next Part: 13432270 *Qty: 4 ELASTIC COLLAR $0.90
Location: 22 Prev | Next Part: 178552 *Qty: 1 RUBBER HOSE $15.16
Location: 23 Prev | Next Part: 178503 *Qty: 1 L.H. PIPE $406.31
Location: 24 Prev | Next Part: 178497 *Qty: 1 R.H. PIPE $28.67
Location: 25 Prev | Next Part: 10441190 *Qty: 4 BRACKET WITH SHEATH $0.90
Location: 26 Prev | Next Part: 178552 *Qty: 2 RUBBER HOSE $15.16
Location: 27 Prev | Next Part: 13432270 *Qty: 4 ELASTIC COLLAR $0.90
Location: 28 Prev | Next Part: 178309 *Qty: 2 SOLENOID VALVE $91.24
Location: 29 Prev | Next Part: 178515 *Qty: 2 SOLENOID VALVE SUPPORT $5.24
Location: 30 Prev | Next Part: 14302924 *Qty: 4 SCREW $0.90
Location: 31 Prev | Next Part: 127492 *Qty: 4 WASHER $0.90
Location: 32 Prev | Next Part: 178552 *Qty: 2 RUBBER HOSE $15.16
Location: 33 Prev | Next Part: 178369 *Qty: 2 UNION $6.02
Location: 34 Prev | Next Part: 147120 *Qty: 2 RUBBER HOSE $39.85
Location: 35 Prev | Next Part: 189982 *Qty: 1 SMALL PLATE FOR SOLENOID VALVE -Valid for USA, CDN and J $4.79
Location: 36 Prev | Next Part: 10441390 *Qty: 2 BRACKET WITH SHEATH $0.90
Location: 37 Prev | Next Part: 10902424 *Qty: 2 SCREW $0.90
Location: 38 Prev | Next Part: 127494 *Qty: 2 WASHER $0.90
Location: 39 Prev | Next Part: 12644424 *Qty: 2 WASHER $0.90
Location: 40 Prev | Next Part: 152913 *Qty: 1 RUBBER HOSE Call

* Quantity shown indicates the number of pieces used in the diagram.
