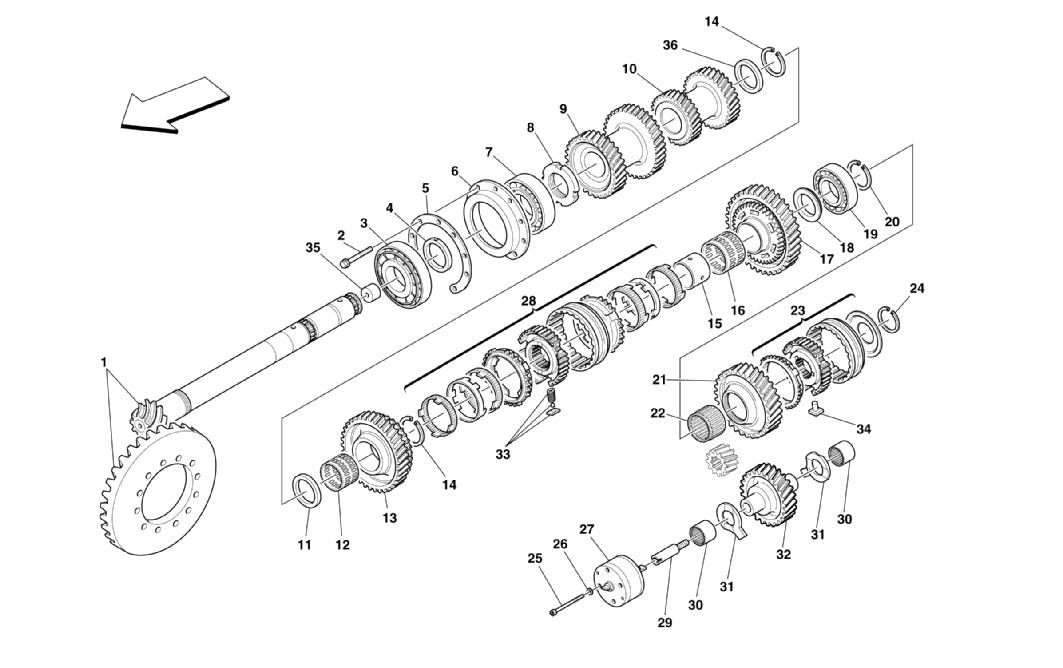

LAY SHAFT GEARS

Go to Split View

LAY SHAFT GEARS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 197822 *Qty: 1 COMPETE BEVEL SET $1,678.37
Location: 2 Prev | Next Part: 16287731 *Qty: 9 SCREW -Not as spare part -Replaced by 16287730 $2.71
Location: 2 Prev | Next Part: 16287730 *Qty: 9 SCREW $5.48
Location: 3 Prev | Next Part: 185022 *Qty: 1 ROLLER BEARING $145.19
Location: 4 Prev | Next Part: 185028 *Qty: 1 REGISTER RING -Thickness mm. 6 -Possible fitting $65.58
Location: 4 Prev | Next Part: 185045 *Qty: 1 REGISTER RING -Thickness mm. 7,10 $43.73
Location: 4 Prev | Next Part: 185027 *Qty: 1 REGISTER RING -Thickness mm. 6,4 -Possible fitting $65.58
Location: 5 Prev | Next Part: 185044 *Qty: 1 REGISTER RING -Thickness mm. 2,2 -Possible fitting $40.09
Location: 5 Prev | Next Part: 185043 *Qty: 1 REGISTER RING -Thickness mm. 2,5 -Possible fitting $23.87
Location: 5 Prev | Next Part: 185042 *Qty: 1 REGISTER RING -Thickness mm. 2,8 $13.82
Location: 6 Prev | Next Part: 185020 *Qty: 1 BEARING SUPPORT $114.65
Location: 7 Prev | Next Part: 185021 *Qty: 1 ROLLER BEARING $122.18
Location: 8 Prev | Next Part: 196667 *Qty: 1 RING NUT $79.66
Location: 9 Prev | Next Part: 197821 *Qty: 1 3rd AND 4th DRIVEN GEAR Call
Location: 10 Prev | Next Part: 188461 *Qty: 1 5th AND 6th DRIVEN GEAR $2,193.48
Location: 11 Prev | Next Part: 189792 *Qty: 1 RING -Thickness mm. 5,8 -As an alternative $104.05
Location: 11 Prev | Next Part: 189791 *Qty: 1 RING -Thickness mm. 6,1 $80.48
Location: 12 Prev | Next Part: 184014 *Qty: 1 ROLLER CAGE $23.01
Location: 13 Prev | Next Part: 197818 *Qty: 1 PINION FOR 2nd GEAR $343.65
Location: 14 Prev | Next Part: 185037 *Qty: 2 FLEXIBLE RING -Thickness mm. 1,60 -Possible fitting $72.73
Location: 14 Prev | Next Part: 185036 *Qty: 2 FLEXIBLE RING -Thickness mm. 1,85 -Possible fitting $47.99
Location: 14 Prev | Next Part: 183976 *Qty: 2 FLEXIBLE RING -Thickness mm. 2,10 $16.39
Location: 15 Prev | Next Part: 183971 *Qty: 1 BUSHING $87.42
Location: 16 Prev | Next Part: 184016 *Qty: 1 ROLLER CAGE $27.65
Location: 17 Prev | Next Part: 197816 *Qty: 1 PINION FOR 1st GEAR $343.65
Location: 18 Prev | Next Part: 185041 *Qty: 1 RING -Thickness mm. 4,60 -Possible fitting $50.23
Location: 18 Prev | Next Part: 183972 *Qty: 1 RING -Thickness mm. 5,10 $110.80
Location: 18 Prev | Next Part: 185040 *Qty: 1 RING -Thickness mm. 4,85 -Possible fitting $56.83
Location: 19 Prev | Next Part: 184020 *Qty: 1 ROLLER BEARING $174.41
Location: 20 Prev | Next Part: 184042 *Qty: 1 FLEXIBLE RING $16.88
Location: 21 Prev | Next Part: 197820 *Qty: 1 REVERSE GEAR Call
Location: 22 Prev | Next Part: 184018 *Qty: 1 ROLLER CAGE $34.52
Location: 23 Prev | Next Part: 193439 *Qty: 1 REVERSE GEAR COMPLETE SYNCHRONIZER Call
Location: 24 Prev | Next Part: 184041 *Qty: 1 FLEXIBLE RING $6.21
Location: 25 Prev | Next Part: 14303624 *Qty: 4 SCREW $0.90
Location: 26 Prev | Next Part: 10571379 *Qty: 4 WASHER $0.90
Location: 27 Prev | Next Part: 185048 *Qty: 1 BEARBOX OIL PUMP $803.55
Location: 28 Prev | Next Part: 185164 *Qty: 1 1st AND 2nd GEAR COMPLETE SYNCHRONIZER $1,420.00
Location: 29 Prev | Next Part: 185050 *Qty: 1 PIN $61.80
Location: 30 Prev | Next Part: 184017 *Qty: 2 ROLLER CASING $9.85
Location: 31 Prev | Next Part: 183975 *Qty: 2 RING $27.02
Location: 32 Prev | Next Part: 197819 *Qty: 1 IDLE GEAR FOR REVERSE Call
Location: 33 Prev | Next Part: 188320 *Qty: 1 PAD FOR SYNCHRONIZER/BALL/ SPRING REPLACEMENT KIT $13.62
Location: 34 Prev | Next Part: 193440 *Qty: 1 PADS/SYNCHRO REVERSE GEAR KIT $4.69
Location: 35 Prev | Next Part: 201870 *Qty: 1 BUSHING $24.53
Location: 36 Prev | Next Part: 212457 *Qty: 1 SPACER -Thickness mm. 6,00 Call
Location: 36 Prev | Next Part: 188497 *Qty: 1 SPACER -Thickness mm. 6,25 $89.35

* Quantity shown indicates the number of pieces used in the diagram.
