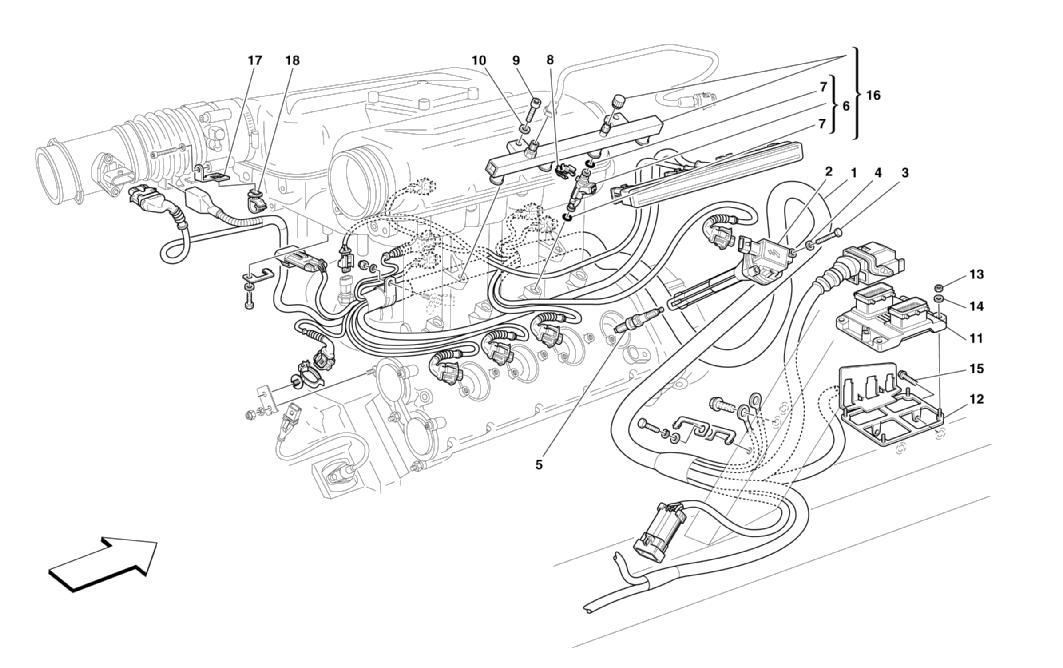

INJECTION DEVICE - IGNITION

Go to Split View

INJECTION DEVICE - IGNITION

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 199876 *Qty: 1 L.H. SIDE ENGINE INJECTION CABLES -Valid for USA and CDN $960.34
Location: 1 Prev | Next Part: 199873 *Qty: 1 R.H. SIDE ENGINE INJECTION CABLES -Not for USA and CDN $1,404.07
Location: 1 Prev | Next Part: 199875 *Qty: 1 R.H. SIDE ENGINE INJECTION CABLES -Valid for USA and CDN $960.34
Location: 1 Prev | Next Part: 199874 *Qty: 1 L.H. SIDE ENGINE INJECTION CABLES -Not for USA and CDN $1,424.72
Location: 2 Prev | Next Part: 177074 *Qty: 8 SINGOL IGNITION COIL $150.82
Location: 3 Prev | Next Part: 10902534 *Qty: 16 SCREW $0.90
Location: 4 Prev | Next Part: 12601274 *Qty: 16 WASHER $0.90
Location: 5 Prev | Next Part: 192637 *Qty: 8 SPARK PLUG $32.29
Location: 6 Prev | Next Part: 197808 *Qty: 8 ELECTRO-INJECTOR $326.71
Location: 7 Prev | Next Part: 133902 *Qty: 16 GASKET $7.01
Location: 8 Prev | Next Part: 144730 *Qty: 8 INJECTORS RETAINING CLIP $3.90
Location: 9 Prev | Next Part: 14306424 *Qty: 4 SCREW $0.90
Location: 10 Prev | Next Part: 12601374 *Qty: 4 WASHER $0.90
Location: 11 Prev | Next Part: 198309 *Qty: 2 CONTROL UNIT IGNITION -Not for USA, CDN and J -Valid till Ass. Nr.55319 Call
Location: 11 Prev | Next Part: 210116 *Qty: 2 CONTROL UNIT IGNITION -Not for USA, CDN and J -Valid from Ass. Nr.55320 $3,569.32
Location: 11 Prev | Next Part: 200182 *Qty: 2 CONTROL UNIT IGNITION -Valid for USA, CDN and J Call
Location: 12 Prev | Next Part: 174956 *Qty: 1 L.H. PLATE $29.23
Location: 12 Prev | Next Part: 189978 *Qty: 1 R.H. PLATE $37.57
Location: 13 Prev | Next Part: 15896470 *Qty: 8 NUT $0.90
Location: 14 Prev | Next Part: 12604174 *Qty: 8 WASHER $0.90
Location: 15 Prev | Next Part: 16286024 *Qty: 4 SCREW $0.90
Location: 16 Prev | Next Part: 198348 *Qty: 1 L.H. COMPLETE FUEL TUBE WITH ELECTRO-INJECTORS $1,200.86
Location: 16 Prev | Next Part: 198347 *Qty: 1 R.H. COMPLETE FUEL TUBE WITH ELECTRO-INJECTORS $1,200.86
Location: 17 Prev | Next Part: 179243 *Qty: 2 SMALL PLATE $4.71
Location: 18 Prev | Next Part: 178430 *Qty: 2 FIXING CLIP $0.90

* Quantity shown indicates the number of pieces used in the diagram.
