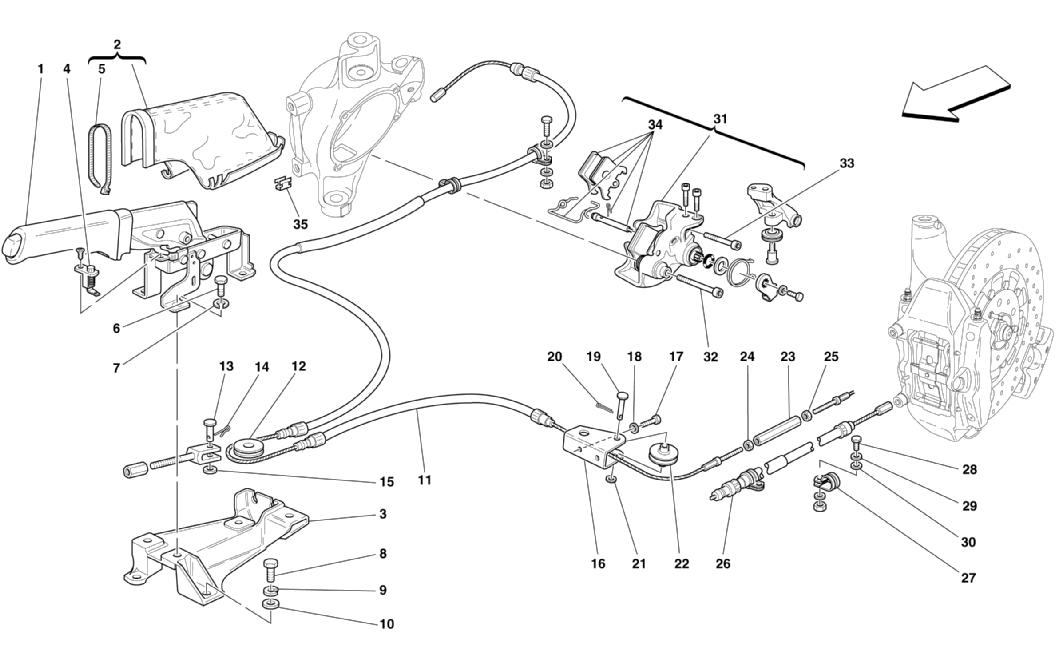

HAND-BRAKE CONTROL

Go to Split View

HAND-BRAKE CONTROL

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 173526 *Qty: 1 HAND BRAKE LEVER Call
Location: 2 Prev | Next Part: 67680105 *Qty: 0 LINING (Color Code 05) Call
Location: 2 Prev | Next Part: 67680127 *Qty: 0 LINING (Color Code 27) Call
Location: 2 Prev | Next Part: 67680131 *Qty: 0 LINING (Color Code 31) Call
Location: 2 Prev | Next Part: 67680104 *Qty: 0 LINING (Color Code 04) Call
Location: 2 Prev | Next Part: 67680125 *Qty: 0 LINING (Color Code 25) Call
Location: 2 Prev | Next Part: 67680102 *Qty: 0 LINING (Color Code 02) Call
Location: 2 Prev | Next Part: 67680130 *Qty: 0 RIV.LEVA FRENO A MAN-P.ROSSO 1 Call
Location: 2 Prev | Next Part: 67680119 *Qty: 0 LINING (Color Code 19) Call
Location: 2 Prev | Next Part: 67680129 *Qty: 0 LINING (Color Code 29) Call
Location: 2 Prev | Next Part: 67680100 *Qty: 0 LINING (Color Code 00) Call
Location: 2 Prev | Next Part: 67680117 *Qty: 0 LINING (Color Code 17) Call
Location: 2 Prev | Next Part: 67680128 *Qty: 0 LINING (Color Code 28) Call
Location: 3 Prev | Next Part: 173401 *Qty: 1 LEVER FOR SHAFT FIXING $86.45
Location: 4 Prev | Next Part: 176118 *Qty: 1 MICRO-SWITCH $62.72
Location: 5 Prev | Next Part: 145854 *Qty: 3 CLAMP $0.90
Location: 6 Prev | Next Part: 16043224 *Qty: 3 SCREW $0.90
Location: 7 Prev | Next Part: 127496 *Qty: 3 WASHER $0.90
Location: 8 Prev | Next Part: 16043434 *Qty: 3 SCREW $0.90
Location: 9 Prev | Next Part: 127496 *Qty: 3 WASHER $0.90
Location: 10 Prev | Next Part: 14496524 *Qty: 3 WASHER $0.90
Location: 11 Prev | Next Part: 179293 *Qty: 1 R.H. REAR CABLE $70.63
Location: 12 Prev | Next Part: 122091 *Qty: 1 PULLEY FOR CABLE $5.61
Location: 13 Prev | Next Part: 10050814 *Qty: 1 PIVOT $3.39
Location: 14 Prev | Next Part: 10734208 *Qty: 1 SPLIT PIN $0.90
Location: 15 Prev | Next Part: 14496524 *Qty: 1 WASHER $0.90
Location: 16 Prev | Next Part: 176245 *Qty: 1 BRACKET FOR CABLE FIXING $88.28
Location: 17 Prev | Next Part: 10902024 *Qty: 2 SCREW $0.90
Location: 18 Prev | Next Part: 12605371 *Qty: 2 WASHER $0.90
Location: 19 Prev | Next Part: 10041214 *Qty: 1 PIVOT $3.80
Location: 20 Prev | Next Part: 10734208 *Qty: 1 SPLIT PIN $0.90
Location: 21 Prev | Next Part: 14496524 *Qty: 1 WASHER $0.90
Location: 22 Prev | Next Part: 176261 *Qty: 1 PULLEY FOR CABLE $95.95
Location: 23 Prev | Next Part: 10091014 *Qty: 1 ADJUSTMENT SLEEVE $116.10
Location: 24 Prev | Next Part: 10725914 *Qty: 1 NUT $0.90
Location: 25 Prev | Next Part: 10727314 *Qty: 1 NUT $0.90
Location: 26 Prev | Next Part: 179292 *Qty: 1 L.H. REAR CABLE $124.56
Location: 27 Prev | Next Part: 10441390 *Qty: 5 BRACKET WITH SHEATH $0.90
Location: 28 Prev | Next Part: 10902224 *Qty: 3 SCREW $0.90
Location: 29 Prev | Next Part: 12605371 *Qty: 3 WASHER $0.90
Location: 30 Prev | Next Part: 12644424 *Qty: 3 WASHER $0.90
Location: 31 Prev | Next Part: 196401 *Qty: 1 L.H. CALIPER FOR HAND BRAKE Call
Location: 31 Prev | Next Part: 196400 *Qty: 1 R.H. CALIPER FOR HAND BRAKE $1,371.22
Location: 32 Prev | Next Part: 14308424 *Qty: 1 SCREW $4.02
Location: 33 Prev | Next Part: 14308924 *Qty: 1 SCREW $5.33
Location: 34 Prev | Next Part: 70000969 *Qty: 1 KIT OF HAND BRAKES PADS WITH SPRING Call
Location: 35 Prev | Next Part: 65934100 *Qty: 5 FIXING CLIP $0.90

* Quantity shown indicates the number of pieces used in the diagram.
