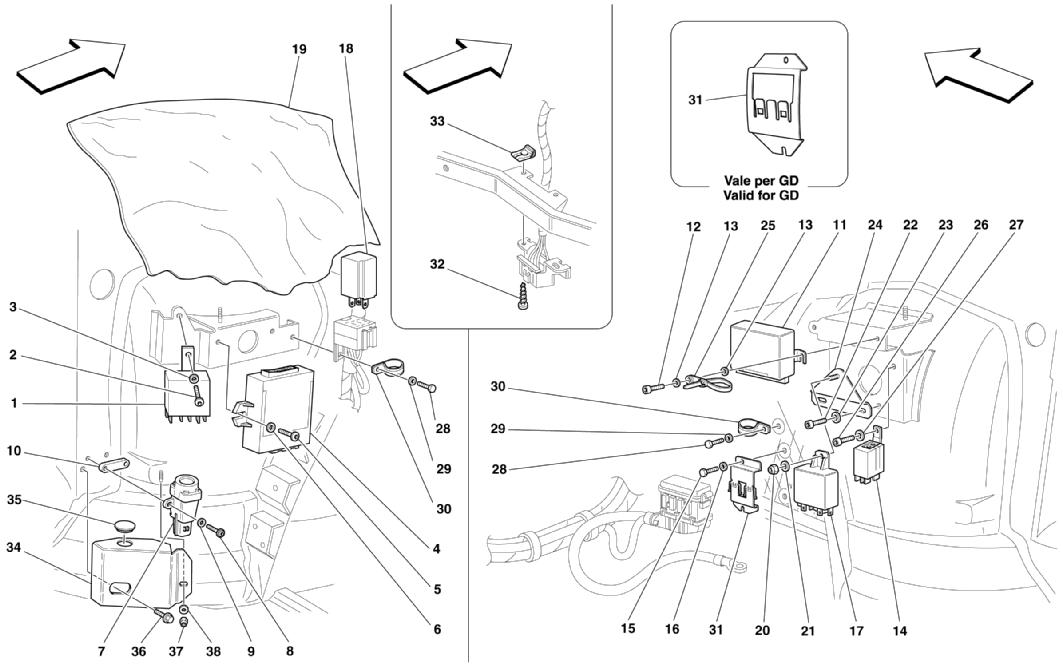

FRONT PASSENGERS COMPARTMENT CONTROL STATIONS

Go to Split View

FRONT PASSENGERS COMPARTMENT CONTROL STATIONS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 184391 *Qty: 1 LOCK/UNLOCK DOORS MODULE Call
Location: 2 Prev | Next Part: 14304324 *Qty: 1 SCREW $1.42
Location: 3 Prev | Next Part: 12637824 *Qty: 1 WASHER $0.90
Location: 4 Prev | Next Part: 234698 *Qty: 1 GLASS LIFTING ELECTRONIC CONTROL STATION -Valid for USA and CDN -For versions not USA and CDN v $729.50
Location: 5 Prev | Next Part: 62940900 *Qty: 2 SCREW $1.85
Location: 6 Prev | Next Part: 10519424 *Qty: 2 WASHER Call
Location: 7 Prev | Next Part: 163675 *Qty: 1 INERTIAL SWITCH $28.90
Location: 8 Prev | Next Part: 10977824 *Qty: 2 SCREW $0.90
Location: 9 Prev | Next Part: 12637824 *Qty: 2 WASHER $0.90
Location: 10 Prev | Next Part: 65549800 *Qty: 1 SPACER $2.80
Location: 11 Prev | Next Part: 198308 *Qty: 1 SHOCK ABSORBERS ELECTRONIC CONTROL STATION $939.07
Location: 12 Prev | Next Part: 14304324 *Qty: 2 SCREW $1.42
Location: 13 Prev | Next Part: 12637824 *Qty: 3 WASHER $0.90
Location: 14 Prev | Next Part: 213326 *Qty: 1 DIRECTION-EMERGENCY LIGHT RELAY -Valid for USA and CDN Call
Location: 14 Prev | Next Part: 171798 *Qty: 1 DIRECTION-EMERGENCY LIGHT RELAY -Not for USA and CDN $218.43
Location: 15 Prev | Next Part: 10902224 *Qty: 1 SCREW $0.90
Location: 16 Prev | Next Part: 12601274 *Qty: 1 WASHER $0.90
Location: 17 Prev | Next Part: 180199 *Qty: 1 WINDSHIELD WIPER INTERMITTER $133.51
Location: 18 Prev | Next Part: 171455 *Qty: 1 LIGHTWASHERS TIMER -Valid for lightwashers version $74.31
Location: 19 Prev | Next Part: 66215200 *Qty: 2 WATER PROTECTION CLOTH $19.85
Location: 20 Prev | Next Part: 102741 *Qty: 1 NUT $0.90
Location: 21 Prev | Next Part: 10519424 *Qty: 1 WASHER Call
Location: 22 Prev | Next Part: 14304324 *Qty: 2 SCREW $1.42
Location: 23 Prev | Next Part: 12637824 *Qty: 2 WASHER $0.90
Location: 24 Prev | Next Part: 181583 *Qty: 1 INTERMITTER FIXING BRACKET $6.59
Location: 25 Prev | Next Part: 170011 *Qty: 1 CLAMP $1.49
Location: 26 Prev | Next Part: 14304324 *Qty: 1 SCREW $1.42
Location: 27 Prev | Next Part: 12637824 *Qty: 1 WASHER $0.90
Location: 28 Prev | Next Part: 10902224 *Qty: 2 SCREW $0.90
Location: 29 Prev | Next Part: 10519424 *Qty: 2 WASHER Call
Location: 30 Prev | Next Part: 10441290 *Qty: 2 BRACKET WITH SHEATH $0.90
Location: 31 Prev | Next Part: 172943 *Qty: 1 FIXING BRACKET -Not for GD $9.03
Location: 31 Prev | Next Part: 175345 *Qty: 1 FIXING BRACKET -Valid for GD $20.54
Location: 32 Prev | Next Part: 15688170 *Qty: 2 SCREW $0.90
Location: 33 Prev | Next Part: 40136707 *Qty: 2 CLIP $1.90
Location: 34 Prev | Next Part: 67603300 *Qty: 1 SHIELD FOR INERTIAL SWITCH $127.12
Location: 35 Prev | Next Part: 14507787 *Qty: 1 PLUG $0.90
Location: 36 Prev | Next Part: 16296924 *Qty: 1 SCREW $0.90
Location: 37 Prev | Next Part: 102948 *Qty: 1 NUT $0.90
Location: 38 Prev | Next Part: 14496424 *Qty: 1 WASHER Superseded

* Quantity shown indicates the number of pieces used in the diagram.
