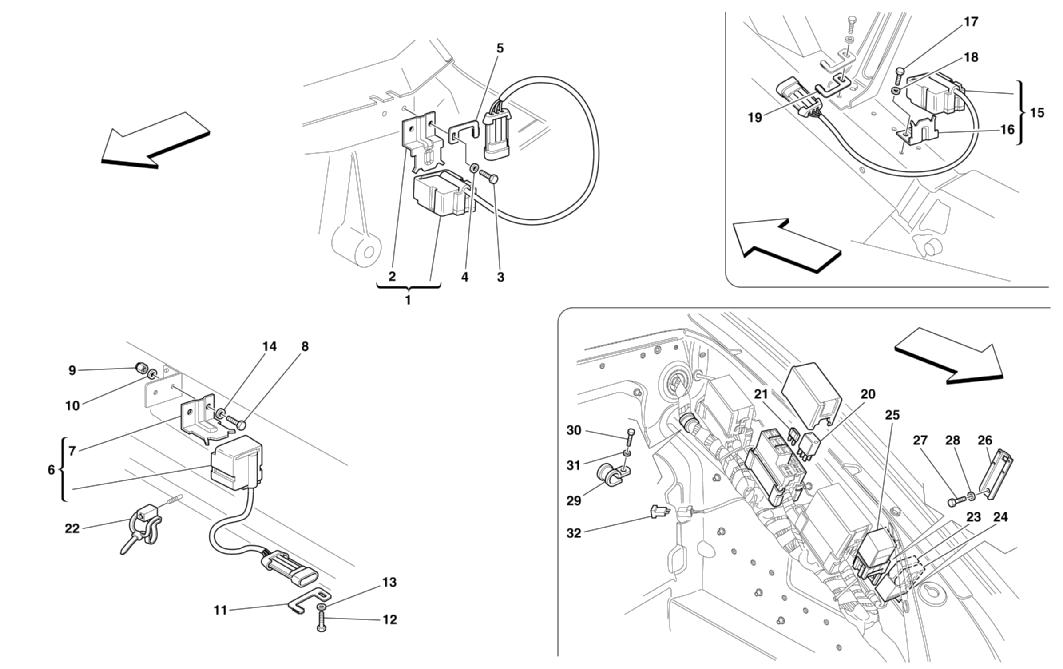

FRONT AND MOTOR COMPARTMENTS ELECTRICAL BOARDS AND SENSOR

Go to Split View

FRONT AND MOTOR COMPARTMENTS ELECTRICAL BOARDS AND SENSOR

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 175220 *Qty: 1 COMPLETE FRONT VERTICAL ACCELERATION SENSOR Superseded
Location: 2 Prev | Next Part: 178247 *Qty: 1 BRACKET Call
Location: 3 Prev | Next Part: 10902024 *Qty: 2 SCREW $0.90
Location: 4 Prev | Next Part: 12601274 *Qty: 2 WASHER $0.90
Location: 5 Prev | Next Part: 162606 *Qty: 2 CLIP $1.79
Location: 6 Prev | Next Part: 175221 *Qty: 1 COMPLETE FRONT LATERAL ACCELERATION SENSOR $122.36
Location: 7 Prev | Next Part: 178251 *Qty: 1 BRACKET $133.69
Location: 8 Prev | Next Part: 10902024 *Qty: 2 SCREW $0.90
Location: 9 Prev | Next Part: 10720111 *Qty: 2 NUT $0.90
Location: 10 Prev | Next Part: 12648277 *Qty: 2 WASHER $0.90
Location: 11 Prev | Next Part: 156198 *Qty: 1 CLIP $31.13
Location: 12 Prev | Next Part: 10902224 *Qty: 1 SCREW $0.90
Location: 13 Prev | Next Part: 10519424 *Qty: 1 WASHER Call
Location: 14 Prev | Next Part: 12601274 *Qty: 2 WASHER $0.90
Location: 15 Prev | Next Part: 176923 *Qty: 1 COMPLETE REAR VERTICAL ACCELERATION SENSOR Superseded
Location: 16 Prev | Next Part: 178249 *Qty: 1 BRACKET $37.15
Location: 17 Prev | Next Part: 10902024 *Qty: 2 SCREW $0.90
Location: 18 Prev | Next Part: 12601274 *Qty: 2 WASHER $0.90
Location: 19 Prev | Next Part: 156198 *Qty: 2 CLIP $31.13
Location: 20 Prev | Next Part: 172882 *Qty: 2 MICRO-RELAY 30 A. $34.94
Location: 20 Prev | Next Part: 161590 *Qty: 7 MICRO-RELAY 20 A. $25.01
Location: 21 Prev | Next Part: 172881 *Qty: 2 FUSE 30 A. $12.33
Location: 21 Prev | Next Part: 172878 *Qty: 6 FUSE 15 A. $8.56
Location: 21 Prev | Next Part: 172880 *Qty: 1 FUSE 25 A. $10.09
Location: 21 Prev | Next Part: 172875 *Qty: 4 FUSE 5 A. $12.13
Location: 21 Prev | Next Part: 172876 *Qty: 4 FUSE 7,5 A. $10.09
Location: 22 Prev | Next Part: 177553 *Qty: 1 CLAMP $1.07
Location: 23 Prev | Next Part: 166835 *Qty: 1 FUSE 40 A. $10.74
Location: 24 Prev | Next Part: 172881 *Qty: 1 FUSE 30 A. $12.33
Location: 25 Prev | Next Part: 183209 *Qty: 1 FRONT COMPARTMENT LIGHT TIMER $37.87
Location: 26 Prev | Next Part: 155184 *Qty: 2 FIXING BRACKET $15.39
Location: 27 Prev | Next Part: 10902024 *Qty: 2 SCREW $0.90
Location: 28 Prev | Next Part: 14496424 *Qty: 2 WASHER Superseded
Location: 29 Prev | Next Part: 10441790 *Qty: 1 BRACKET WITH SHEATH $0.97
Location: 30 Prev | Next Part: 10902424 *Qty: 1 SCREW $0.90
Location: 31 Prev | Next Part: 10519424 *Qty: 1 WASHER Call
Location: 32 Prev | Next Part: 200852 *Qty: 1 BRACKET -Valid for CDN $65.96

* Quantity shown indicates the number of pieces used in the diagram.
