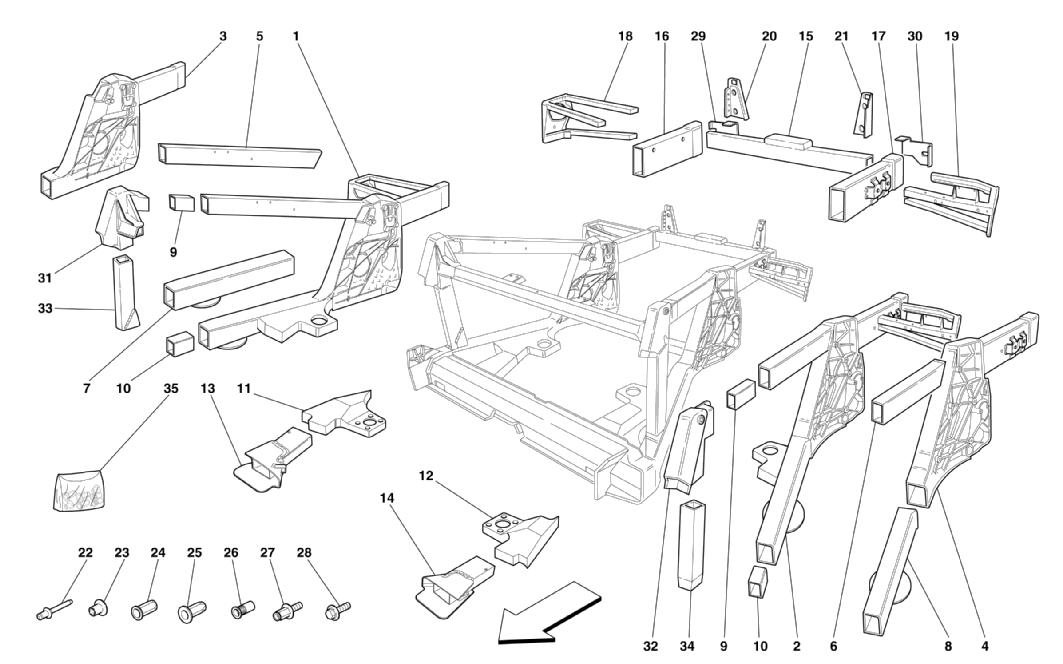

FRAME - REAR ELEMENTS SUB-GROUPS

Go to Split View

FRAME - REAR ELEMENTS SUB-GROUPS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 67977800 *Qty: 1 COMPLETE R.H. SIDE FRAME Call
Location: 2 Prev | Next Part: 67977900 *Qty: 1 COMPLETE L.H. SIDE FRAME Call
Location: 3 Prev | Next Part: 67977600 *Qty: 1 R.H. REAR LATERAL CASTING Call
Location: 4 Prev | Next Part: 67977700 *Qty: 1 L.H. REAR LATERAL CASTING $9,285.82
Location: 5 Prev | Next Part: 166227 *Qty: 1 R.H. UPPER FRAME Call
Location: 6 Prev | Next Part: 166127 *Qty: 1 L.H. UPPER FRAME Call
Location: 7 Prev | Next Part: 66465000 *Qty: 1 R.H. LOWER FRAME Call
Location: 8 Prev | Next Part: 66465100 *Qty: 1 L.H. LOWER FRAME Call
Location: 9 Prev | Next Part: 181980 *Qty: 0 CORE FOR REPAIR $41.83
Location: 10 Prev | Next Part: 181979 *Qty: 0 CORE FOR REPAIR $41.83
Location: 11 Prev | Next Part: 6187237 *Qty: 1 R.H. BRACKET ENGINE SUPPORT -Valid till car Nr. 138027 Call
Location: 11 Prev | Next Part: 195208 *Qty: 1 R.H. BRACKET ENGINE SUPPORT -Valid from car Nr. 120069 for GS and 120194 for GD -Valid from ca Call
Location: 12 Prev | Next Part: 6187137 *Qty: 1 L.H. BRACKET ENGINE SUPPORT -Valid till car Nr. 138027 Call
Location: 12 Prev | Next Part: 195207 *Qty: 1 L.H. BRACKET ENGINE SUPPORT -Valid from car Nr. 138028 Call
Location: 13 Prev | Next Part: 65942200 *Qty: 1 R.H. SUPPORT FOR BRACKET $681.39
Location: 14 Prev | Next Part: 65942300 *Qty: 1 L.H. SUPPORT FOR BRACKET Call
Location: 15 Prev | Next Part: 183978 *Qty: 1 REAR BUMPER CROSS MEMBER Call
Location: 16 Prev | Next Part: 203115 *Qty: 1 R.H. REAR FRAME Call
Location: 17 Prev | Next Part: 203116 *Qty: 1 L.H. REAR FRAME Call
Location: 18 Prev | Next Part: 64810000 *Qty: 1 R.H. REAR FENDER FRAME $275.09
Location: 19 Prev | Next Part: 65995500 *Qty: 1 L.H. REAR FENDER FRAME $184.98
Location: 20 Prev | Next Part: 65151611 *Qty: 1 R.H. SIDE BRACKET Call
Location: 21 Prev | Next Part: 65151711 *Qty: 1 L.H. SIDE BRACKET $108.36
Location: 22 Prev | Next Part: 66292300 *Qty: 0 HALF REPOTTED HEAD RIVET $2.40
Location: 22 Prev | Next Part: 66292200 *Qty: 0 STANDARD HEAD RIVET $1.63
Location: 23 Prev | Next Part: 65133800 *Qty: 0 RIVET L. 6,4 mm $0.90
Location: 24 Prev | Next Part: 15624211 *Qty: 0 ESAGONAL RIVET M4 $1.22
Location: 24 Prev | Next Part: 15624511 *Qty: 0 ESAGONAL RIVET M8 $0.90
Location: 24 Prev | Next Part: 15624411 *Qty: 0 ESAGONAL RIVET M6 $0.90
Location: 24 Prev | Next Part: 15180411 *Qty: 0 BLIND ESAGONAL RIVET $1.01
Location: 24 Prev | Next Part: 15624311 *Qty: 0 ESAGONAL RIVET M5 $5.60
Location: 25 Prev | Next Part: 65151200 *Qty: 0 RIVET M6 $1.04
Location: 26 Prev | Next Part: 179299 *Qty: 0 RIVET M10 BLIND $2.04
Location: 26 Prev | Next Part: 65135000 *Qty: 0 RIVET M8 $1.54
Location: 26 Prev | Next Part: 65319800 *Qty: 0 RIVET M8 BLIND $1.06
Location: 26 Prev | Next Part: 65930400 *Qty: 0 RIVET M6 $1.26
Location: 26 Prev | Next Part: 166101 *Qty: 0 RIVET M4 $1.79
Location: 27 Prev | Next Part: 65065400 *Qty: 0 STUD ESAGONAL HEAD M6 $4.16
Location: 28 Prev | Next Part: 13836971 *Qty: 0 SCREW $0.90
Location: 29 Prev | Next Part: 166288 *Qty: 1 R.H. BRACKET Call
Location: 30 Prev | Next Part: 166188 *Qty: 1 L.H. BRACKET $16.12
Location: 31 Prev | Next Part: 6166261 *Qty: 1 R.H. UPPER FUSION REAR PILLAR $467.66
Location: 32 Prev | Next Part: 6166161 *Qty: 1 L.H. UPPER FUSION REAR PILLAR $467.66
Location: 33 Prev | Next Part: 66051200 *Qty: 1 COMPLETE R.H. REAR PANEL $238.20
Location: 34 Prev | Next Part: 66051100 *Qty: 1 COMPLETE L.H. REAR PANEL Call
Location: 35 Prev | Next Part: 70000950 *Qty: 1 INSERTS KIT FOR REPAIR $1,842.16

* Quantity shown indicates the number of pieces used in the diagram.
