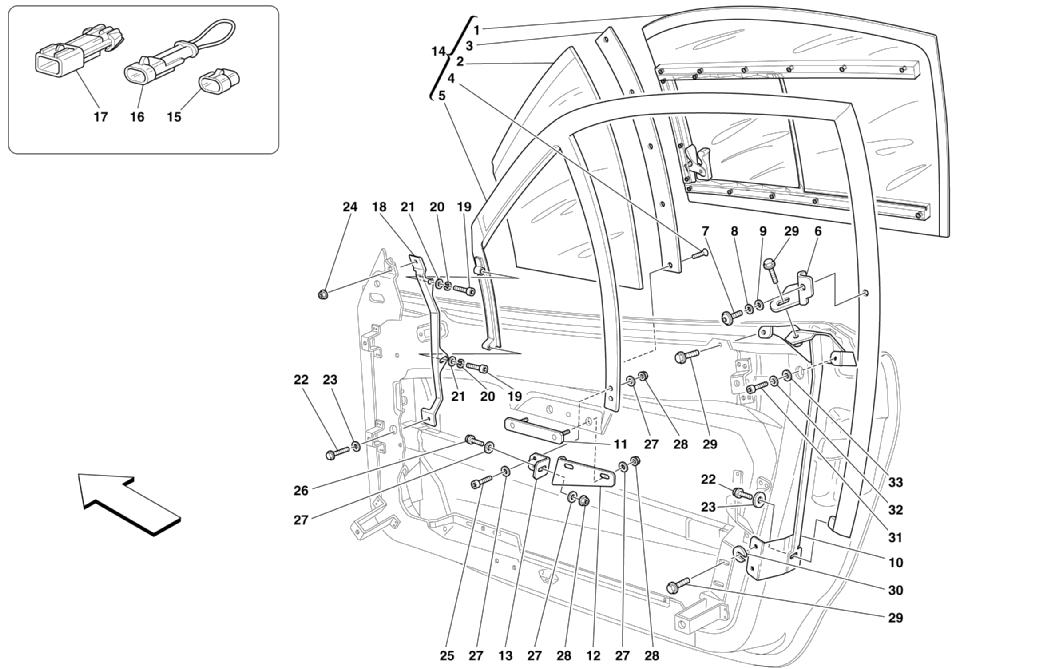

FIXING GLASS -OPTIONAL

Go to Split View

FIXING GLASS -OPTIONAL

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 67541100 *Qty: 1 L.H. LEXAN -Not as spare part -Arrived with the complete 67539700 ref. 14 Call
Location: 1 Prev | Next Part: 67541000 *Qty: 1 R.H. LEXAN -Not as spare part -Arrived with the complete 67539500 ref. 14 $3,605.09
Location: 2 Prev | Next Part: 67540800 *Qty: 1 R.H. GLASS -Not as spare part -Arrived with the complete 67539500 ref. 14 $467.71
Location: 2 Prev | Next Part: 67540900 *Qty: 1 L.H. GLASS -Not as spare part -Arrived with the complete 67539700 ref. 14 $467.71
Location: 3 Prev | Next Part: 67540700 *Qty: 1 L.H. AESTHETICS PLATE $184.86
Location: 3 Prev | Next Part: 67540600 *Qty: 1 R.H. AESTHETICS PLATE $184.86
Location: 4 Prev | Next Part: 67890700 *Qty: 8 SCREW $2.08
Location: 5 Prev | Next Part: 67890600 *Qty: 1 FRAME FOR L.H. DOOR $3,766.73
Location: 5 Prev | Next Part: 67890500 *Qty: 1 FRAME FOR R.H. DOOR $3,766.73
Location: 6 Prev | Next Part: 67831900 *Qty: 1 L.H. UPPER BRACKET $128.60
Location: 6 Prev | Next Part: 67831800 *Qty: 1 R.H. UPPER BRACKET $128.60
Location: 7 Prev | Next Part: 65366700 *Qty: 2 SCREW $1.26
Location: 8 Prev | Next Part: 12601177 *Qty: 2 WASHER $0.90
Location: 9 Prev | Next Part: 14446624 *Qty: 2 WASHER $0.90
Location: 10 Prev | Next Part: 67540200 *Qty: 1 R.H. REAR BRACKET $593.96
Location: 10 Prev | Next Part: 67540300 *Qty: 1 L.H. REAR BRACKET $593.96
Location: 11 Prev | Next Part: 66075200 *Qty: 2 BRACKET $7.52
Location: 12 Prev | Next Part: 67539800 *Qty: 1 R.H. PILLAR BRACKET $233.87
Location: 12 Prev | Next Part: 67539900 *Qty: 1 L.H. PILLAR BRACKET $233.87
Location: 13 Prev | Next Part: 67541600 *Qty: 1 L.H. FRONT BRACKET Call
Location: 13 Prev | Next Part: 67541500 *Qty: 1 R.H. FRONT BRACKET Call
Location: 14 Prev | Next Part: 67539700 *Qty: 1 COMPLETE FRAME FOR L.H. DOOR $8,224.52
Location: 14 Prev | Next Part: 67539500 *Qty: 1 COMPLETE FRAME FOR R.H. DOOR $8,224.52
Location: 15 Prev | Next Part: 175876 *Qty: 2 PROTECTION FOR CONNECTOR $57.27
Location: 16 Prev | Next Part: 209439 *Qty: 2 STAPLE FOR DOORS LOCKING $9.09
Location: 17 Prev | Next Part: 199125 *Qty: 2 PROTECTION FOR CONNECTOR Call
Location: 18 Prev | Next Part: 67540100 *Qty: 1 L.H. FRONT FRAME BRACKET $160.23
Location: 18 Prev | Next Part: 67540000 *Qty: 1 R.H. FRONT FRAME BRACKET $160.23
Location: 19 Prev | Next Part: 13027024 *Qty: 4 SCREW $0.90
Location: 20 Prev | Next Part: 12601274 *Qty: 4 WASHER $0.90
Location: 21 Prev | Next Part: 10519424 *Qty: 4 WASHER Call
Location: 22 Prev | Next Part: 13836324 *Qty: 4 SCREW $0.90
Location: 23 Prev | Next Part: 12640624 *Qty: 4 WASHER $0.90
Location: 24 Prev | Next Part: 13832101 *Qty: 2 NUT $0.90
Location: 25 Prev | Next Part: 14305424 *Qty: 4 SCREW Superseded
Location: 26 Prev | Next Part: 13836324 *Qty: 2 SCREW $0.90
Location: 27 Prev | Next Part: 12643724 *Qty: 16 WASHER $0.90
Location: 28 Prev | Next Part: 102948 *Qty: 10 NUT $0.90
Location: 29 Prev | Next Part: 13836324 *Qty: 8 SCREW $0.90
Location: 30 Prev | Next Part: 105864 *Qty: 8 WASHER $1.78
Location: 31 Prev | Next Part: 13274014 *Qty: 2 SCREW $0.90
Location: 32 Prev | Next Part: 12601174 *Qty: 2 WASHER $0.90
Location: 33 Prev | Next Part: 12638124 *Qty: 2 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
