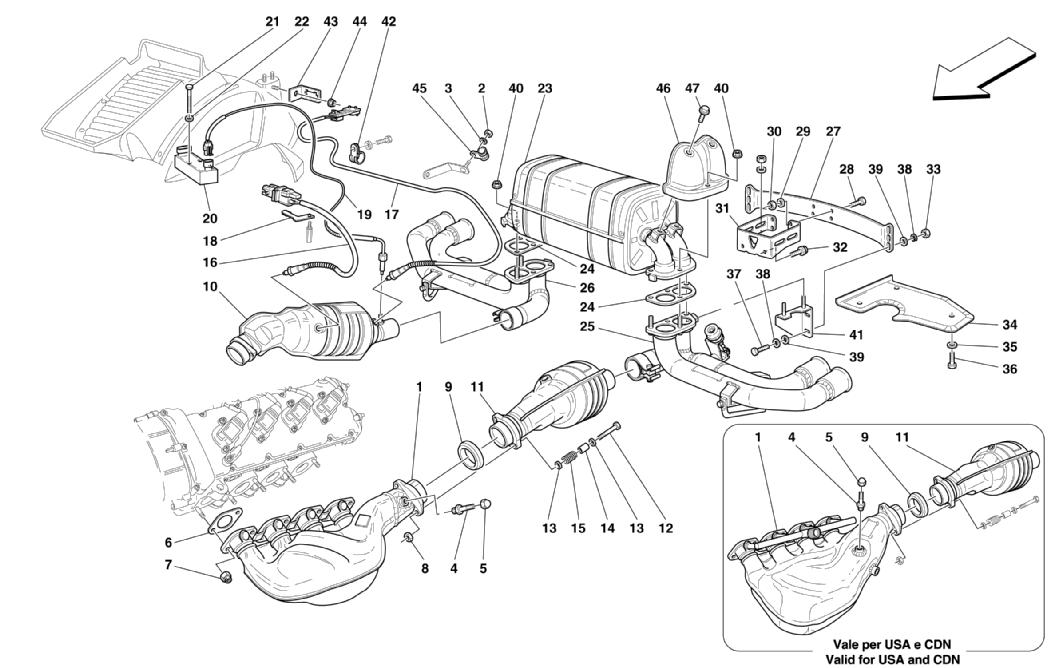

EXHAUST SYSTEM

Go to Split View

EXHAUST SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 184394 *Qty: 1 L.H. EXHAUST MANIFOLD -Valid for USA, CDN and J Call
Location: 1 Prev | Next Part: 189665 *Qty: 1 R.H. EXHAUST MANIFOLD -Not for USA, CDN and J $3,157.89
Location: 1 Prev | Next Part: 184393 *Qty: 1 R.H. EXHAUST MANIFOLD -Valid for USA,CDN and J $4,224.35
Location: 1 Prev | Next Part: 189666 *Qty: 1 L.H. EXHAUST MANIFOLD -Not for USA, CDN and J $3,157.89
Location: 2 Prev | Next Part: 10725914 *Qty: 1 NUT $0.90
Location: 3 Prev | Next Part: 14498804 *Qty: 1 WASHER Superseded
Location: 4 Prev | Next Part: 144240 *Qty: 2 THREADED UNION $47.84
Location: 5 Prev | Next Part: 150595 *Qty: 2 CAP NUT $1.16
Location: 6 Prev | Next Part: 151064 *Qty: 8 GASKET $7.42
Location: 7 Prev | Next Part: 138392 *Qty: 16 NUT $1.42
Location: 8 Prev | Next Part: 114748 *Qty: 4 NUT $0.90
Location: 9 Prev | Next Part: 159914 *Qty: 2 GASKET $23.83
Location: 10 Prev | Next Part: 181966 *Qty: 1 R.H. CATALYST -Valid for USA, CDN e J $7,466.76
Location: 10 Prev | Next Part: 199064 *Qty: 1 R.H. CATALYST -Not for USA, CDN and J $4,302.21
Location: 11 Prev | Next Part: 181967 *Qty: 1 L.H. CATALYST -Valid for USA, CDN and J $7,466.76
Location: 11 Prev | Next Part: 199065 *Qty: 1 L.H. CATALYST -Not for USA, CDN and J $4,302.21
Location: 12 Prev | Next Part: 16044834 *Qty: 4 SCREW $0.90
Location: 13 Prev | Next Part: 12646778 *Qty: 8 WASHER $0.90
Location: 14 Prev | Next Part: 114749 *Qty: 4 SPACER $1.25
Location: 15 Prev | Next Part: 111743 *Qty: 4 SPRING Call
Location: 16 Prev | Next Part: 182837 *Qty: 2 FRONT LAMBDA FEELER $240.00
Location: 17 Prev | Next Part: 180915 *Qty: 2 REAR LAMBDA FEELER $175.00
Location: 18 Prev | Next Part: 199901 *Qty: 2 CONNECTOR FIXING BRACKET Call
Location: 19 Prev | Next Part: 193467 *Qty: 2 THERMOCOUPLE $313.66
Location: 20 Prev | Next Part: 179278 *Qty: 2 CATALYST TEMPERATURE CONTROL STATION $299.00
Location: 21 Prev | Next Part: 15210824 *Qty: 4 SCREW $0.90
Location: 22 Prev | Next Part: 10519224 *Qty: 4 WASHER $0.90
Location: 23 Prev | Next Part: 195811 *Qty: 1 COMPLETE EXHAUST SILENCER $3,941.40
Location: 24 Prev | Next Part: 177612 *Qty: 2 GASKET $27.00
Location: 25 Prev | Next Part: 199061 *Qty: 1 COMPLETE L.H. OUTLET PIPE -Valid till Ass. Nr. 53910 for AUS $2,439.18
Location: 25 Prev | Next Part: 212938 *Qty: 1 COMPLETE L.H. OUTLET PIPE -Valid from Ass. Nr. 53911 for AUS $3,028.99
Location: 26 Prev | Next Part: 199060 *Qty: 1 COMPLETE R.H. OUTLET PIPE -Valid till Ass. Nr. 53910 for AUS $2,439.18
Location: 26 Prev | Next Part: 212937 *Qty: 1 COMPLETE R.H. OUTLET PIPE -Valid from Ass. Nr. 53911 for AUS $3,123.65
Location: 27 Prev | Next Part: 195803 *Qty: 1 SILENCER SUPPORT EXHAUST SIDE $265.18
Location: 28 Prev | Next Part: 16043324 *Qty: 4 SCREW $0.90
Location: 29 Prev | Next Part: 127496 *Qty: 4 WASHER $0.90
Location: 30 Prev | Next Part: 16100824 *Qty: 4 NUT $0.90
Location: 31 Prev | Next Part: 212691 *Qty: 1 SILENCER SUPPORT GEAR SIDE $331.83
Location: 32 Prev | Next Part: 16043434 *Qty: 4 SCREW $0.90
Location: 33 Prev | Next Part: 16100824 *Qty: 4 NUT $0.90
Location: 34 Prev | Next Part: 196339 *Qty: 1 R.H. SHIELD $398.04
Location: 34 Prev | Next Part: 196340 *Qty: 1 L.H. SHIELD $313.80
Location: 35 Prev | Next Part: 12625224 *Qty: 4 WASHER $0.90
Location: 35 Prev | Next Part: 12643724 *Qty: 2 WASHER $0.90
Location: 36 Prev | Next Part: 10902424 *Qty: 2 SCREW -M6x18 $0.90
Location: 36 Prev | Next Part: 16043324 *Qty: 4 SCREW -M8x18 $0.90
Location: 37 Prev | Next Part: 16043534 *Qty: 4 SCREW $0.90
Location: 38 Prev | Next Part: 12646778 *Qty: 8 WASHER $0.90
Location: 39 Prev | Next Part: 127496 *Qty: 8 WASHER $0.90
Location: 40 Prev | Next Part: 179808 *Qty: 8 NUT $0.90
Location: 41 Prev | Next Part: 195715 *Qty: 1 R.H. BRACKET -Not as spare part -Replaced by 201155 Call
Location: 41 Prev | Next Part: 195711 *Qty: 1 L.H. BRACKET -Not as spare part -Replaced by 201156 Call
Location: 41 Prev | Next Part: 201155 *Qty: 1 R.H. BRACKET $189.45
Location: 41 Prev | Next Part: 201156 *Qty: 1 L.H. BRACKET $189.45
Location: 42 Prev | Next Part: 10441390 *Qty: 1 BRACKET WITH SHEATH $0.90
Location: 43 Prev | Next Part: 178366 *Qty: 2 CONNECTORS FIXING BRACKET $2.36
Location: 44 Prev | Next Part: 14059211 *Qty: 1 NUT $0.90
Location: 45 Prev | Next Part: 10440990 *Qty: 1 BRACKET WITH SHEATH $1.90
Location: 46 Prev | Next Part: 203904 *Qty: 2 PROTECTION FOR MUFFLER $235.80
Location: 47 Prev | Next Part: 206161 *Qty: 4 SCREW $12.85

* Quantity shown indicates the number of pieces used in the diagram.
